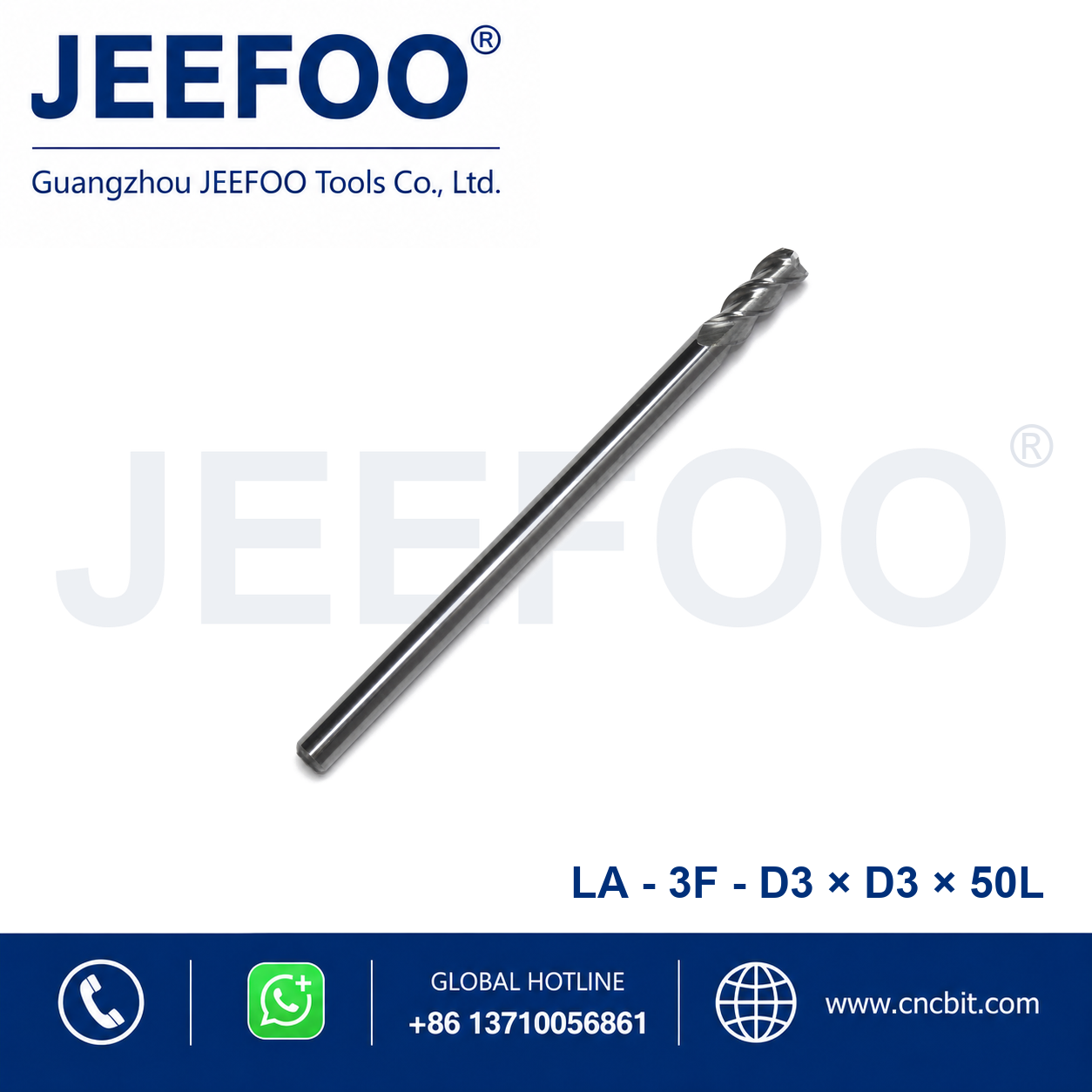

3x3x50L 3-flute aluminum square end mill for No Scratch Cutting Acrylic Panel
The 3x3x50L 3-flute aluminum square end mill from JEEFOO in Guangzhou, China is designed for smooth CNC routing of no scratch cutting acrylic panel, channel letters, display parts and sign components. Its 3 mm cutting diameter, 3 mm shank and 50 mm overall length support detailed profiles, grooves and edge finishing in acrylic, PVC, plastic board, plywood and selected wood products.
- Cutting diameter: 3 mm
- Overall length: 50 mm
- Geometry: three polished flutes with square end
- Grade: solid carbide for aluminum alloys
- Main use: acrylic sign and advertising-panel machining
How an 3x3x50L 3-flute aluminum square end mill Produces High-Gloss Edges
An 3x3x50L 3-flute aluminum square end mill for CNC mini-word and sign making is designed to create clean grooves, crisp lettering and bright machined surfaces in cast or compatible acrylic sheet. AA-grade high-gloss work depends on a sharp cutting edge, low runout, controlled chip load and effective chip evacuation. The cutter should remove a consistent chip instead of rubbing the plastic, because rubbing generates heat and can create whitening, melting or welded chips.
Applications in Acrylic Sign Making
This tool style supports CNC routing of small channel letters, mini-word profiles, decorative grooves, logos and detailed sign components. The final result also depends on acrylic grade, sheet thickness, machine rigidity, holder accuracy and the programmed toolpath. Confirm the cutter diameter, flute length, shank and overall reach against the drawing before machining, especially when narrow features or deep walls limit clearance.
For a polished appearance, leave a controlled and even amount of stock for the finishing pass. Avoid forcing a worn edge through the final surface. A light, continuous finishing toolpath usually gives more predictable results than repeated stop-start contact. Use a lead-in and lead-out that keeps dwell marks away from the visible face of the sign.
CNC Setup and Chip Evacuation
Clean the collet, nut and spindle taper before installing the 3x3x50L 3-flute aluminum square end mill. Clamp only the straight shank, keep overhang as short as the required reach permits and verify spindle direction. Secure the acrylic sheet on a flat support so it cannot lift or vibrate. Vacuum tables, fixtures and sacrificial boards should be checked before the finishing pass.
Use clean compressed air or another machine-approved chip-control method to move chips away from the cutting zone. Recut acrylic chips can scratch the surface and raise temperature. Start with parameters recommended by the cutter, machine and material suppliers, then make small adjustments while observing chip form, sound and edge quality. Do not copy a setting from a different tool diameter without recalculating the actual cutting conditions.
Quality Control for Mini-Word Machining
Inspect the first component under strong, neutral lighting. Look for haze, burrs, chatter lines, melted particles and dimensional drift. If the finish changes, check tool runout, edge condition, sheet support and chip removal before changing several parameters at once. Record the proven holder, gauge length, spindle speed, feed, pass depth and finishing allowance for repeat orders.
Replace or professionally service the cutter when wear begins to round detailed corners or reduce gloss. A damaged tool can create inconsistent lettering even when the CNC program is correct. Stop after any collision and inspect the cutting edge before resuming production. These controls protect both the workpiece and the repeatability expected from AA-grade sign components.
JEEFOO Support from Guangzhou, China
JEEFOO supplies CNC cutting tools from Guangzhou, China for sign makers, distributors and OEM projects. Buyers can review related CNC milling cutter solutions and provide a drawing, acrylic type, machine information and required surface finish when requesting a recommendation. For broader process reference, consult the machine manufacturer and established milling knowledge resources.
Frequently Asked Questions
Why does acrylic turn white during cutting? Common causes include rubbing, excessive heat, a dull edge, poor chip evacuation or unstable workholding. Validate one factor at a time on scrap material.
How can a glossy finish be maintained? Keep the tool sharp, minimize runout, remove chips continuously and use a stable finishing pass with parameters proven on the actual acrylic grade.
This 3-flute aluminum square end mill supports fine slots, pockets, profiles and finishing passes in aluminum and compatible non-ferrous alloys.
For stable results with a 3-flute aluminum square end mill, minimize runout, use air blast or suitable lubrication and verify chip load on scrap material.

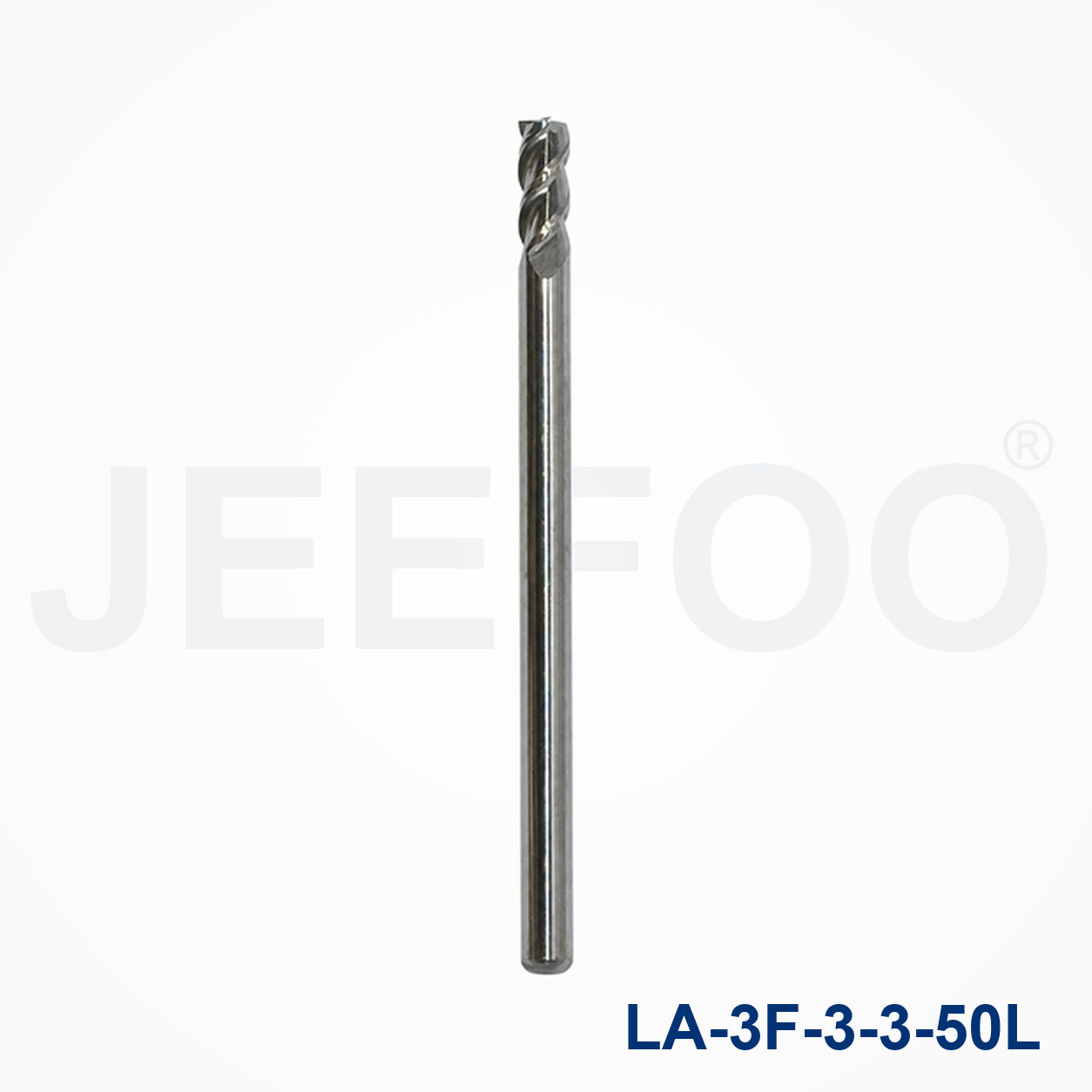

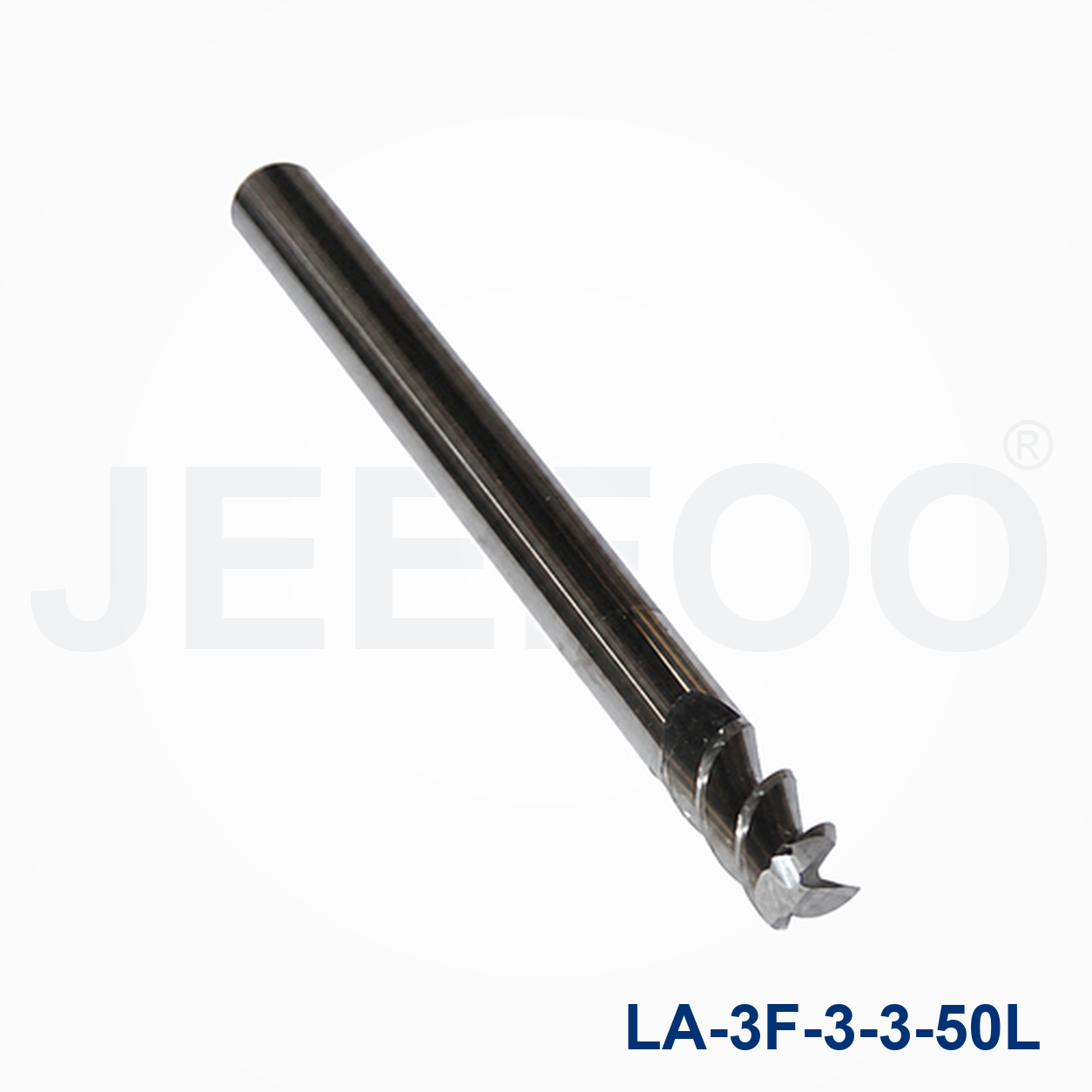

3x3x50L 3-Flute Aluminum Square End Mill
This solid carbide 3x3x50L 3-flute aluminum square end mill is designed for precise CNC machining of aluminum and aluminum alloys. The polished flute geometry reduces friction and supports smooth chip evacuation, helping prevent built-up edge during profiling, pocketing and finishing operations.
Product Specifications
- Cutting diameter: 3 mm
- Shank diameter: 3 mm
- Overall length: 50 mm
- Flutes: 3
- Tool material: Solid carbide
- End style: Square end
- Application: Aluminum and aluminum alloys
The compact 3 mm tool diameter is suitable for fine slots, small contours and detailed aluminum components while the short 50 mm length helps preserve rigidity. The square end supports accurate flat-bottom machining and clean vertical walls. Use low runout, suitable spindle speed and feed, and air blast or coolant to maintain reliable chip removal and consistent surface quality.
Recommended Uses
Suitable for CNC routers, machining centers and engraving machines cutting aluminum plate, profiles and non-ferrous components. The 3-flute design provides a practical balance of rigidity, finish and productivity for everyday aluminum machining.
