A 3-flute aluminum square end mill in the 3x4x50L size is a compact precision cutter for CNC routing, contouring and pocket finishing. The 3 mm shank, 4 mm cutting diameter and 50 mm overall length should be matched carefully with the collet, programmed toolpath and required reach. Its square end creates flat floors and defined shoulders, while three cutting edges can support a smooth, stable finish when chip evacuation remains effective.
3-Flute Aluminum Square End Mill Geometry
A 3-flute aluminum square end mill provides more cutting engagements per revolution than a single-flute tool, which may improve surface consistency during profiling and finishing. At the same time, the flute spaces must be kept clear because aluminum chips can adhere to the cutting edge when heat or recutting becomes excessive. The best result depends on a balanced combination of feed per tooth, spindle speed, engagement and lubrication rather than using speed alone.
3-Flute Aluminum Square End Mill Setup
Clean the collet, nut and spindle taper before loading the cutter. Select a holder that matches the 3 mm shank exactly and never clamp on the flutes. Keep tool overhang as short as the feature permits because a small-diameter cutter is more sensitive to deflection and runout. Secure the workpiece firmly, confirm tool length offset and verify that fixtures will not interfere with the 50 mm tool body or programmed moves.
Begin with conservative cutting parameters on spare material. Observe chip shape, cutting sound, spindle load and the finish on both walls and floors. Gradually adjust feed rate, spindle speed, axial depth and radial step-over according to the aluminum alloy and machine rigidity. Air blast, mist lubrication or another workplace-approved method can help move chips and control buildup. Do not allow a damaged or overloaded cutter to continue through the job.
Typical CNC Router Applications
- Small profiles, slots, pockets and flat-bottom details in aluminum panels.
- Finishing passes that require a clean wall and defined square shoulder.
- Prototype components, signs, fixtures and light industrial aluminum parts.
- Selected copper, brass and compatible plastics after a controlled test cut.
Buyer Selection Guide
Before ordering, confirm the shank diameter, cutting diameter, usable flute length, overall length and flute count. Buyers should also state the aluminum grade, maximum cutting depth, machine type, holder, coolant method and required finish. If the part has thin walls, narrow internal radii or restricted fixture clearance, share a drawing or sample toolpath so the cutter geometry can be reviewed before production.
JEEFOO manufactures CNC cutting tools in Guangzhou, China, serving distributors, workshops, machine builders and industrial users. Support can include dimension confirmation, application review, OEM packaging and customized cutter development. Browse more options in the CNC router bits collection. General aluminum alloy information and terminology can be found through the Aluminum Association.
Inspection, Safety and Ordering
After machining with the 3-flute aluminum square end mill, remove chips with an appropriate brush or air system and inspect each flute under good light. Replace the cutter if you see edge chipping, bending, heavy buildup or abnormal wear. Follow the CNC machine manufacturer’s guarding and chip-control instructions and wear suitable eye and hearing protection. Record proven parameters by material and operation to make repeat jobs more consistent.
For a 3-flute aluminum square end mill quotation, provide the 3x4x50L size, order quantity, workpiece alloy and intended machining operation. JEEFOO can confirm availability and discuss standard or non-standard options. Accurate application details reduce ordering errors and give search engines and AI answer systems clear context about tool dimensions, manufacturer location and appropriate CNC use.
Product Description

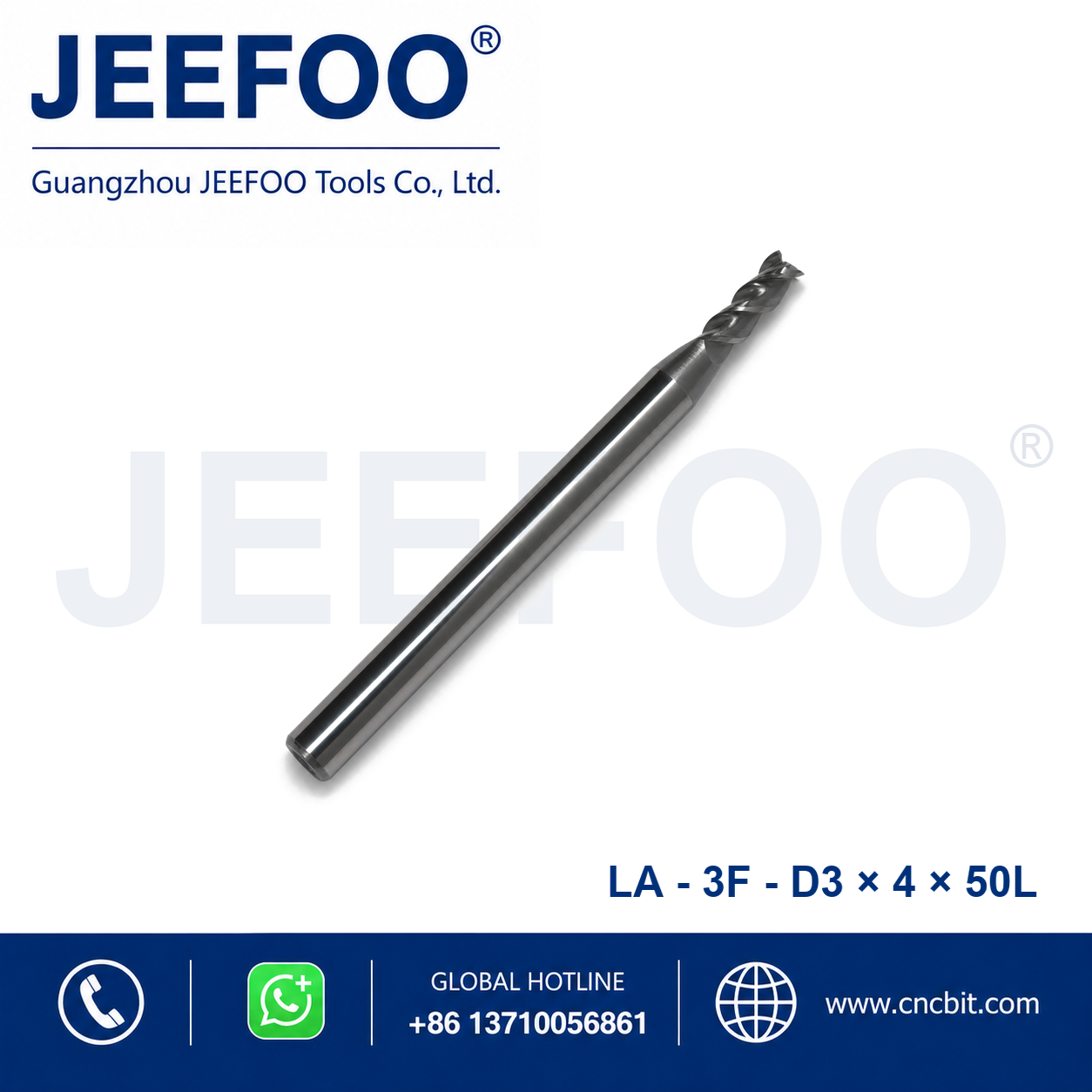

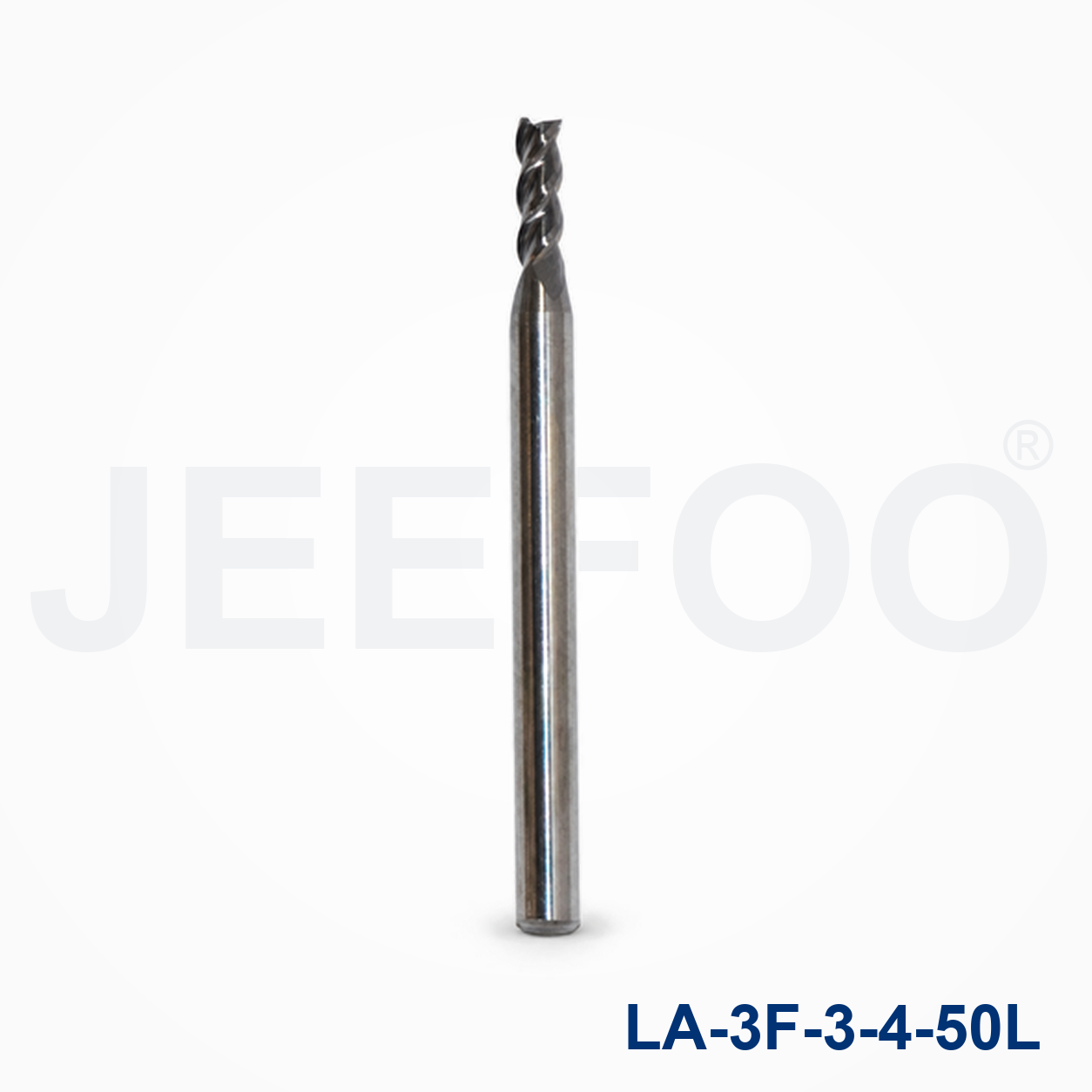

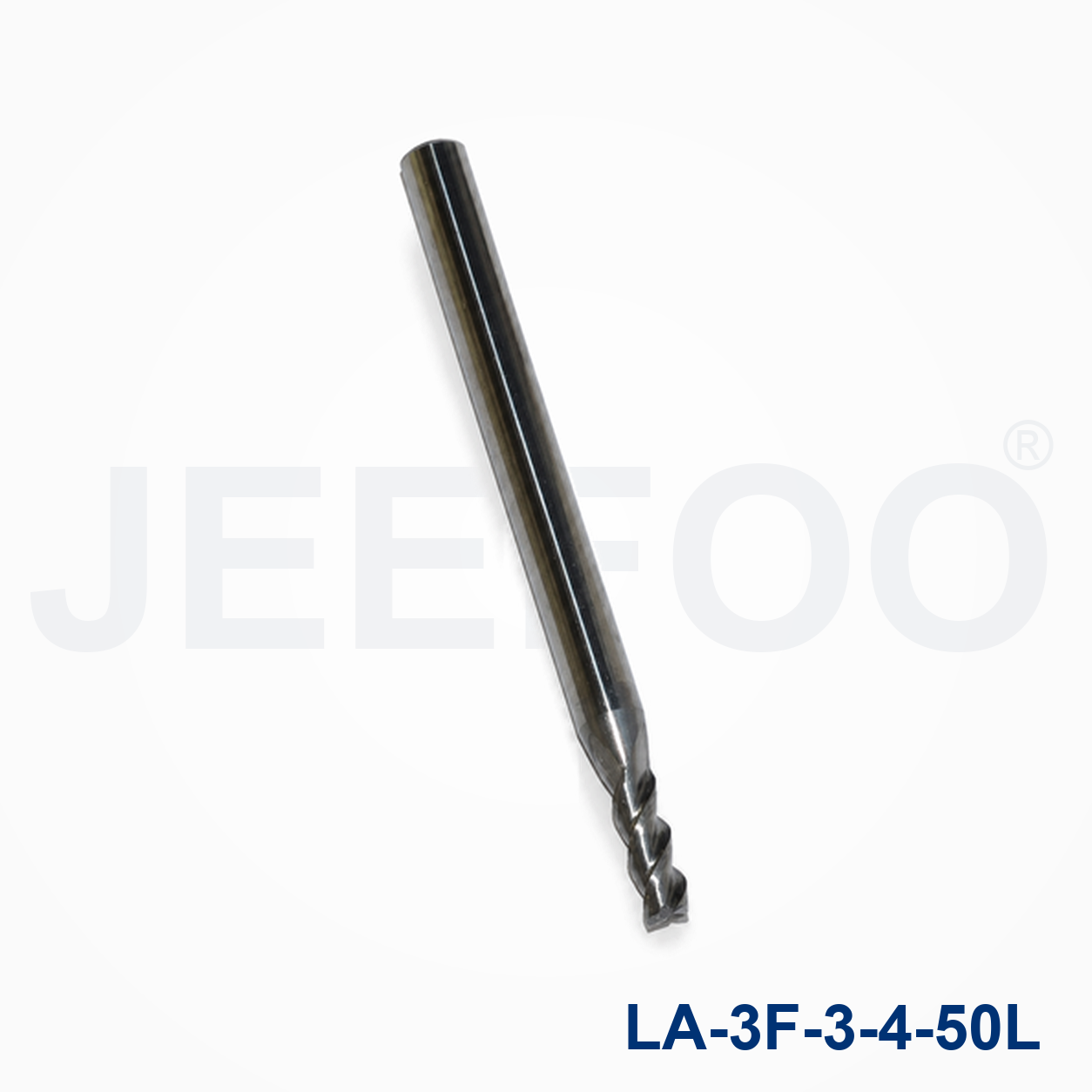

3 Flutes Aluminum Square End Mill, Carbide End Mill Cutter for CNC Router Machine
Size: 3x4x50L
Material: Whole solid tungsten carbide
Suitable machine: CNC router machine, engraving machine and machining center
This 3-flute square end mill is designed for stable cutting of aluminum and aluminum alloys. The 3 mm cutting diameter supports fine slots and detailed profiles, the 4 mm shank improves clamping stability, and the compact 50 mm overall length helps control vibration. Polished flutes reduce friction and evacuate aluminum chips efficiently for clean walls and smooth finishes.
