How a Two Spiral Flute Combination Cutter Works

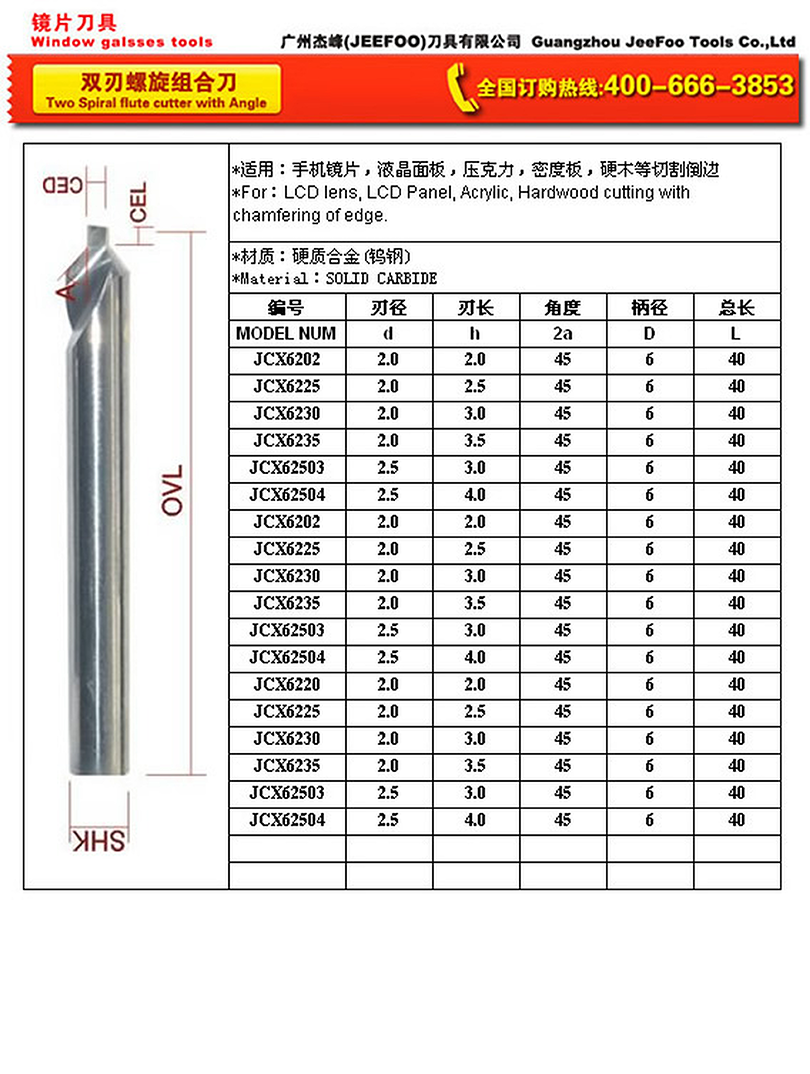

A two spiral flute combination cutter combines routing and angled edge machining in one compact CNC tool. The 45° specification is intended for detailed sign, acrylic and compatible sheet-processing work where a narrow cutting section and 45 degree formed profile are required. Confirm shank, cutting diameter, profile height, angle and overall length against the drawing before programming.
Single-Flute Chip Evacuation and 90 Degree Geometry
The two spiral flutes leaves a large channel for chip evacuation, helping reduce chip recutting and heat when the feed, spindle speed and extraction are correctly matched. The 45 degree section can form compatible V-grooves, bevels or combination cuts. Enter the exact tool profile in CAM because the finished width changes with cutting depth.
The angled cutting profile call for low runout and careful handling. A minor setup error can affect fine lettering or narrow details. Inspect the cutting edge under good lighting, clean the holder and verify that the collet matches the specified shank. Keep overhang as short as the application allows.
Applications in Acrylic and Sign Making
A two spiral flute combination cutter can support compatible acrylic mini-word, decorative groove, lettering, edge-bevel and sign-component operations. Material quality, sheet support, machine rigidity and chip removal all influence the final surface. Use a test piece from the actual material batch before running valuable parts or a complete production sheet.
For a clean visible edge, leave a consistent allowance for the finishing pass and avoid long dwell moves. Use lead-in and lead-out positions away from the most visible area. Vacuum support or fixtures should keep the sheet flat without distorting narrow features. Confirm that the tool and holder clear nearby walls throughout the programmed path.
Setup and Cutting Parameters
Start with parameters recommended by the cutter, CNC machine and material suppliers. Adjust speed, feed, pass depth and finishing allowance in small controlled steps while observing chip form, sound and edge clarity. The edge should cut a consistent chip instead of rubbing. Rubbing can increase heat and cause haze, melting or material buildup.
Use clean compressed air, extraction or another machine-approved chip-control method appropriate to the material and workplace. If chips remain in the groove, reduce recutting before increasing engagement. Stop if vibration or unusual sound appears, then check holder cleanliness, runout, workpiece support and cutting-edge condition.
Quality Control and Tool Life
Inspect the first component for groove width, angle, burrs, surface clarity and dimensional consistency. Record the holder, gauge length, spindle speed, feed, depth and material for a proven setup. Replace the cutter when cleaning and parameter verification no longer restore the required finish. Always inspect it after a collision.
JEEFOO Support from Guangzhou, China
JEEFOO supplies CNC engraving and routing tools from Guangzhou, China for sign shops, distributors and OEM projects. Buyers can review related engraving tools and provide the material, drawing, machine and holder when requesting confirmation of the 45° configuration. For broader process planning, consult established milling knowledge resources.
Frequently Asked Questions
Why use a two flutes? The large flute space supports chip evacuation in compatible plastics and sheet materials when the process is correctly set.
How is the 45 degree groove width controlled? It depends on the tool profile and programmed depth. Use the exact CAM model and measure the first cut.
What does 45 degree geometry indicate? It identifies the nominal angled profile; confirm whether the supplier specifies included or half angle before programming.
Product Description

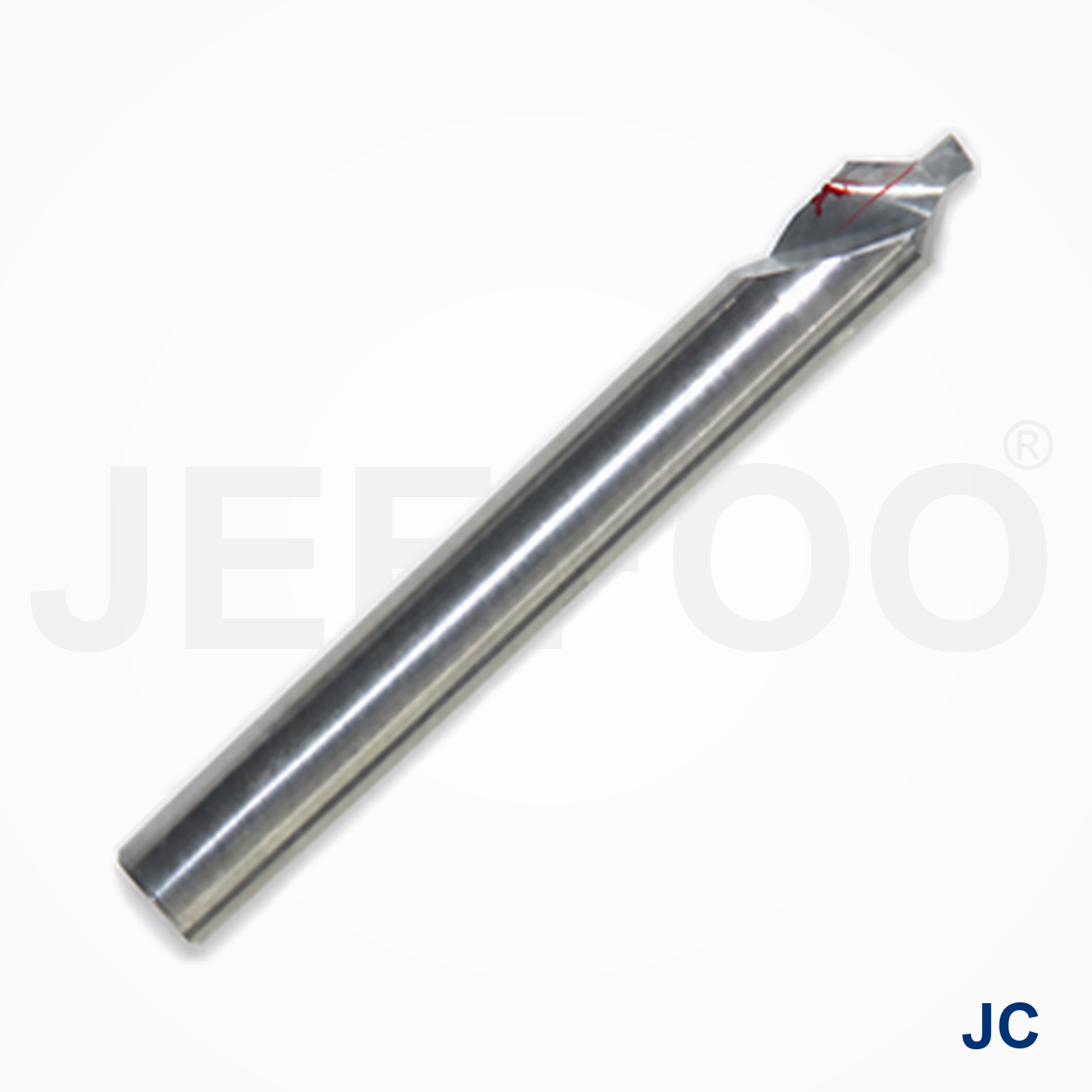

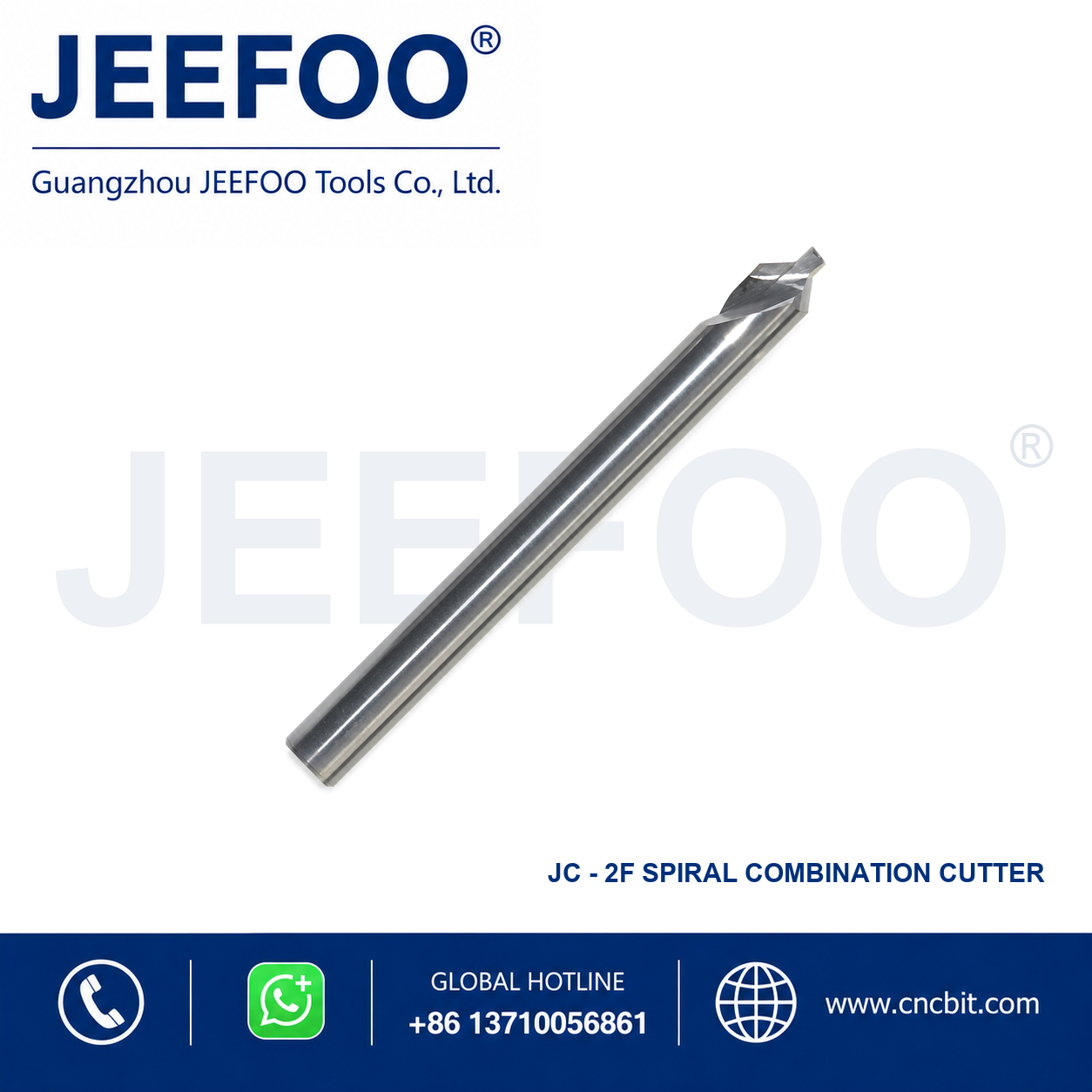

This two spiral flute cutter with angle is designed for LCD panels, acrylic parts, hardwood details and chamfered profile cutting. Size: 45° angle series.
The solid carbide body provides rigidity for accurate CNC machining, while the cutting-edge geometry supports smooth chip removal and a clean, controlled finish. Match the shank, cutting depth, material thickness and angle to the application. Use secure workholding, low runout, suitable spindle speed and conservative feed settings during initial testing.
