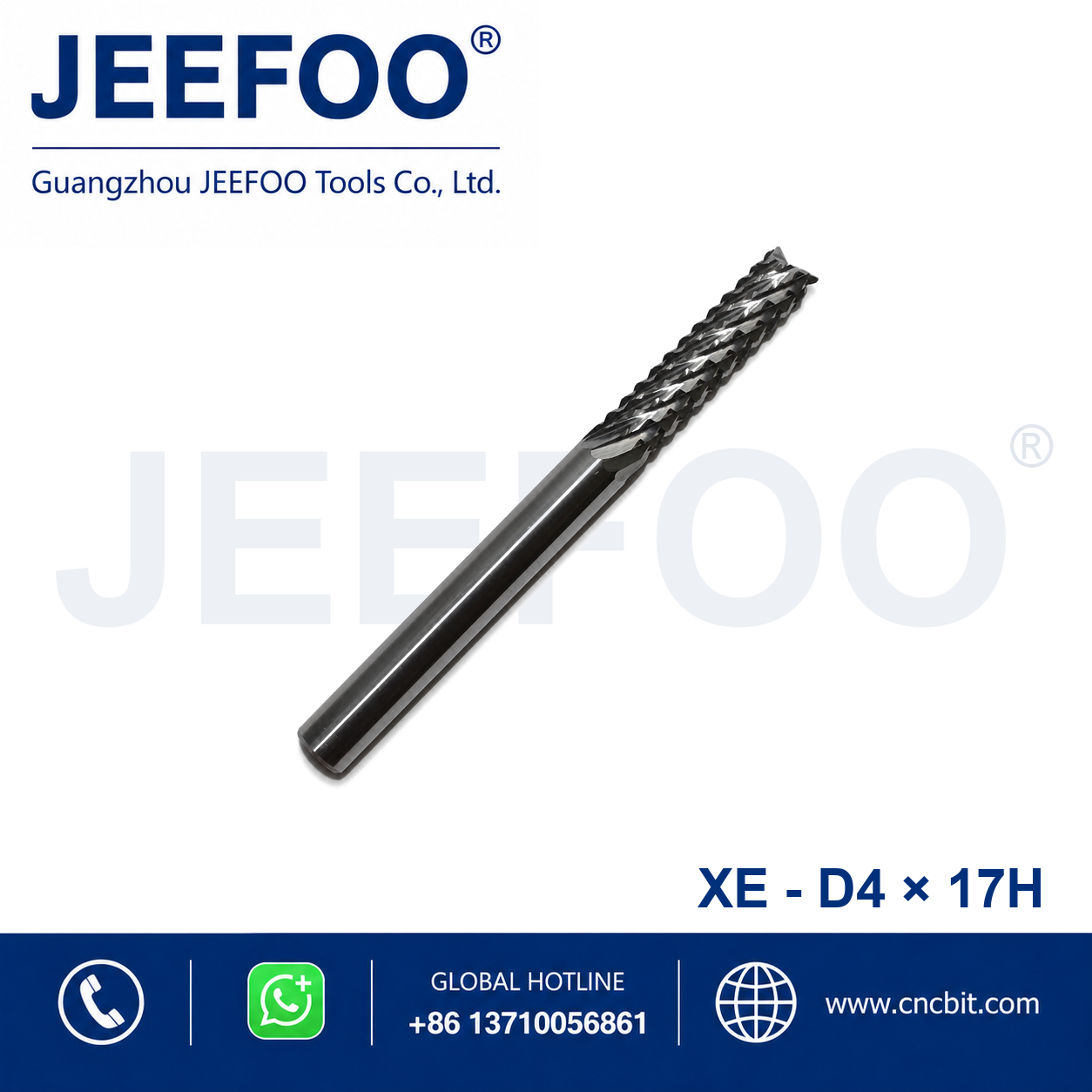

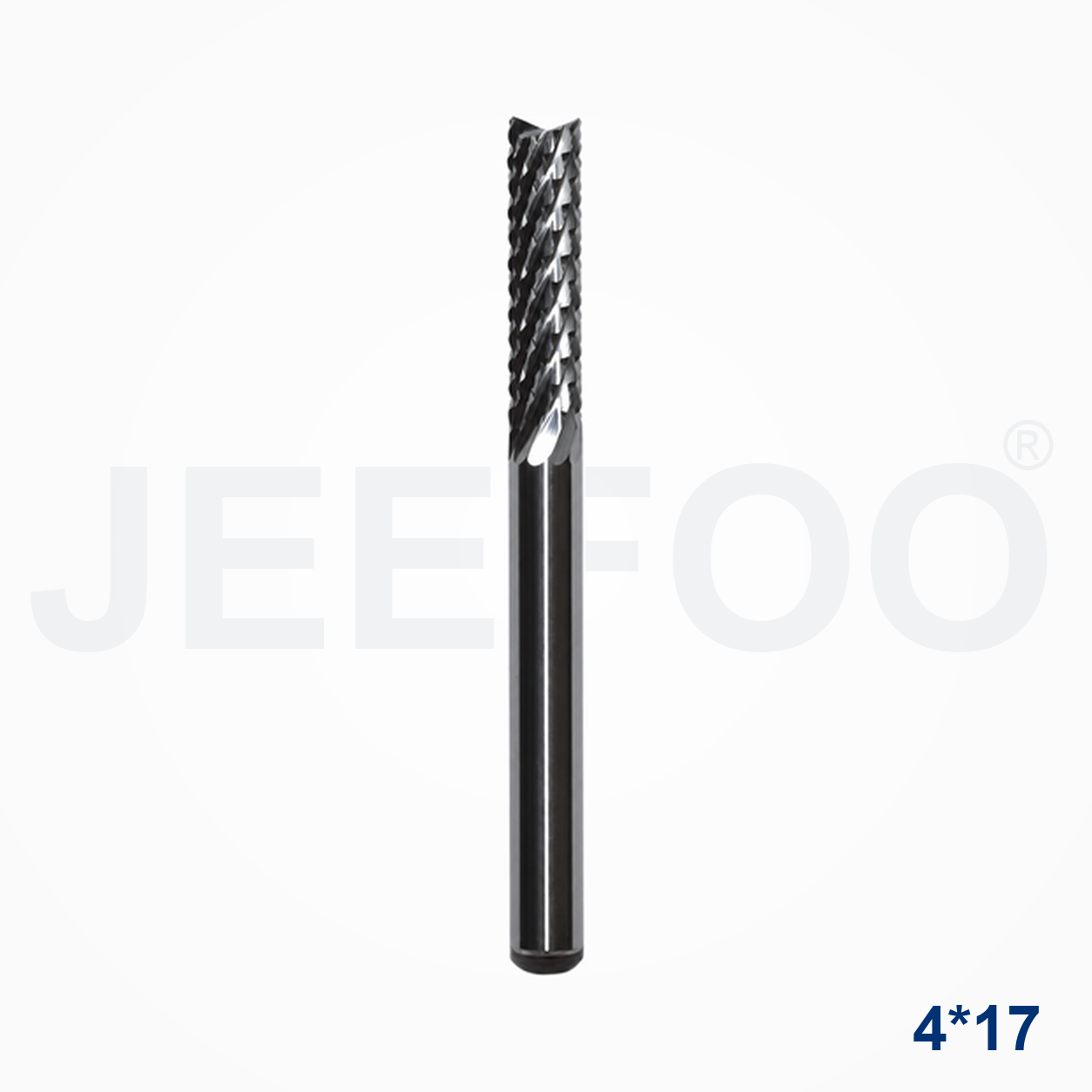

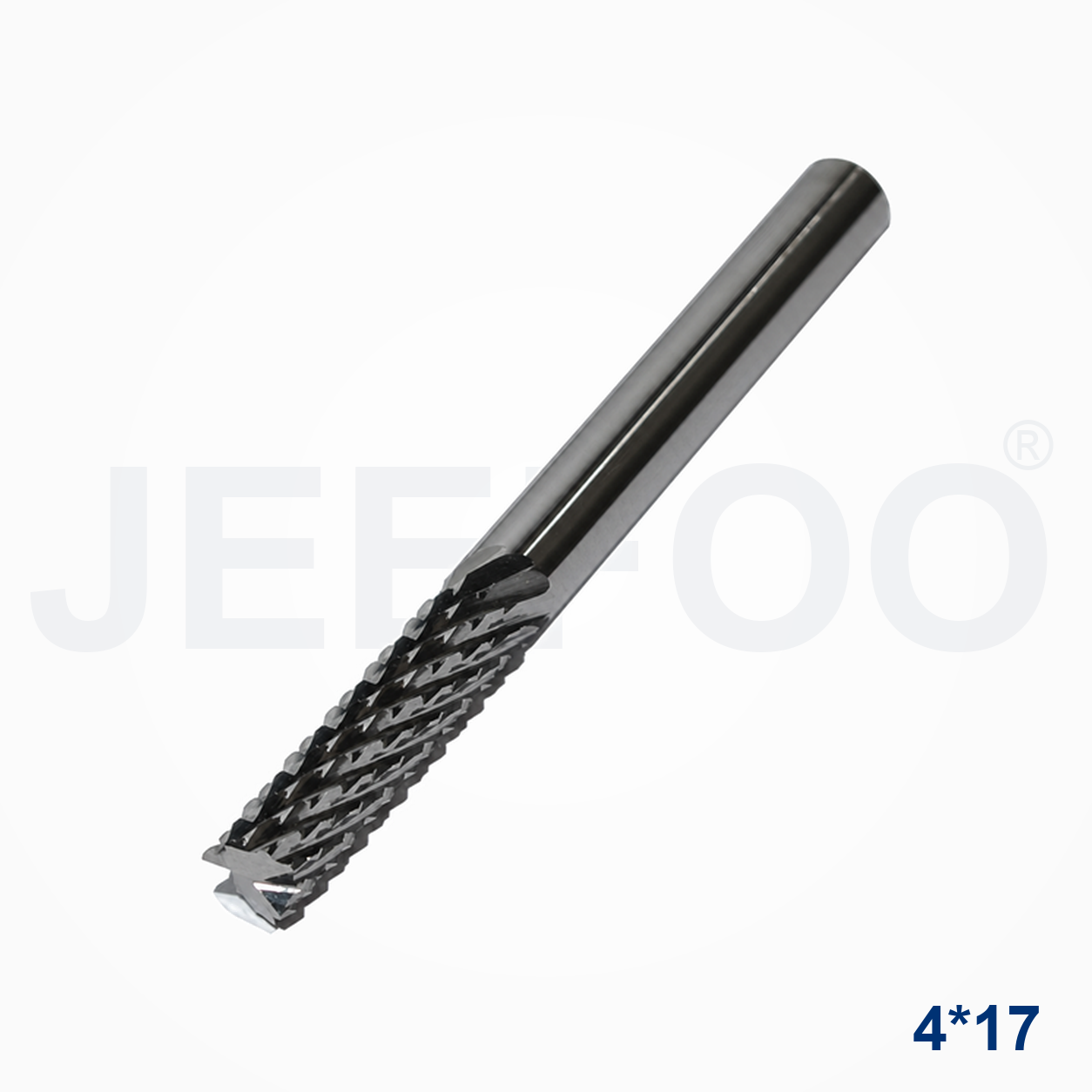

XE 4×17 PCB Router Bit for Accurate Board Cutting
The XE 4×17 PCB Router Bit is a solid carbide cutter for precision routing, profiling, and slotting in printed circuit boards and compatible composite sheets. Its compact 4×17 configuration supports controlled toolpaths and repeatable edge quality when the spindle, collet, workholding, and parameters are correctly matched. This guide covers features, materials, setup, maintenance, and ordering support.
Product Features
- XE 4×17 size for controlled PCB profile work
- Solid carbide construction for stable cutting and wear resistance
- Geometry designed for accurate slots and board edges
- Suitable for compatible CNC routers and rigid spindles
- Simple visual inspection before and after each production run
Materials and Applications
The cutter is intended for printed circuit boards, fiberglass-reinforced laminate, high-density fiber board, carbon-fiber sheet, hardwood, and other approved composites. Typical jobs include board profiling, shallow slots, contour trimming, and clearance cutting. Confirm material thickness, abrasive content, coating, and clamping stability before machining. Select the cutting length and toolpath to avoid excessive engagement.
Machine Setup Checklist
Inspect the shank, collet, spindle taper, and tool projection before installing the XE 4×17 PCB Router Bit. Secure the board across the complete cutting path and set the work origin carefully. Start with conservative spindle speed, feed rate, and depth of cut, then adjust in small steps after examining a sample made from the same material.
Good chip evacuation and suitable dust extraction help maintain the edge finish. Stop if chatter, delamination, burning, or unexpected noise appears. Check rotation direction, spindle runout, fixture rigidity, and cutter condition before restarting. Follow the machine manual and local safety procedures throughout setup and production.
Quality Control and Tool Care
Inspect the first routed part under consistent lighting and measure the profile where necessary. Record speed, feed, depth, tool projection, and surface result for successful jobs. Clean chips and resin using a carbide-safe method. Store the cutter separately so the cutting edge cannot strike other tools. Review the bit when edge quality changes or visible damage appears.
Ordering Support in Guangzhou
JEEFOO Tools supplies the XE 4×17 PCB Router Bit for electronics manufacturers and CNC workshops in Guangzhou, Guangdong, China. Send the machine, shank, material, thickness, and required profile so our team can confirm compatibility. Visit the CNC router tool product range to compare related cutters and request a quotation for repeat production.
Further CNC Reference
For general machine terminology, review the CNC router reference and combine it with your equipment manual and a documented sample-cut process.
Frequently Asked Questions
What is the XE 4×17 bit used for? It supports accurate PCB profiling, slots, contour trimming, and compatible composite board work.
How should parameters be selected? Begin conservatively, test matching stock, and tune speed, feed, and depth in small increments.
Can JEEFOO confirm the correct specification? Yes. Provide the machine, shank, material, and profile requirements for practical guidance.
