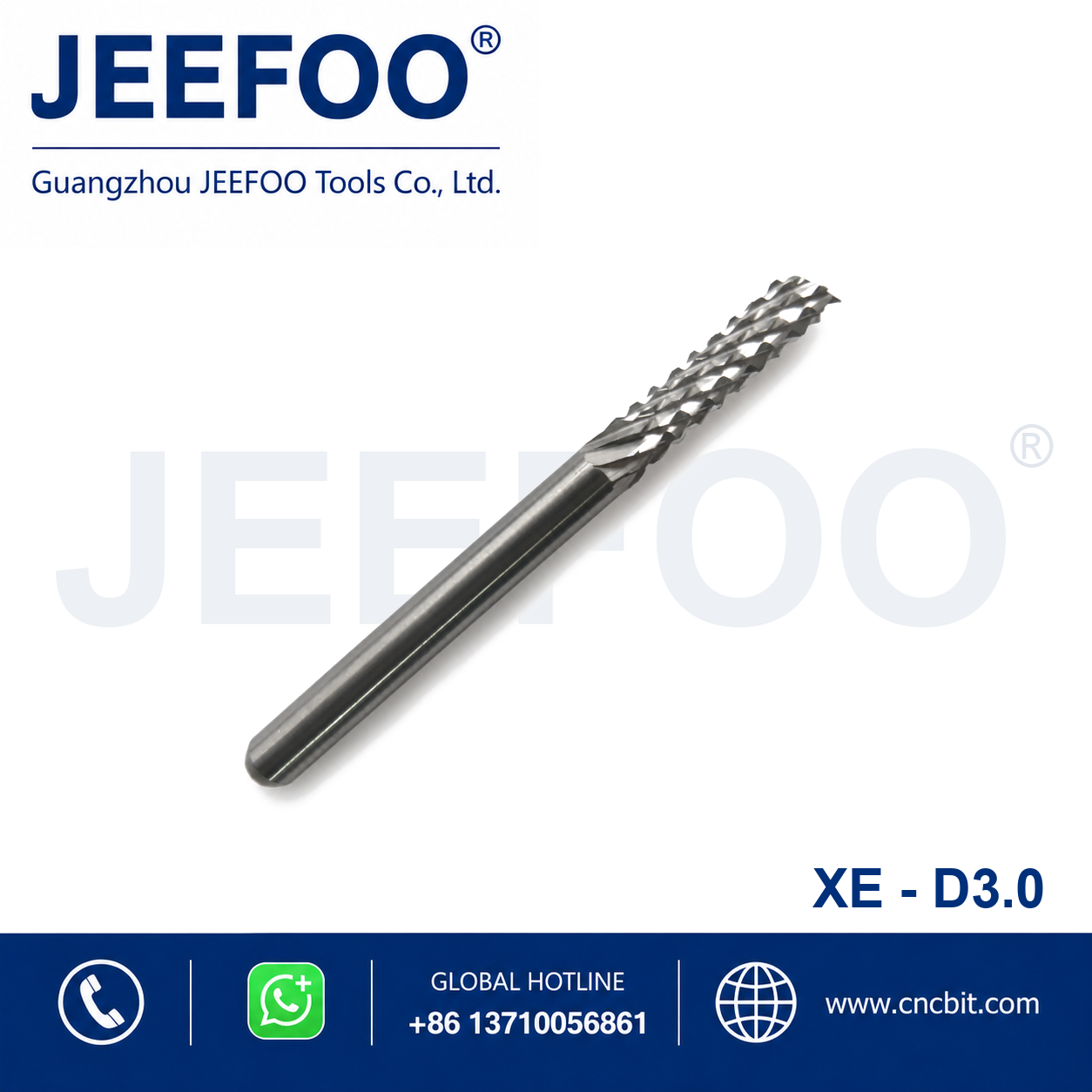

XE D3.0 PCB Router Bit for Precision PCB Routing
The XE D3.0 PCB Router Bit is a solid carbide routing tool developed for accurate profile cutting, slotting, depaneling, and edge finishing on printed circuit boards and compatible composites. Its 3.0 mm cutting diameter supports narrow slots, detailed contours, and controlled routing where accuracy and clean edge quality matter.
JEEFOO supplies this PCB router bit from Guangzhou, Guangdong, China, supporting factories, distributors, and CNC users with specification confirmation and consistent production supply. Before machining, check the collet, spindle runout, workholding, material thickness, extraction, and programmed toolpath.
Key Features and Cutting Benefits
Rigid Solid Carbide Construction
The fine-grain carbide body provides the rigidity and wear resistance required for continuous routing. Correct clamping and balanced parameters help the XE D3.0 PCB Router Bit maintain accurate profiles while reducing vibration, chatter, and premature edge wear.
Efficient Chip Evacuation
The flute geometry supports chip removal during routing. Effective extraction keeps dust and chips away from the cutting zone, reduces recutting, and helps protect the workpiece surface. Follow appropriate workshop safety procedures during every CNC operation.
Precise 3.0 mm Cutting Diameter
The 3.0 mm cutting diameter is suitable for detailed profiles, narrow slots, and compact features. Correct tool engagement, machine clearance, and cutting parameters help maintain stable routing and repeatable dimensions.
Recommended Applications
- PCB and compatible composite profile routing
- FR-4 and fiberglass-reinforced board machining
- Contours, slots, and edge-finishing operations
- High-density fiber board and compatible sheet cutting
- Production work requiring repeatable dimensional control
For general background about CNC routing equipment and motion control, see this CNC router reference. You can also review more JEEFOO CNC cutting tools for other materials and dimensions.
How to Use the XE D3.0 PCB Router Bit
Inspect the Tool and Holder
Check the cutting edge before installation. Clean the shank and collet, use a secure clamping depth, and never grip the flute area. Verify that the spindle, collet, and machine are suitable for the cutter and programmed speed.
Choose Safe Starting Parameters
Start with spindle speed, feed rate, and depth of cut appropriate for the workpiece, machine rigidity, and chip evacuation. Make a short test cut, inspect the edge, and then adjust parameters gradually. Avoid forcing the cutter or allowing heat to build at the cutting edge.
Maintain Secure Workholding
Keep the board or composite sheet flat and firmly supported. Stable fixtures minimize movement, protect finished edges, and improve dimensional consistency. Confirm tool clearance, spindle direction, and the complete toolpath before beginning the production cycle.
Guangzhou and Guangdong Supply Support
Based in Guangzhou, Guangdong, JEEFOO supports domestic and international buyers with routing-tool selection, packaging, and repeat-order supply. When requesting the XE D3.0 PCB Router Bit, share the board material, thickness, spindle type, expected quantity, and target edge quality so the recommended setup can match the application.
Frequently Asked Questions
What materials can this router bit machine?
It is intended for PCB-related routing and compatible fiberglass or composite sheet materials. Suitability depends on hardness, reinforcement, thickness, and machine conditions, so perform a controlled test before extended production.
How can service life be improved?
Use a clean precision collet, minimize spindle runout, provide effective chip extraction, keep the workpiece stable, and avoid excessive heat. Monitor edge quality and replace the tool before wear causes burrs, vibration, or dimensional drift.
How should the specification be confirmed?
Confirm the 3.0 mm cutting diameter, then verify the required cutting length, shank, and overall length for your spindle setup. Contact JEEFOO in Guangzhou, Guangdong, China if your project requires another size.

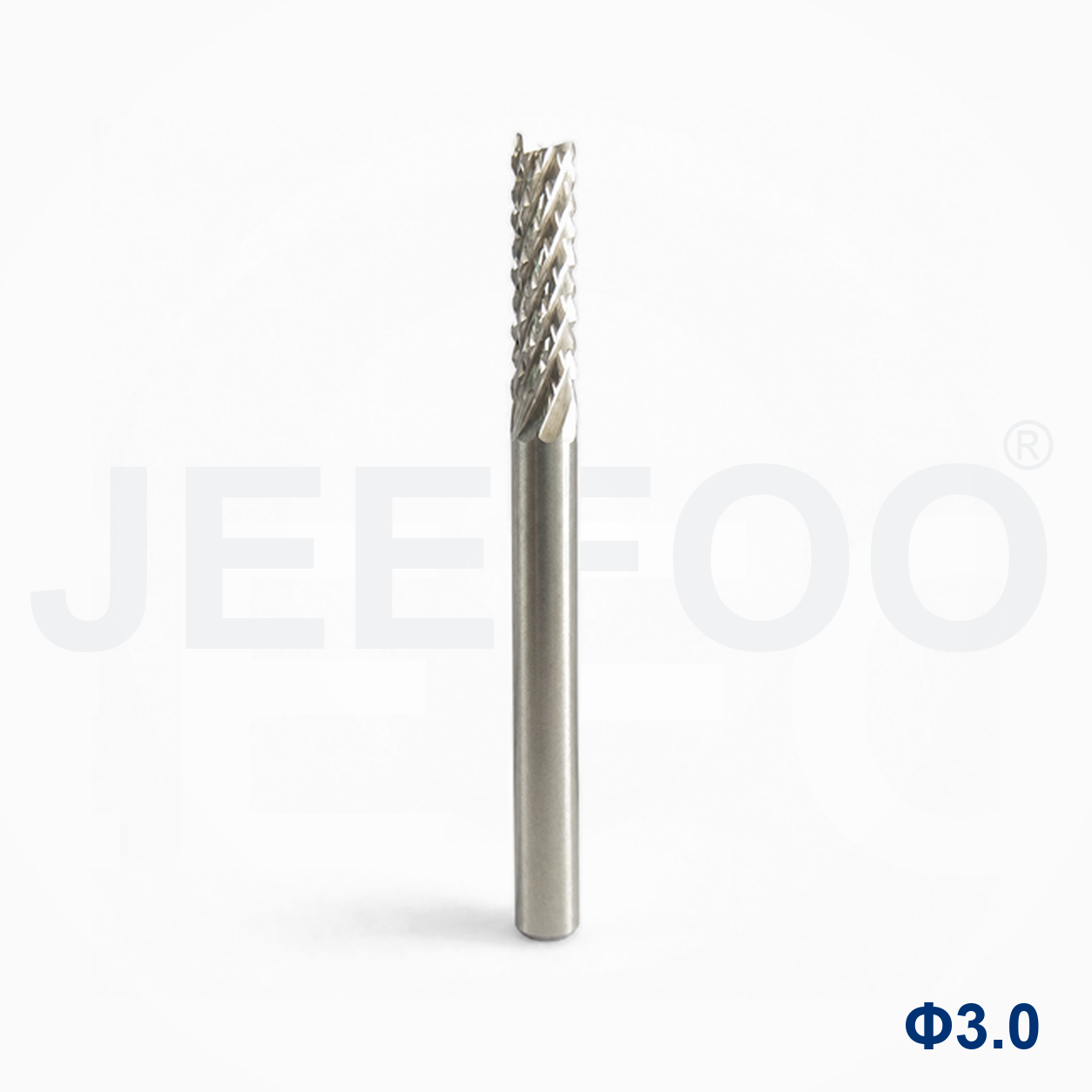

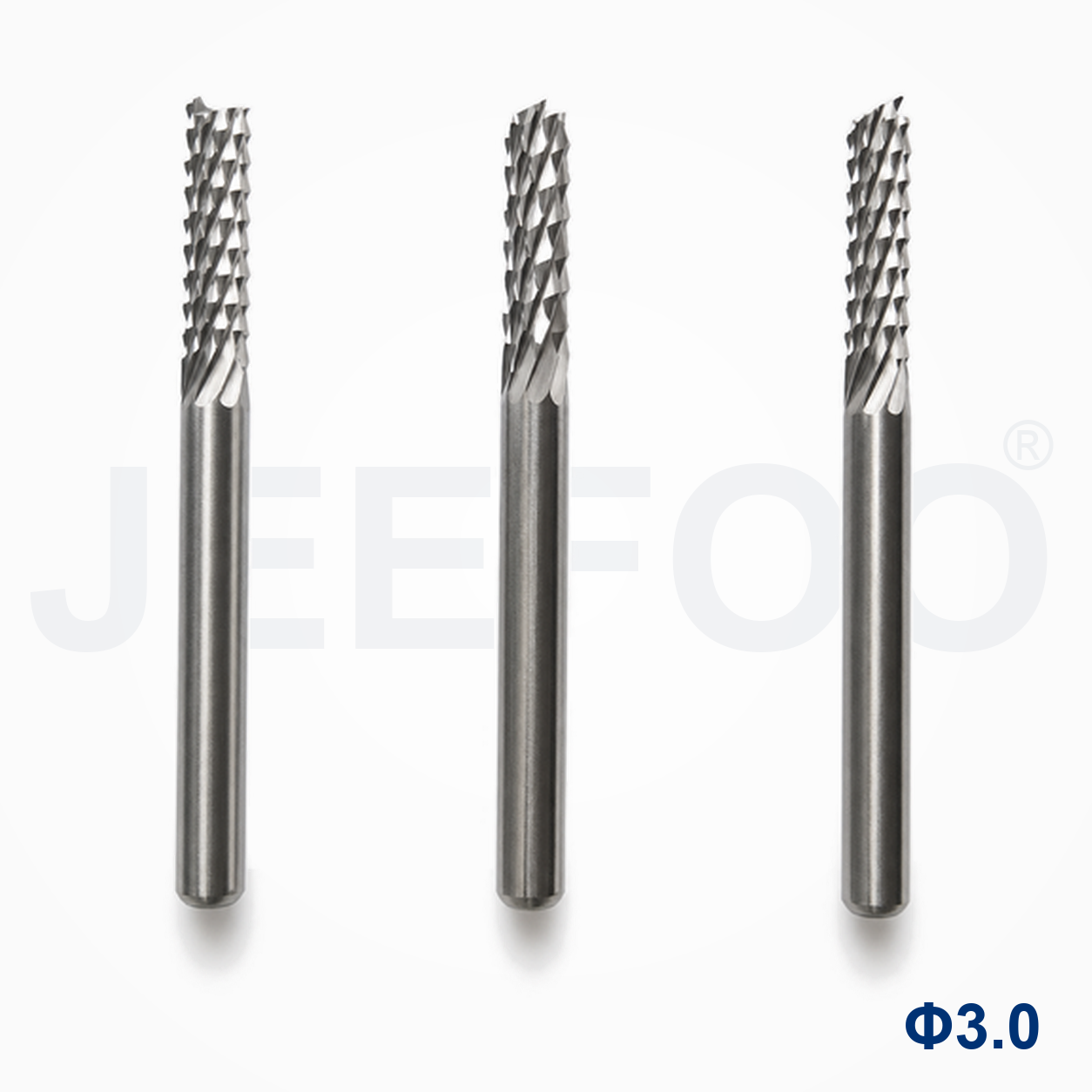

Product Images and Specifications
