XE XDx4x22 PCB Router Bit

XE XDx4x22 PCB Router Bit for Precision PCB Routing

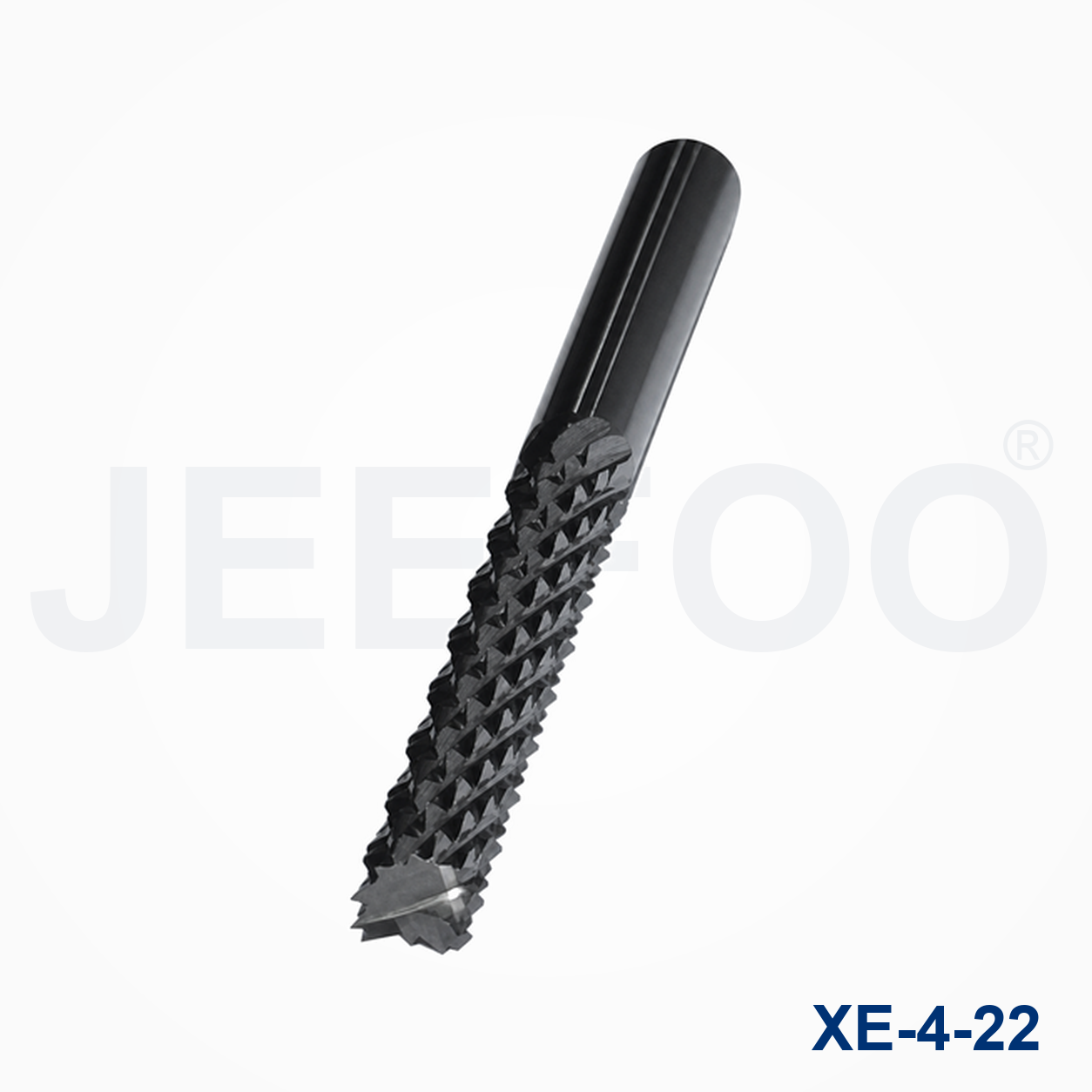

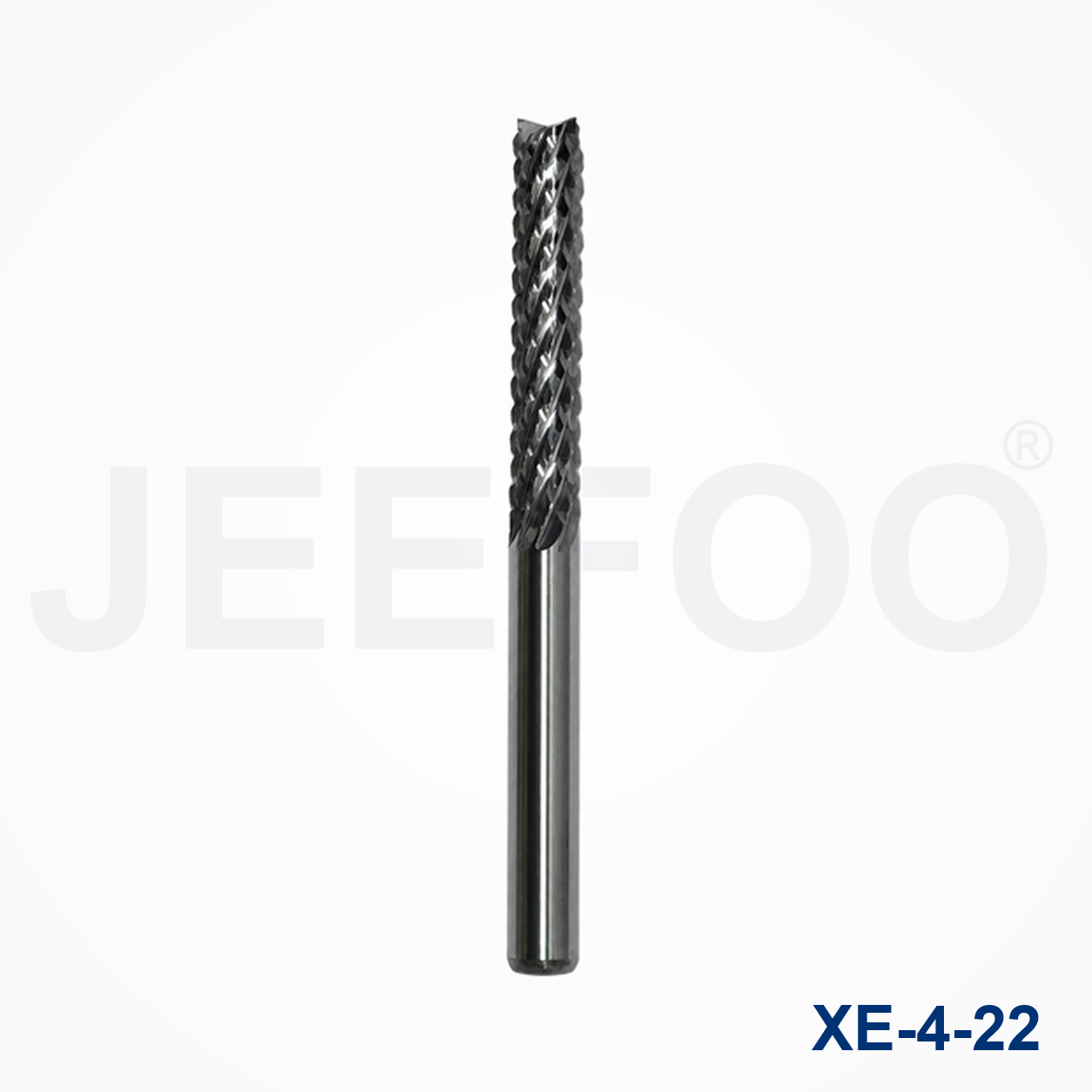

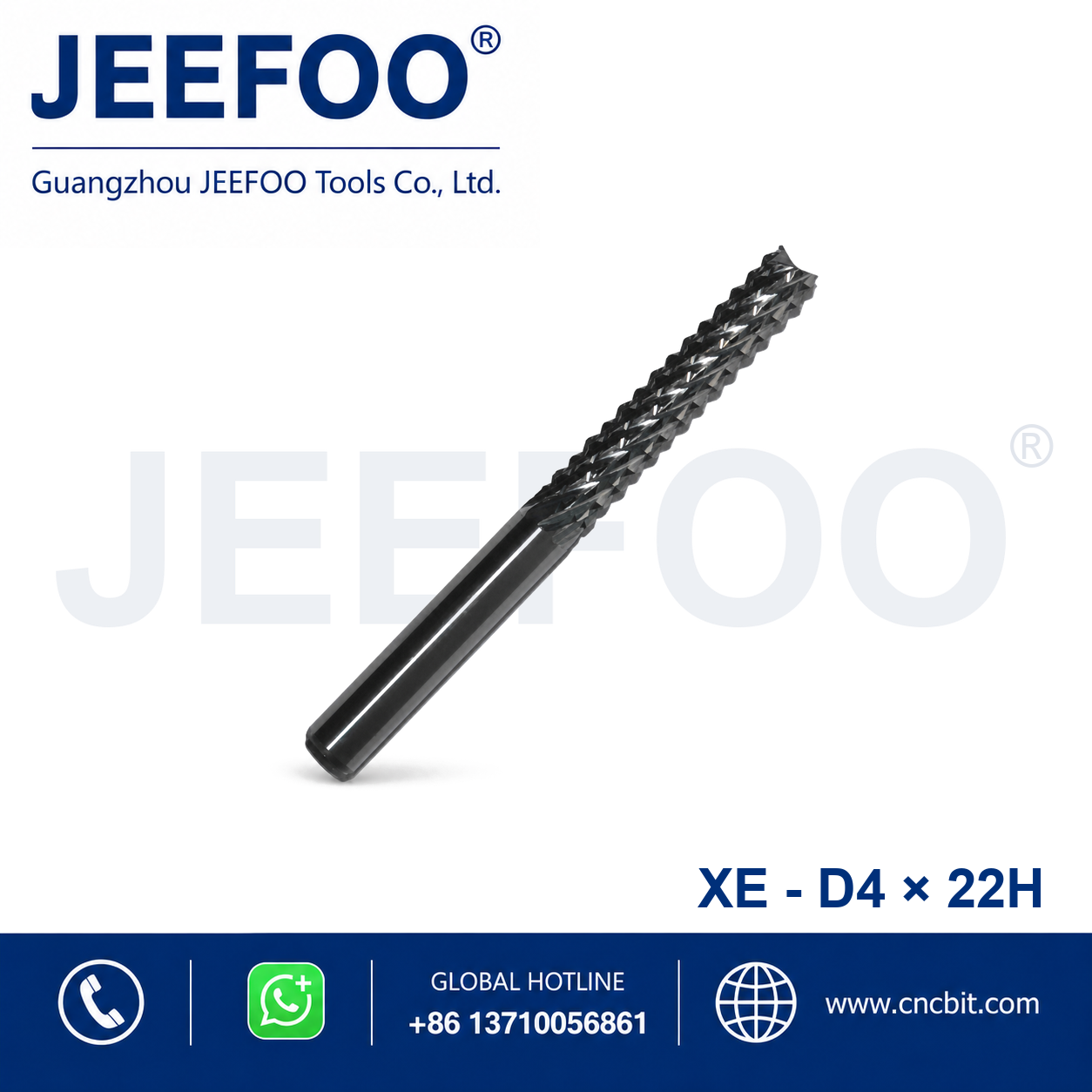

The XE XDx4x22 PCB Router Bit is a solid carbide routing tool developed for accurate profile cutting, slotting, depaneling, and edge finishing on printed circuit boards and compatible composites. Its XDx4x22 specification supports controlled routing for compatible board profiles, with the final diameter and cutting dimensions confirmed against the application requirements.

JEEFOO supplies this PCB router bit from Guangzhou, Guangdong, China, supporting factories, distributors, and CNC users with specification confirmation and consistent production supply. Before machining, check the collet, spindle runout, workholding, material thickness, extraction, and programmed toolpath.

Key Features and Cutting Benefits

Rigid Solid Carbide Construction

The fine-grain carbide body provides the rigidity and wear resistance required for continuous routing. Correct clamping and balanced parameters help the XE XDx4x22 PCB Router Bit maintain accurate profiles while reducing vibration, chatter, and premature edge wear.

Efficient Chip Evacuation

The flute geometry supports chip removal during routing. Effective extraction keeps dust and chips away from the cutting zone, reduces recutting, and helps protect the workpiece surface. Follow appropriate workshop safety procedures during every CNC operation.

XDx4x22 Specification for Production Use

The XDx4x22 designation identifies this production specification. Confirm the required shank, cutting diameter, cutting length, and machine clearance before use so the tool setup remains stable and repeatable.

Recommended Applications

PCB and compatible composite profile routing
FR-4 and fiberglass-reinforced board machining
Contours, slots, and edge-finishing operations
High-density fiber board and compatible sheet cutting
Production work requiring repeatable dimensional control

For general background about CNC routing equipment and motion control, see this CNC router reference. You can also review more JEEFOO CNC cutting tools for other materials and dimensions.

How to Use the XE XDx4x22 PCB Router Bit

Inspect the Tool and Holder

Check the cutting edge before installation. Clean the shank and collet, use a secure clamping depth, and never grip the flute area. Verify that the spindle, collet, and machine are suitable for the cutter and programmed speed.

Choose Safe Starting Parameters

Start with spindle speed, feed rate, and depth of cut appropriate for the workpiece, machine rigidity, and chip evacuation. Make a short test cut, inspect the edge, and then adjust parameters gradually. Avoid forcing the cutter or allowing heat to build at the cutting edge.

Maintain Secure Workholding

Keep the board or composite sheet flat and firmly supported. Stable fixtures minimize movement, protect finished edges, and improve dimensional consistency. Confirm tool clearance, spindle direction, and the complete toolpath before beginning the production cycle.

Guangzhou and Guangdong Supply Support

Based in Guangzhou, Guangdong, JEEFOO supports domestic and international buyers with routing-tool selection, packaging, and repeat-order supply. When requesting the XE XDx4x22 PCB Router Bit, share the board material, thickness, spindle type, expected quantity, and target edge quality so the recommended setup can match the application.

Frequently Asked Questions

What materials can this router bit machine?

It is intended for PCB-related routing and compatible fiberglass or composite sheet materials. Suitability depends on hardness, reinforcement, thickness, and machine conditions, so perform a controlled test before extended production.

How can service life be improved?

Use a clean precision collet, minimize spindle runout, provide effective chip extraction, keep the workpiece stable, and avoid excessive heat. Monitor edge quality and replace the tool before wear causes burrs, vibration, or dimensional drift.

How should the specification be confirmed?

Confirm the complete XDx4x22 specification, including the required shank, cutting diameter, cutting length, and overall length for your spindle setup. Contact JEEFOO in Guangzhou, Guangdong, China if your project requires another size.

Ordering and Production Checklist

Before placing an order, document the exact PCB or composite material, board thickness, target slot width, routing depth, spindle speed range, collet size, and expected production quantity. A controlled sample cut helps confirm edge quality and dimensional accuracy before full-volume machining. Keep a tool-life record for each batch, inspect the cutting edge at regular intervals, and replace the cutter when burrs, heat, vibration, or dimensional drift appear. These practical checks help buyers select the correct XE XDx4x22 PCB Router Bit configuration and maintain consistent results with support from Guangzhou, Guangdong.
