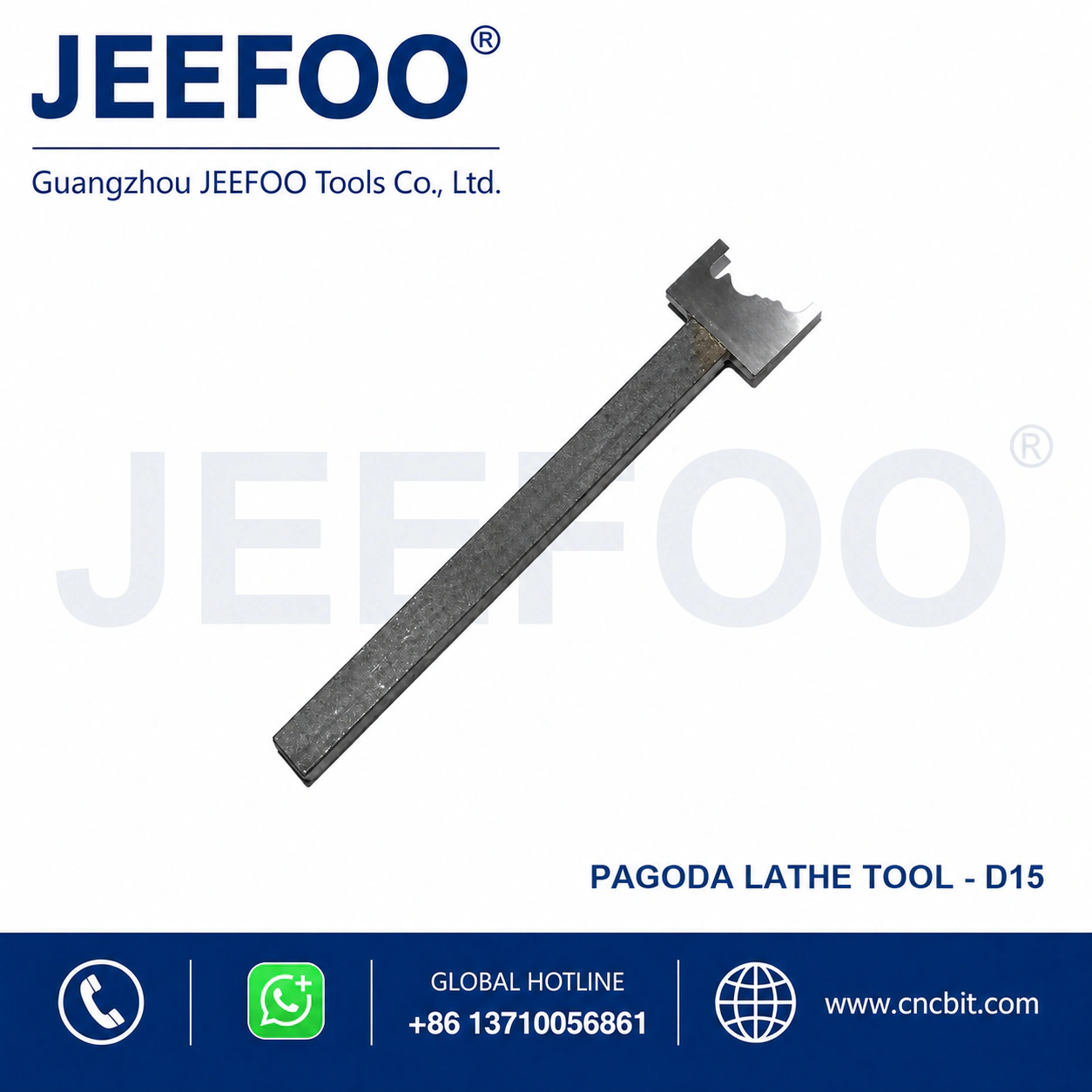

The 15 mm pagoda bead cutter is a profile-forming lathe tool for making decorative wooden beads with a repeatable stepped pagoda contour. Its shaped cutting edge allows a properly prepared blank to be formed efficiently while helping workshops maintain consistent dimensions across craft and small-batch production.
15 mm Pagoda Bead Cutter Features
This D15 model combines a rigid tool body with a dedicated profile designed for pagoda-style beads, pendants, ornaments, rosary components, and decorative wooden parts. Because the contour is built into the cutting edge, the operator can reproduce the same stepped shape more reliably than by freehand turning every detail with a general-purpose tool.
- D15 profile: designed for a nominal 15 mm decorative pagoda bead.
- Profile-forming edge: supports repeatable stepped contours and balanced appearance.
- Stable tool body: promotes controlled handling when supported at the correct center height.
- Craft applications: suitable for beads, pendants, ornaments, and other small wooden components.
- Batch consistency: helps reduce variation between pieces when setup and material remain constant.
Materials and Typical Applications
The cutter can be used on suitable woodworking blanks such as boxwood, rosewood, ebony, sandalwood, and comparable craft materials. Grain direction, density, moisture, inclusions, and blank quality influence the finished surface. Always test the intended material before beginning a production batch, especially when working with dense or brittle hardwood.

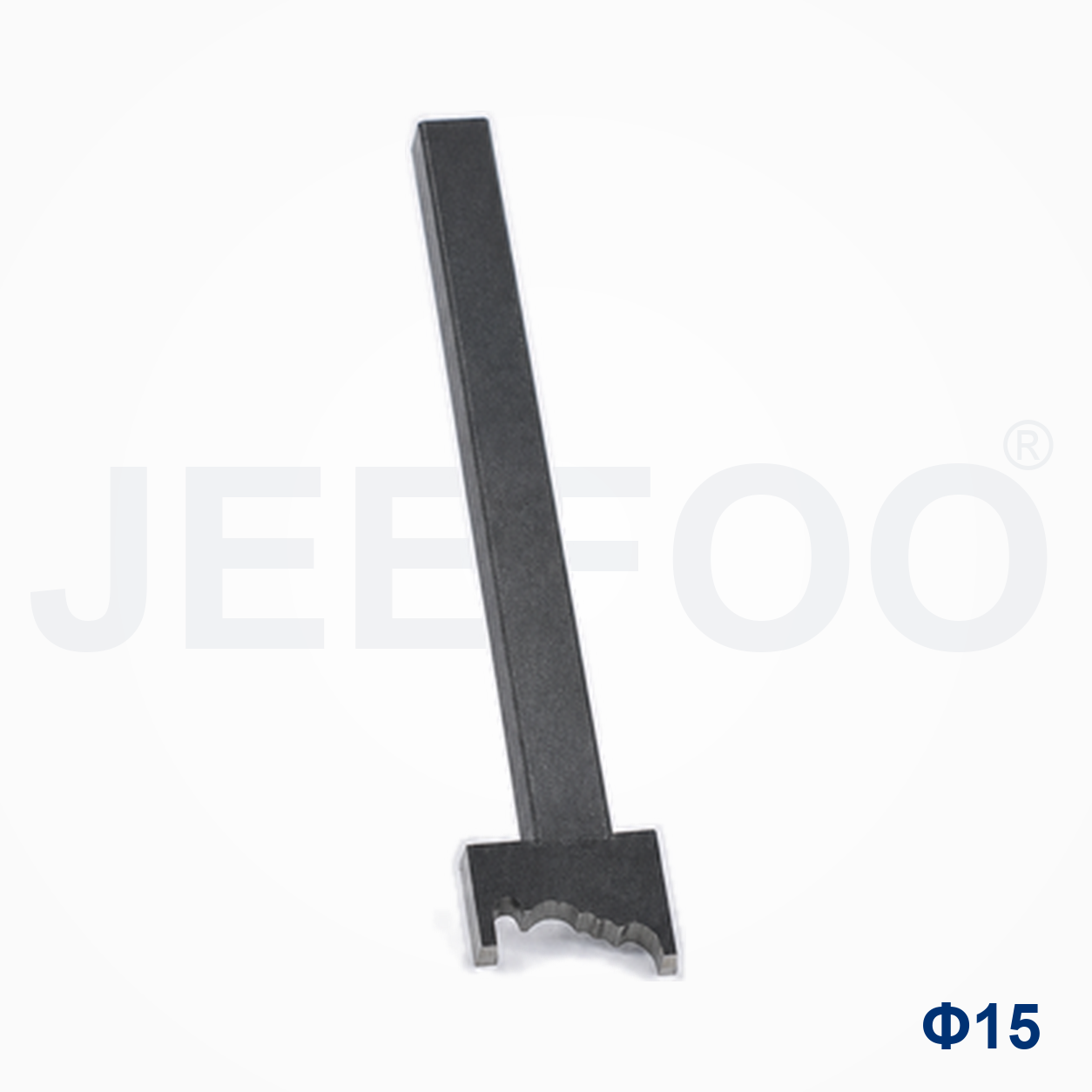

Common applications include pagoda beads for bracelets and necklaces, meditation bead components, earrings, tassel accessories, small ornaments, and decorative furniture details. The cutter is intended for compatible wood-lathe setups with secure workholding and an appropriate tool support.
How to Use a 15 mm Pagoda Bead Cutter
- Inspect the cutter, holder, tool rest, and wooden blank. Do not use damaged tools or cracked material.
- Prepare a straight blank close to the required diameter and secure it concentrically on the lathe.
- Set the cutting profile at the correct center height and manually rotate the spindle to confirm clearance.
- Begin at a conservative spindle speed and feed the cutter gradually with light, controlled pressure.
- Stop the machine before measuring, clearing wrapped chips, or adjusting the tool position.
Avoid forcing the profile into the workpiece in one heavy pass. Several controlled passes usually reduce vibration and produce a cleaner stepped contour. Watch for chatter marks, darkened wood, unusual noise, or excessive resistance, which can indicate poor centering, a dull edge, incorrect speed, or inadequate support.
Setup and Safety Guidance
Wear eye protection and suitable dust protection, and follow the lathe manufacturer’s instructions. Keep loose clothing, measuring tools, and hands away from rotating parts. A small workpiece can loosen quickly if clamping is inadequate, so confirm the holder and blank are secure before every run.
Choosing the Correct Pagoda Bead Tool

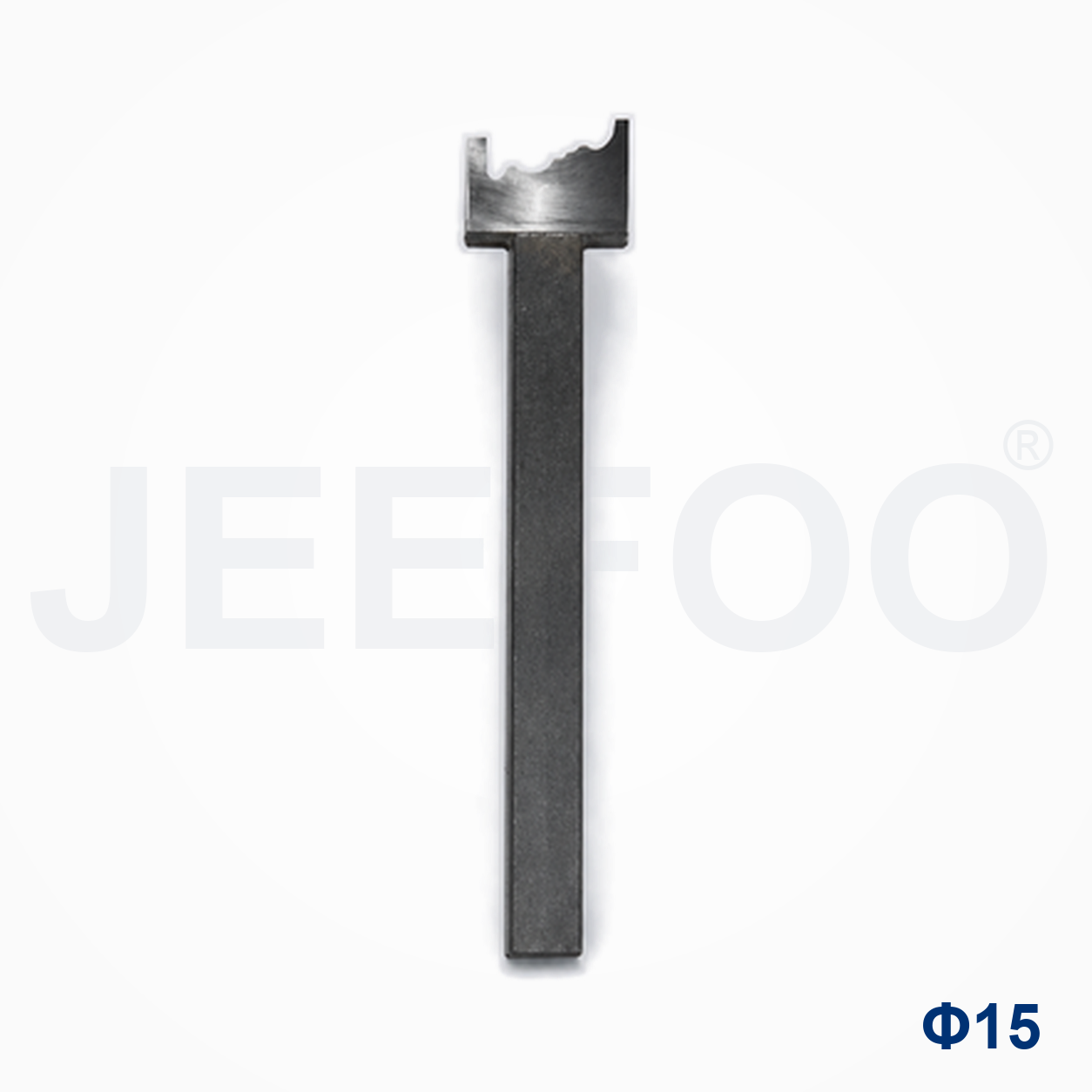

Choose a tool according to the required finished diameter, profile shape, holder compatibility, workpiece material, and available machine space. This D15 cutter is intended for a nominal 15 mm profile. Actual dimensions may vary slightly with material behavior, tool wear, sanding, and setup, so inspect the first test piece before producing a batch.
For repeat orders, record the blank diameter, wood species, spindle speed, feed method, and finishing process. Consistent setup records make it easier to reproduce dimensions and identify when cutting performance begins to decline. Clean resin and dust from the profile after use, dry the tool, and store it so the edge cannot strike other metal parts.
Pagoda Bead Cutter Supplier in Guangzhou, Guangdong
JEEFOO supplies 15 mm pagoda bead cutters from Guangzhou, Guangdong, China for woodworking distributors, craft studios, factories, and international buyers. Customers can confirm finished diameter, tool dimensions, compatible materials, and lathe requirements before ordering. Visit the JEEFOO product range for related bead-forming and woodworking cutting tools.
Frequently Asked Questions
What profile does the D15 cutter produce?
It produces a nominal 15 mm decorative pagoda-style bead profile. The finished size can vary slightly after sanding or when setup and material conditions change.
Can it be used for hardwood?
It can process many suitable hardwood craft blanks, but density and grain vary. Begin with a test cut, use secure support, and adjust parameters gradually.
How can the finished contour remain consistent?
Use centered blanks, stable workholding, a fixed tool-rest height, controlled feed, and regular dimensional checks. Replace or professionally service a worn cutter before quality declines. General process background is available in this woodturning overview.
