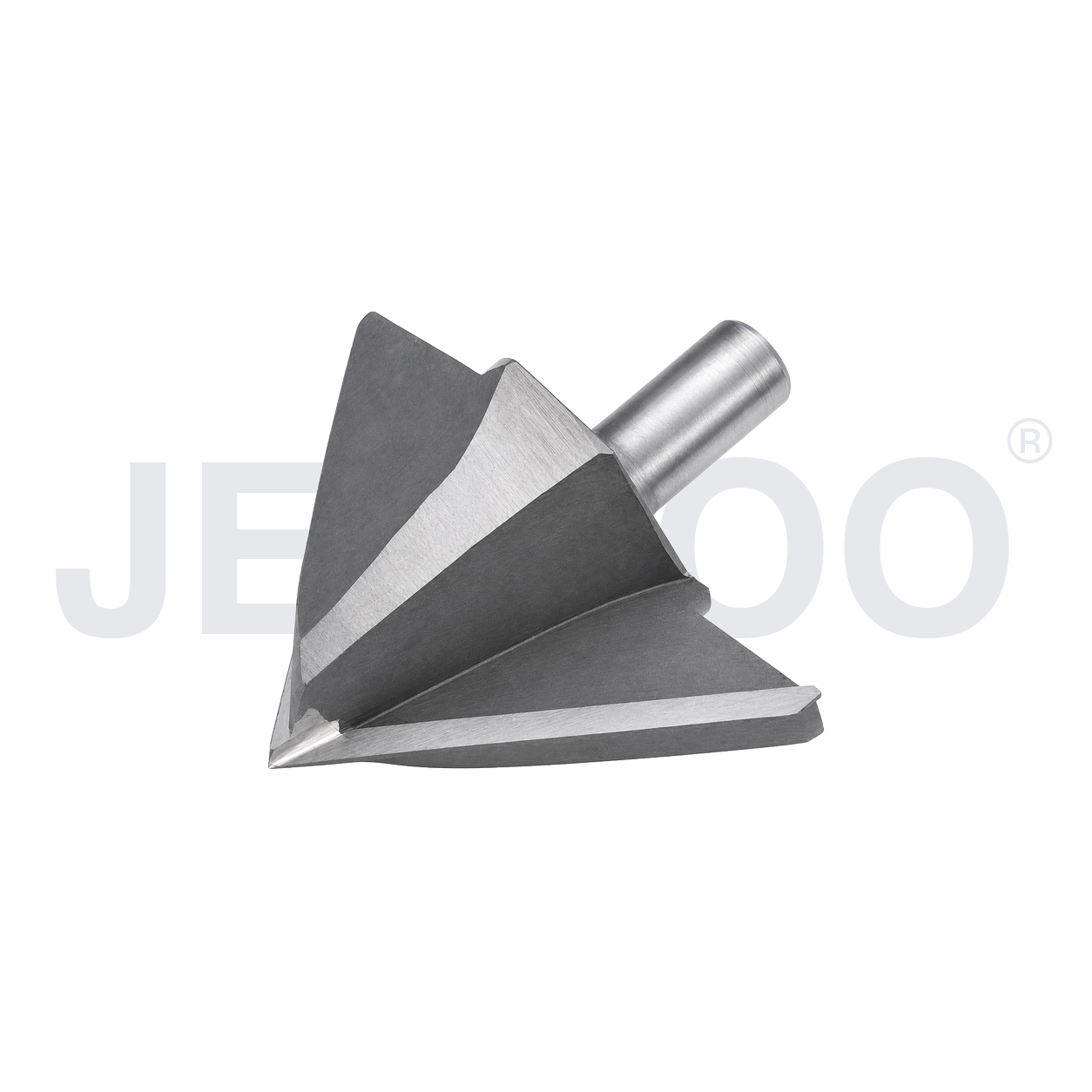

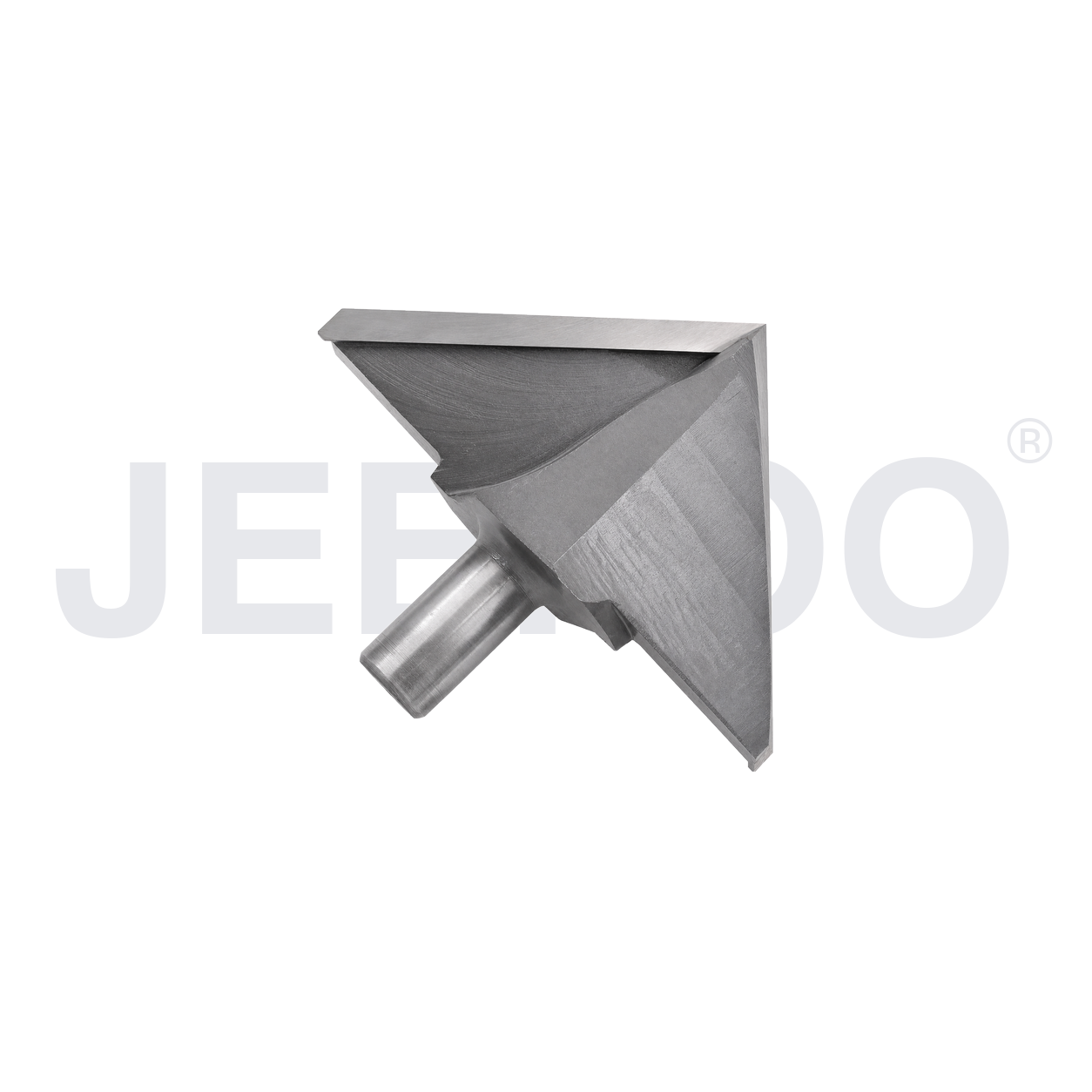

Large 3D V Groove Engraving Bit Guide
A large 3D V groove engraving bit is designed for wide decorative grooves, relief carving, beveled lettering and chamfering on CNC routers. Compared with a small-detail V cutter, the large profile is useful when a project needs a broader channel, a stronger visual edge or deeper three-dimensional geometry. Typical materials include solid wood, MDF, plywood, acrylic, PVC and other compatible boards, subject to a controlled test with the actual machine and material.
CNC Applications and Toolpath Planning
- Large-format signs, logos and decorative lettering.
- Three-dimensional relief carving and wide V-channel details.
- Beveling, chamfering and edge decoration on wood panels.
- Furniture, cabinet and architectural panel production.
- Grooves that vary in width as the programmed cutting depth changes.
The V profile converts cutting depth into groove width, so tool angle, tip condition and Z-axis calibration directly affect the finished geometry. Confirm the programmed angle and maximum cutting diameter before machining. Preview the toolpath, check the deepest Z position and make sure the cutter, collet and spindle can clear fixtures throughout the job. General concepts for computer-controlled tool motion are described in this numerical control reference.
Setup for a Large 3D V Groove Engraving Bit
Clean the collet and shank before installation, use the correct collet size and keep tool overhang as short as practical. Secure the workpiece on a flat spoilboard and verify the Z zero point with care. Begin with a shallow test cut and conservative parameters suitable for the material, cutter size and machine rigidity. Increase cutting depth gradually while watching chip formation, spindle load, sound and surface quality.
Use effective chip and dust extraction, especially in deep grooves where residue can remain around the cutting edge. A stable feed helps prevent rubbing and localized heat. If edges become fuzzy, burned or chipped, stop and check cutter sharpness, runout, feed direction and workholding. Do not compensate for a damaged edge by forcing a deeper or faster pass. Large relief work may benefit from a roughing operation before the final V-carving pass so the finishing edge removes a controlled amount of material.
JEEFOO Manufacturing Support in Guangzhou, China
JEEFOO supplies CNC router and engraving cutters from Guangzhou, China for distributors, sign makers, furniture manufacturers and woodworking shops. When requesting a quotation, provide the required angle, cutting diameter, shank size, overall length, workpiece material and intended toolpath. These details help confirm whether a standard large cutter or a customized specification is more appropriate. Visit the JEEFOO CNC cutting tool homepage for related V-groove and woodworking cutter categories.
Inspection and Process Control
Inspect the bit before every production run for chips, cracks, resin buildup and uneven wear. Check runout after installation and confirm that the tool matches the CAM library entry. Cut a sample in scrap material, then measure groove depth, width and symmetry. Save approved parameters with the job file. Stop the machine if cutting sound, load or chip shape changes unexpectedly, and replace a damaged cutter promptly.
Large V Groove Engraving Bit FAQ
What work is a large V groove cutter best suited for?
It is best suited for broad decorative grooves, large lettering, relief details and chamfers where a small engraving cutter would be inefficient or produce a channel that is too narrow.
Why does groove width change with depth?
Because the cutter has angled sides, a deeper Z position engages a wider section of the V profile. Accurate angle selection and Z calibration are therefore essential.
Should I make a test cut first?
Yes. A shallow sample verifies dimensions, edge quality, machine clearance and material response before the full engraving program begins.

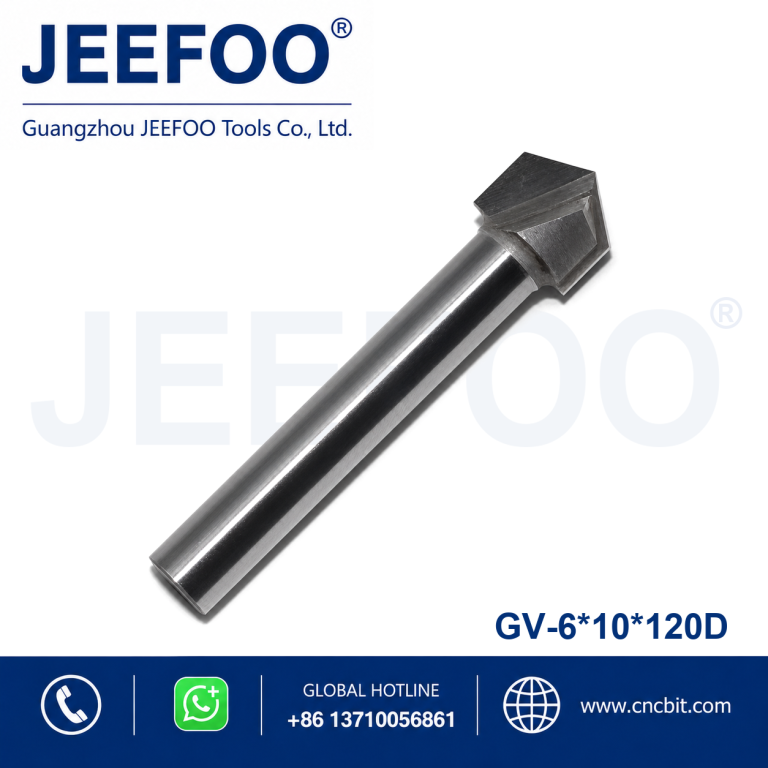

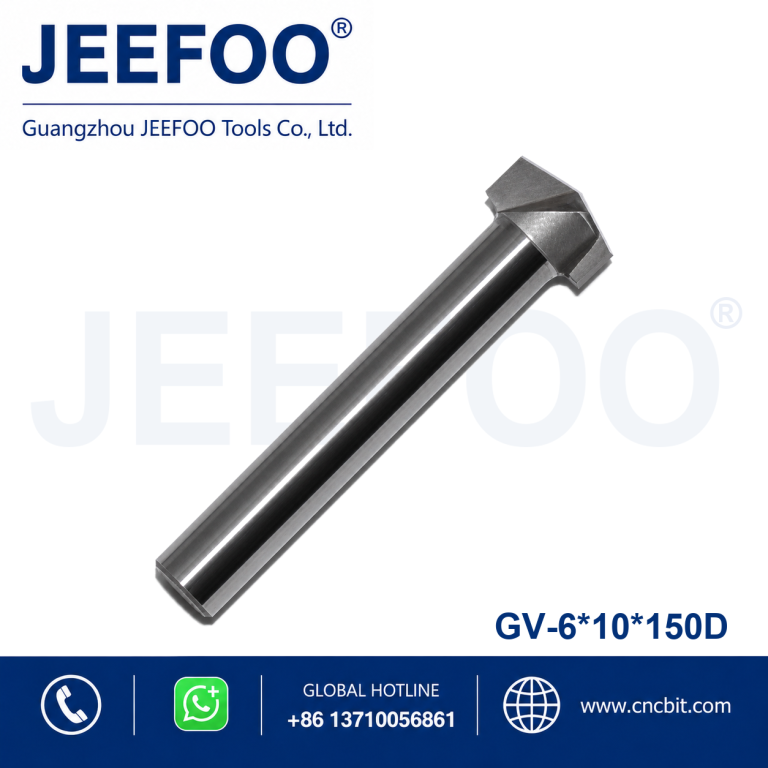

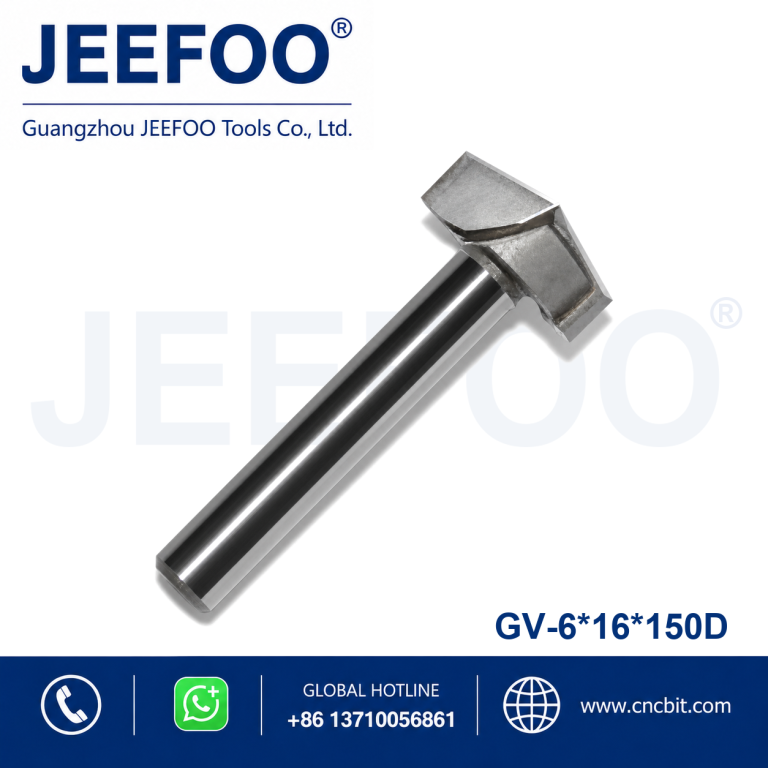

3D V Groove Engraving Bits provide a sharp V-shaped cutting profile for CNC woodworking, relief carving, lettering, chamfering and sign-making applications.
3D V Groove Engraving Bits Features
- V-groove cutter geometry for detailed CNC engraving and wood carving.
- Sharp cutting edges with excellent concentricity for accurate machining.
- Suitable for acrylic, MDF, PVC, wood panels and related materials.
- Designed for 3D engraving, chamfering, grooving and relief work.
- Factory-stocked woodworking cutter options with custom sizes available.
Applications and Cutting Guidance

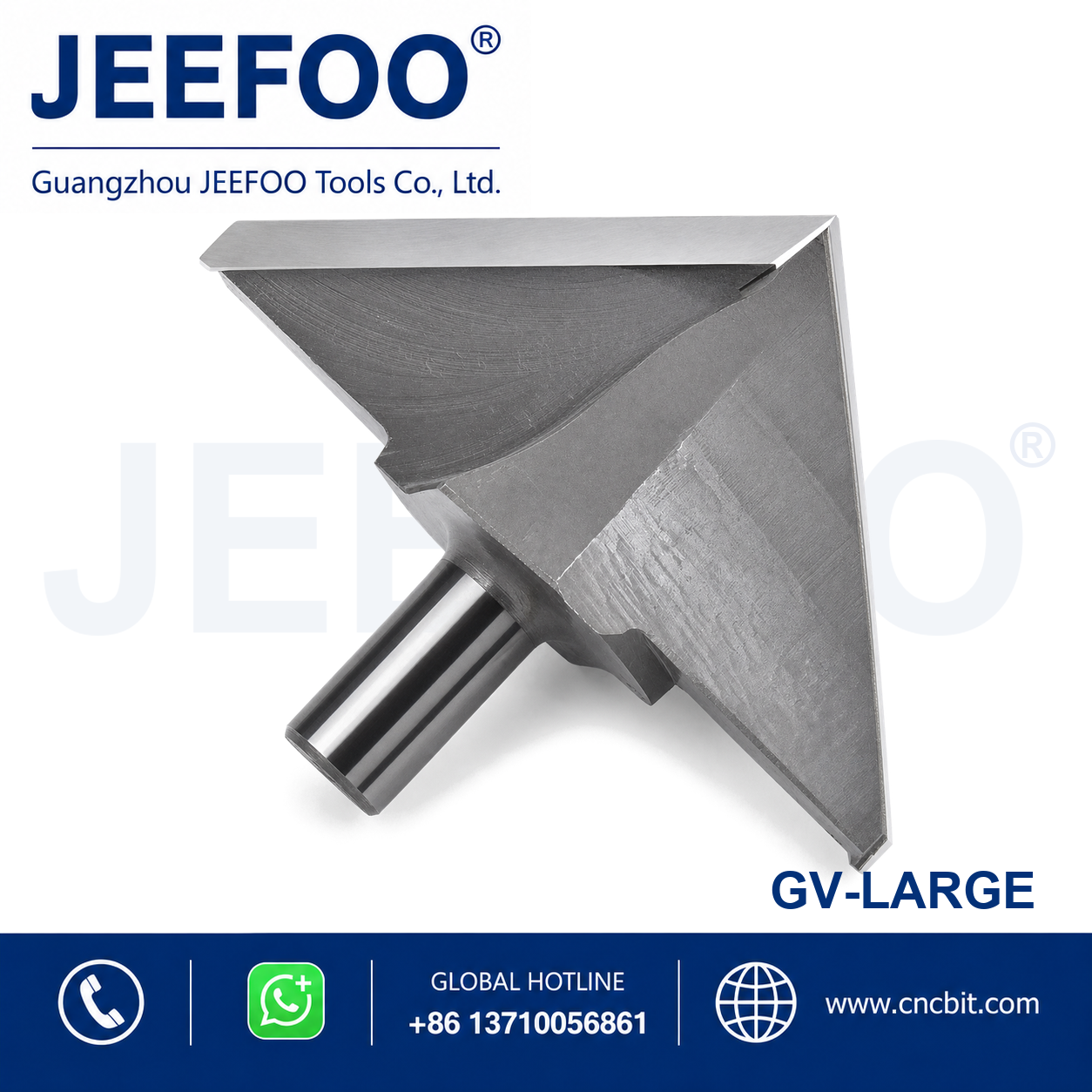

The Large 3D V Groove Engraving Bits model is designed for CNC routers used in advertising production, cabinet making, furniture work and decorative panel machining. The V-shaped profile is useful for carved lettering, beveled edges, three-dimensional relief patterns and controlled groove cutting.
- Use a clean, accurate collet and keep tool overhang to a minimum.
- Secure the workpiece firmly before engraving or chamfering.
- Select spindle speed, feed rate and cutting depth for the material and machine.
- Begin with a shallow test cut when processing a new material.
- Maintain effective chip removal to reduce heat and residue at the groove bottom.
Correct setup helps maintain a clean groove, smooth surface and consistent engraving depth. Inspect the cutting edge before use and replace a worn or damaged cutter promptly. Custom woodworking profile cutters and shaper cutters can also be supplied for specific CNC applications.

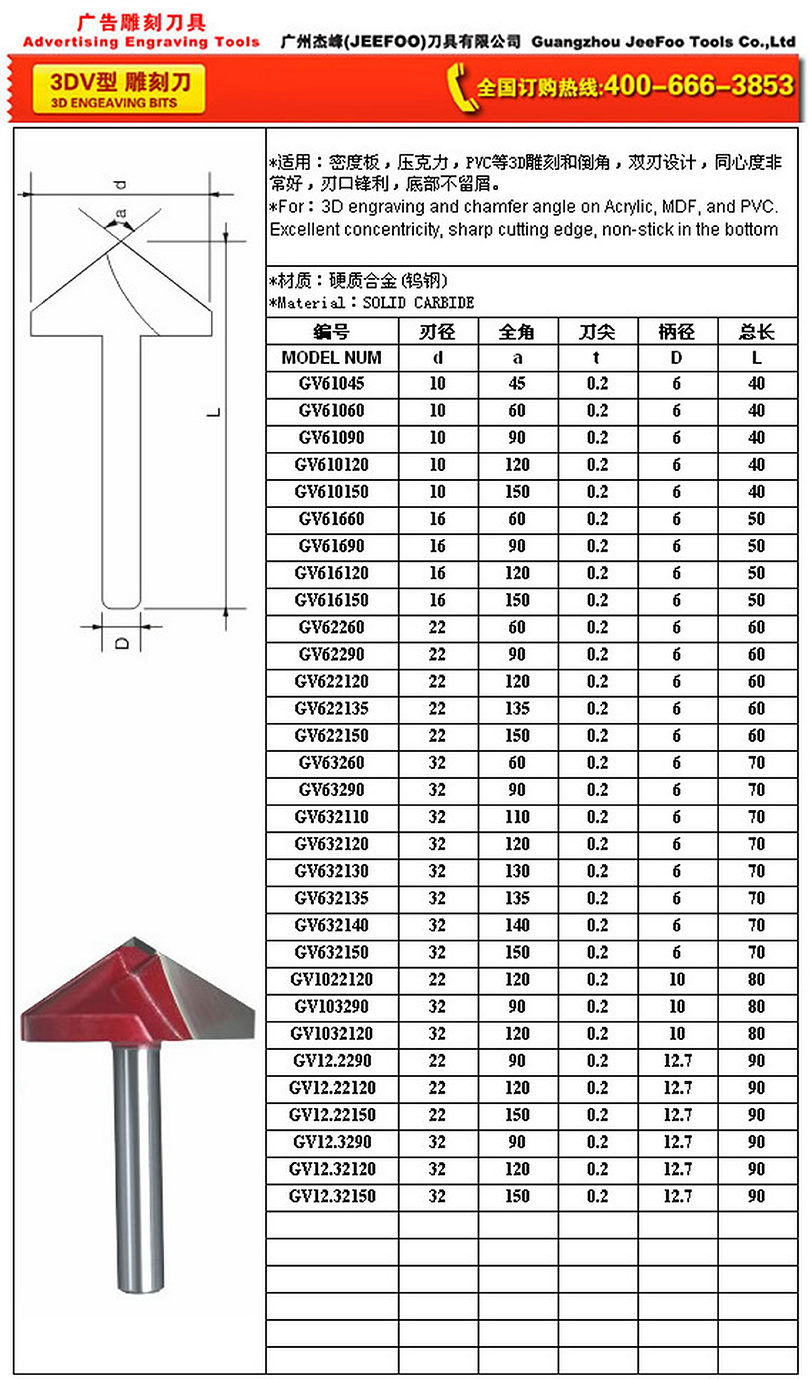

Product Description
- Product name: V-shaped 3D engraving and groove cutter for CNC woodworking.
- Applications: 3D engraving, relief carving, chamfering, lettering and groove machining.
- Suitable materials: Acrylic, MDF, PVC, wood and compatible composite panels.
- Cutting performance: Excellent concentricity, sharp cutting edge and reduced sticking at the groove bottom.
- Supply: Standard sizes are stocked and other cutter specifications are available on request.
Size: Large
