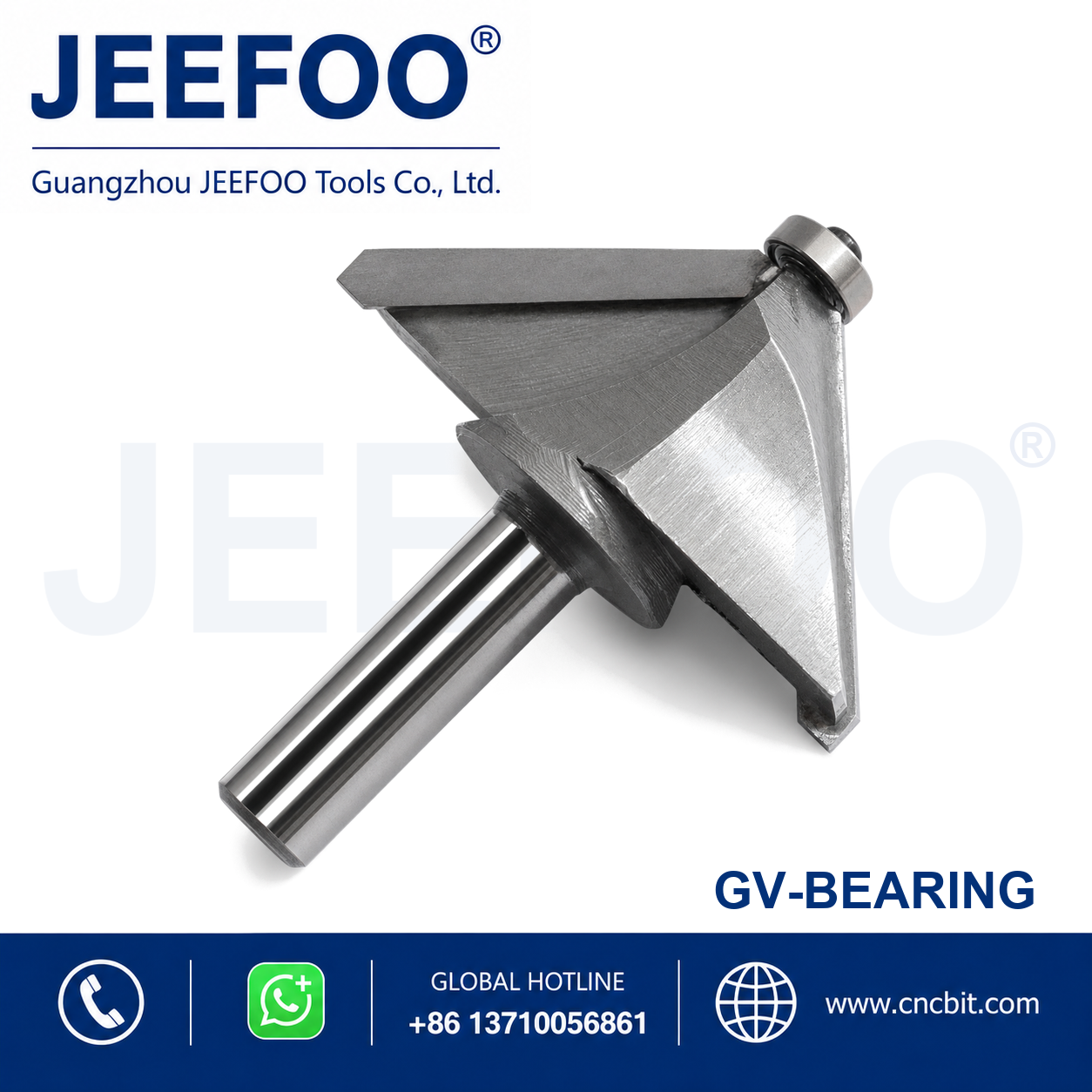

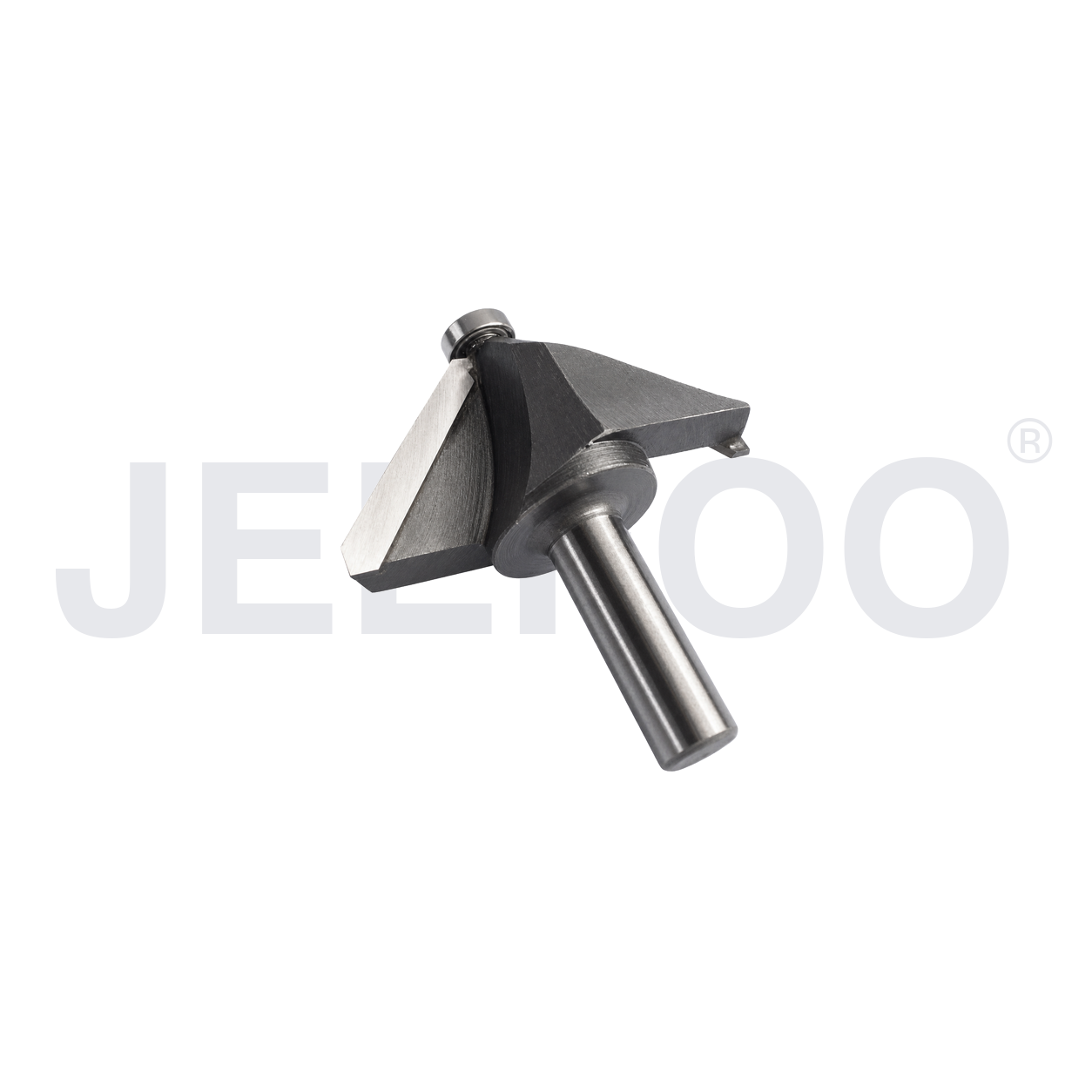

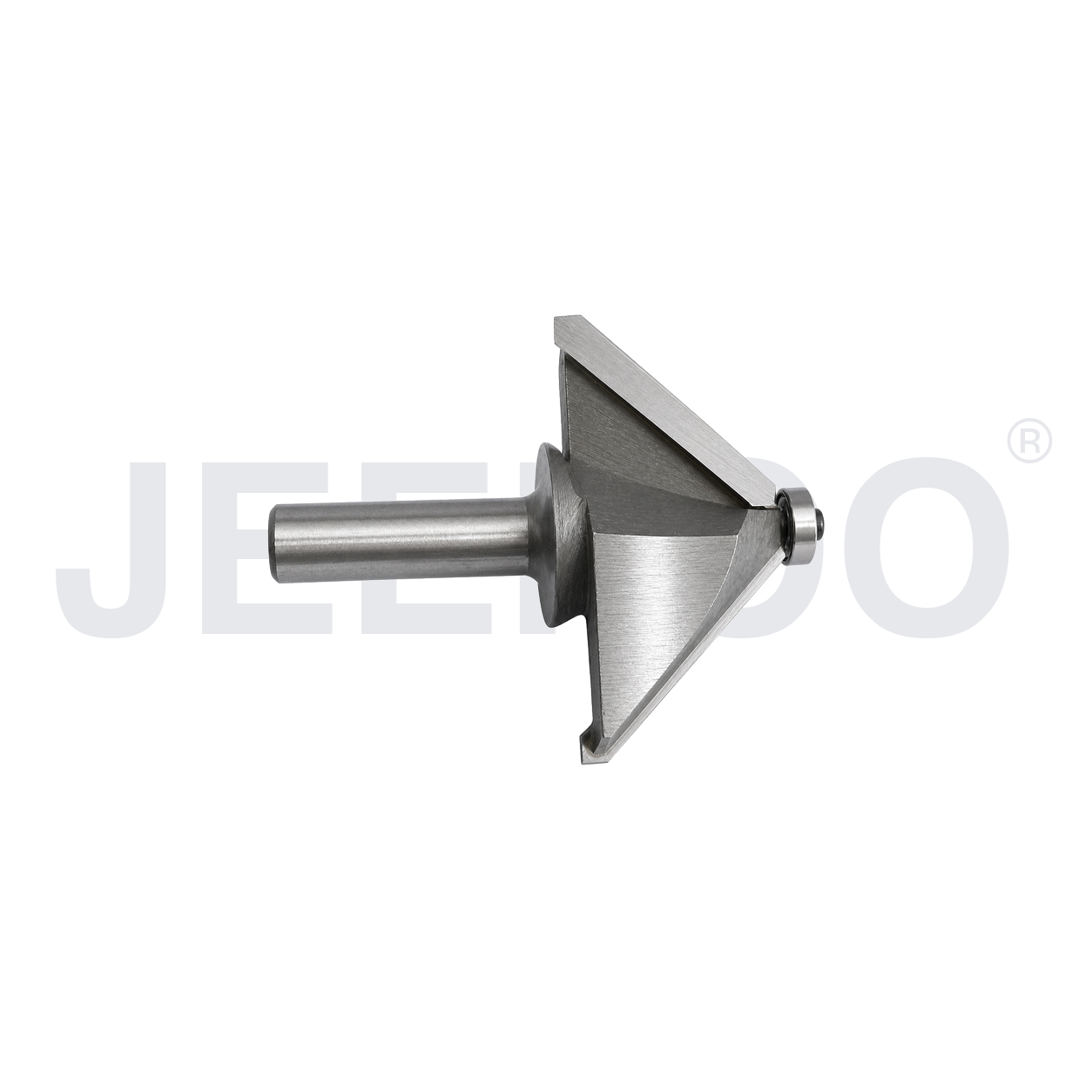

Bearing-Guided V Groove Engraving Bit Guide
A bearing-guided V groove engraving bit combines an angled cutting profile with a guide bearing that follows a template, edge or reference surface. It is used for decorative grooves, chamfers, lettering details and profiled edges on wood, MDF, plywood and compatible panels. The bearing helps control the cutter path in suitable edge-guided operations, but it does not replace secure workholding, correct tool dimensions or careful machine setup.
Applications and Bearing Function
- Guided chamfers and decorative V-shaped edge details.
- Template-following work on signs, furniture and cabinet components.
- Grooves and bevels on solid wood, MDF and plywood.
- Repeatable edge profiles where a bearing reference is appropriate.
- Workshop and CNC operations with confirmed bearing clearance.
Before machining, confirm which surface the bearing will follow and ensure that it remains in continuous contact without crossing gaps, clamps or damaged template areas. The cutting depth and V angle determine the finished groove width. Preview the complete toolpath and check bearing, cutter and fixture clearance. For general concepts behind computer-controlled machining, see this numerical control reference.
Setup and Cutting Quality
Clean the shank and collet, install the cutter with limited overhang and secure the workpiece firmly. Rotate the bearing by hand before use; it should turn smoothly without looseness, grinding or binding. Begin with a shallow test cut and conservative spindle speed, feed rate and depth of cut suited to the material and machine. Maintain a steady feed so the bearing follows the reference surface without impact or side loading.
Use effective dust extraction because compacted chips near the bearing or groove can affect guidance and surface finish. Stop if the bearing becomes hot, noisy or loose, or if the cutter produces burn marks, fuzzy fibers or inconsistent geometry. Inspect the cutting edge, bearing, fastener, runout and reference surface before continuing. Never use a seized or damaged bearing.
JEEFOO Supply from Guangzhou, China
JEEFOO supplies CNC engraving and woodworking cutters from Guangzhou, China for distributors, furniture shops and sign-making workshops. Buyers should provide the required V angle, cutting diameter, shank size, bearing location, workpiece material and intended edge or template operation. These details help confirm a suitable standard or customized tool. Visit the JEEFOO CNC cutting tool homepage for related V-groove and woodworking cutter categories.
Inspection and Safe Operation
Inspect the cutting edge for chips, cracks, resin and unusual wear. Check that the bearing rotates smoothly and that its retaining hardware is secure. Verify the CAM or template path, then make a sample cut in scrap material. Measure the profile and examine the edge for chatter, ridges or burn marks. Record approved settings and replace any damaged cutter or bearing before production.
Bearing-Guided V Groove Bit FAQ
What does the guide bearing do?
It follows a suitable edge or template and helps control the cutter path. The reference surface must be smooth, continuous and clear of fixtures.
How should the bearing be checked?
Rotate it by hand before use. It should move smoothly without looseness, grinding, binding, heat or visible damage.
Should I make a test cut?
Yes. A shallow sample confirms bearing clearance, profile dimensions, material response and surface quality before full production.

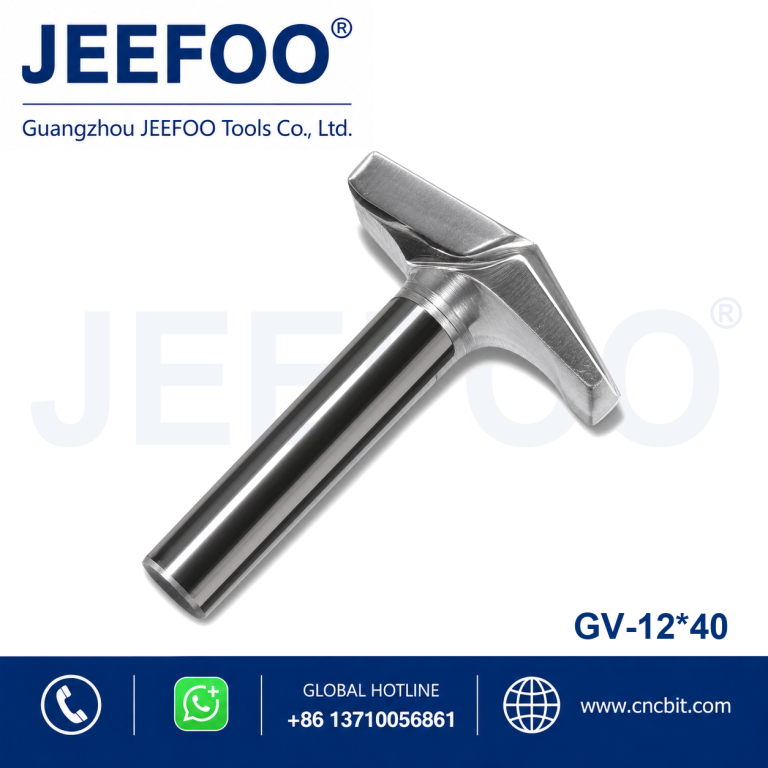

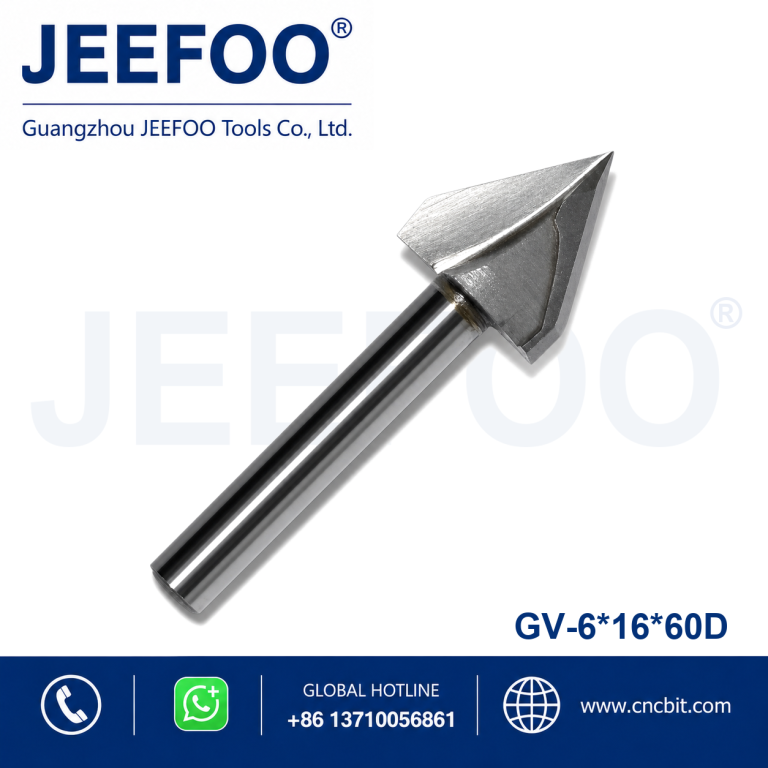

3D V Groove Engraving Bits provide a sharp V-shaped cutting profile for CNC woodworking, relief carving, lettering, chamfering and sign-making applications.
3D V Groove Engraving Bits Features
- V-groove cutter geometry for detailed CNC engraving and wood carving.
- Sharp cutting edges with excellent concentricity for accurate machining.
- Suitable for acrylic, MDF, PVC, wood panels and related materials.
- Designed for 3D engraving, chamfering, grooving and relief work.
- Factory-stocked woodworking cutter options with custom sizes available.
Applications and Cutting Guidance
The With Bearing 3D V Groove Engraving Bits model is designed for CNC routers used in advertising production, cabinet making, furniture work and decorative panel machining. The V-shaped profile is useful for carved lettering, beveled edges, three-dimensional relief patterns and controlled groove cutting.
- Use a clean, accurate collet and keep tool overhang to a minimum.
- Secure the workpiece firmly before engraving or chamfering.
- Select spindle speed, feed rate and cutting depth for the material and machine.
- Begin with a shallow test cut when processing a new material.
- Maintain effective chip removal to reduce heat and residue at the groove bottom.
Correct setup helps maintain a clean groove, smooth surface and consistent engraving depth. Inspect the cutting edge before use and replace a worn or damaged cutter promptly. Custom woodworking profile cutters and shaper cutters can also be supplied for specific CNC applications.
Product Description
- Product name: V-shaped 3D engraving and groove cutter for CNC woodworking.
- Applications: 3D engraving, relief carving, chamfering, lettering and groove machining.
- Suitable materials: Acrylic, MDF, PVC, wood and compatible composite panels.
- Cutting performance: Excellent concentricity, sharp cutting edge and reduced sticking at the groove bottom.
- Supply: Standard sizes are stocked and other cutter specifications are available on request.
Size: With Bearing
