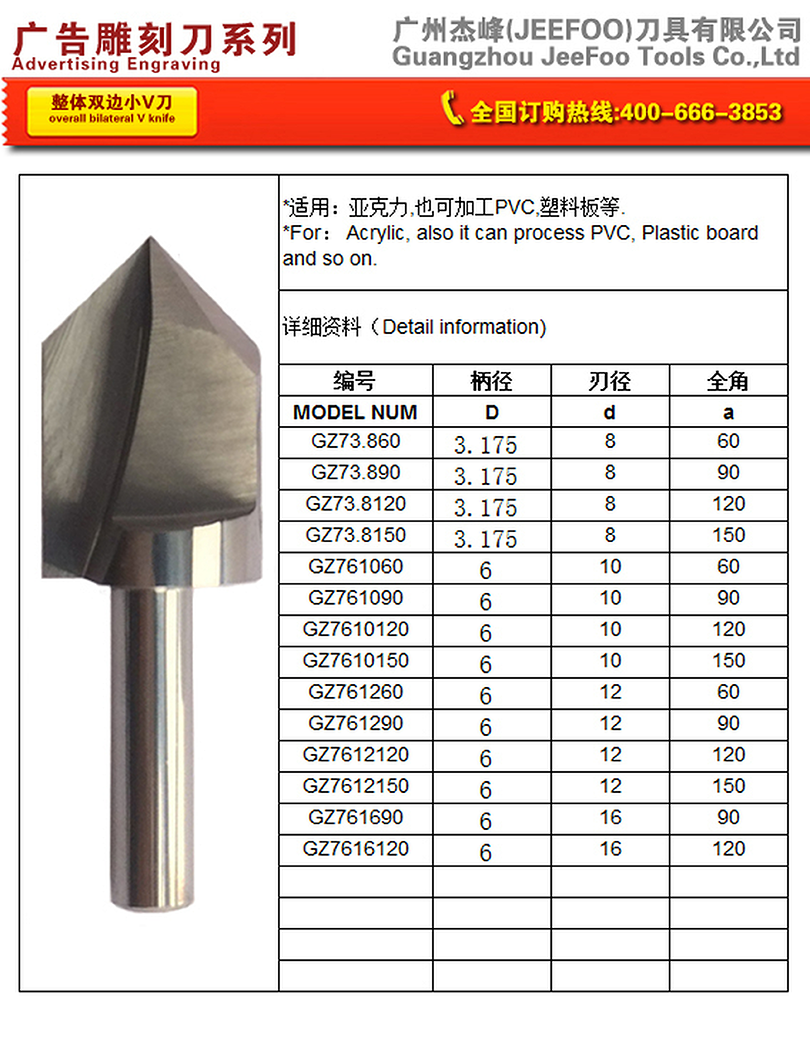

GZ7 Solid Double Edge V Router Bit Applications
The cutter is suitable for V-grooves, chamfered lines, carved lettering, signmaking and decorative panel work in solid wood, plywood, MDF, acrylic, PVC and compatible plastics. The actual groove width depends on cutting depth and the included angle, so operators should confirm the design dimensions before machining production parts.
Use the GZ7 Solid Double Edge V Router Bit for controlled profiling where repeatability matters. A shallow first pass helps verify tool offset, groove position and surface finish. For deeper features, several stable passes can reduce sudden cutting load and make chip removal more effective.
CNC Setup and Process Control
- Clean the collet, nut and carbide shank before installation.
- Keep tool projection short enough to limit vibration while clearing the workpiece.
- Secure the material and verify the programmed zero position.
- Run a test path above the surface or in scrap material before production.
- Use extraction or air flow to remove chips from the V groove.
- Adjust feed, spindle speed and depth after inspecting the first finished line.
With computer numerical control, the toolpath defines the engraving location while cutter geometry and depth define the groove profile. Check that the CAM setting matches the physical V angle. A mismatch can change lettering width, corner detail and the appearance of adjacent decorative lines.
Material-Specific Cutting Notes
Wood and MDF require effective dust extraction and reliable workholding so fibers do not lift during detail passes. Acrylic and PVC need clean chip evacuation and controlled heat because rubbing can soften the cut edge. When machining coated panels, make a trial groove to confirm whether the top surface remains clean at the selected feed and depth.
The integral solid carbide construction provides rigidity and wear resistance, but the cutting edges still require careful handling. Do not drop the cutter or allow the V point to contact metal fixtures. Inspect both edges under good light before installation and after any unexpected vibration or toolpath interruption.
JEEFOO Manufacturing in Guangzhou, China
JEEFOO manufactures and supplies CNC engraving and routing tools from Guangzhou, China, for distributors, workshops and industrial buyers. Product checks cover cutter geometry, edge condition and key dimensions before shipment. Explore related options through the JEEFOO CNC cutting tool website, or provide a drawing and material details when a custom tool is required.
Inspection, Maintenance and Safety
Remove resin and compacted dust with a suitable cleaning method, then examine the cutting edges for chips or uneven wear. Replace a damaged tool instead of increasing spindle speed to compensate. Stop the spindle completely before handling the cutter, wear eye protection and use the machine guards and operating limits specified by the equipment manufacturer.
GZ7 Solid Double Edge V Router Bit FAQ
What work is this V router bit designed for?
It is designed for CNC V-grooving, lettering, signmaking, decorative lines and related engraving work in compatible wood and plastic materials.
Why should cutting depth be checked first?
On a V cutter, greater depth also increases groove width. A test pass confirms that the programmed depth produces the intended profile.
What information is useful when requesting a quotation?
Provide the shank size, V angle, cutting dimensions, work material, CNC machine type, expected application and required quantity so JEEFOO can verify the specification.

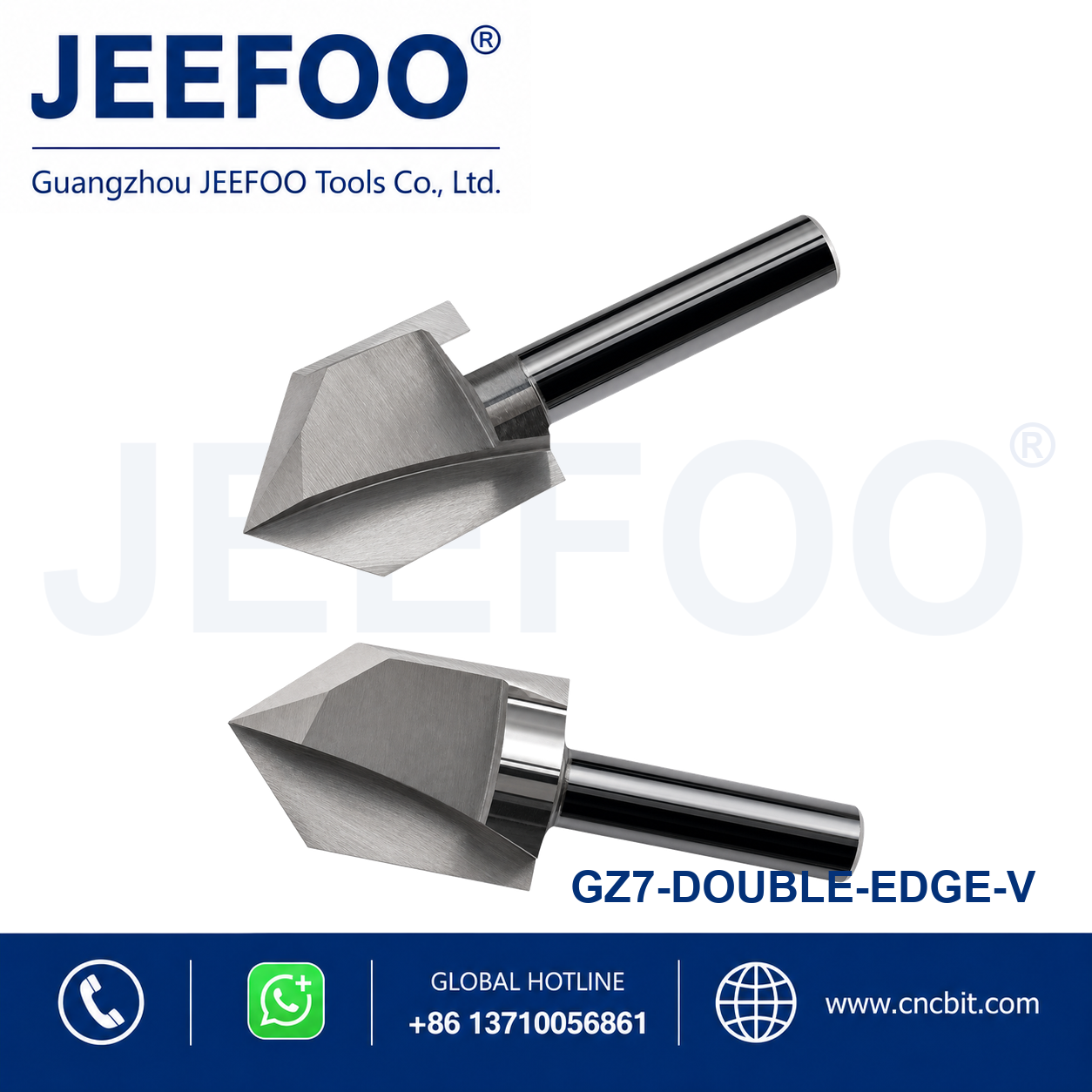

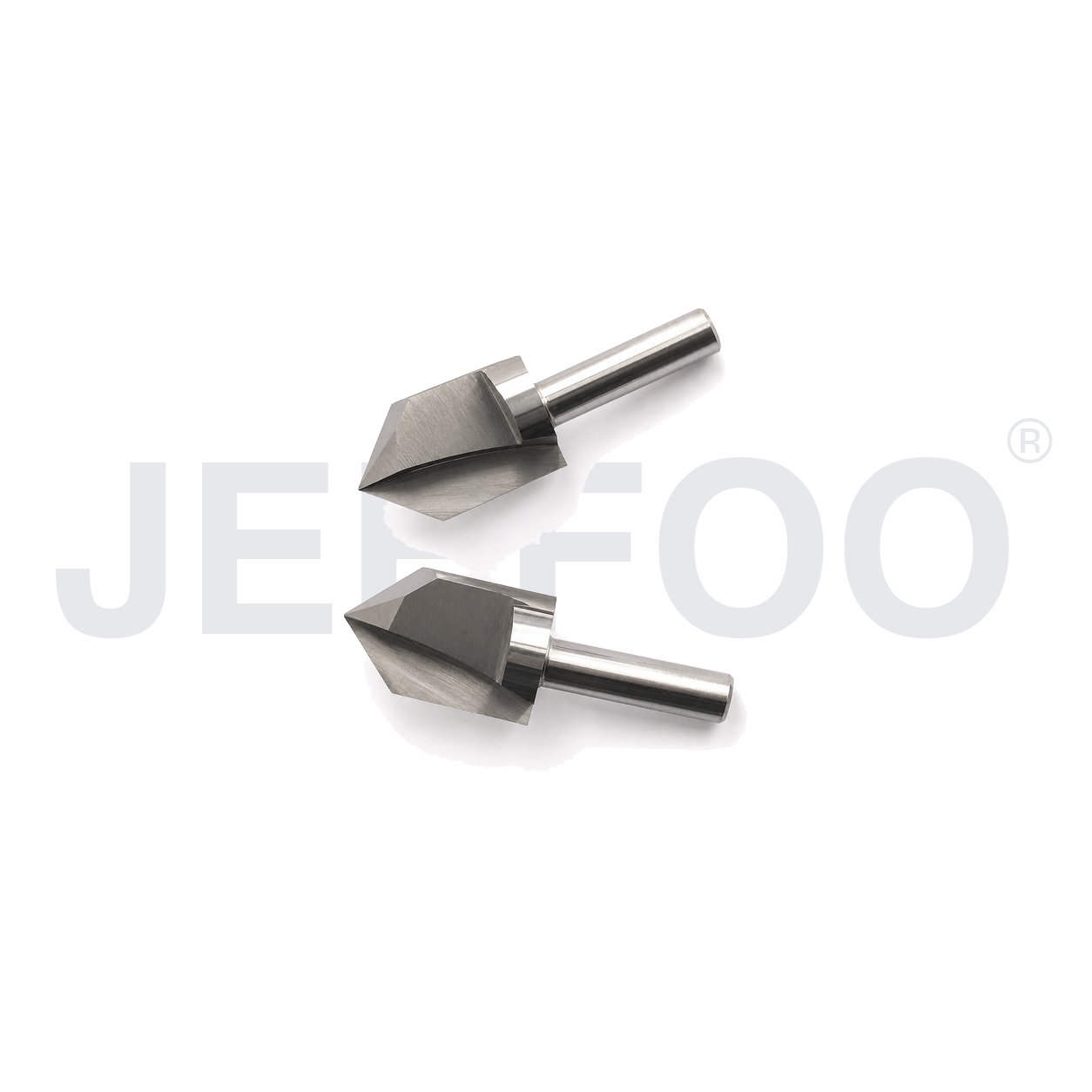

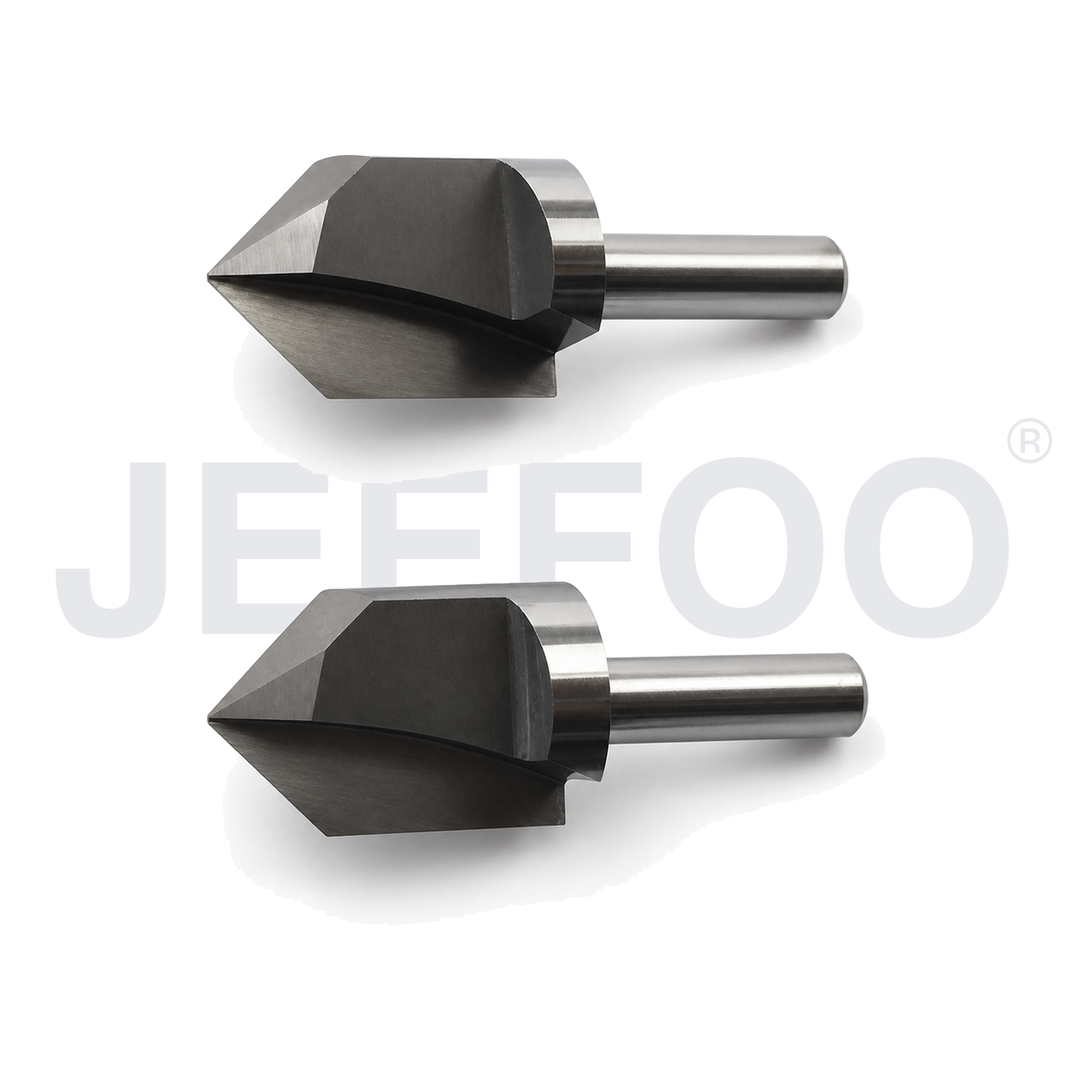

Solid Double Edge V Router Bit CNC Applications
One-piece bilateral V blade for stable cutting and precise V grooves.
solid carbide material provides wear resistance and reliable durability.
Clean one-step molding helps reduce chipping and avoids secondary polishing.
Ideal for V-groove processing on wood panels, acrylic and PVC.
