DG Straight Drill Profiling Cutter is the recommended profile reference for straight drill profile CNC routing and shaped drilling profile work.

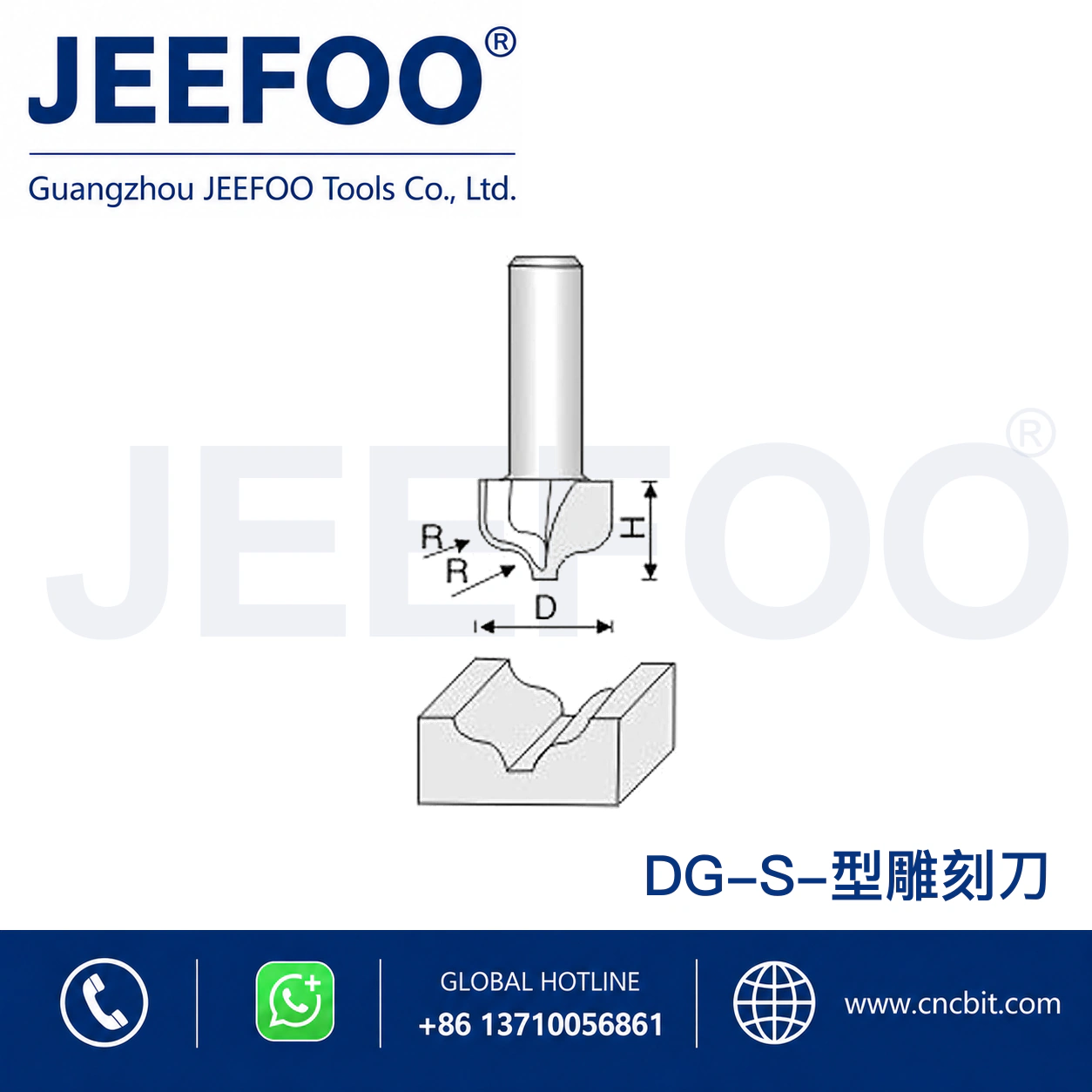

DG Straight Drill Profiling Cutter is a standard woodworking router bit designed for plunge routing, shaped groove cutting and profile machining. The blue schematic drawing identifies the cutter profile and supports accurate model selection for routing and molding applications.
Straight Drill Profiling Cutter Features
- Profile geometry is designed for plunge routing, shaped groove cutting and profile machining.
- Precision-machined cutting edges support stable routing and a consistent wood finish.
- Suitable for compatible routers, spindle molders and CNC woodworking equipment.
- Designed for solid wood, MDF, plywood and other compatible wood-based materials.
- Standard models and customized dimensions are available for production requirements.
Applications and Selection Guidance
Use the DG profile for plunge routing, shaped groove cutting and profile machining. Confirm the shank or bore size, cutting diameter, cutting height, machine rotation and required profile before ordering. Perform a test cut and adjust speed, feed and cutting depth for the material and machine rigidity.
- Keep the tool and holder clean before installation.
- Minimize tool overhang and verify secure clamping.
- Use suitable dust extraction and workpiece holding.
- Do not operate a chipped, cracked or excessively worn cutter.
Product Description
- Series: D-Straight Drill Profiling Cutters.
- Model: DG.
- Product type: Straight Drill Profiling Cutter.
- Application: Plunge routing, shaped groove cutting and profile machining.
- Customization: Contact us for compatible dimensions and non-standard cutter profiles.
DG Straight Drill Profiling Cutter: CNC Guidance
The DG Straight Drill Profiling Cutter is a profile router bit for producing straight drill profiles and plunge-routing details, straight profile details and shaped drilling and profiling in architectural millwork. It is intended for CNC routers, spindle molders and compatible woodworking routers where repeatable geometry and a clean surface finish are required.
DG Profile, Materials and Applications
- Use the DG profile for straight drill profiles, drill holes and profile channels, furniture edges, door components and custom molding.
- Typical workpieces include solid wood, MDF, plywood and other approved wood-based panels.
- Confirm the cutting diameter, cutting height, shank or bore size and machine clearance before ordering.
- Make a sample cut first to verify the profile, feed direction and surface finish.
CNC Setup and Safety
Install the cutter in a clean, compatible holder and minimize tool overhang. Set spindle speed, feed rate and cutting depth for the material, tool diameter and machine rigidity. Secure the workpiece, use dust extraction and inspect the cutting edges before each run. Follow shop rules and the OSHA woodworking safety guidance when operating routing equipment.
Product Description
- Model: DG.
- Product type: Straight Drill Profiling Cutter.
- Profile: Bowed-arc and ornamental contour routing.
- Machine: CNC router, spindle molder or compatible woodworking router.
- Customization: Contact JEDGOO Tools for compatible dimensions, shank options and custom profile requirements.
Why Choose a DG Straight Drill Profiling Cutter?
A DG Straight Drill Profiling Cutter helps a workshop reproduce the same straight drill profile geometry across multiple parts. It is useful when a project needs matching trim, repeatable furniture details or a controlled transition along a straight drill edge. Compare the technical drawing with a finished sample before starting the production batch.
- Profile result: consistent straight drill profile and decorative contour detail.
- Selection priority: match the drawing, dimensions, shank and machine clearance.
- Order information: provide material, quantity and equipment details for a tooling review.
For repeatable straight drill trim and furniture work, the DG Straight Drill Profiling Cutter provides a clear profile reference for matching decorative contours across a production run.
The DG Straight Drill Profiling Cutter is selected when a straight drill decorative profile needs repeatable CNC routing. Before production, verify the DG Straight Drill Profiling Cutter profile against the required finished dimensions and material.
