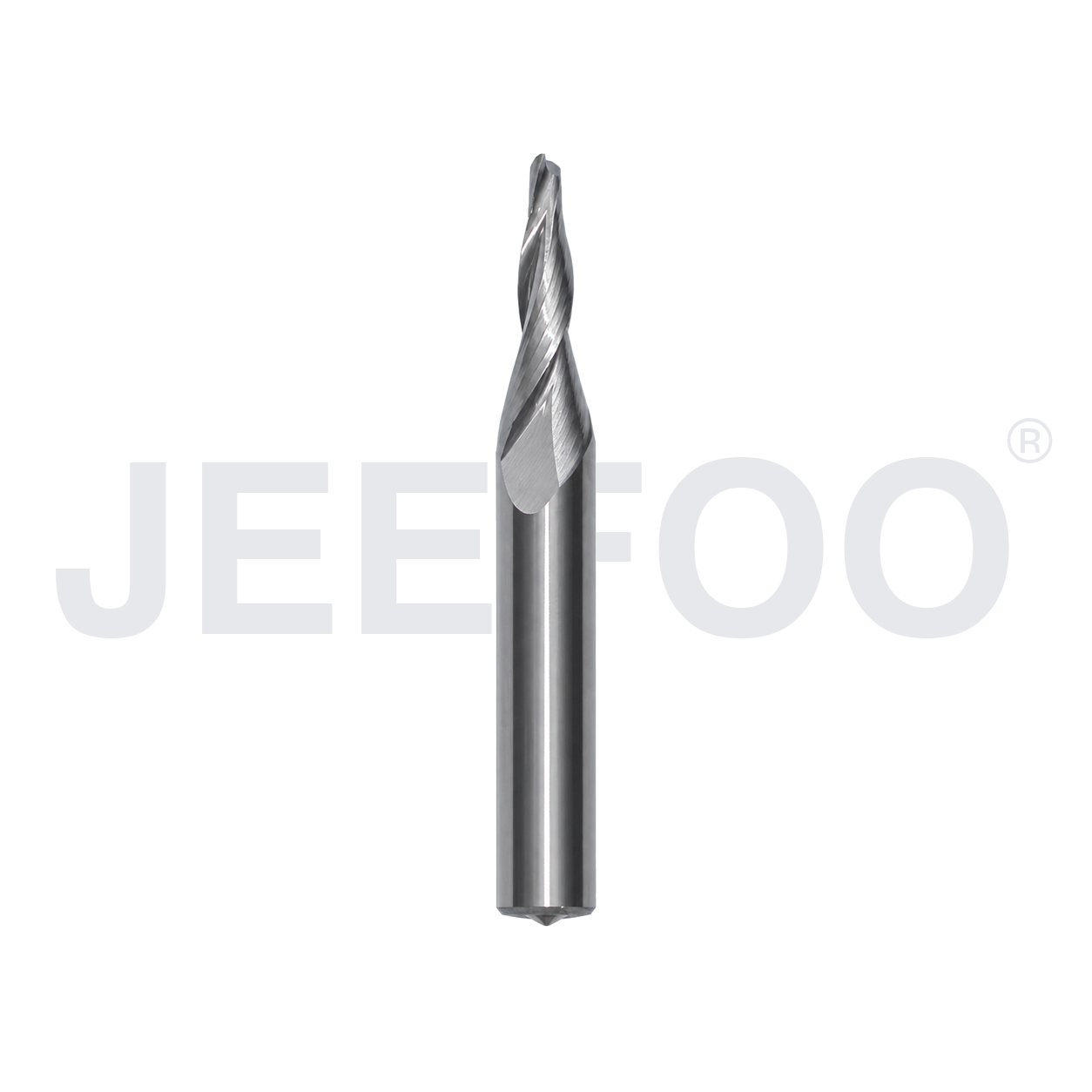

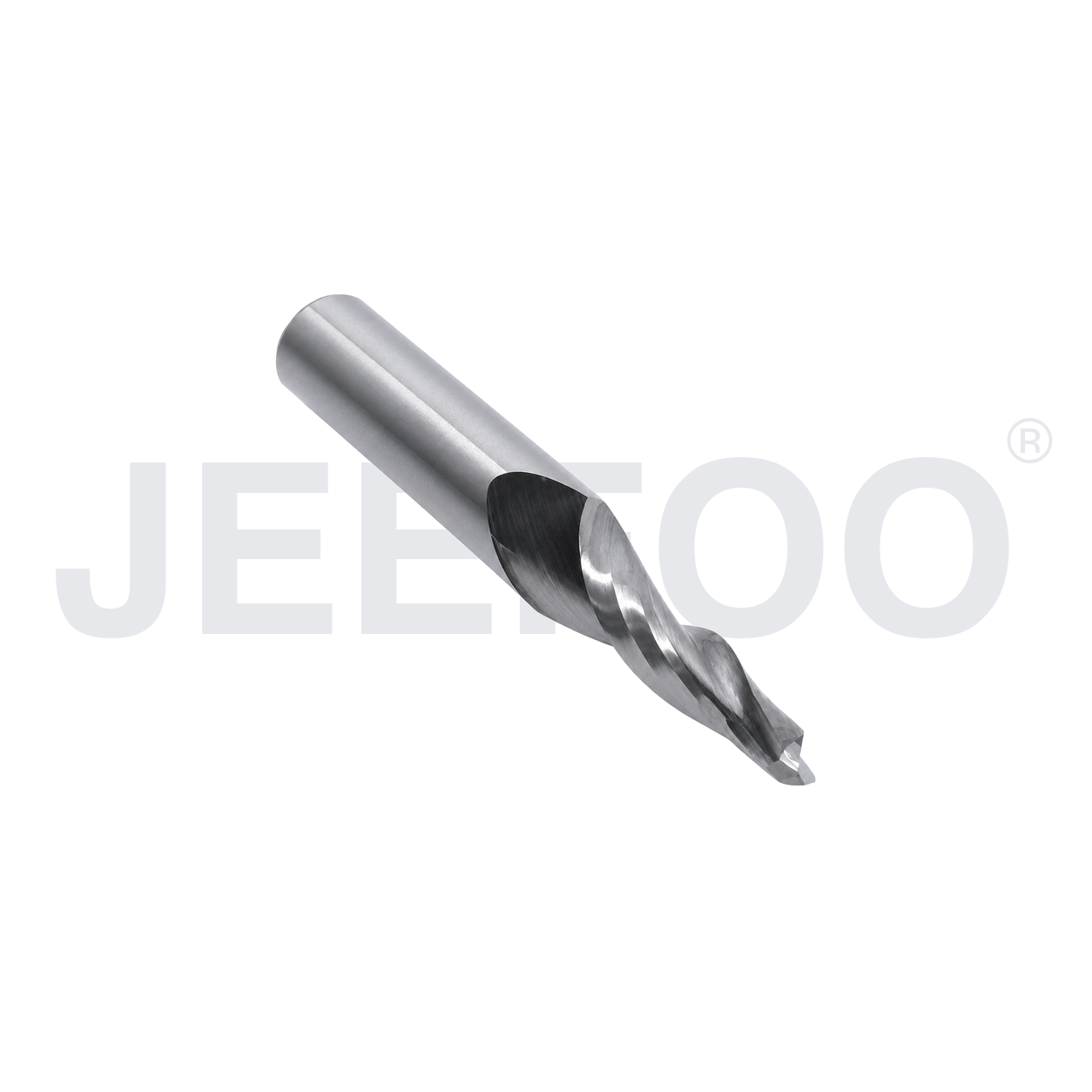

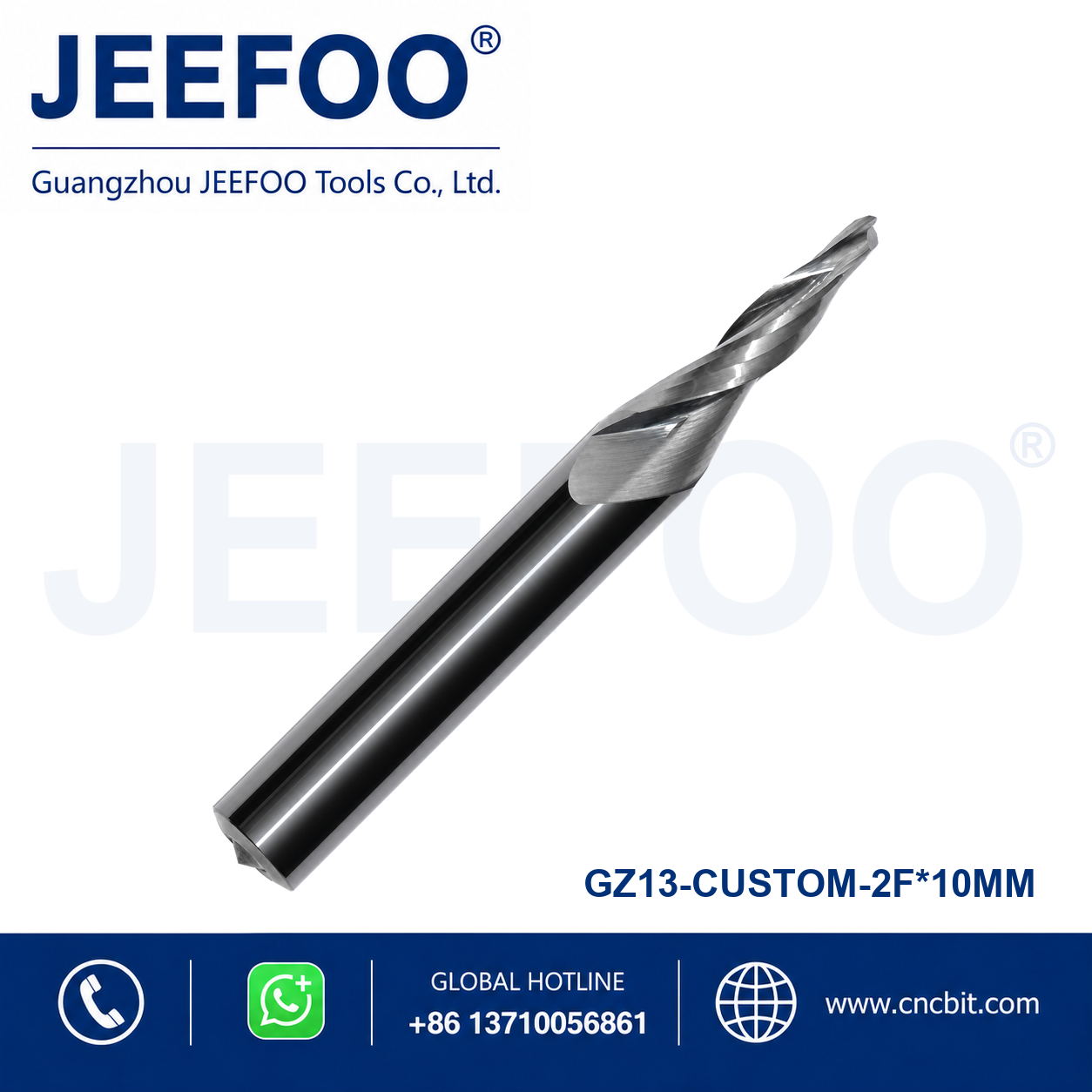

10mm Non-Standard Two Flute Spiral End Mill Applications
These cutters can produce grooves, pockets, contours, signs, lettering, templates and decorative parts. Two spiral flutes share the cutting load and provide more cutting contacts per revolution than a single-flute tool. This can support a smooth wall finish when the spindle, feed and chip evacuation are correctly matched to the workpiece.
Use 10mm Non-Standard Two Flute Spiral End Mill for controlled passes rather than assuming the full flute length should cut in one engagement. The safe depth depends on material hardness, machine rigidity, tool projection, radial engagement and chip clearance. Several step-down passes often improve accuracy and reduce edge load.
CNC Setup and Test-Cut Procedure
- Clean the collet, nut and carbide shank before installation.
- Keep tool projection as short as the job permits.
- Check spindle runout, workholding and programmed tool offsets.
- Start with a shallow test pass in scrap material.
- Use air flow or extraction to prevent chips from being recut.
- Adjust feed, spindle speed and step-down after inspecting the first groove.
In computer numerical control machining, a precise toolpath must be combined with practical cutting parameters. Two flutes need enough feed per tooth to cut rather than rub. If the feed is too low or chips remain in the slot, heat can increase and shorten tool life.
Material and Finish Guidance
Wood, MDF and plywood require stable support and effective dust extraction. Acrylic, PVC and ABS need clean chip evacuation and controlled heat so the cut edge does not melt. Resin and composite formulations should be test-cut because their machining response varies. For compatible aluminum components, use a rigid machine, suitable lubrication or air and conservative engagement to reduce chip adhesion.
Inspect both flutes for resin buildup, adhered material, chipped corners or uneven wear. Clean the cutter using an appropriate method and replace it if damage changes the groove width or surface finish. Do not compensate for a worn tool by simply increasing spindle speed, because this may add heat without restoring the cutting edge.
JEEFOO Supply from Guangzhou, China
JEEFOO manufactures and supplies solid carbide CNC router bits from Guangzhou, China, for distributors, workshops and industrial buyers. Product checks cover key dimensions, flute condition and cutting-edge quality before shipment. Browse related tools on the JEEFOO CNC cutting tool website, or provide the material, machine, drawing and quantity for specification confirmation.
Inspection and Safe Operation
Confirm the cutter is compatible with the spindle and collet, and never clamp on the flutes. Stop the machine completely before tool changes, wear suitable eye protection and keep extraction and guards in operation. Replace the bit after a collision or whenever visible damage appears on either cutting edge.
10mm Non-Standard Two Flute Spiral End Mill FAQ
What is the advantage of two spiral flutes?
Two flutes share the cutting load and can produce a smooth finish when feed per tooth and chip evacuation are correct.
Can the full specified cutting length be used in one pass?
The flute length provides capacity, but safe step-down depends on material, machine rigidity, projection and chip evacuation. Multiple passes are often preferable.
What information helps JEEFOO confirm an order?
Provide the diameter, cutting length, shank, overall length, work material, machine type, application and required quantity.
Material: whole solid tungsten carbide
Suitable machine: CNC machine and traditional router machine
Two Spiral Flute Bits for Clean CNC Routing
Spiral router bit is perfect for cutting mortises. The double flute design helps keep the mortise clear of chips and shavings while you cut.
Size: 3.175×2.0x12
