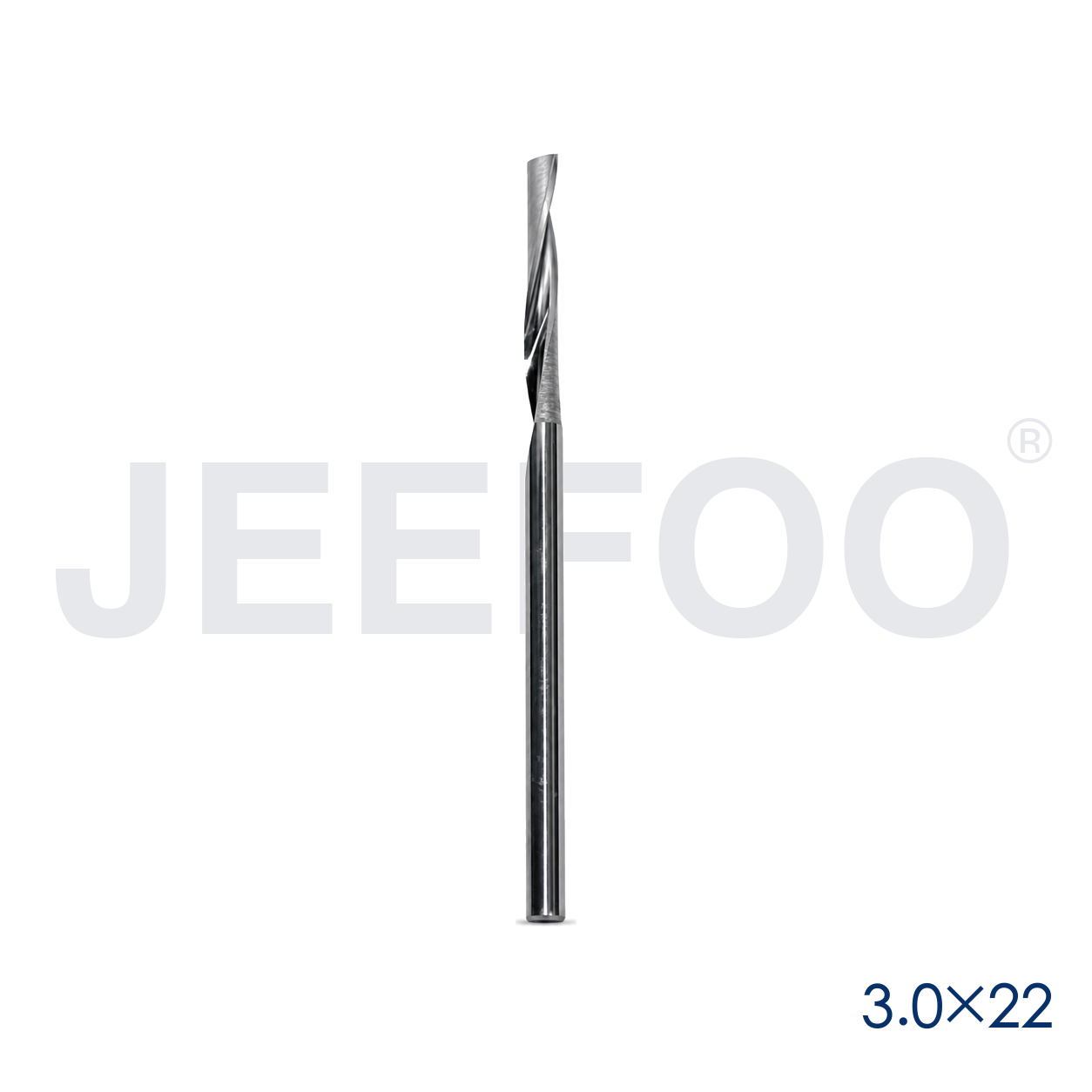

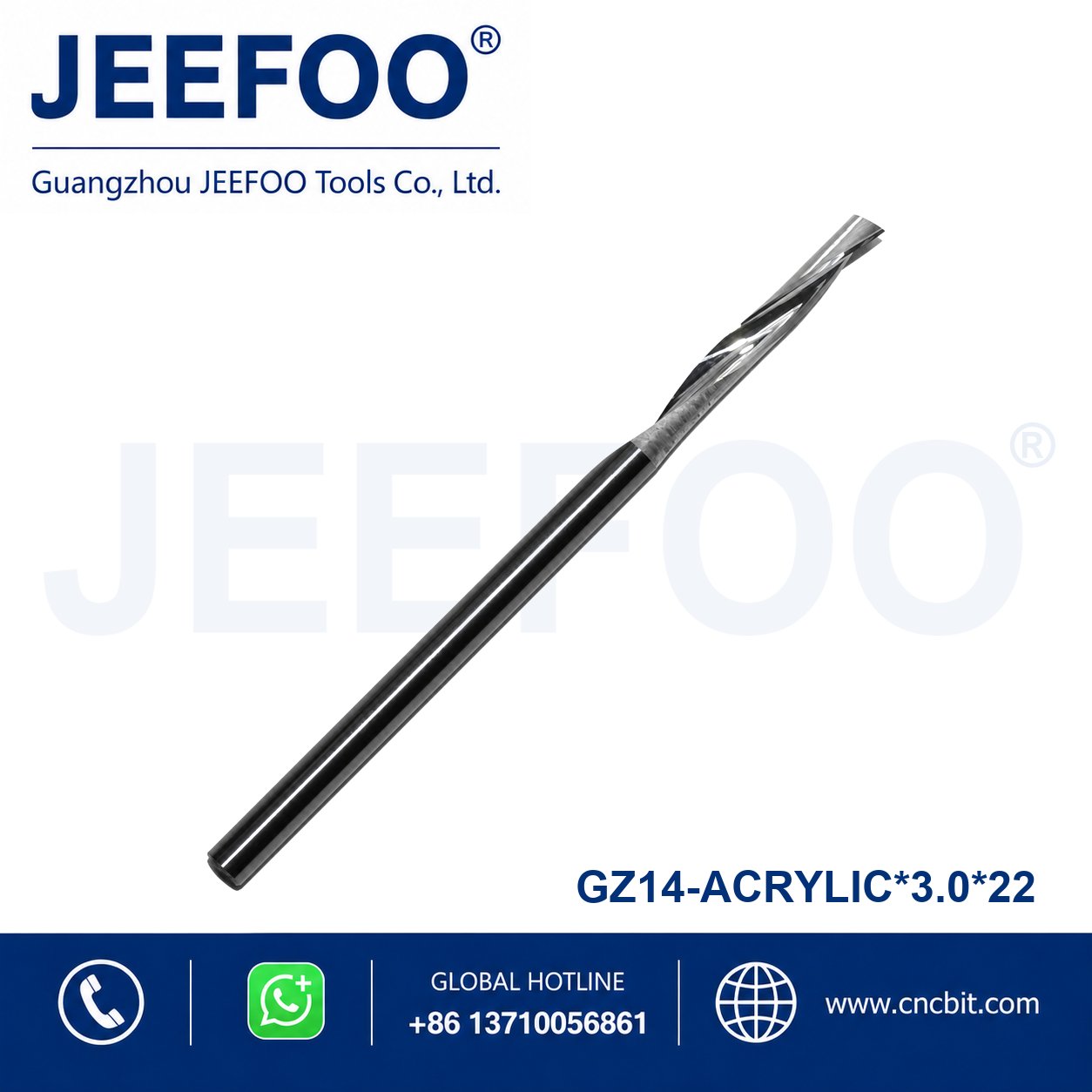

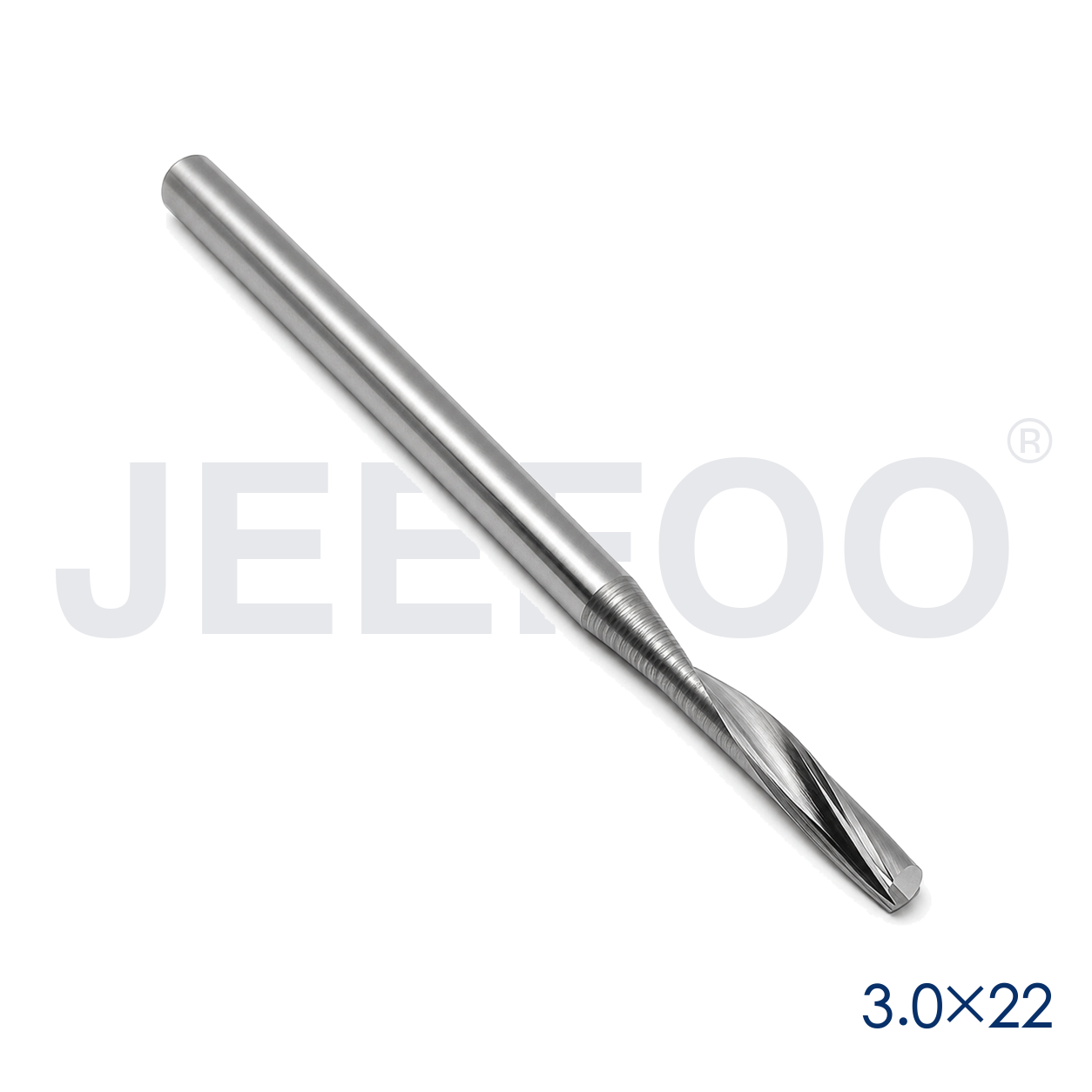

3.0×22 3.0×22 High Chip Removal Router Bit Guide
A 3.0×22 high chip removal router bit provides open chip space for CNC routing and milling in acrylic, plastics, wood and MDF. This 3.0×22 carbide cutter is designed for deep profiles, slots, signs and high-efficiency CNC routing. The single flute carries chips away from the cutting zone, reducing recutting and heat when feed, spindle speed and extraction are correctly matched.
Applications and Material Use
The tool can be considered for profiles, slots, pockets, signs, fixtures and prototype components. Its dimensions support controlled deeper cuts within the verified 22 mm specification. Suitability depends on material grade, machine rigidity, spindle power, workholding and the desired finish. A short test cut should confirm chip formation before full production.
- Acrylic and plastic profiles requiring clear chips
- Wood and MDF slots, channels and signs
- Prototype and repeat-production CNC components
- Templates, prototypes and small production runs
CNC Setup and Chip Control
Clean the collet, check spindle runout and clamp enough of the shank for stable rotation without covering the flute. Minimize unnecessary projection and secure the material. Begin with a conservative entry, feed rate and step-down, then adjust after inspecting chip shape, cutting sound, spindle load and edge quality.
The enlarged single-flute channel supports fast chip evacuation, but feed and spindle speed must create formed chips without overloading the 3.0 mm cutter. If the cutter chatters, burns the edge or loads with material, stop the job and review workholding, projection, feed, spindle speed and depth. Avoid dwelling in one place and replace a dull cutting edge before heat or vibration damages the workpiece.
Selecting a 3.0×22 High Chip Removal Router Bit
Before ordering a 3.0×22 high chip removal router bit, verify shank diameter, cutting diameter, flute length, overall length and cutting direction. Check that slot width, corner radius and maximum depth match the 3.0×22 specification. Material type, desired finish and CNC machine rigidity also influence selection.
JEEFOO Carbide Tools from Guangzhou, China
JEEFOO supplies carbide CNC router bits and end mills from Guangzhou, China for distributors, manufacturers and workshop users. Sharing the material, machine type, collet size and required depth helps the team recommend a suitable cutter. Explore more product information on the JEEFOO cutting tools website.
For general background on computer-controlled machining, see the reference about numerical control. Record successful feeds, speeds, step-down and tool numbers with the job file so repeat production begins from verified parameters.
For repeat jobs, inspect the collet and cutter before every setup. Store the verified material, feed, speed, depth and chip-control method with the CNC program. Consistent records help operators reproduce the cut, recognize wear early and avoid unnecessary trial passes.
Frequently Asked Questions
What does the 3.0×22 specification mean?
It identifies the main cutter dimensions. Confirm the complete product drawing because diameter, flute length and overall-length conventions can vary between tools.
Which materials can this tool machine?
It is intended for in acrylic, plastics, wood and MDF when tool geometry and cutting parameters match the application. Secure workholding and reliable chip evacuation are essential.
How can tool life be improved?
Minimize runout and stick-out, keep chips clear and use suitable feeds and depths. Correctly applied 3.0×22 high chip removal router bit geometry can produce consistent edges and predictable tool life.
Production and Ordering Checks
Make a short test cut in the actual material before full production. Inspect chip formation, surface finish, cutting sound and tool loading. Verify all dimensions and the required cutting depth in the product drawing. These checks reduce scrap and make replacement orders more reliable.
high chip removal single flute router bit is designed for stable CNC machining, clean cutting and dependable tool performance.
<high chip removal single flute router bit CNC Applications
!– wp:paragraph –>Large flute space supports fast chip evacuation and smooth-edge machining of acrylic and plastic.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.
Size: 3.0x22
