Carbide T-Type End Mill Selection Guide
A carbide T-type end mill is designed to machine T-slots, recessed grooves and undercut features after a suitable access slot has been prepared. The cutting head reaches behind the workpiece edge while the reduced neck provides clearance. This geometry is useful for CNC fixtures, slide channels, keyway-style details and custom profiles that cannot be produced with a standard straight cutter.
Applications and Compatible Materials
The tool can be considered for compatible woods, engineering plastics and selected non-ferrous materials when cutter dimensions, rigidity and cutting parameters match the job. Verify head diameter, head thickness, neck diameter, shank size, overall length and usable undercut depth before programming.
- T-slot and recessed channel machining
- Undercut features in fixtures and custom components
- Keyway-style grooves and slide tracks
- Prototype and repeat-production CNC parts
Safe CNC Setup and Cutting Sequence
Create an access slot wide enough for the neck and deep enough for the head before using the carbide T-type end mill. Confirm that the cutting head can enter and exit without contacting uncut material. Secure the workpiece, clean the collet and minimize tool projection while maintaining required clearance.
Begin with a conservative radial engagement, feed rate and step depth. Watch spindle load, cutting sound, chip formation and neck deflection. Excessive side load can damage a reduced-neck tool. Stop immediately if chatter, rubbing or chip packing appears, then correct the access slot, workholding, speed, feed or cutting depth.
How to Choose the Correct T-Slot Tool
Match the finished slot width and recess height to the head dimensions. Check that the neck provides enough clearance without creating unnecessary weakness. Machine rigidity, spindle power, material grade and the required finish also affect tool selection. A short test cut in the actual material is the safest way to confirm the process.
JEEFOO CNC Tools from Guangzhou, China
JEEFOO supplies carbide CNC cutters from Guangzhou, China for distributors, manufacturers and workshop users. Share the material, drawing, slot dimensions, machine type and collet size when requesting a carbide T-type end mill. Explore more products on the JEEFOO cutting tools website.
For general machining background, see the reference on milling. Record the verified tool number, access-slot dimensions, feed, speed and engagement with the CNC program so future operators can reproduce the result.
Frequently Asked Questions
Can this tool cut a T-slot directly from solid material?
No. Prepare a suitable straight access slot first so the cutting head and reduced neck have clearance. The exact sequence depends on the drawing and tool dimensions.
What dimensions should be checked before ordering?
Verify head diameter, cutting thickness, neck diameter, shank diameter, overall length and usable undercut depth. Compare every value with the workpiece drawing and machine envelope.
How can tool life be improved?
Use a clean collet, low runout, secure workholding and a correctly sized access slot. Conservative engagement and effective chip removal reduce heat and side load on a carbide T-type end mill.
Product Description

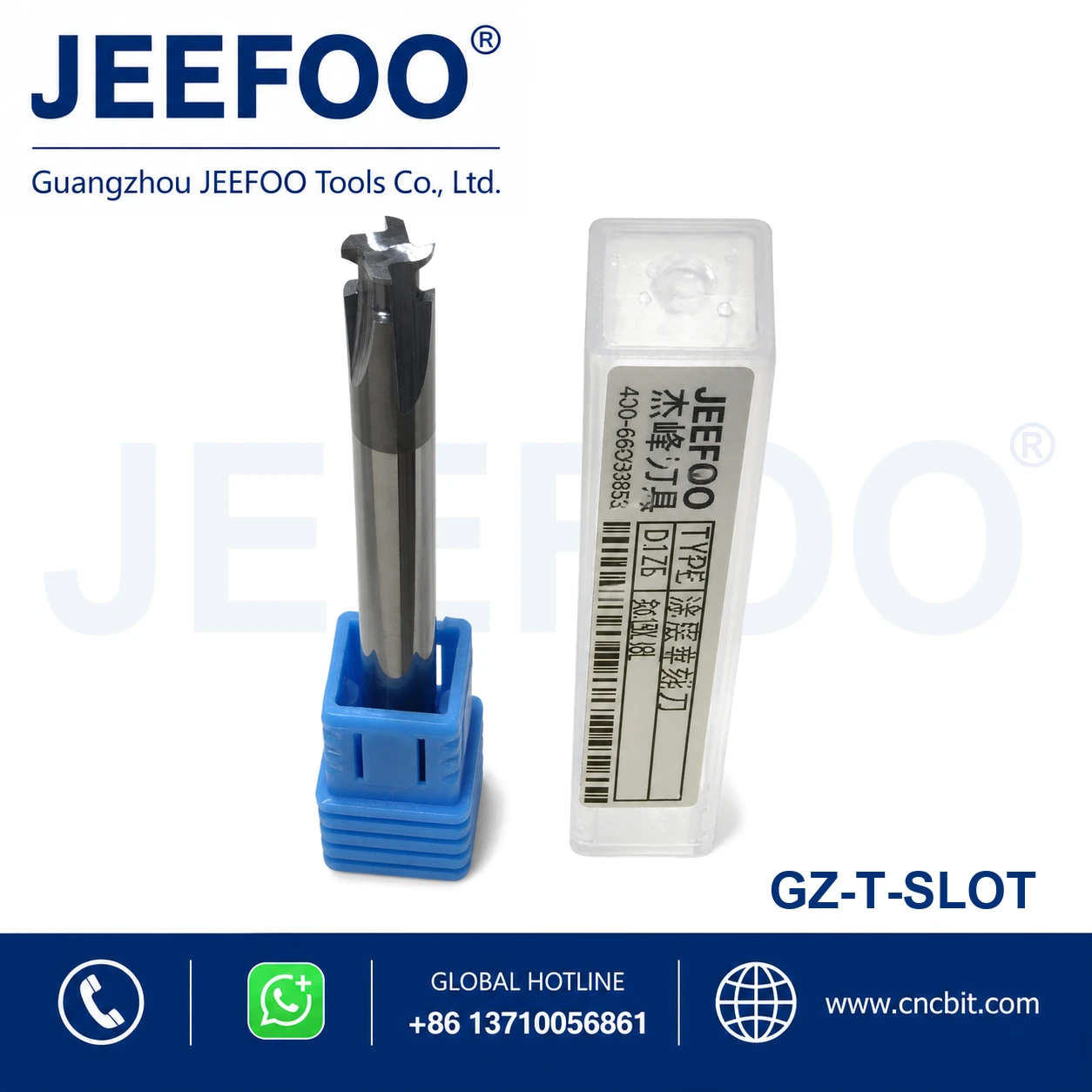

This carbide T-type end mill is designed for precision T-slot cutting, undercutting and recessed groove machining on CNC engraving machines. Its reduced neck provides clearance behind the cutting head, allowing the tool to form features that cannot be reached by a standard straight end mill.
The tool is suitable for compatible woods, plastics and non-ferrous materials when used within the cutter dimensions and machine capability. For safe, clean cutting, the initial access groove must provide adequate clearance, and the feed rate, step depth and spindle speed should be selected to limit side load on the neck.
Recommended Applications
- T-slot and keyway-style groove machining
- Undercut features and recessed channels
- CNC engraving fixtures and custom profile work
