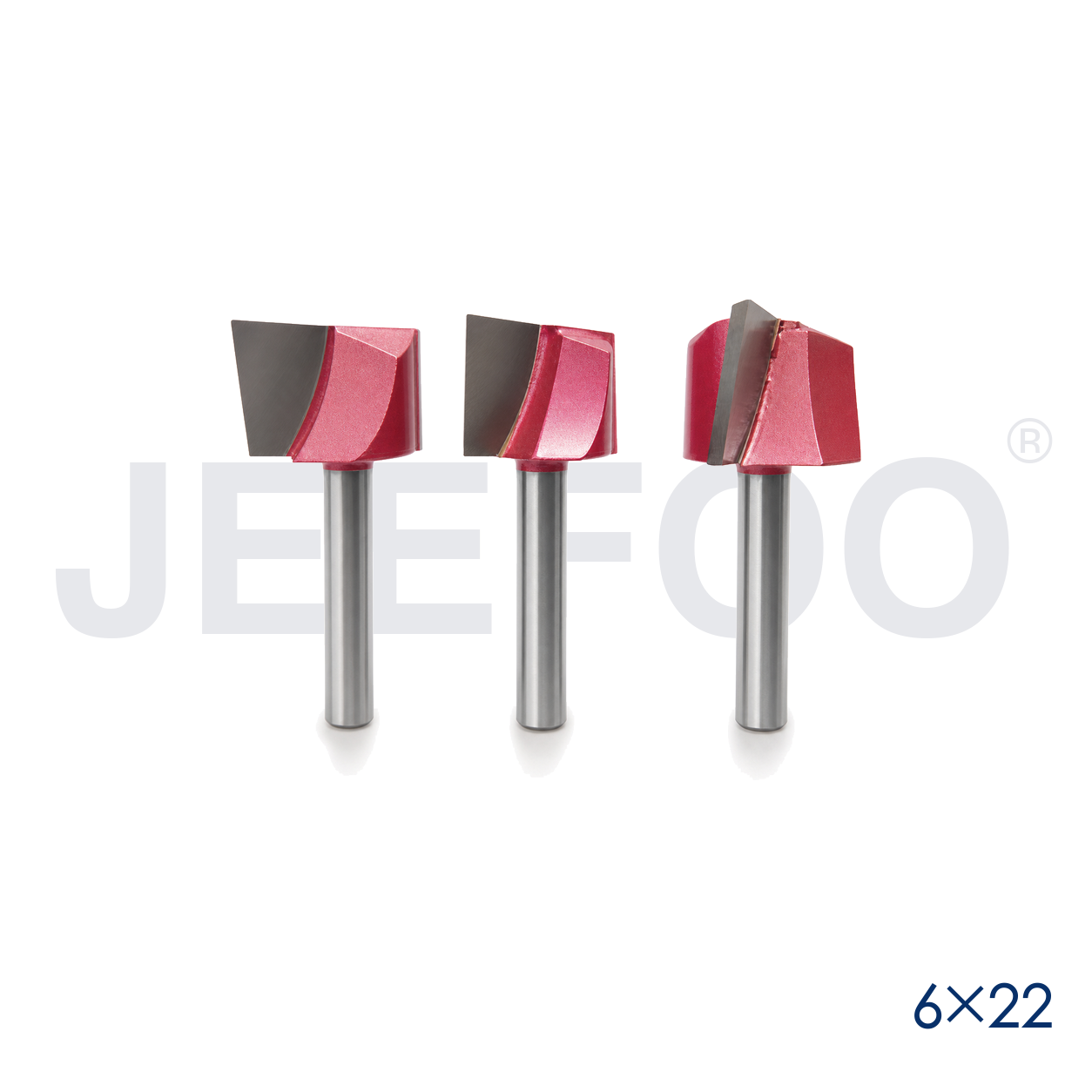

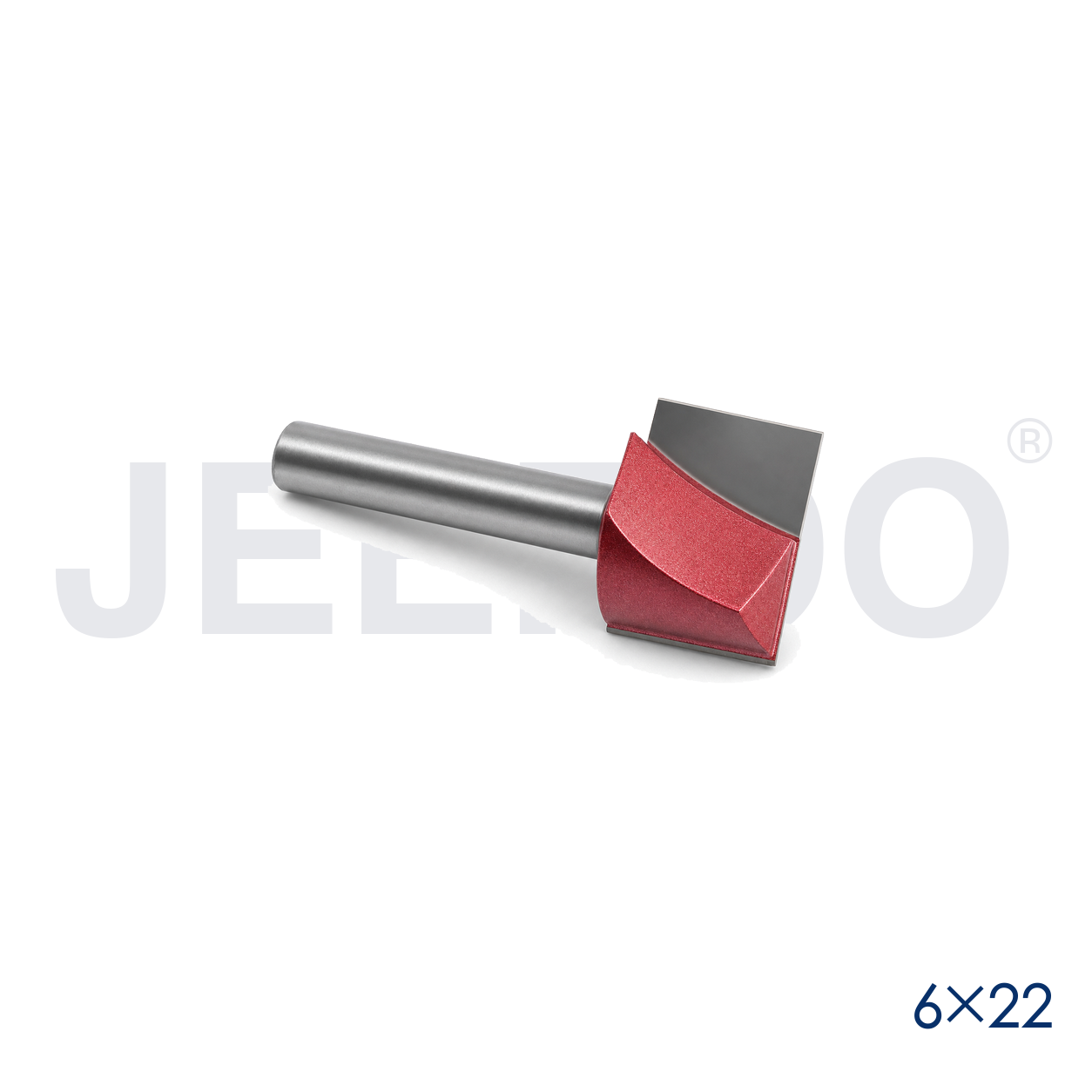

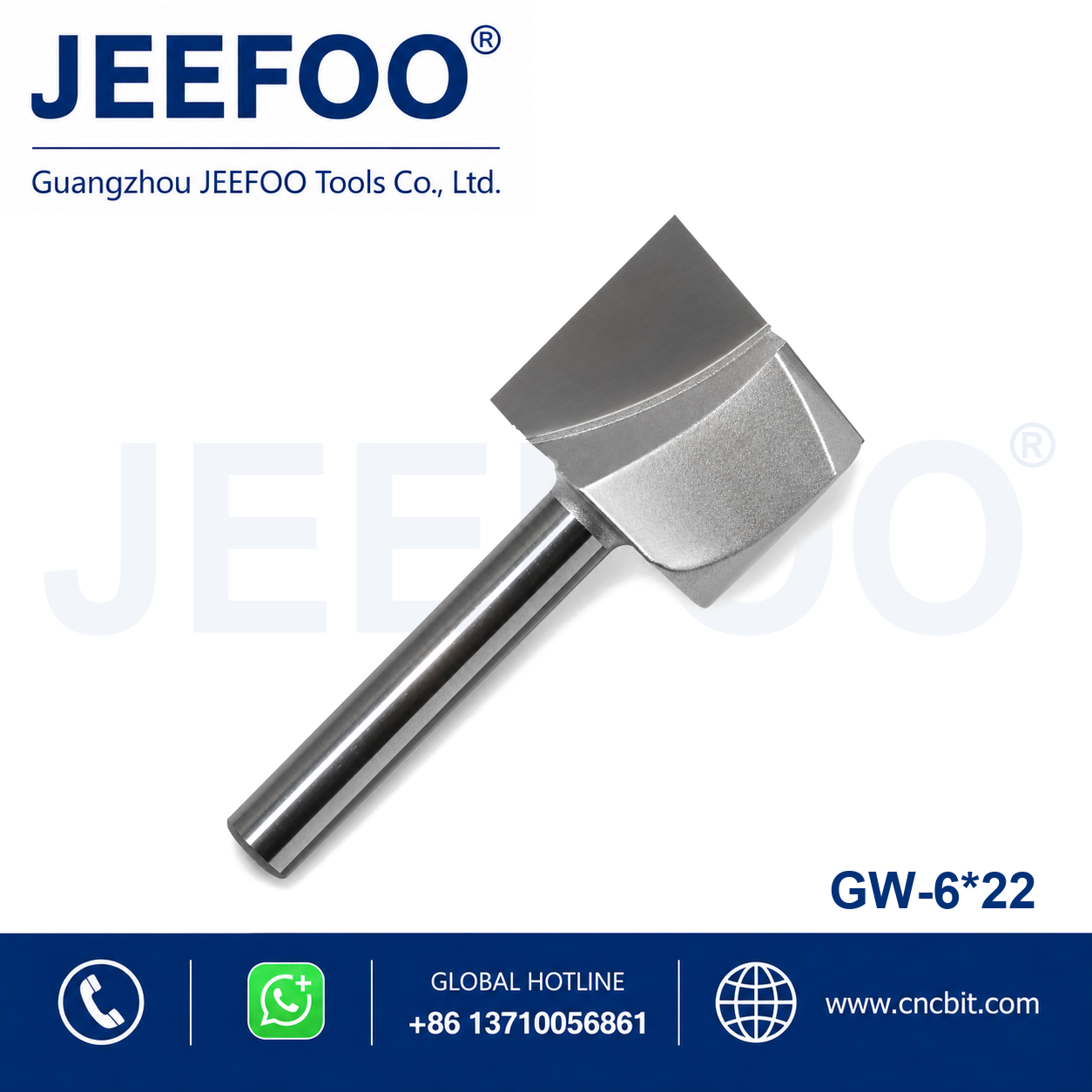

6×22 Cleaning Bottom Bit CNC Guide
A 6×22 cleaning bottom bit is designed for controlled wood surfacing, spoilboard leveling and flat-bottom milling. The cutter can remove uneven material and produce a broad, level path when spindle runout, workholding, stepover and dust extraction are correctly managed.
Setup and Surface Quality
Clean the collet and shank, keep tool overhang short and secure the board on a rigid, level support. Begin with a shallow pass and conservative stepover. Inspect the surface for ridges, burning, tear-out and vibration marks before increasing material removal.
Maintain continuous dust extraction so chips do not collect under the cutting path. If ridges appear between passes, check spindle tram, tool runout, workpiece flatness and stepover. Confirm the exact cutter geometry and safe parameters from the supplier before production.
JEEFOO Tools from Guangzhou, China
JEEFOO supplies woodworking CNC cutters from Guangzhou, China for distributors, furniture factories and workshops. Share the wood species, panel size, target finish, machine and production quantity when requesting a 6×22 cleaning bottom bit. Explore related products on the JEEFOO cutting tools website.
For general background on programmed machining, see numerical control. Record the verified tool number, depth, feed, speed, stepover and extraction setup with the CNC program.
Frequently Asked Questions
What affects a flat surface?
Spindle tram, runout, board support, stepover, cutting depth and tool condition all influence flatness and visible ridges.
Should a deep pass be used?
Use multiple shallow passes when significant material must be removed, then verify the final surface with the 6×22 cleaning bottom bit.
Cleaning Bottom Bits are carbide-tipped CNC router cutters designed for flattening, surfacing, trimming and milling wood with a clean, level bottom finish.
Cleaning Bottom Bits Features
- Carbide-tipped cutting edges for reliable wood machining.
- Designed for bottom cleaning, spoilboard surfacing and flat-bottom milling.
- Suitable for CNC production with wood and compatible panel materials.
- Balanced cutter geometry supports a smooth, consistent machined surface.
- Standard models and customized OEM/ODM options are available.
Applications and Cutting Guidance
The 6×22 Cleaning Bottom Bits model is suitable for CNC router machining, tabletop flattening, wood-panel surfacing, slot-bottom cleaning and trimming operations. It can help remove uneven material and produce a broad, level cutting path when the machine, tool and workpiece are set up correctly.
- Use a clean collet and keep tool overhang as short as practical.
- Secure the workpiece firmly before starting the surfacing pass.
- Select feed rate, spindle speed and step-over according to the material and cutter size.
- Use multiple shallow passes when removing a large amount of material.
- Maintain effective dust and chip extraction during CNC production.
Correct alignment and controlled step-over help reduce ridges between passes. Inspect the cutting edges before use and replace damaged or worn tools promptly. Custom cleaning-bottom cutters, grooving tools and woodworking milling cutters can be supplied for specific machine requirements.
Product Description
- Product name: Cleaning bottom bit for CNC router machines.
- Material: Carbide-tipped woodworking cutter.
- Application: Wood cutting, milling, flattening, trimming and bottom cleaning.
- Production: Suitable for CNC manufacturing and workshop surfacing operations.
- Supply: Standard and customized cutter specifications are available.
Size: 6×22
