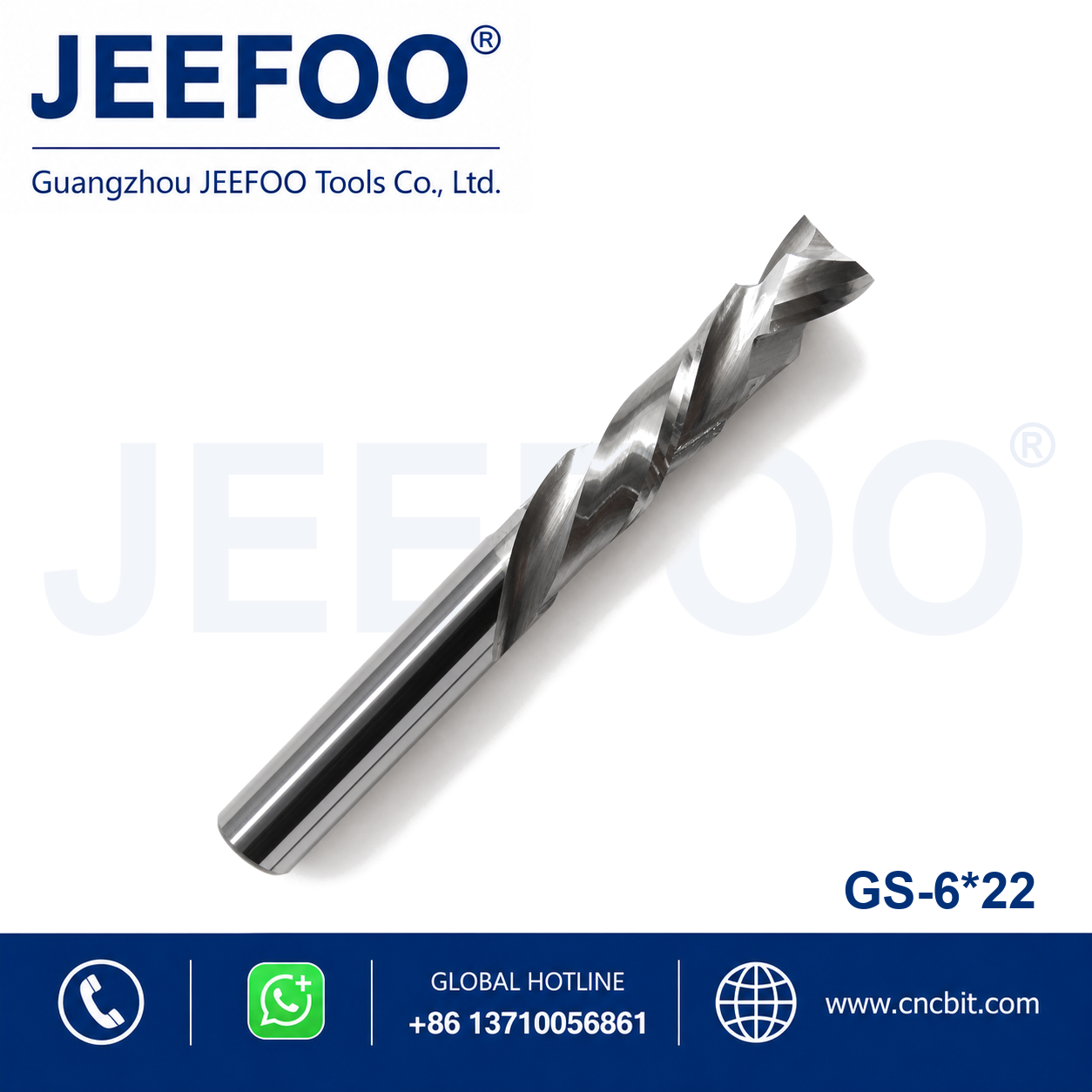

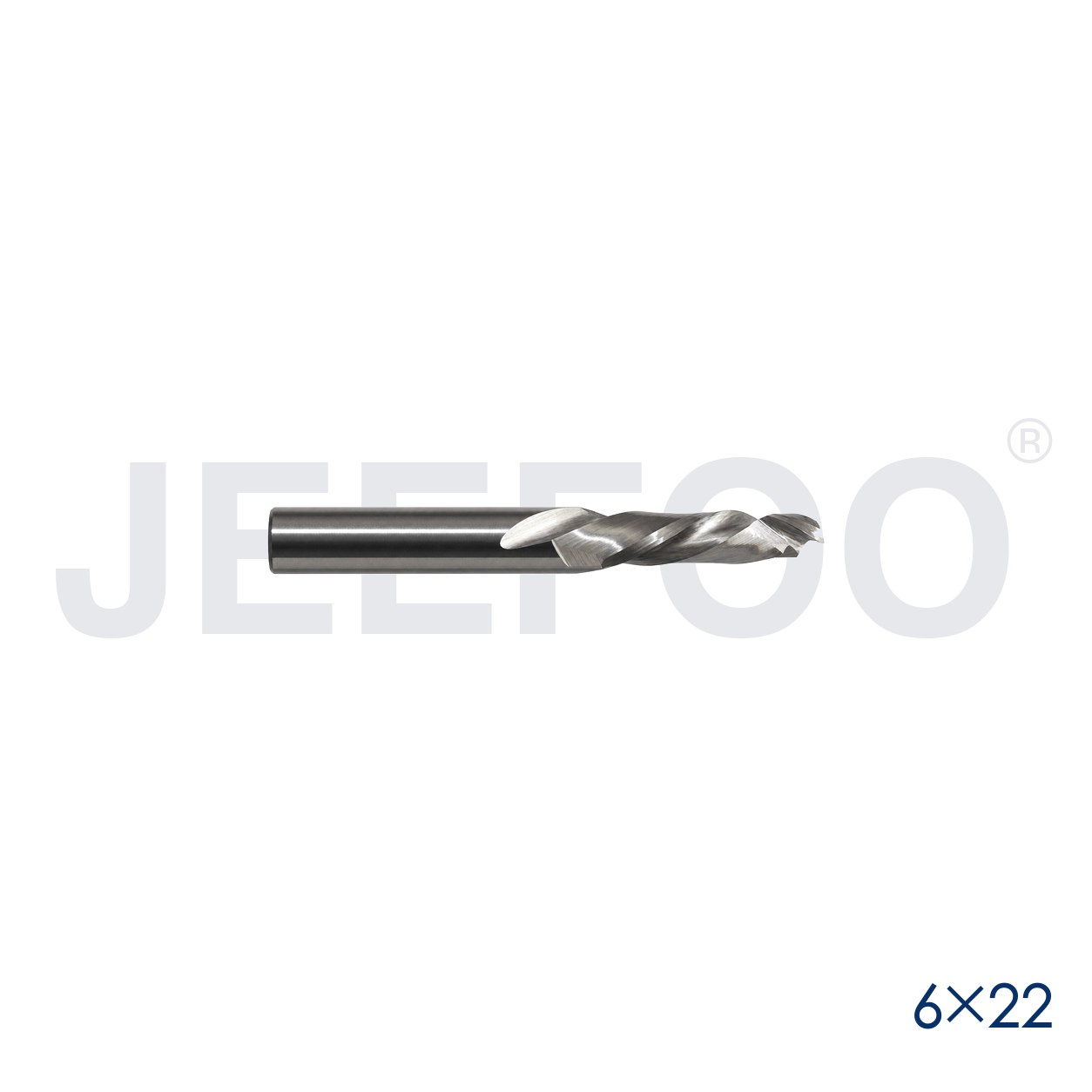

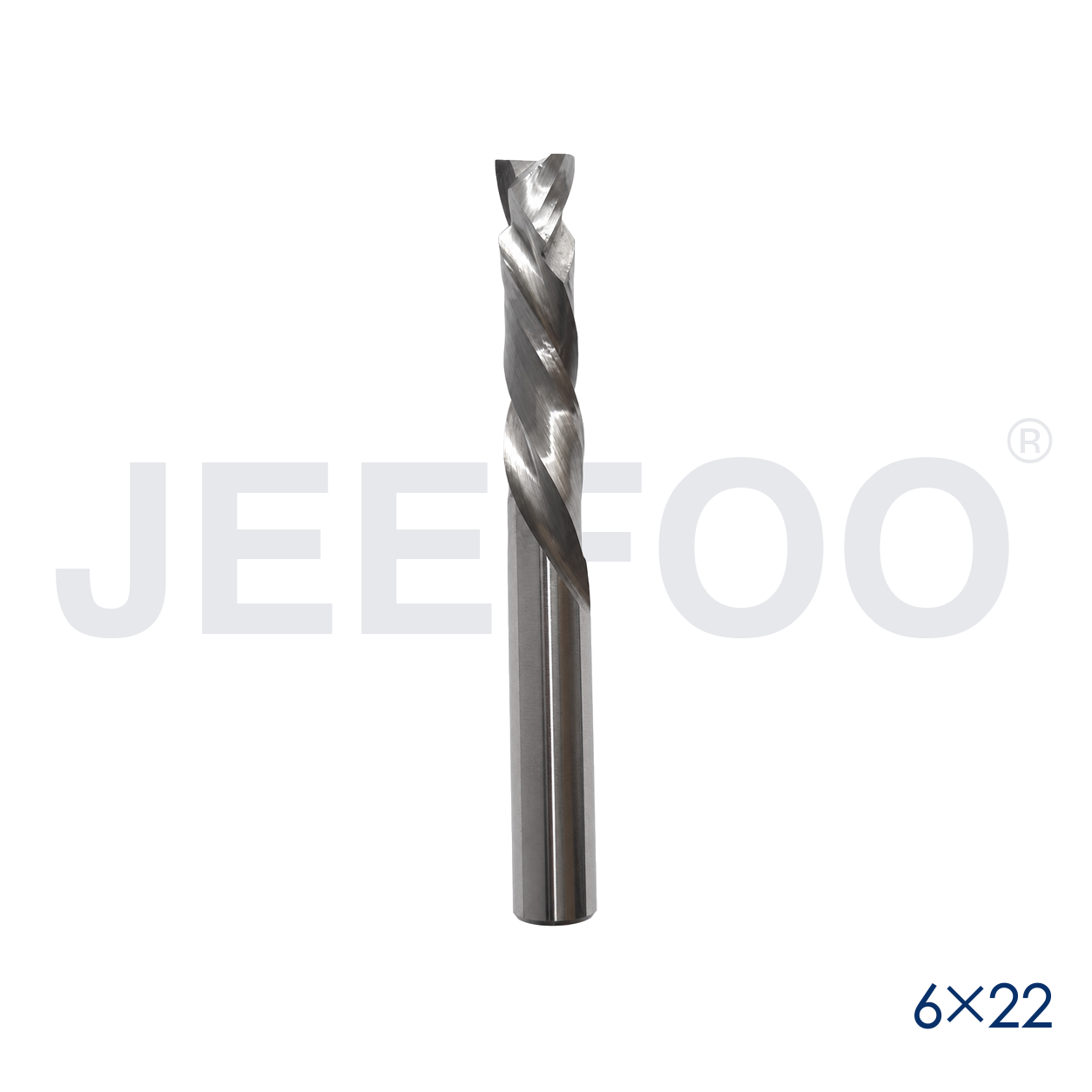

6×22 GS Compression Router Bits A Series Guide
The 6×22 GS Compression Router Bits A Series from JEEFOO in Guangzhou, China combines up-cut and down-cut action so the cutting forces press toward the center of a panel. This geometry helps protect both visible faces when routing laminated board, plywood, MDF, acrylic, PVC, cork and compatible wood or plastic panels.
Specifications and geometry
- Cutting diameter: 6 mm
- Cutting length: 22 mm
- Series: GS A-Series solid carbide
- Geometry: single-flute up-and-down compression spiral
- Typical equipment: CNC routers and engraving machines
When compression geometry works best
A compression bit performs best when the workpiece is thick enough for both the up-cut and down-cut sections to engage. The first pass must reach beyond the short up-cut section; otherwise the top face may not receive the intended downward cutting action. Verify the transition length, sheet thickness and programmed depth before production.
Recommended CNC applications
- Through-cutting laminated plywood and double-sided panels
- Profiling MDF, solid wood and furniture components
- Cutting acrylic, PVC and composite plastic boards after a parameter test
- Sign making and nested-based CNC routing where both faces must remain clean
Machine setup and chip control
Clean the collet and shank, minimize overhang and secure the panel on a flat spoilboard. Confirm that vacuum or mechanical workholding can resist the toolpath forces. Start with conservative spindle speed, feed rate and depth per pass, then adjust gradually while observing chip size, sound, spindle load and edge quality.
Remove chips continuously with dust extraction or an air system approved for the machine and material. Recutting chips increases heat and can mark acrylic or laminate surfaces. Use a sharp tool and stop if vibration, burning, melting, edge breakout or abnormal spindle load appears.
JEEFOO support from Guangzhou, China
JEEFOO manufactures CNC router tooling in Guangzhou, China, for furniture factories, sign makers, distributors and industrial buyers. Standard and customized sizes can be reviewed according to panel type, machine, cutting depth and finish requirement. Explore more JEEFOO CNC cutting tools or review general router machining information before planning a new process.
Frequently asked questions
What does 6×22 mean?
It identifies a 6 mm cutting diameter and a 22 mm cutting length.
Why use a compression bit on laminated panels?
The opposing flute directions help reduce chipping on both the top and bottom faces during through cuts.
Can JEEFOO recommend a custom tool?
Yes. Provide the panel material, thickness, machine, shank requirement and quantity for review.
6×22 GS Compression Router Bits A Series are solid carbide compression cutters engineered for clean CNC machining on laminated panels, plywood, MDF, hardwood, acrylic, PVC and other common routing materials. The coordinated up-cut and down-cut flute geometry controls fibers on both faces of the workpiece, helping operators produce smooth top and bottom edges in one machining pass.
6×22 GS Compression Router Bits A Series for Clean Two-Sided Edges
The cutting section combines upward and downward chip flow. The upper flute presses the top surface downward while the lower flute lifts the bottom surface toward the center of the panel. This compression action reduces breakout, fuzzing and laminate chipping. It is especially useful when both faces remain visible after cutting and when secondary sanding would slow production.
Solid Carbide Construction
These GS compression router bits use solid tungsten carbide for rigidity, wear resistance and stable cutting accuracy. A carefully ground edge supports consistent chip formation and helps limit heat during continuous CNC work. Correct spindle speed, feed rate, tool holding and dust extraction further improve finish quality and useful tool life.
Recommended Applications
Use the cutter for softwood, hardwood, laminated plywood, particleboard, MDF, HDF, veneer-faced board, plastic-faced sheet, artificial stone, acrylic, PVC and other organic materials. The design is suitable for profile cutting, slotting, nesting and through-cut operations on CNC router machines. JEEFOO can also manufacture special dimensions for application-specific tooling requirements.
Cutting Advantages
- Compression flute action supports clean top and bottom panel surfaces.
- Precision edge grinding promotes smooth cutting and controlled chip removal.
- Solid carbide construction provides rigidity and long service life.
- Balanced upward and downward chip flow reduces visible breakout.
- Suitable for production routing of wood panels and selected plastics.
CNC Setup Guidance
Secure the tool in a clean, accurate collet and use the shortest practical projection. Confirm that the compression point is positioned within the material thickness so both flute directions engage correctly. Select feeds and speeds according to material density, machine rigidity and cut depth. Avoid excessive dwelling because rubbing generates heat and may reduce edge life.
For best results, make sure the workpiece is held firmly and the tool path allows efficient chip evacuation. A suitable extraction system keeps the cutting area clear. Inspect the cutting edge before production and replace a worn tool when surface quality begins to decline. A test cut is recommended whenever material, spindle speed or holding conditions change.
Size and Selection
Size: 6×22. Confirm shank diameter, cutting diameter, cutting length and overall length before ordering. The 6×22 GS Compression Router Bits A Series configuration is intended for projects that require reliable compression cutting and a refined finish on both sides of the panel.
Why Choose JEEFOO Compression Cutting Tools
JEEFOO focuses on consistent geometry, clean edge preparation and practical CNC performance. The 6×22 GS Compression Router Bits A Series option supports repeatable production where panel appearance matters on both faces. Buyers can review additional JEEFOO CNC router cutting tools and contact the team for dimension confirmation, application advice or customized tooling.
Frequently Asked Questions
When should a compression bit be used?
Choose a compression bit when the top and bottom surfaces must remain clean, particularly on laminated panels, veneered plywood and MDF. The opposing flute directions help keep surface layers pressed toward the material center.
How should the cutting length be selected?
Select a cutting length that safely covers the workpiece thickness while keeping tool projection controlled. Verify that the transition between the up-cut and down-cut sections sits correctly inside the panel during through cutting.
Always follow the CNC machine manufacturer’s safety, tool-holding and operating guidance. Confirm that the collet, spindle and workholding system are suitable before running the 6×22 GS Compression Router Bits A Series at production feed rates.
For general background on machine-controlled routing, see this overview of CNC router technology. Apply the machine maker’s instructions and site safety rules to every setup.
