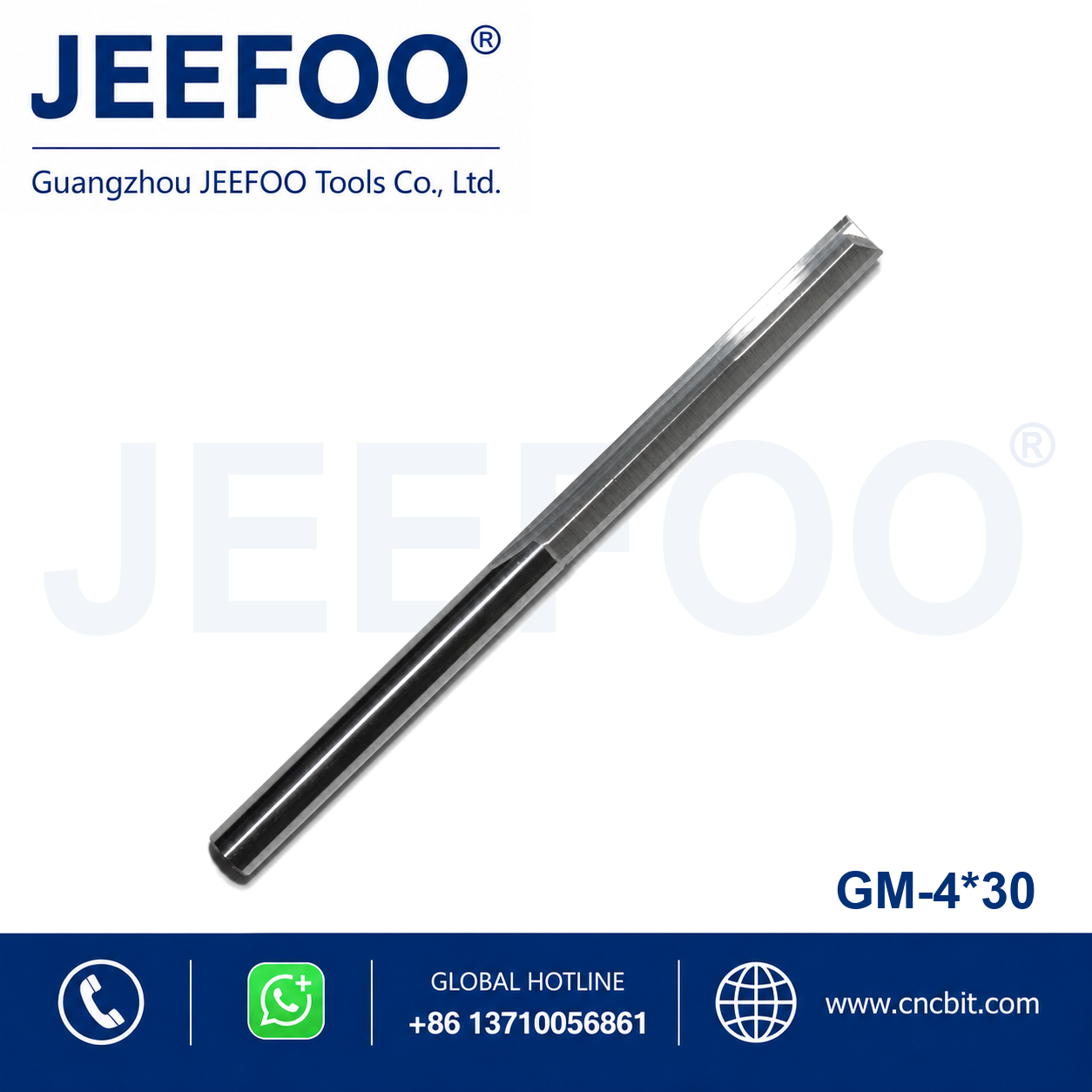

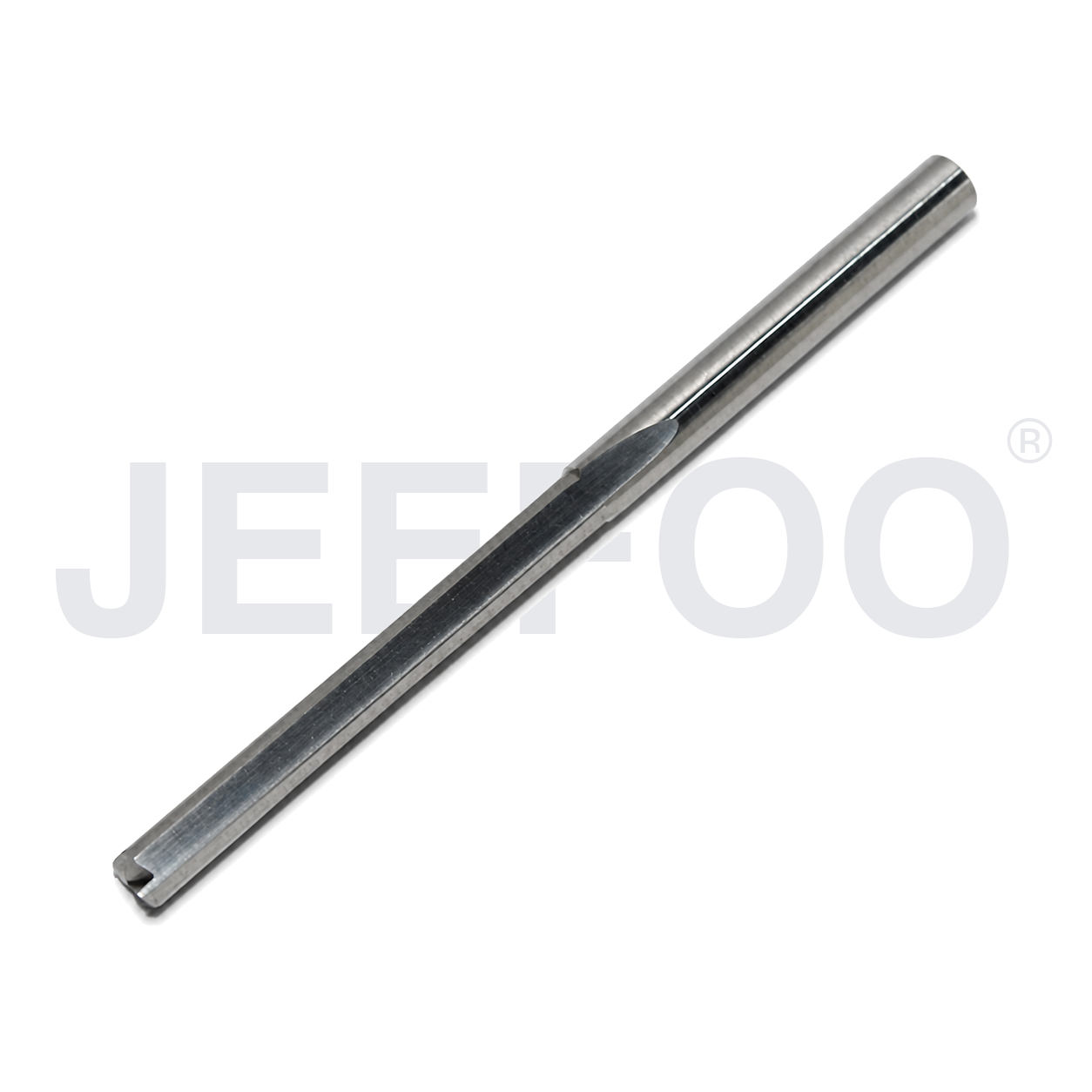

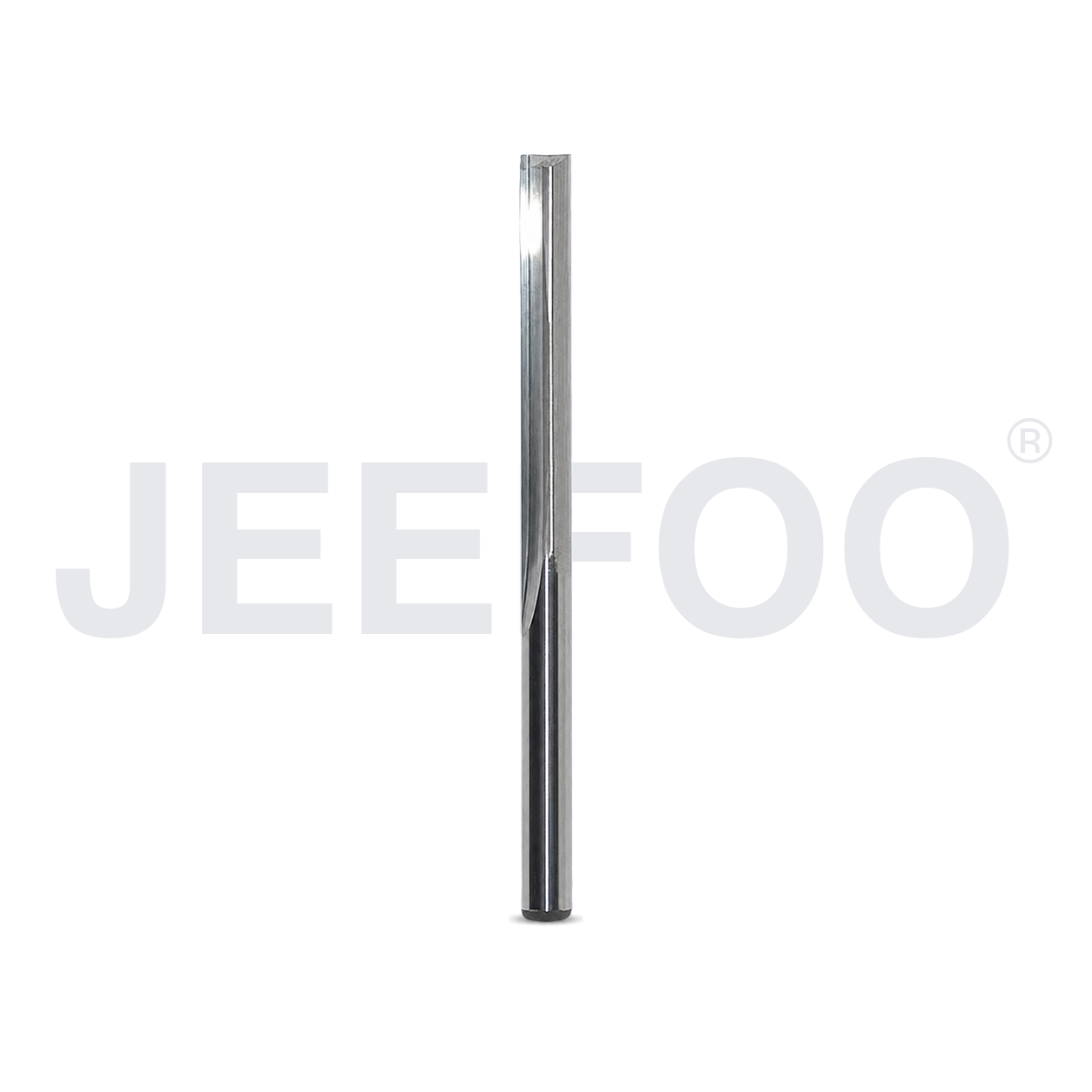

4×30 Two Straight Flute Router Bit is a solid carbide CNC cutter for routing, slotting, trimming and engraving in wood, MDF, plywood, acrylic, PVC, ABS, foam and compatible composite materials. The 4 mm diameter and 30 mm cutting length support deeper profiles when machine rigidity, tool projection and cutting parameters are controlled.
4×30 Two Straight Flute Router Bit Applications
Use this cutter for straight grooves, pockets, profile cutting, edge trimming, sign components and general CNC routing. Two straight flutes provide balanced cutting edges and predictable chip formation. The geometry can work well in sheet materials and wood products where a straight cutting action is preferred over an up-cut or down-cut spiral.
The 4×30 Two Straight Flute Router Bit is suitable for workshops producing furniture parts, advertising panels, templates, plastic components and small-batch industrial products. Always confirm that the flute length clears the required depth while the shank remains held securely by the collet.
CNC Installation and Test Cutting
- Clean the collet, nut and tool shank before installation.
- Grip the shank securely without clamping on the cutting flutes.
- Minimize tool projection to reduce vibration during deep routing.
- Verify spindle runout, workholding and programmed zero position.
- Begin with a shallow test pass and inspect chip shape and edge quality.
- Use dust extraction or air flow to prevent chips from being recut.
In computer numerical control machining, a correct toolpath must be combined with practical feed, speed and depth settings. Start conservatively, then adjust after checking the first groove. Long cutting engagement generates more heat and cutting force, so deep slots may require step-down passes and an efficient chip-clearance strategy.
Material and Finish Guidance
For solid wood and plywood, secure the surface fibers and maintain effective dust removal. MDF produces fine dust that should not remain in the slot. Acrylic, PVC and ABS need clean chips and controlled heat; rubbing can melt the workpiece and coat the edge. Foam and resin formulations vary, so a sample cut should confirm whether the selected settings produce a clean surface.
Inspect both cutting edges after machining. Resin buildup, a chipped corner or uneven wear can increase load and leave lines on the finished wall. Clean the cutter with a suitable method and replace it when edge damage affects dimensional accuracy. Do not compensate for a damaged tool by increasing spindle speed.
JEEFOO Supply from Guangzhou, China
JEEFOO manufactures and supplies solid carbide CNC cutting tools from Guangzhou, China, for distributors, workshops and industrial buyers. Product checks cover dimensions, flute condition and edge quality before shipment. Browse related tools on the JEEFOO CNC router bit website, or send the required diameter, cutting length, material and application for specification confirmation.
Safe Operation and Tool Life
Confirm that the router or machining center supports the chosen cutter and settings. Stop the spindle completely before handling the tool, use suitable eye protection and keep machine guards in place. Stable workholding, correct collet grip and gradual parameter changes help the 4×30 Two Straight Flute Router Bit deliver repeatable results and reduce the risk of breakage.
4×30 Two Straight Flute Router Bit FAQ
Can this cutter make a 30 mm deep slot in one pass?
The flute length permits deep engagement, but the safe step-down depends on material, machine rigidity, tool projection and chip evacuation. Several controlled passes are often more reliable.
Which materials should be tested first?
Plastics, coated panels and resin composites should be trial-cut because heat response and surface quality vary by formulation.
What information helps JEEFOO confirm an order?
Provide the diameter, cutting length, shank size, overall length, work material, machine type, application and required quantity.
Two Straight Flute Bits for CNC Cutting
Jeefoo Tools CNC router bit, straight router bits and woodworking bits for MDF, Polywood, Formica and laminated board, A series.
Specification
- Brand: JeeFoo Tools
- Name: Two Flutes Straight Carbide Cutters
- Tool Materials: top-quality tungsten carbide
- Size: 4×30
Main Application
2D engraving and cutting for foam, EVA board, multi-layer board, plywood, MDF, composite boards, hard wood, organic plates, PVC, acrylic, double-color board and ABS.
Features
- Sharp cutting edge without burrs and with excellent chip removal.
- Special design combines a hard cutter body and high-class cutting edge for durability and resistance to breakage.
