6×24°x60L Two Spiral Flute Chamfer Cutter Guide
A two spiral flute chamfer cutter provides open chip space for CNC routing and milling acrylic, LCD panels, ABS and compatible plastics. This 6×24°x60L carbide cutter is designed for precision shallow-angle chamfering and edge finishing. The single flute carries chips away from the cutting zone, reducing recutting and heat when feed, spindle speed and extraction are correctly matched.
Applications and Material Use
The tool can be considered for profiles, slots, pockets, signs, fixtures and prototype components. Its dimensions support controlled 24-degree chamfers and accurate edge details. Suitability depends on material grade, machine rigidity, spindle power, workholding and the desired finish. A short test cut should confirm chip formation before full production.
- Acrylic sign and display edges
- LCD-panel and ABS component chamfers
- Precision plastic edge finishing
- Templates, prototypes and small production runs
CNC Setup and Chip Control
Clean the collet, check spindle runout and clamp enough of the shank for stable rotation without covering the flute. Minimize unnecessary projection and secure the material. Begin with a conservative entry, feed rate and step-down, then adjust after inspecting chip shape, cutting sound, spindle load and edge quality.
For acrylic and ABS, aim to form clear chips rather than melted strings. Use effective air flow and avoid dwelling at the edge. If the cutter chatters, burns the edge or loads with material, stop the job and review workholding, projection, feed, spindle speed and depth. Avoid dwelling in one place and replace a dull cutting edge before heat or vibration damages the workpiece.
Selecting a Two Spiral Flute Chamfer Cutter
Before ordering a two spiral flute chamfer cutter, verify shank diameter, cutting diameter, flute length, overall length and cutting direction. Check that slot width, corner radius and maximum depth match the 6×24°x60L specification. Material type, desired finish and CNC machine rigidity also influence selection.
JEEFOO Carbide Tools from Guangzhou, China
JEEFOO supplies carbide CNC router bits and end mills from Guangzhou, China for distributors, manufacturers and workshop users. Sharing the material, machine type, collet size and required depth helps the team recommend a suitable cutter. Explore more product information on the JEEFOO cutting tools website.
For general background on computer-controlled machining, see the reference about numerical control. Record successful feeds, speeds, step-down and tool numbers with the job file so repeat production begins from verified parameters.
For repeat jobs, inspect the collet and cutter before every setup. Store the verified material, feed, speed, depth and chip-control method with the CNC program. Consistent records help operators reproduce the cut, recognize wear early and avoid unnecessary trial passes.
Frequently Asked Questions
What does the 6×24°x60L specification mean?
It identifies the main cutter dimensions. Confirm the complete product drawing because diameter, flute length and overall-length conventions can vary between tools.
Which materials can this tool machine?
It is intended for acrylic, LCD panels, ABS and compatible plastics when tool geometry and cutting parameters match the application. Secure workholding and reliable chip evacuation are essential.
How can tool life be improved?
Minimize runout and stick-out, keep chips clear and use suitable feeds and depths. Correctly applied two spiral flute chamfer cutter geometry can produce consistent edges and predictable tool life.
Production and Ordering Checks
Make a short test cut in the actual material before full production. Inspect chip formation, surface finish, cutting sound and tool loading. Verify all dimensions and the required cutting depth in the product drawing. These checks reduce scrap and make replacement orders more reliable.
Product Description

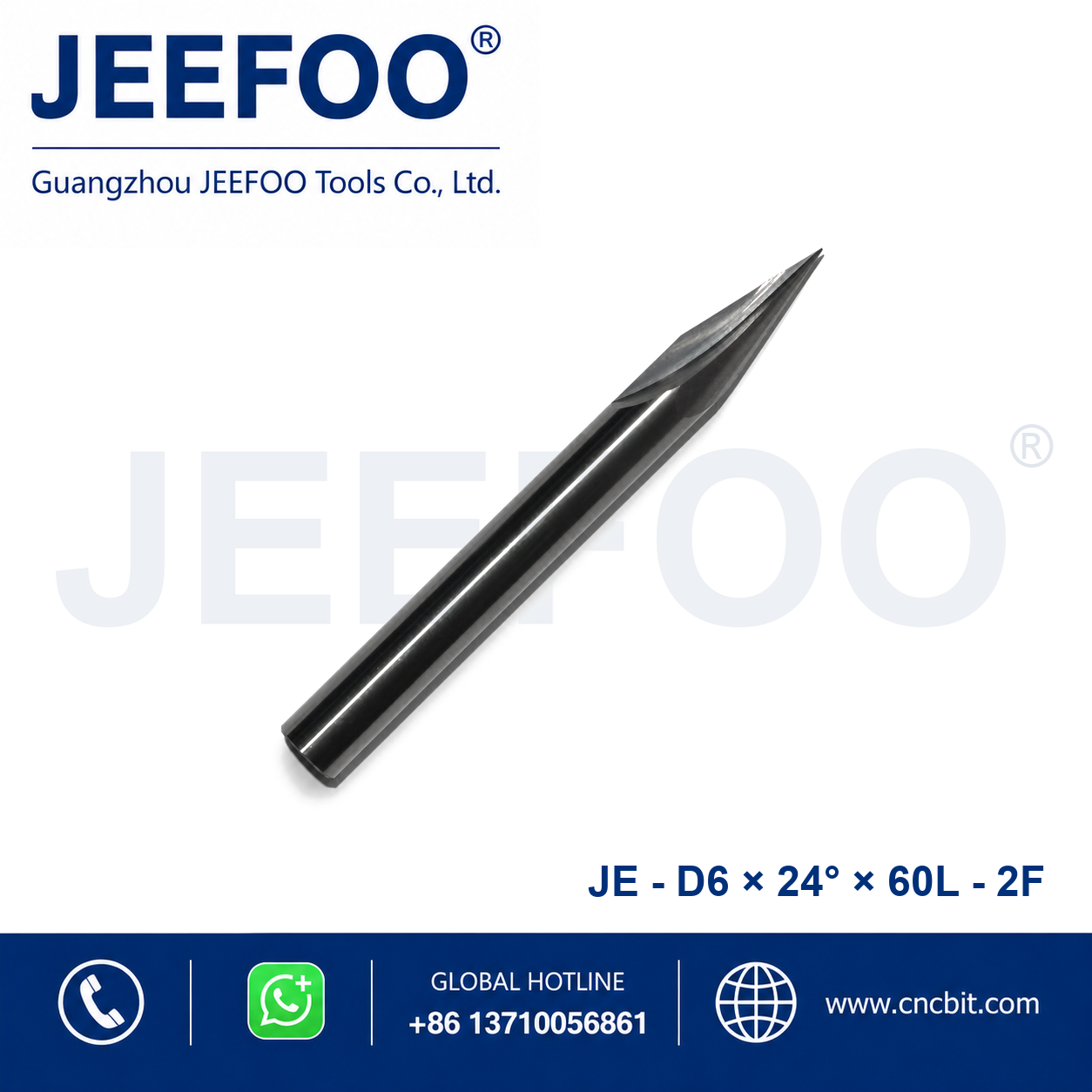

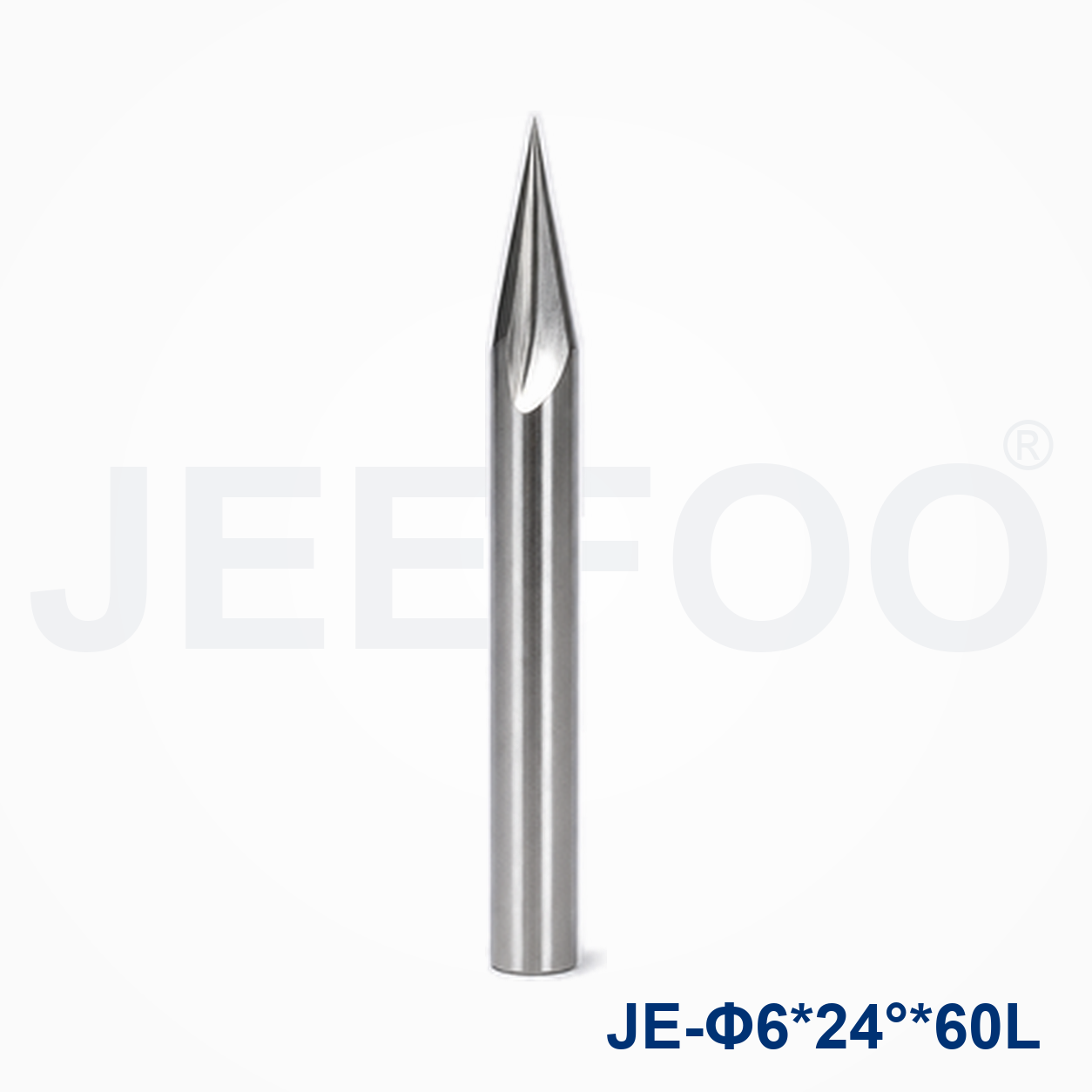

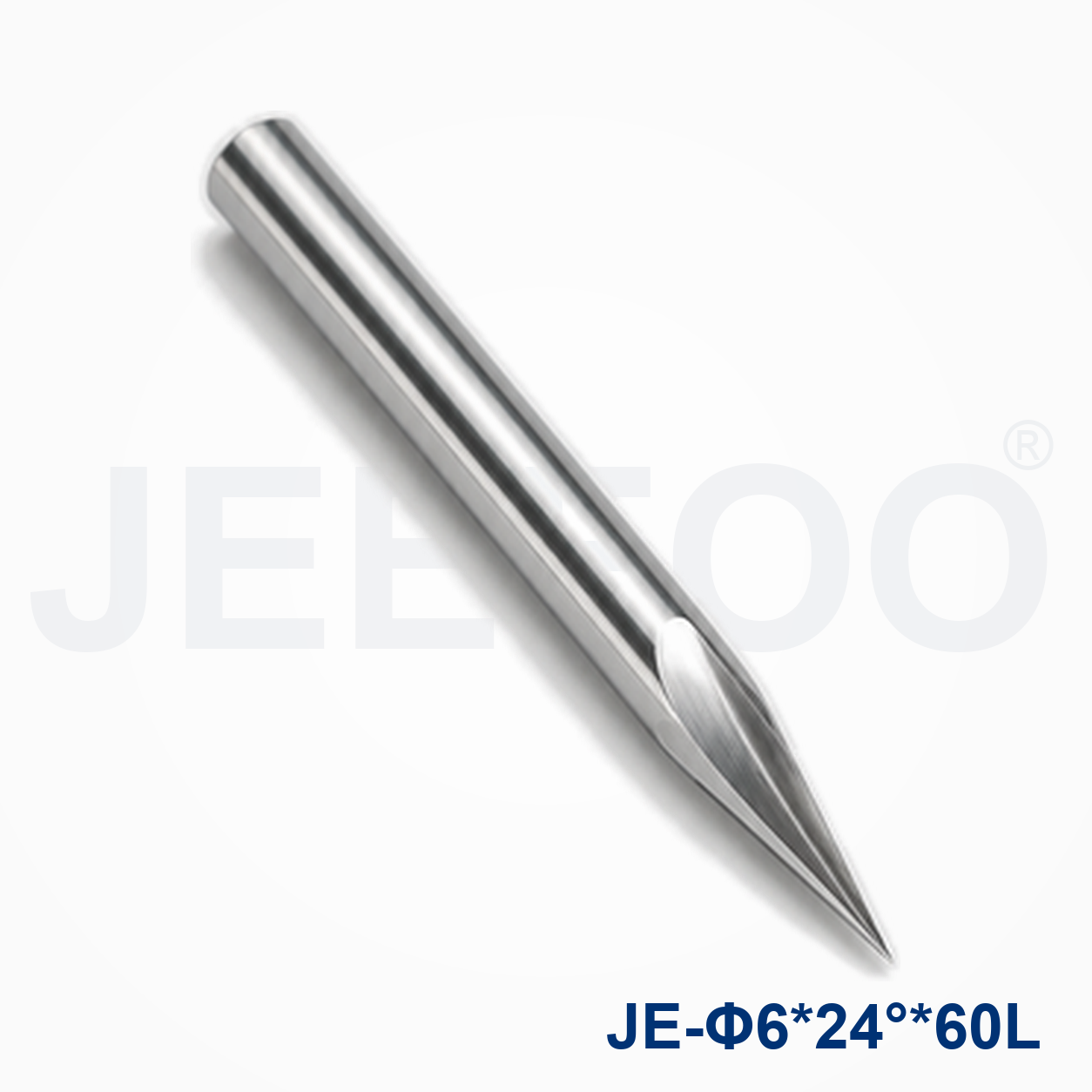

This two spiral flute chamfer cutter is designed for acrylic sheets, LCD panels, ABS parts and precision shallow-angle chamfers. Size: 6×24°x60L.
The solid carbide body provides rigidity for accurate CNC machining, while the cutting-edge geometry supports smooth chip removal and a clean, controlled finish. Match the shank, cutting depth, material thickness and angle to the application. Use secure workholding, low runout, suitable spindle speed and conservative feed settings during initial testing.
