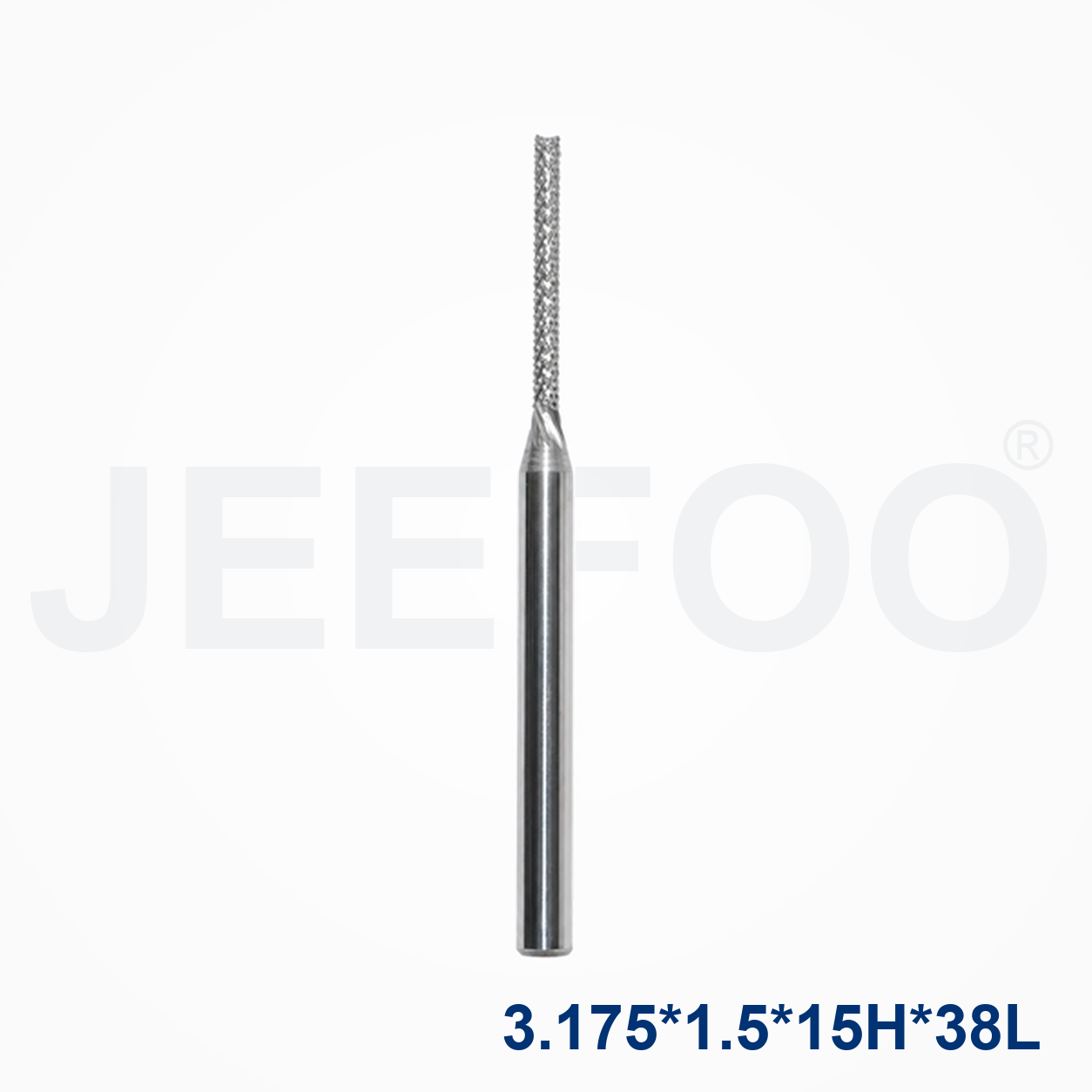

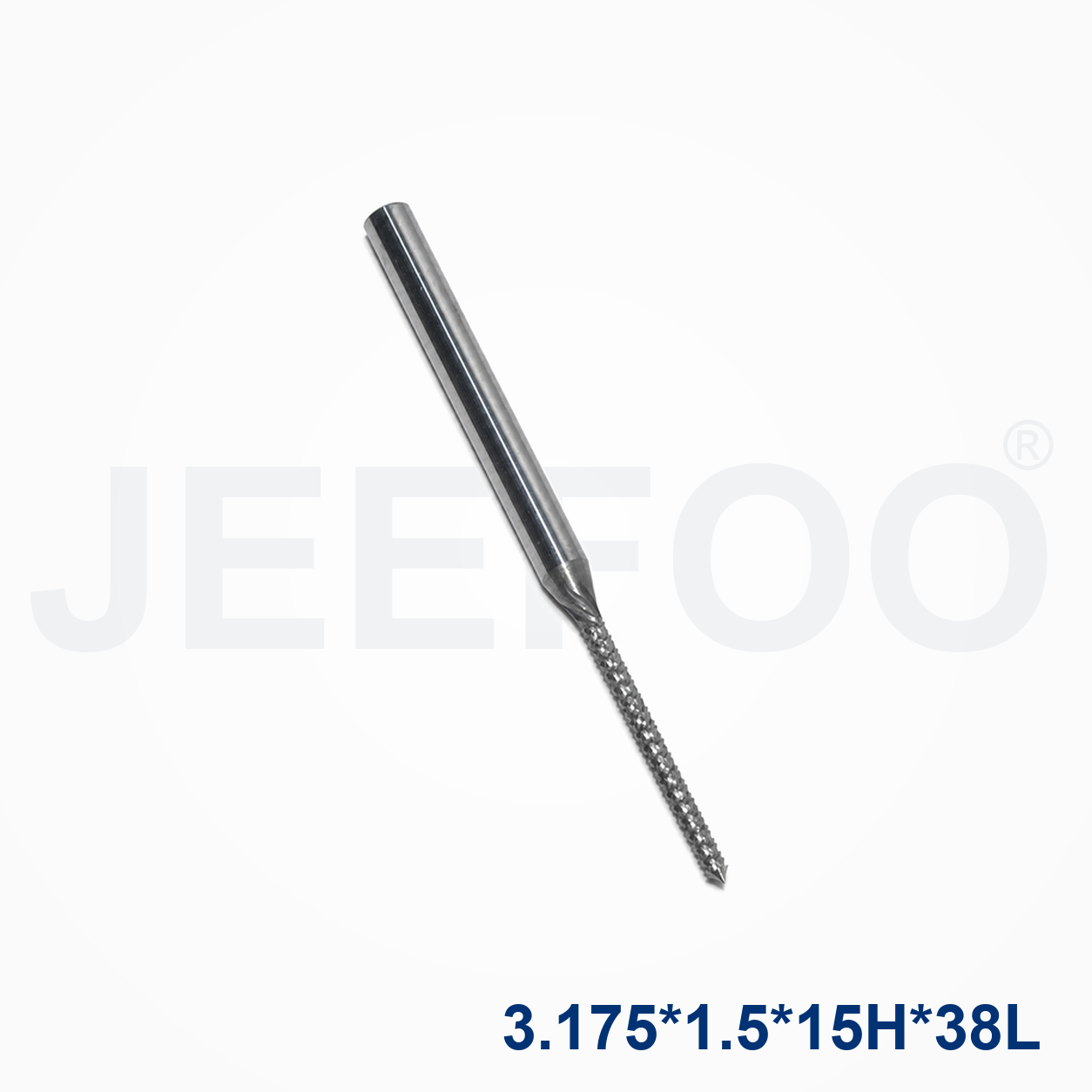

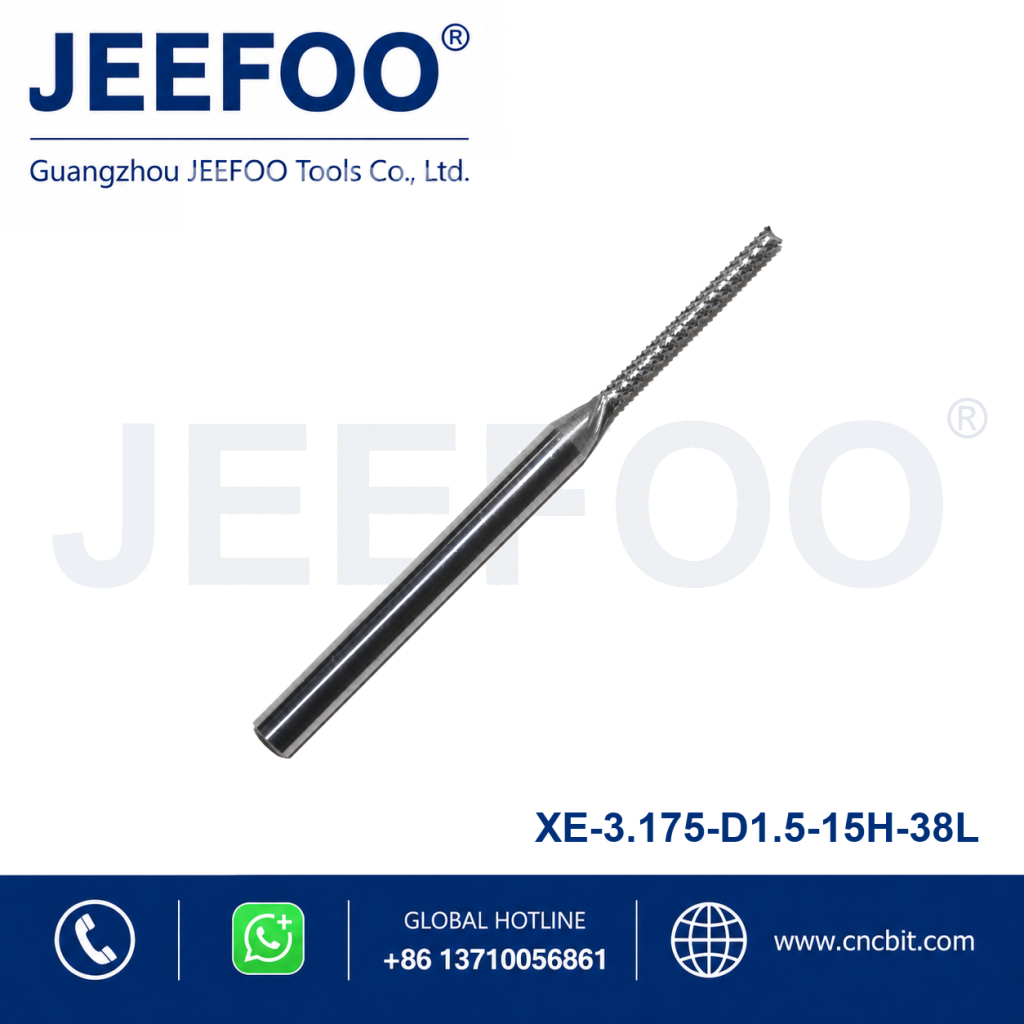

XE 3.175xd1.5x15Hx38L PCB Router Bit for Precision Profiles
The XE 3.175xd1.5x15Hx38L PCB Router Bit is a solid carbide cutter for accurate routing, profiling, and slotting in printed circuit boards and compatible composite materials. Its detailed geometry supports controlled toolpaths and repeatable edge quality when the spindle, collet, workholding, and cutting parameters are correctly matched. This guide covers features, applications, setup, care, and ordering support.
Product Features
- 3.175 mm shank with d1.5 cutting diameter, 15H cutting length, and 38L overall length
- Solid carbide construction for stable cutting and wear resistance
- Suitable for precise PCB contours, slots, and clearance work
- Compatible with selected CNC routers and rigid spindle systems
- Simple inspection before test cuts and production runs
Applications and Materials
Use the cutter on printed circuit boards, fiberglass-reinforced laminate, high-density fiber board, carbon-fiber sheet, hardwood, and other approved composites. Typical jobs include fine profiles, narrow slots, component clearance, and edge trimming. Confirm material thickness, coating, abrasive content, and clamping stability before machining.
Setup and Parameter Checklist
Inspect the shank, collet, spindle taper, and tool projection before installation. Secure the board across the entire toolpath and set the work origin carefully. Begin with conservative spindle speed, feed rate, and depth of cut. Make a sample from matching stock, then adjust one parameter at a time after checking the edge, chip evacuation, and cutting sound.
Stop if chatter, burning, delamination, or unexpected vibration appears. Review rotation direction, spindle runout, fixture rigidity, and cutter condition before restarting. Use dust extraction or chip removal suitable for the material and enclosure, and follow the machine manual and local safety procedures.
Quality Control and Tool Care
Inspect the first part under consistent lighting and measure critical profiles when required. Record successful speed, feed, depth, tool projection, and material information for repeat production. Clean chips and resin with a carbide-safe method. Store the cutter separately and inspect it whenever edge quality changes.
Ordering Support from Guangzhou
JEEFOO Tools supplies the XE 3.175xd1.5x15Hx38L PCB Router Bit for electronics manufacturers and CNC workshops in Guangzhou, Guangdong, China. Share the machine, collet, material, thickness, and profile requirement so our team can confirm compatibility. Visit the CNC router tool product range to compare related cutters and request a quotation.
Further CNC Reference
For general terminology, review the CNC router reference and combine it with your equipment manual and a controlled sample-cut process.
Frequently Asked Questions
What is this size used for? It supports fine PCB profiles, narrow slots, trimming, and approved composite-board work.
How should settings be selected? Start conservatively, test matching stock, and tune speed, feed, and depth in small steps.
Can JEEFOO confirm compatibility? Yes. Send the machine, collet, material, and profile requirements for practical guidance.
