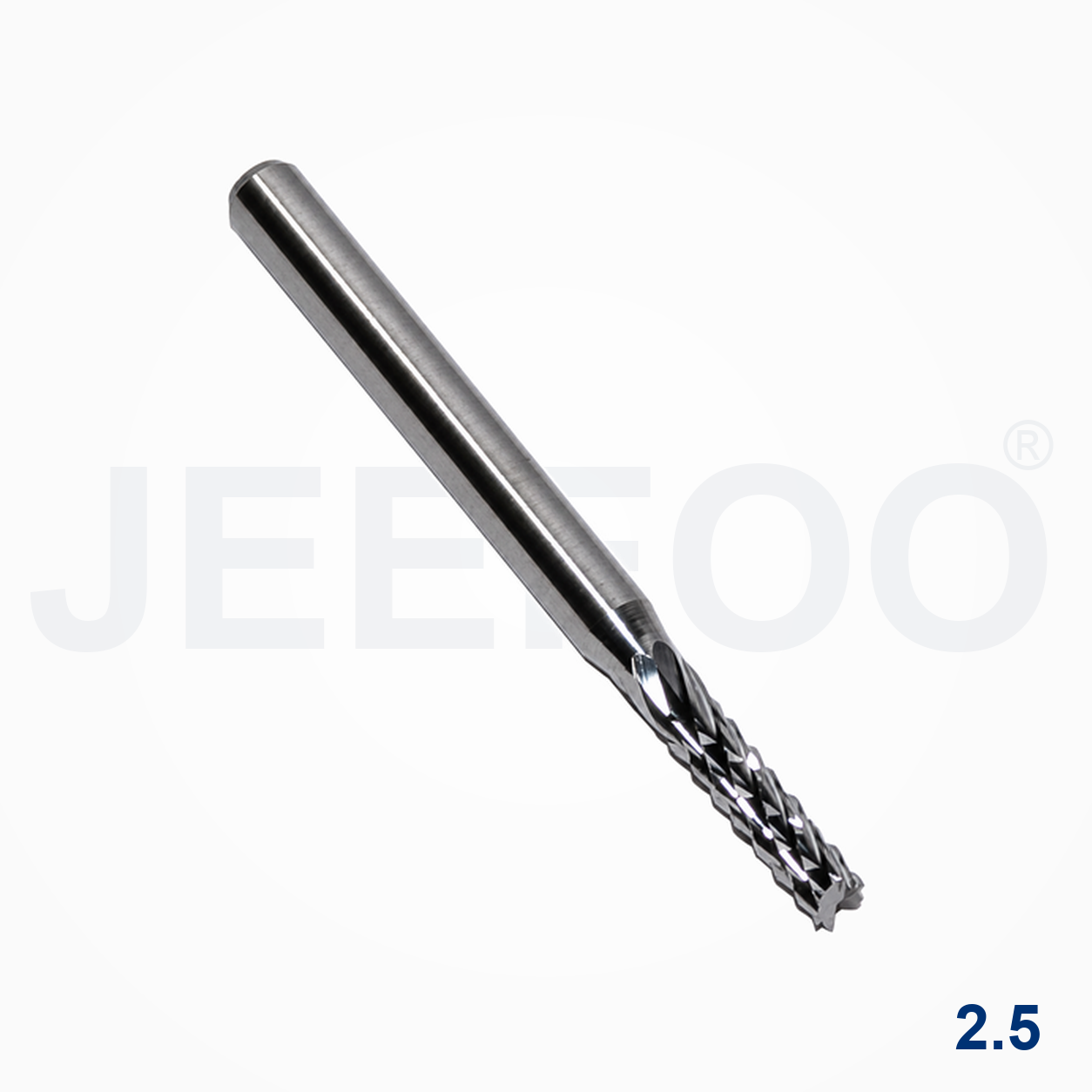

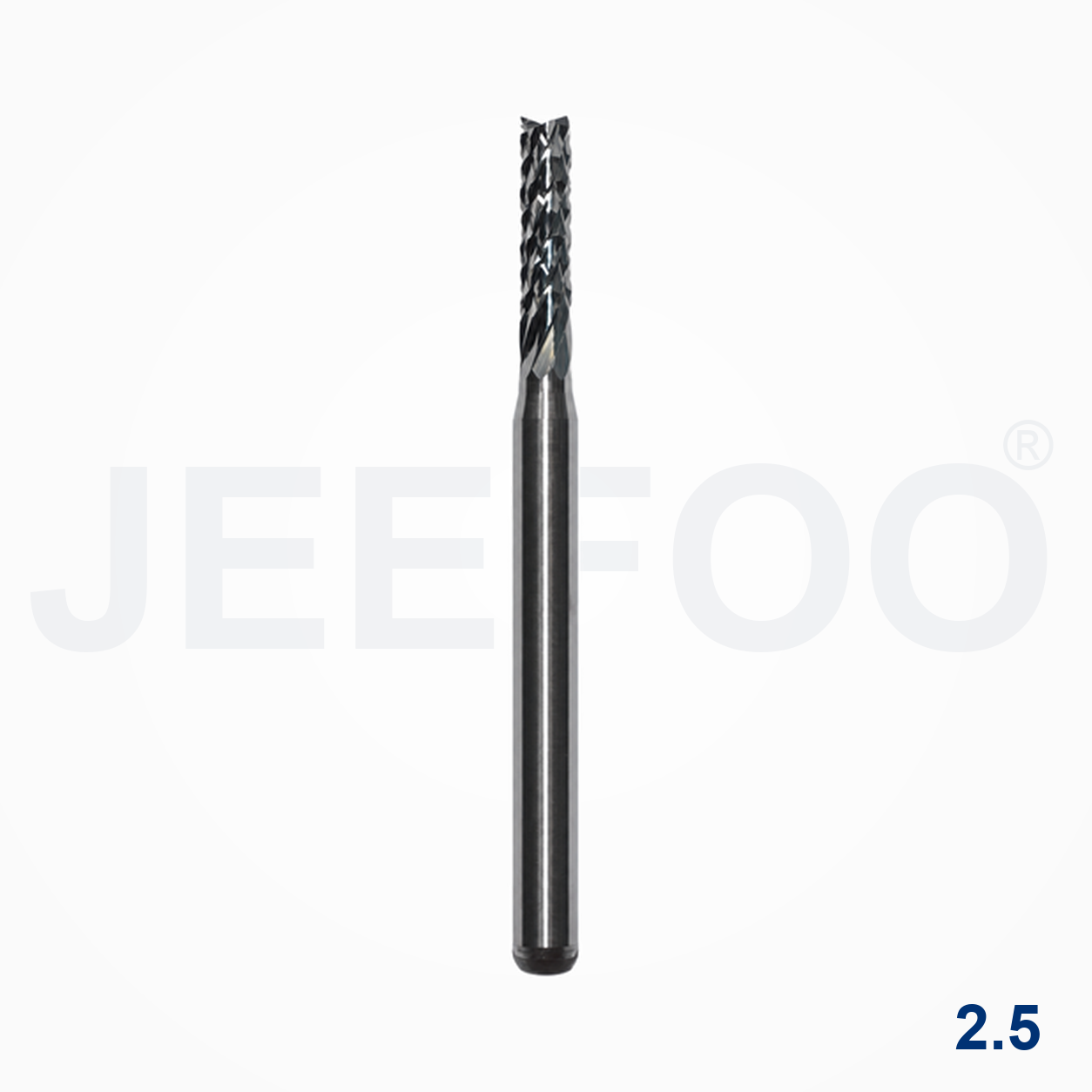

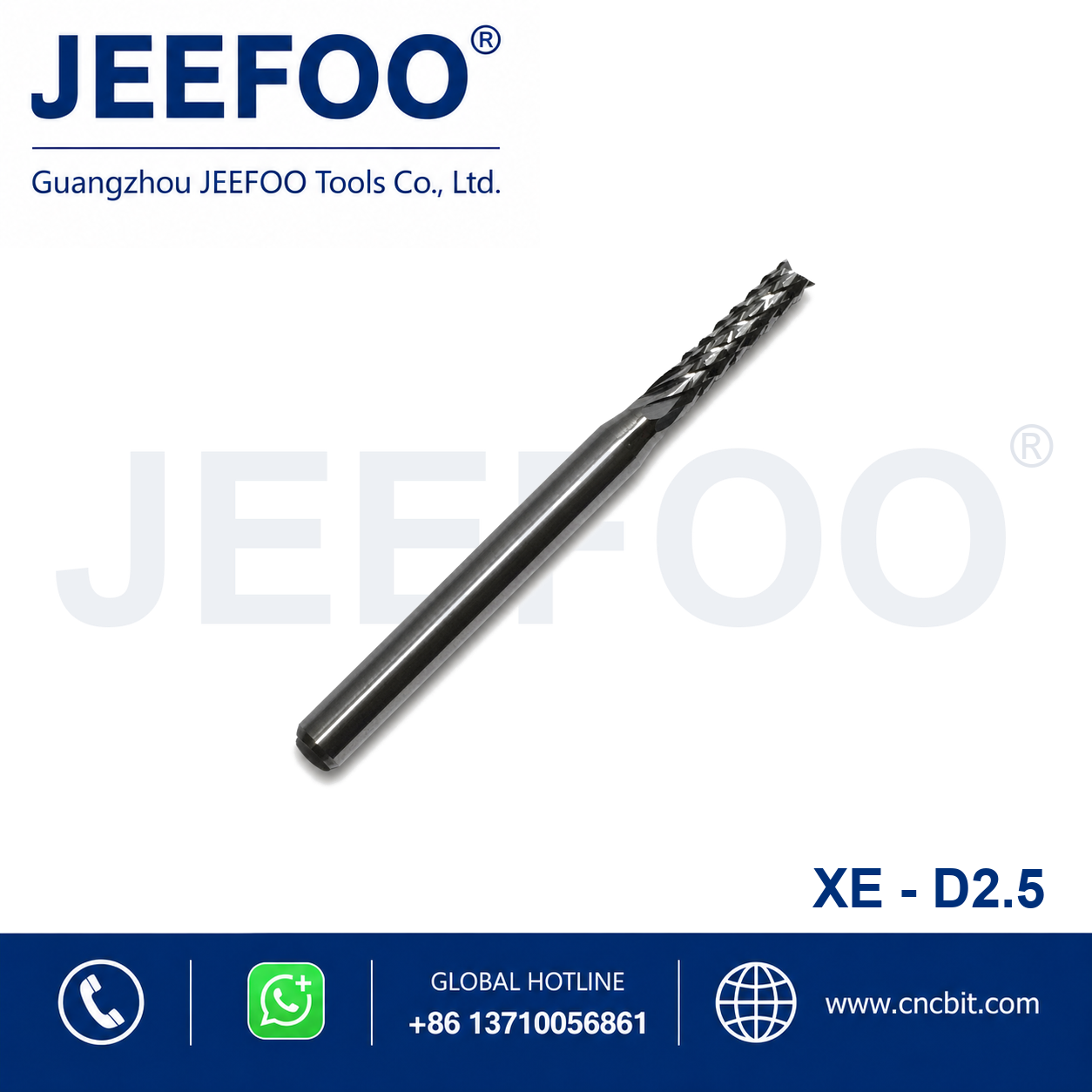

XE 2.5 PCB Router Bit for Precision Profiles
The XE 2.5 PCB Router Bit is a solid carbide cutter for accurate routing, profiling, and slotting in printed circuit boards and compatible composite sheet materials. Its 2.5 mm format suits common precision spindle setups and supports repeatable edge quality when workholding, runout, and cutting parameters are controlled. This guide covers features, materials, setup, quality checks, and ordering support.
Product Features
- XE 2.5 format for precision PCB routing
- Solid carbide construction for wear resistance and stable cutting
- Geometry designed for accurate profiles, contours, and slots
- Compatible with selected CNC routers and rigid spindles
- Easy inspection before test cuts and production runs
Applications and Materials
Use the cutter on printed circuit boards, fiberglass-reinforced laminate, high-density fiber board, carbon-fiber sheet, hardwood, and other approved composites. Typical operations include contour profiling, component clearance, shallow slots, and edge trimming. Confirm material thickness, abrasive content, coating, and clamping stability. Keep tool engagement within the available cutting length and machine capability.
Machine Setup Checklist
Inspect the shank, collet, spindle taper, and cutter projection before installation. Secure the board across the complete toolpath and set the origin carefully. Begin with conservative spindle speed, feed rate, and depth of cut. Make a sample from matching stock, then adjust one parameter at a time after checking edge quality, chip evacuation, and cutting sound.
Stop if chatter, delamination, burning, or unexpected vibration appears. Review rotation direction, runout, fixture rigidity, and cutter condition before restarting. Use dust extraction or chip removal appropriate for the material and enclosure. Always follow the machine manual and local safety procedures.
Quality Control and Maintenance
Inspect the first routed part under consistent lighting and measure critical profiles when required. Record successful speed, feed, depth, tool projection, and material information so operators can repeat the setup. Clean chips and resin using a carbide-safe method. Store the bit separately to prevent edge contact and inspect it when cutting quality changes.
Ordering Support from Guangzhou
JEEFOO Tools supplies the XE 2.5 PCB Router Bit for electronics manufacturers and CNC workshops in Guangzhou, Guangdong, China. Share the spindle, collet, material, thickness, and desired profile so our team can confirm compatibility. Visit the CNC router tool product range to compare related cutters and request a quotation for repeat production.
Further CNC Reference
For general terminology, review the CNC router reference and combine it with your equipment manual and a documented test-cut process.
Frequently Asked Questions
What is the XE 2.5 bit used for? It supports precise PCB profiles, slots, trimming, and approved composite-board machining.
How should cutting settings be selected? Start conservatively, test matching stock, and tune speed, feed, and depth in small steps.
Can JEEFOO confirm a suitable specification? Yes. Send the machine, collet, material, and profile requirements for practical guidance.
