The WY PCD straight bit is designed for straight routing, grooving, trimming, and panel sizing in professional woodworking. Its polycrystalline diamond cutting edge supports wear resistance and stable edge quality when the cutter, machine, and material are correctly matched. JEEFOO supplies PCD woodworking tools from Guangzhou, Guangdong, China for manufacturers, distributors, and CNC workshops.
WY PCD Straight Bit Features
- PCD cutting edge for wear resistance on abrasive panels
- Straight profile for routing, grooving, and trimming
- Suitable for compatible CNC woodworking equipment
- Stable geometry for repeatable panel edges and dimensions
- Useful for MDF, particle board, plywood, and approved laminates
Straight Profile and Machine Compatibility

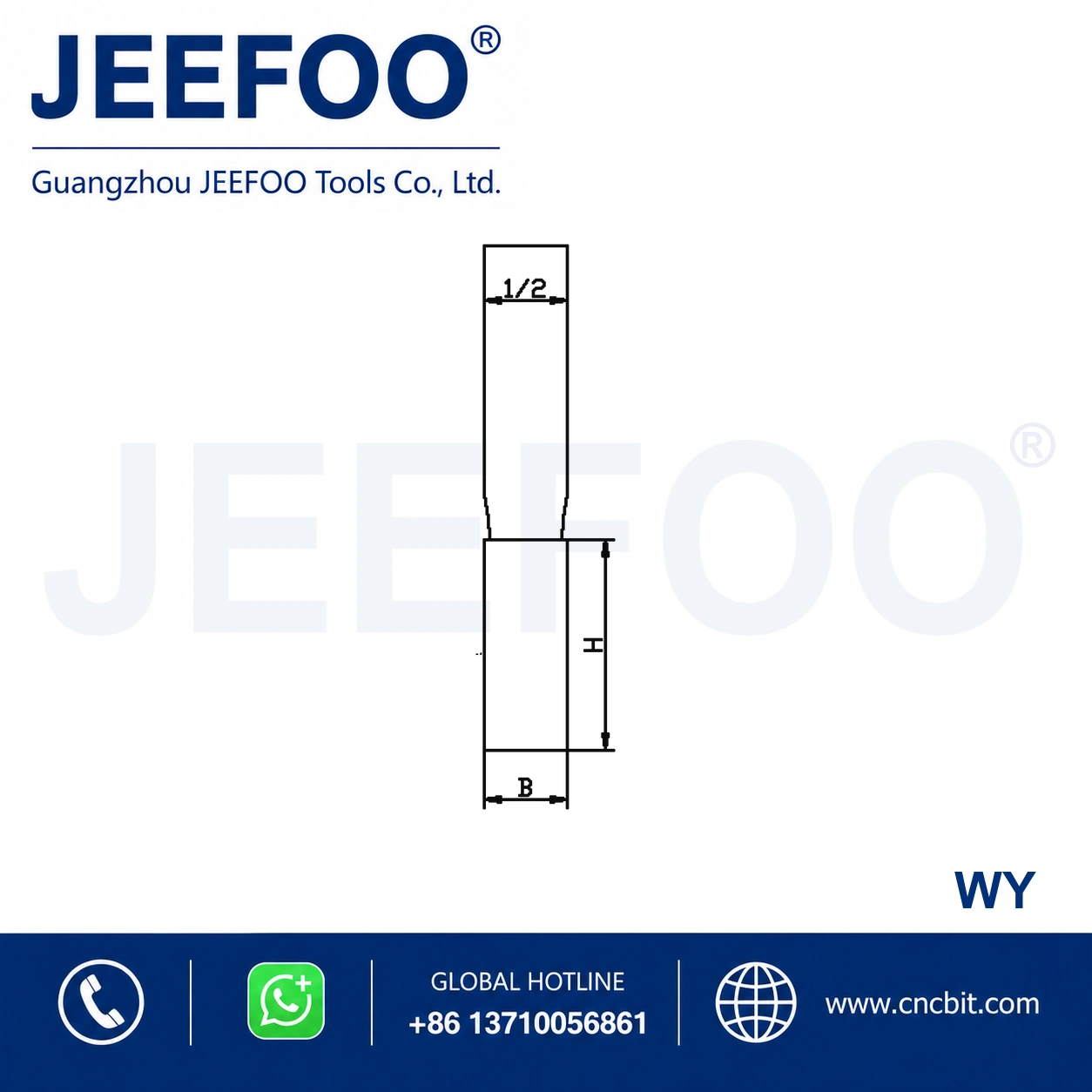

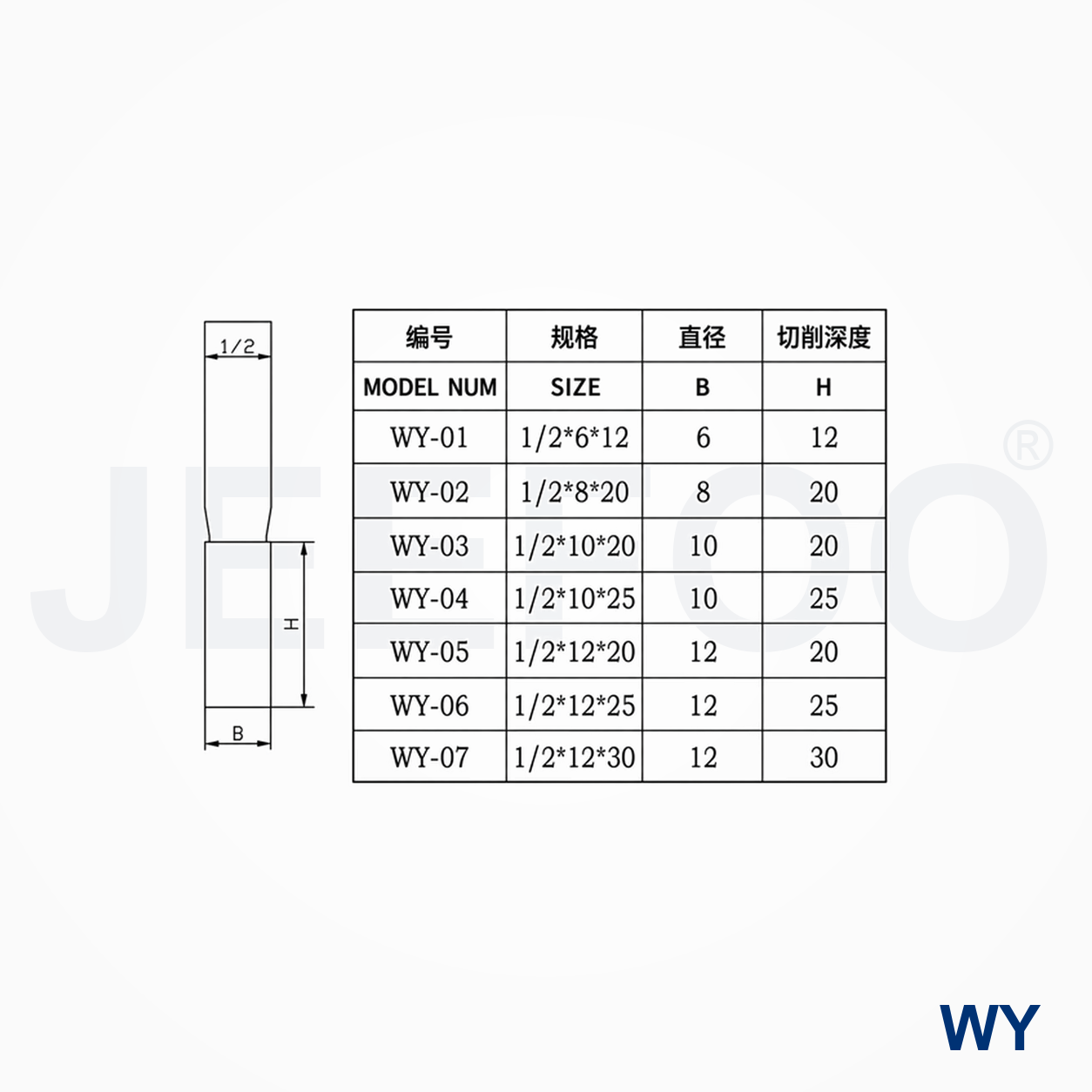

Before ordering a WY PCD straight bit, compare the required profile drawing with the tool dimensions. Confirm the cutting diameter, cutting length, shank or bore, overall length, rotation direction, spindle limits, and machine clearance. PCD edges are wear resistant but still require correct workholding and conservative process development.
Materials and CNC Applications
This straight bit may be used on compatible MDF, particle board, plywood, laminated panels, and other engineered wood products. Adhesive content, coating, board density, grain direction, dust extraction, and machine rigidity all influence tool life and edge finish. Abrasive panels should be inspected regularly for changes in cutting quality.
Typical applications include straight sizing, slotting, grooving, trimming, and repeat production where consistent dimensions matter. Make a test cut using material from the same production batch before machining finished components. Do not exceed the cutter’s diameter, cutting length, speed, feed, or depth limits.
How to Set Up the PCD Straight Cutter
- Review the drawing and confirm the required straight profile.
- Inspect the PCD edges, tool body, shank, and machine collet.
- Clean locating surfaces and install the tool securely.
- Verify rotation direction, clearance, guarding, and dust extraction.
- Start with conservative spindle speed, feed rate, and cutting depth.
- Run a test cut and measure edge position and groove dimensions.
- Adjust one parameter at a time before approving production.
Speed, Feed, and Depth of Cut
Use settings within the machine and tool manufacturer’s limits. Feed that is too slow can create rubbing and heat, while excessive feed can overload the edge and cause tear-out. Divide deep cuts into progressive passes where appropriate. Keep chips away from the cut so they are not recut against the finished surface. Stable workholding and low runout help the WY PCD straight bit produce a cleaner edge.
Production Testing and Quality Control
Inspect the first part, samples from the middle of the batch, and the final component. Check straightness, groove width, edge marks, burrs, tear-out, and dimensional accuracy. Record the material batch, tool identification, spindle speed, feed rate, depth per pass, and cutting direction. This routine helps operators detect process drift and distinguish tool wear from changes in board composition, workholding, spindle condition, or dust buildup.
Maintenance and Safe Handling
Remove resin and dust using a suitable non-abrasive method. Inspect PCD edges under good lighting and stop using the cutter if an edge is chipped, the body is damaged, or vibration increases. Store the WY PCD straight bit in protective packaging so the cutting edge cannot strike other tools. Arrange specialist inspection or servicing when normal cleaning and setting checks cannot restore the required finish.
PCD Tool Supplier in Guangzhou, Guangdong
JEEFOO supports customers in Guangzhou, Guangdong and international markets with CNC-tool selection and application guidance. Explore our woodworking cutting tools and product range for additional solutions. For a quotation, provide the material, cutter diameter, cutting length, shank, machine model, spindle limits, and expected quantity.
Frequently Asked Questions
What is a PCD straight bit used for?
It is used for straight routing, sizing, grooving, and trimming compatible engineered wood panels with a suitable CNC router.
Can this PCD cutter process MDF?
It may be used on compatible MDF when the tool dimensions and settings match the board. Always run a test cut first.
When should the WY PCD straight bit be serviced?
Arrange inspection when dimensions drift, edge quality declines, vibration rises, or a cutting edge appears damaged after normal setup checks.
