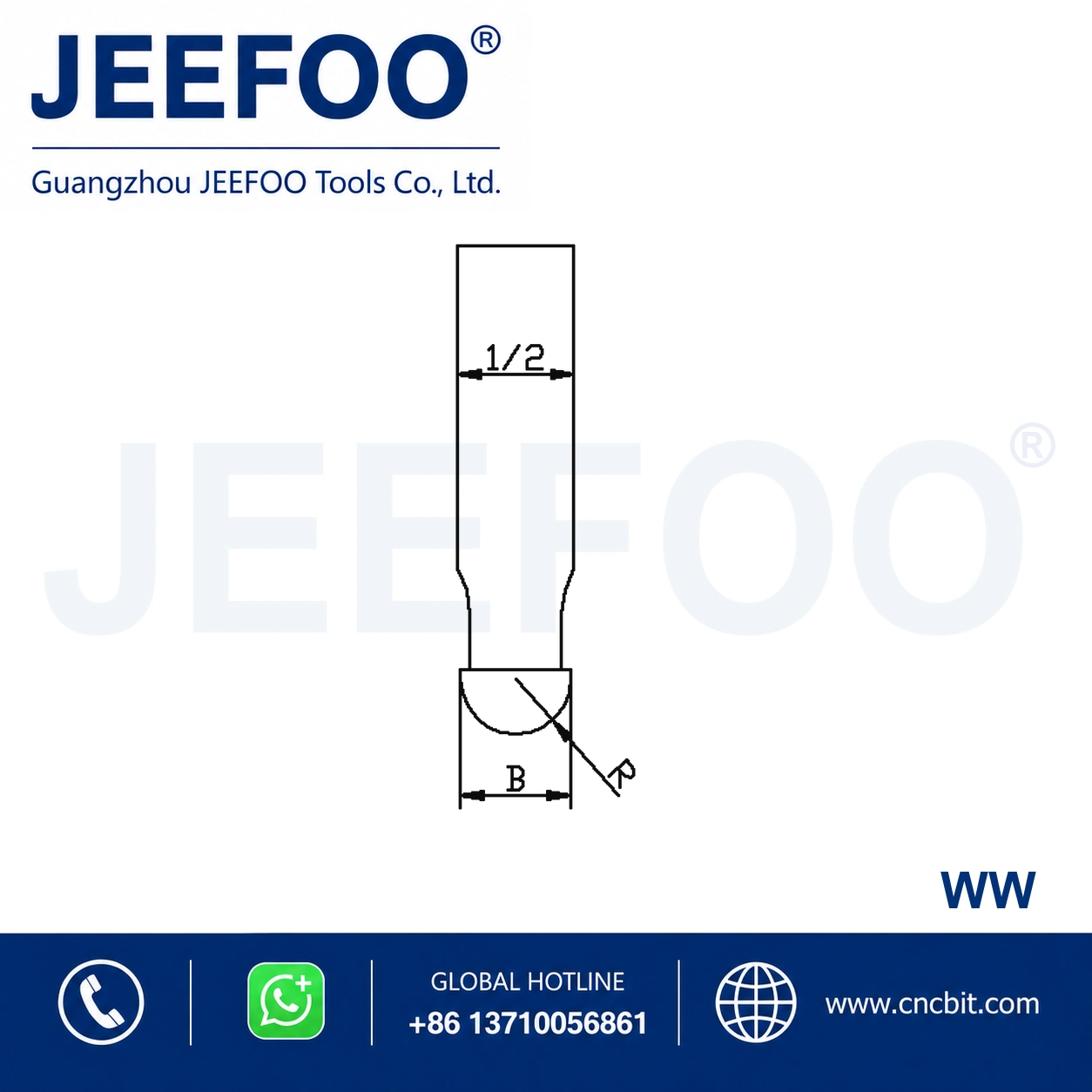

The WW PCD round bottom bit is designed for smooth round-bottom grooves and curved channels in compatible woodworking panels. Its polycrystalline diamond cutting edge supports wear resistance, stable dimensions, and consistent groove quality when the tool, machine, and material are correctly matched. JEEFOO supplies PCD woodworking tools from Guangzhou, Guangdong, China for manufacturers and CNC workshops.
WW PCD Round Bottom Bit Features
- PCD cutting edge for extended service life on abrasive panels
- Round-bottom profile for smooth curved grooves and channels
- Suitable for compatible CNC panel-machining equipment
- Stable geometry for repeatable groove depth and width
- Useful for MDF, particle board, plywood, and approved laminates
Round-Bottom Profile Compatibility

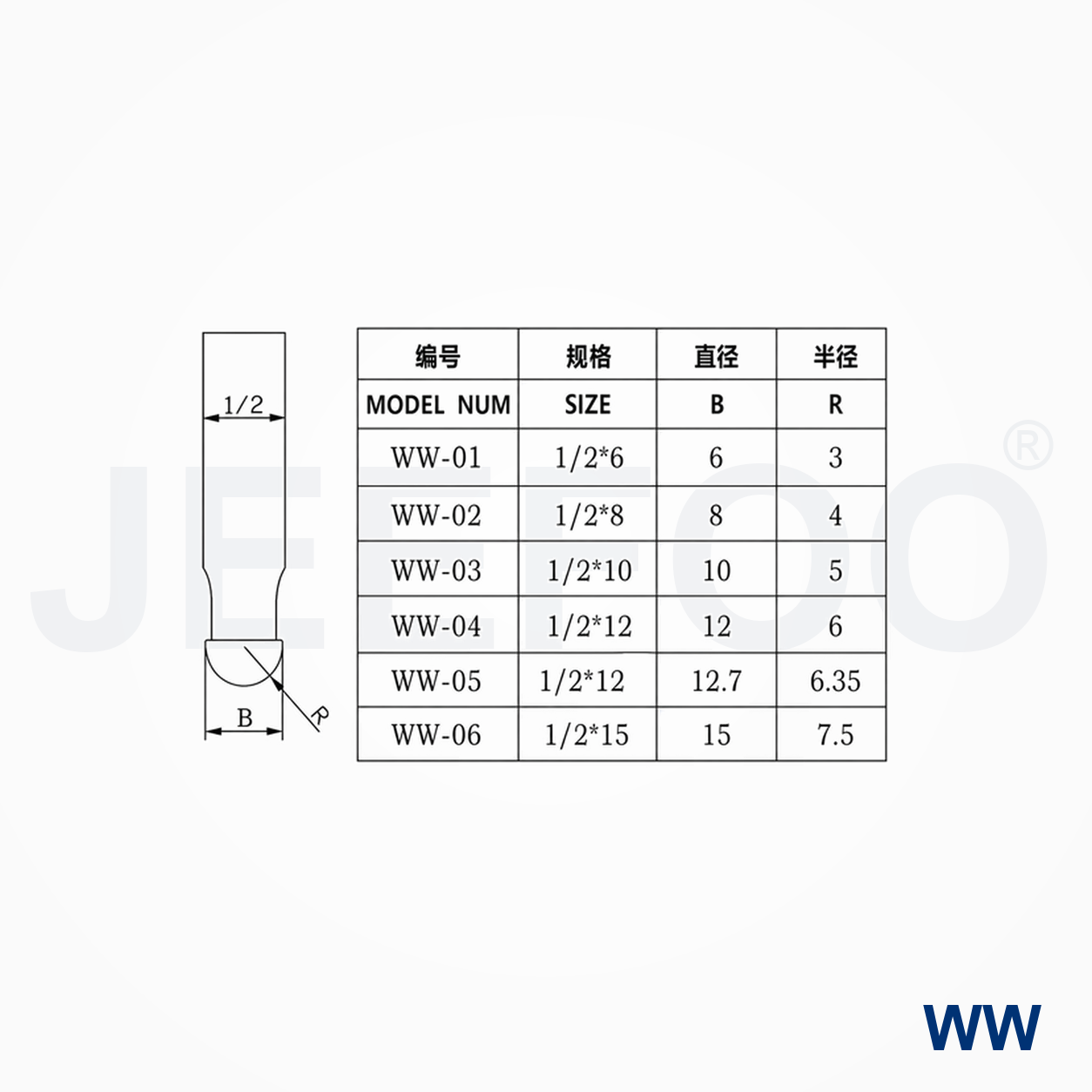

Before ordering a WW PCD round bottom bit, compare the required groove drawing with the tool radius, diameter, cutting length, shank or bore, overall length, and machine clearance. Confirm the rotation direction and spindle limits. A correct profile match is essential for a clean groove and proper fit with mating parts.
Materials and Groove Applications
This PCD round bottom bit may be used on compatible MDF, particle board, plywood, laminated panels, and other engineered wood materials. Board density, adhesive content, coating, grain direction, workholding, and dust extraction affect surface quality and tool life. Abrasive boards need regular inspection for changes in edge quality.
Typical work includes curved channels, decorative grooves, recessed tracks, panel details, and repeat production where a consistent radius matters. Use a sample from the same material batch before machining finished parts. Do not exceed the cutter’s profile, speed, feed, or depth limits.
How to Set Up the PCD Round Bottom Cutter
- Review the groove drawing and confirm the required radius.
- Inspect the PCD edge, tool body, shank, and machine collet.
- Clean locating surfaces and install the cutter securely.
- Verify rotation direction, clearance, guarding, and dust extraction.
- Start with conservative spindle speed, feed rate, and cutting depth.
- Run a test groove and measure the radius, width, and depth.
- Adjust one parameter at a time before production.
Speed, Feed, and Progressive Passes
Use settings within the machine and tool manufacturer’s limits. Feed that is too slow can create rubbing and heat, while excessive feed can cause tear-out or overload the edge. Divide deep grooves into progressive passes where appropriate. Stable workholding, low runout, and effective chip evacuation help the WW PCD round bottom bit produce a smooth channel.
Production Testing and Quality Control
Inspect the first groove, a middle sample, and the final component. Check radius, depth, width, surface marks, chatter, and edge transitions. Record the material batch, cutter identification, spindle speed, feed rate, depth per pass, and cutting direction. This routine helps operators detect process drift and distinguish tool wear from changes in board composition, workholding, spindle condition, or dust buildup.
Maintenance and Safe Handling
Remove resin and dust using a suitable non-abrasive method. Inspect PCD edges under good lighting and stop using the cutter if an edge is chipped, the body is damaged, or vibration increases. Store the WW PCD round bottom bit in protective packaging so the edge cannot strike other tools. Arrange specialist inspection when normal cleaning and setup checks cannot restore the required groove.
PCD Groove Tool Supplier in Guangzhou, Guangdong
JEEFOO supports customers in Guangzhou, Guangdong and international markets with CNC-tool selection and application guidance. Explore our woodworking cutting tools and product range for additional routing solutions. For a quotation, provide the groove drawing, radius, material, cutter dimensions, shank, machine model, and expected quantity.
Frequently Asked Questions
What is a round bottom bit used for?
It forms smooth curved grooves and channels in compatible panels using a suitable CNC router or routing machine.
Can this PCD cutter process MDF?
It may be used on compatible MDF when the profile and settings match the board. Always run a test groove first.
When should the WW PCD round bottom bit be serviced?
Arrange inspection when the radius changes, surface quality declines, vibration rises, or the cutting edge appears damaged.
