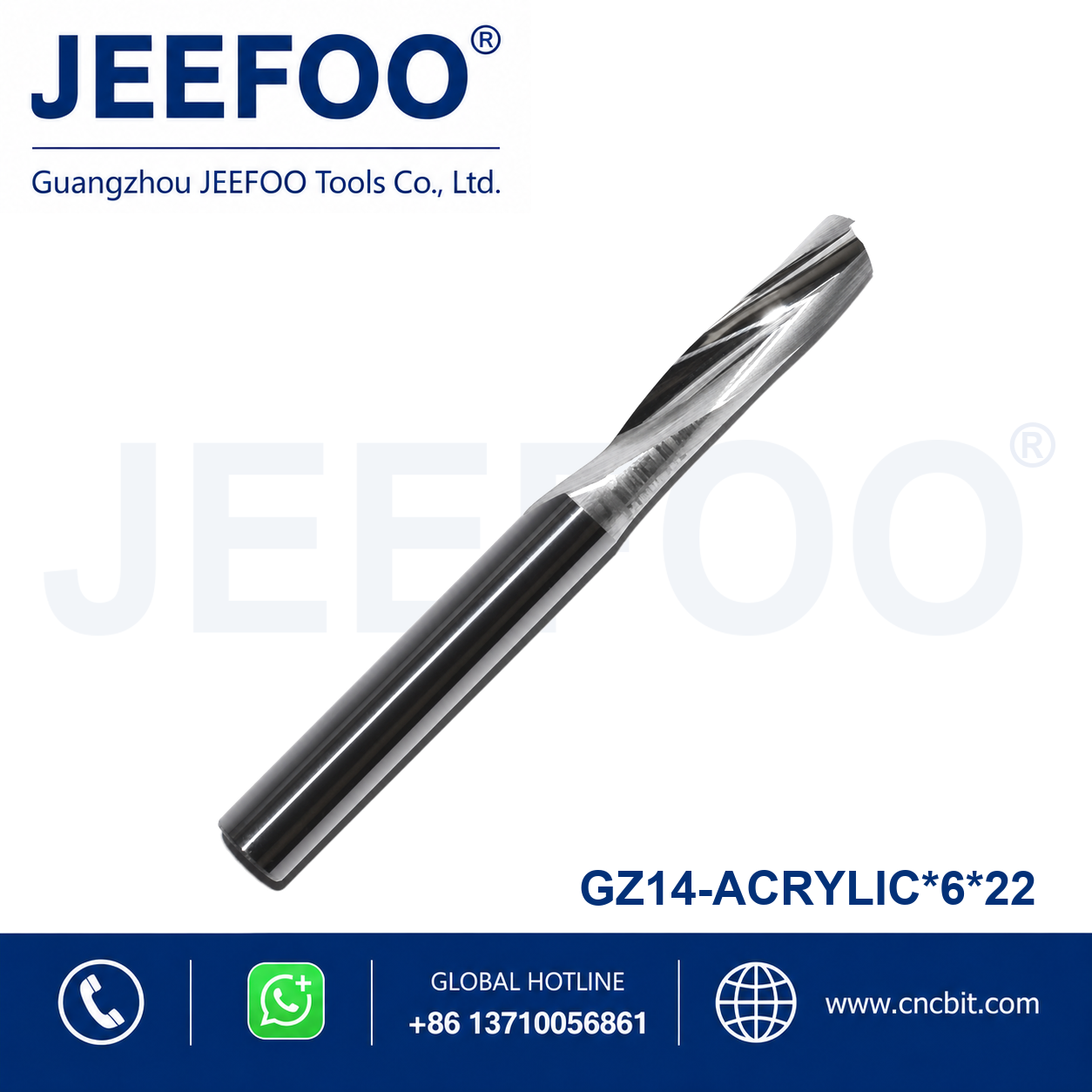

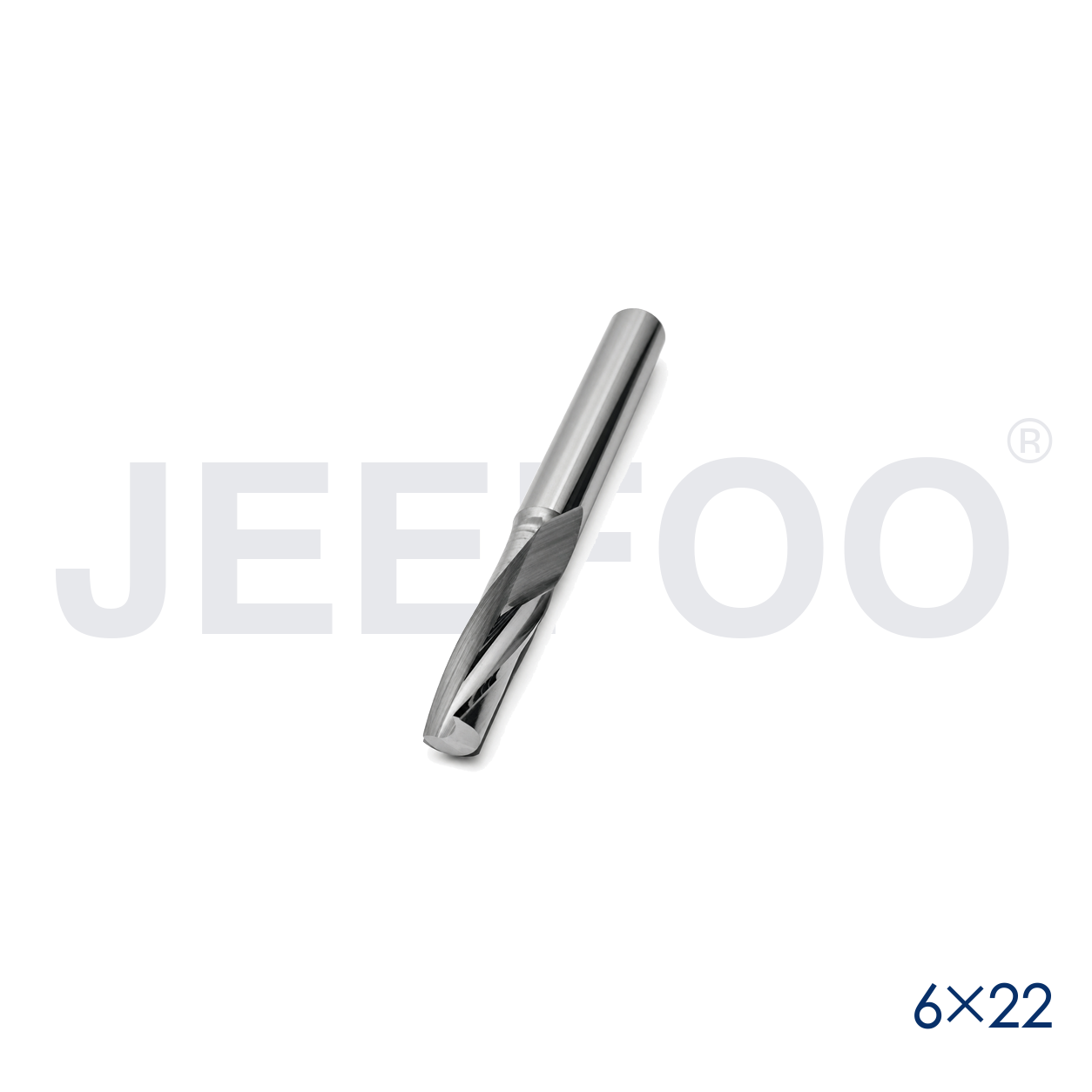

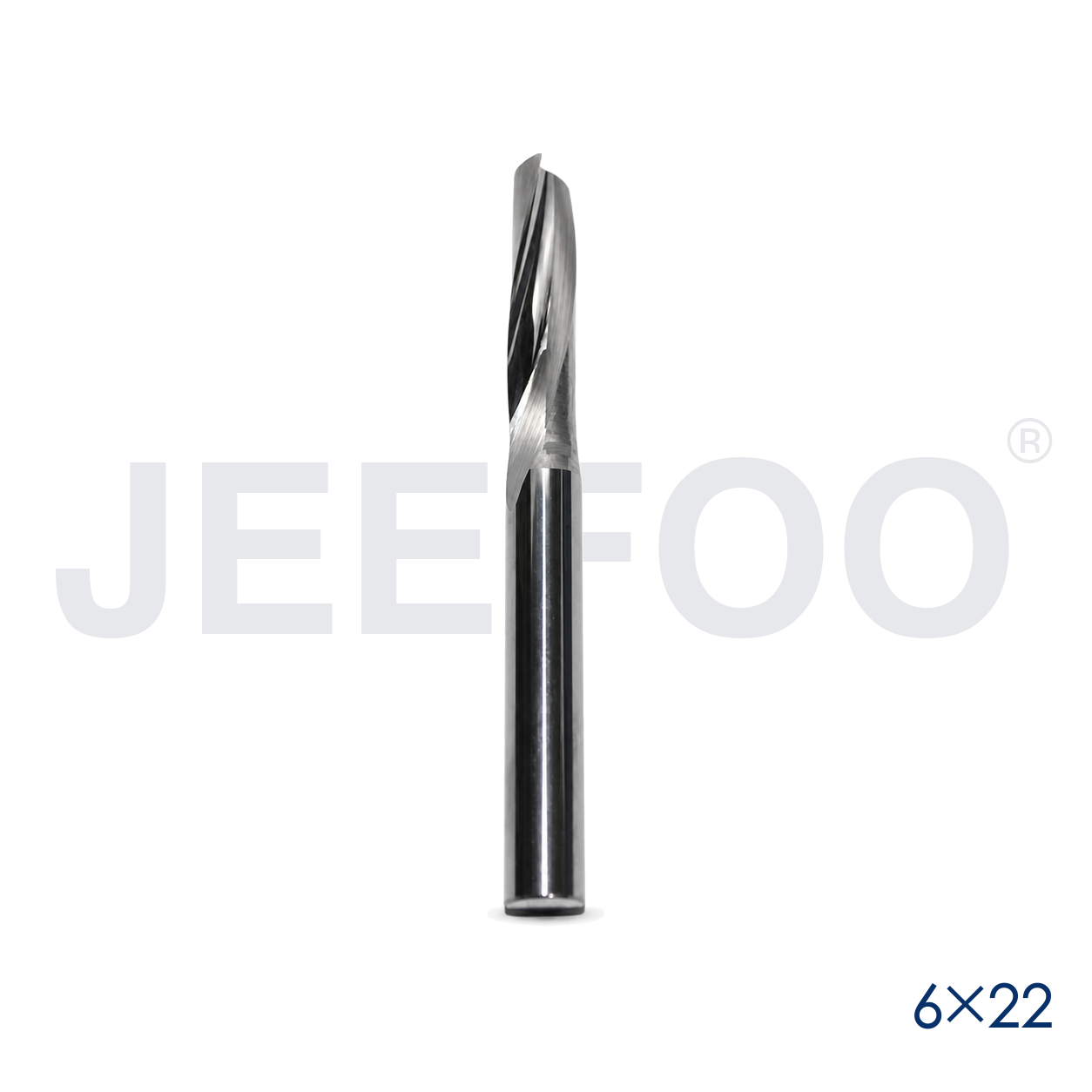

6×22 Single Flute High Chip Evacuation Bit Guide
A single flute high chip evacuation bit in the 6×22 size is designed for acrylic profiling, slots and pockets where clean chip discharge is essential. Its open flute gives plastic chips room to leave the cutting zone, helping reduce recutting, heat and melted edges when feed and spindle speed are balanced.
Acrylic and Plastic Applications
- Acrylic sheet profiles, slots and pockets
- PVC, ABS and compatible engineering plastics
- Sign, display and lighting components
- Repeat-production parts requiring clear edges
Confirm the material grade before production. Cast acrylic, extruded acrylic and filled plastics differ in heat response and chip behavior. Make a short test cut in the actual stock and inspect for melting, haze, white stress marks, burrs and chip welding.
Understanding the 6×22 Size
The specification identifies the main diameter and cutting length used for selection. Verify the product drawing for shank diameter, overall length, flute direction and maximum usable depth. Choose step-down from the material, machine rigidity and engagement rather than assuming the full flute can be used in one pass.
CNC Setup and Heat Control
Clean the collet and shank, confirm low spindle runout and support the acrylic close to the cutting area. Clamp the sheet flat without introducing stress. Begin with conservative depth and a feed that produces formed chips instead of fine dust, then adjust after inspecting the edge and spindle load.
Use clean air or another approved chip-control method to clear the flute. Avoid dwelling because friction and trapped chips can heat the plastic. If the edge melts, check feed, speed, flute loading, tool sharpness, workpiece movement and chip recutting before making multiple parameter changes.
JEEFOO Tools from Guangzhou, China
JEEFOO supplies solid-carbide acrylic router bits from Guangzhou, China for distributors, sign makers and manufacturers. Share the plastic grade, sheet thickness, edge requirement, machine and quantity when requesting a single flute high chip evacuation bit. Explore related products on the JEEFOO cutting tools website.
For general background on programmed machining, see numerical control. Record the verified tool number, cutting depth, feed, speed and air setup with the CNC program for repeatable jobs.
Inspection and Repeat Production
Inspect the first part for edge clarity, dimensions, burrs, haze and scratches. Save an approved sample and parameter record. Stop if cutting sound, chip shape or load changes unexpectedly, and replace a damaged cutter instead of compensating with unsafe settings.
Frequently Asked Questions
Why is the large flute useful?
It provides space for plastic chips to leave the cutting zone and can reduce heat from chip recutting.
What causes melted acrylic edges?
Excessive friction, dwelling, poor chip evacuation, a dull edge or an unsuitable feed-to-speed balance can increase heat.
What should be checked before production?
Inspect the edge, clean the shank and confirm low runout before using the single flute high chip evacuation bit.
single flute high chip evacuation bit is designed for stable CNC machining, clean cutting and dependable tool performance.
<single flute high chip evacuation bit CNC Applications
!– wp:paragraph –>Designed for clean acrylic cutting, effective chip discharge and stable CNC milling.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.
Size: 6x22
