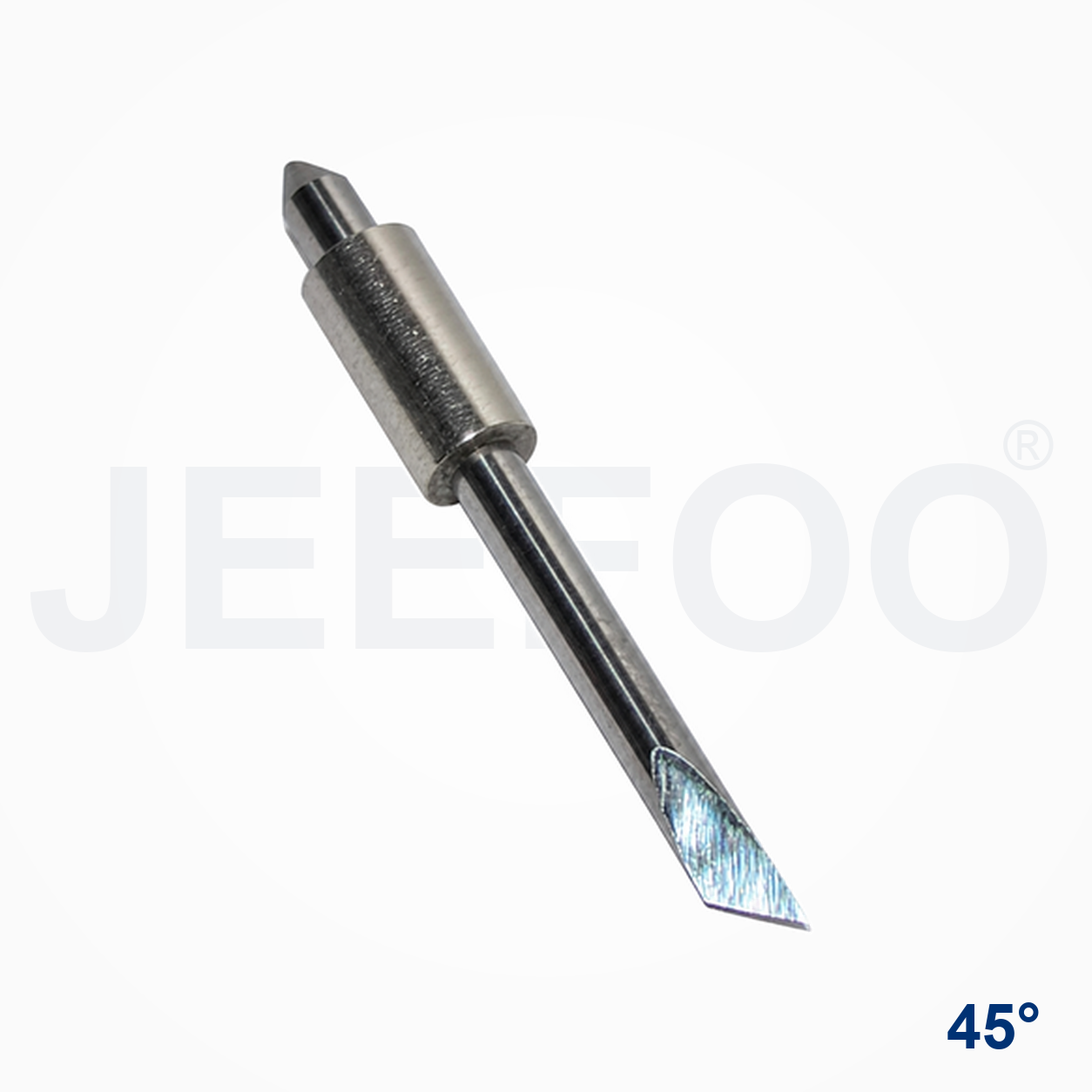

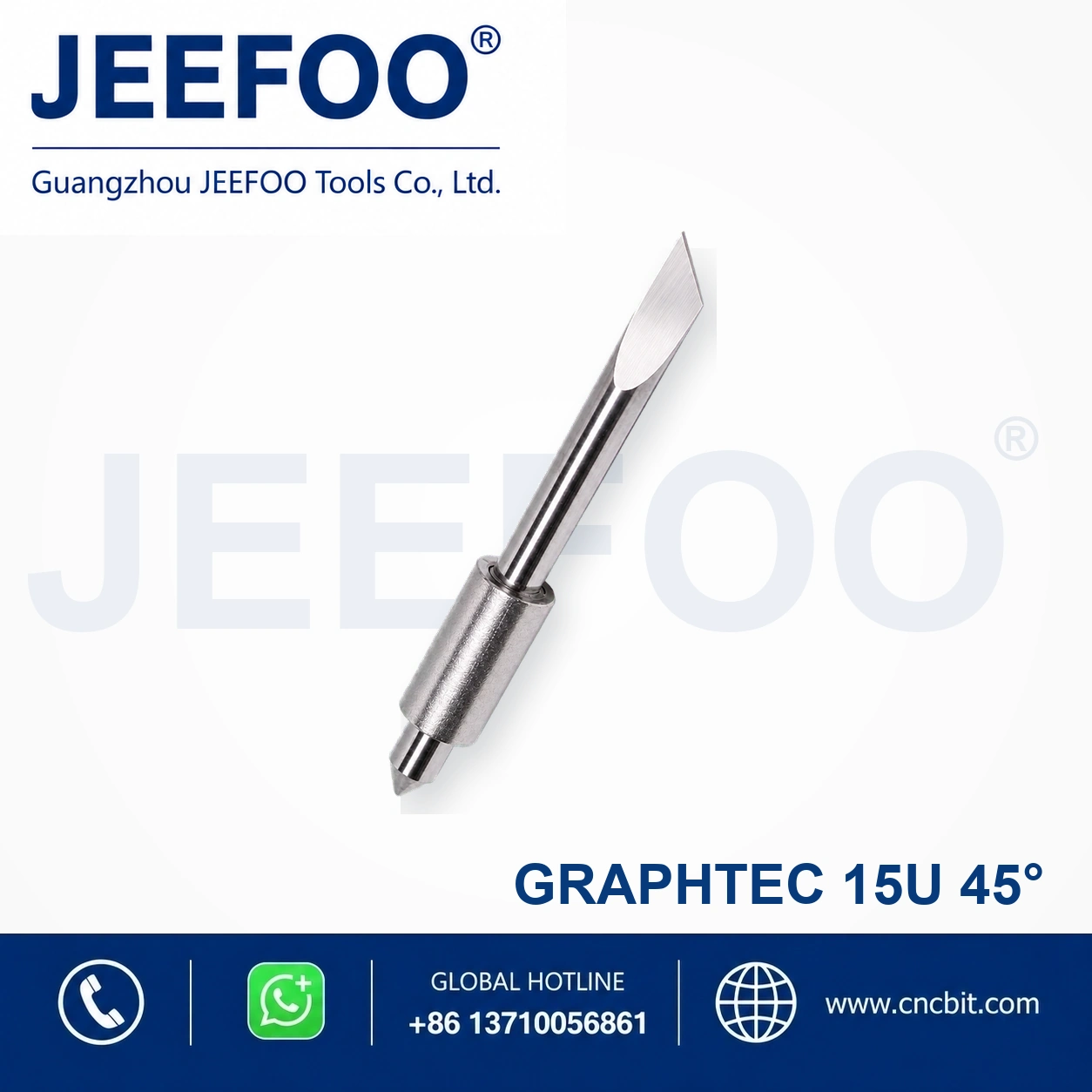

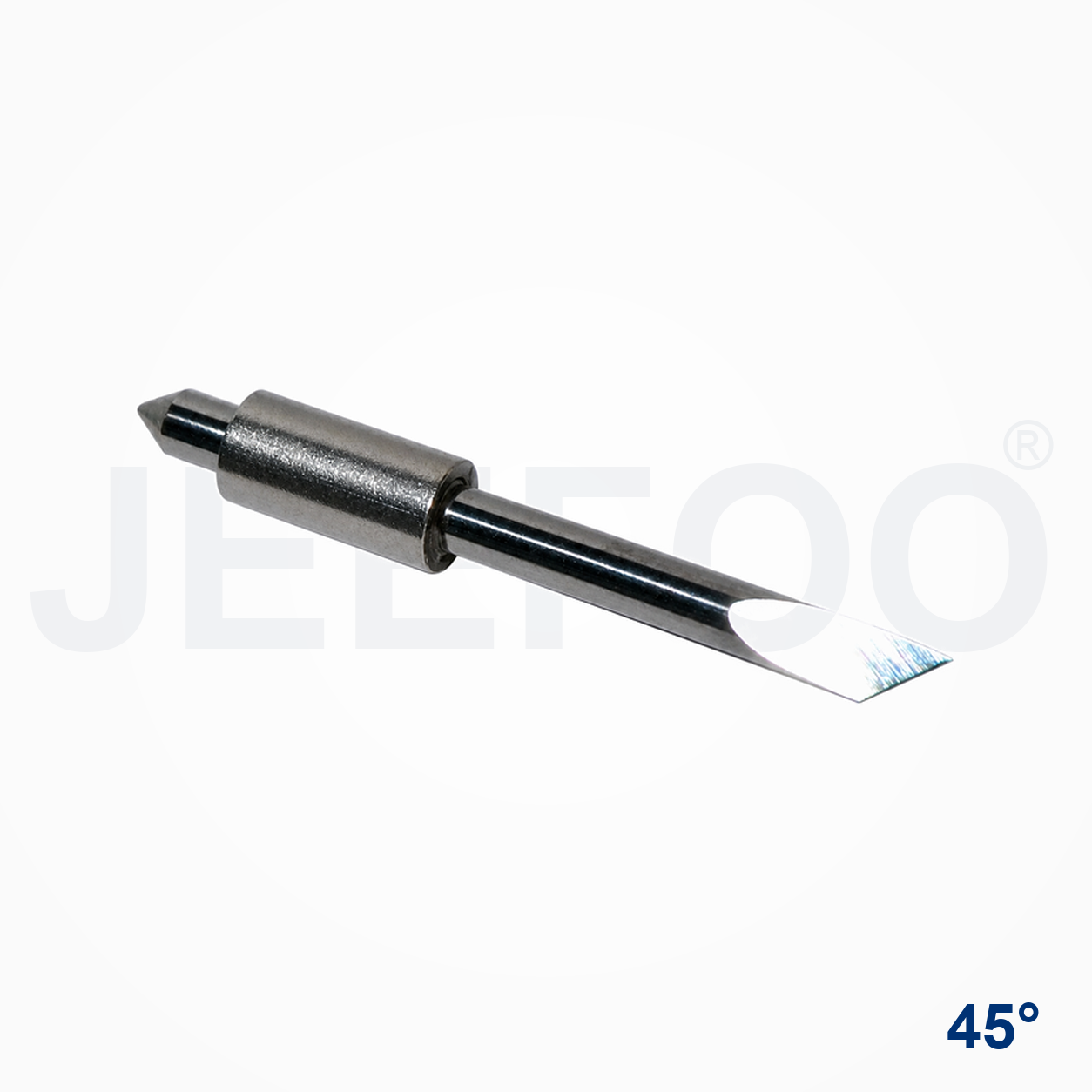

Graphtec 45 Degree Cutting Plotter Blade is represented here by the GT15(A)-Graphtec Blade(A) 45 Degree Imported Cutting Plotter Blade, a precision replacement blade for compatible cutting plotters and vinyl cutters. The 45-degree cutting angle supports accurate contour cutting, lettering and detailed graphic production.
Cutting Plotter Blade Features
- Precision-ground cutting point supports clean lines and consistent contour cutting.
- Durable blade material provides dependable wear resistance in routine production.
- Designed for compatible GT15(A)-Graphtec Blade(A) plotter blade holders.
- Suitable for vinyl, adhesive film, sign-making media and other compatible thin materials.
- The 45-degree tip provides a practical balance of detail control and cutting depth for suitable media.
Applications and Selection Guidance
Select the blade angle according to media thickness, detail size and required cutting depth. Confirm blade-holder compatibility before ordering. Set blade exposure, downforce and cutting speed carefully to avoid damaging the backing liner.
- 30-degree blades are suitable for many general thin-film cutting tasks.
- 45-degree blades provide versatile performance for common sign-making media.
- 60-degree blades are often selected for thicker media, small details or deeper cutting requirements.
- Always perform a test cut before production.
Product Description
- Brand series: GT15(A)-Graphtec Blade(A).
- Blade angle: 45 degrees.
- Product type: Cutting plotter replacement blade.
- Application: Lettering, decals, graphics, vinyl and compatible film cutting.
- Selection: Match the blade to the correct holder and plotter model.
GT15(A) Graphtec Blade Compatibility And Results
The GT15(A)-Graphtec Blade(A) 45 Degree Imported Cutting Plotter Blade is selected when a compatible Graphtec plotter requires a sharp, stable replacement point for general sign-making work. The 45-degree geometry offers a practical balance between fine detail, blade strength and cutting depth for common vinyl, label film and adhesive media. Clean results depend on the blade, holder, media liner, cutting force and speed working together.
Selection And Installation Checklist
- Confirm the Graphtec model and blade-holder interface before ordering.
- Compare the media thickness and liner construction with the required blade exposure.
- Remove the worn blade carefully and clean the holder before fitting the replacement.
- Start with conservative force and speed settings, then adjust after a small test cut.
- Check corners, small letters, weedability and backing-liner marks before production.
45 Degree Blade Applications
A 45-degree cutting plotter blade is commonly used for everyday lettering, decals, labels, masking film and other compatible thin materials. It can follow sharp vector changes while maintaining enough tip support for repeat cutting. For unusually thick media or very small details, compare a different blade angle and verify the holder specification rather than increasing force excessively.
Safe Operation And Ordering Support
Before changing a blade, stop the plotter and follow the machine instructions. Review the OSHA machine-guarding guidance for safe equipment practices. When checking compatibility, compare the model information with the Graphtec official site. For related replacement blades and CNC cutting-tool support, visit JEEFOO Tools.
For production planning, check how the selected blade behaves on the actual media rather than relying only on a nominal angle. The same 45-degree blade can produce different results when the liner is hard, the adhesive is soft, or the media has been stored in a hot or dusty environment. Replace a blade when corners become rounded, small letters fail to weed cleanly, or the required force increases unexpectedly. Keep the blade holder free of adhesive and debris, and avoid extending the tip farther than necessary because excess exposure can increase drag and damage the liner.
If you are comparing Graphtec-compatible consumables, record the plotter model, holder type, media family and the desired cutting result before ordering. A short test pattern with straight lines, tight corners, circles and small text makes it easier to confirm settings. After the test passes, note the final force and speed so repeat jobs can be started consistently. This practical workflow helps the GT15(A)-Graphtec Blade(A) 45 Degree Imported Cutting Plotter Blade deliver stable, repeatable cutting for everyday signage and label work.
The Graphtec 45 Degree Cutting Plotter Blade keyword describes the practical replacement use of this GT15(A) blade: a 45-degree point for compatible Graphtec cutting plotters, vinyl cutters and sign-making media. Use the model and holder information to confirm the fit before installing a new blade.
