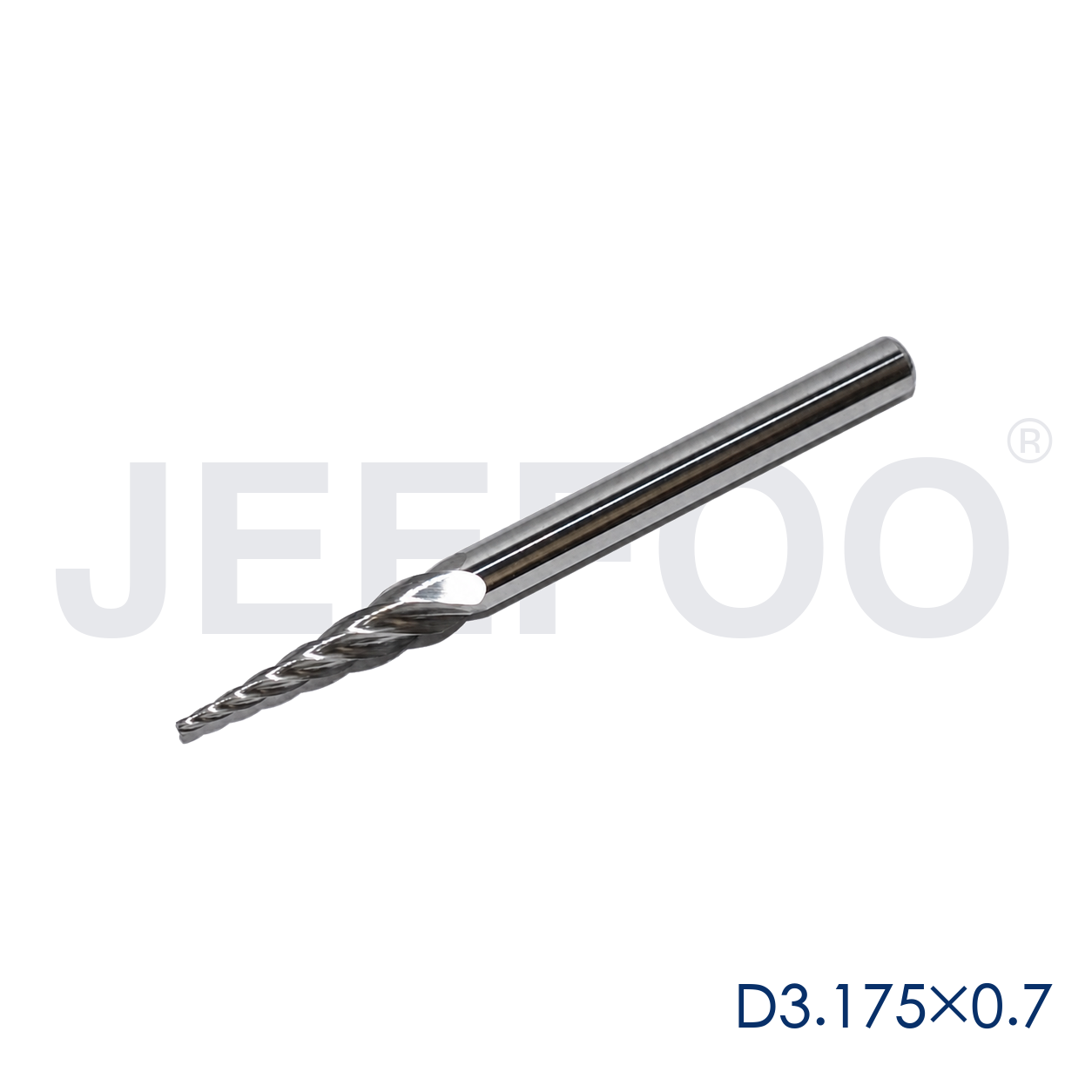

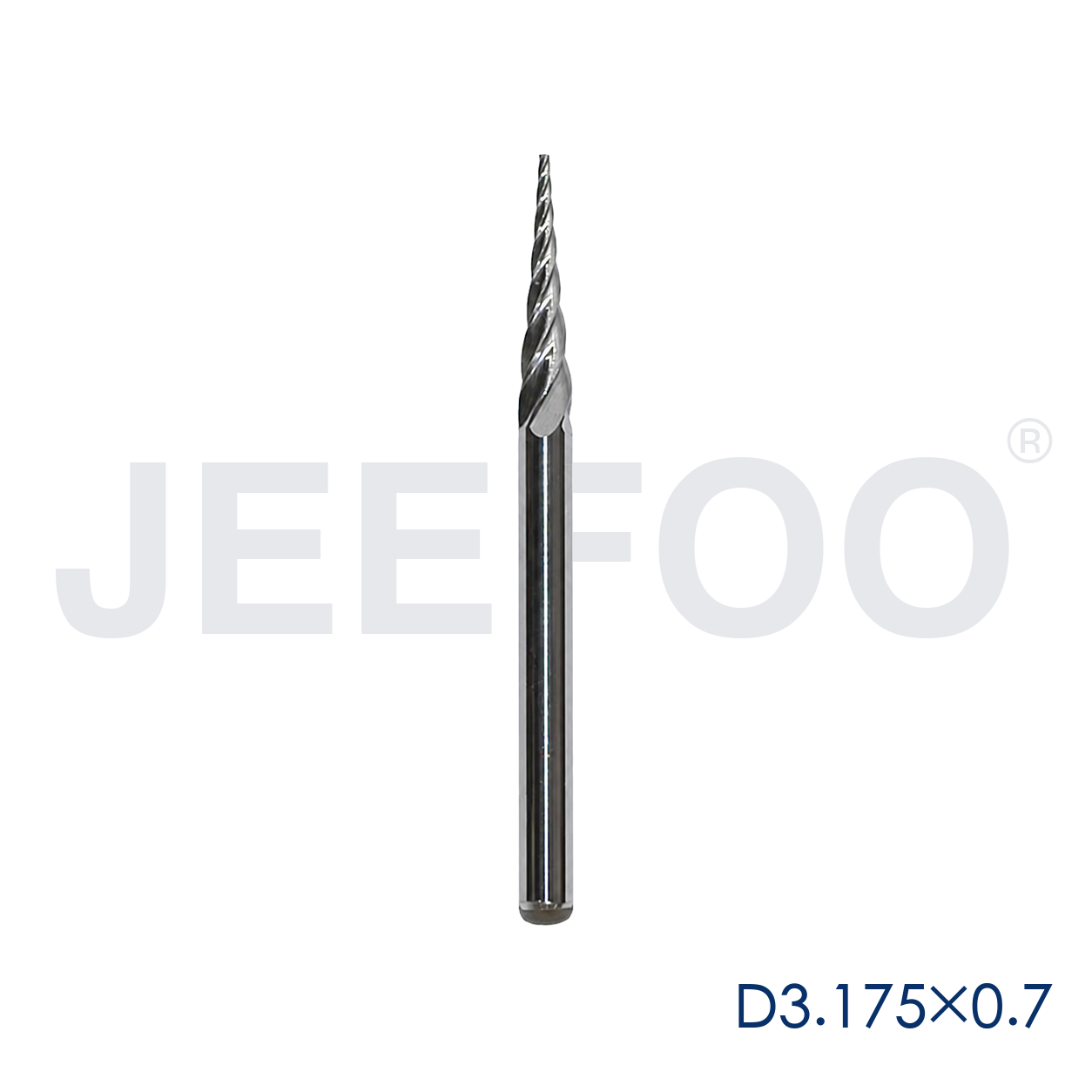

D3.175×0.7 Five Flute Tapered Router Bit Guide
A five flute tapered router bit with a D3.175×0.7 specification is designed for fine CNC relief engraving, controlled tapered cuts and detailed carving. The small tip supports narrow features, while the multi-flute geometry can provide a smooth finish when the tool is used with light engagement, low runout and effective dust or chip control.
Typical CNC Applications
- Fine relief carving in wood and compatible board materials
- Detailed lettering, decorative patterns and small grooves
- Tapered-wall machining where a narrow tip is required
- Finishing passes on 3D profiles after rough material removal
Confirm that the workpiece material is compatible with the cutter and that the flute length can reach the programmed depth without the neck or shank contacting the part. Resin content, fiber direction and board density can affect edge quality, so approve a test cut before full production.
Understanding D3.175×0.7
The specification identifies the principal shank diameter and small cutting-tip dimension used for selection. Verify the supplier drawing for taper angle, cutting length, overall length, flute direction and maximum usable depth. Enter the measured geometry in the CAM tool library and check the simulated toolpath for collisions.
CNC Setup and Toolpath Strategy
Clean the collet and shank, confirm low spindle runout and clamp the workpiece on a rigid, flat support. Remove most material with a suitable roughing cutter, leaving a small and even allowance. Use the tapered tool for controlled semi-finishing or finishing passes rather than deep, sudden plunges.
Begin with conservative feed, depth and stepover. Maintain continuous dust extraction or another approved chip-control method so debris is not recut around the small tip. If detail becomes fuzzy or the surface shows lines, inspect runout, tool deflection, chip recutting, workpiece movement and edge condition before changing speed.
JEEFOO Tools from Guangzhou, China
JEEFOO supplies carbide engraving and milling cutters from Guangzhou, China for distributors, workshops and manufacturers. Share the material, minimum detail size, target depth, machine type and production quantity when requesting a five flute tapered router bit. Explore related products on the JEEFOO cutting tools website.
For general background on programmed toolpaths, see the reference on numerical control. Store the verified tool number, measured length, taper geometry, feed, speed, stepover and dust-control method with the CNC program.
Inspection and Repeat Production
Inspect the first finished part under consistent lighting and measure critical features. Check fine detail, wall taper, surface lines, burrs and dimensional consistency. Save an approved sample and parameter record with the job, and replace a damaged cutter instead of compensating with unsafe settings.
Frequently Asked Questions
Is this cutter suitable for heavy roughing?
No. The small tip is better protected by roughing first with a stronger tool and leaving a uniform allowance for the tapered finishing pass.
Why does runout matter?
Runout increases the effective cutting load on the fine tip and can reduce detail quality, tool life and dimensional accuracy.
How should a repeat job be controlled?
Record the approved tool length, geometry, feed, speed and toolpath, then inspect the five flute tapered router bit before each batch.
five flute spiral tapered router bit is designed for stable CNC machining, clean cutting and dependable tool performance.
<five flute spiral tapered router bit CNC Applications
!– wp:paragraph –>Designed for fine relief engraving, detailed wood processing and controlled tapered cutting.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.

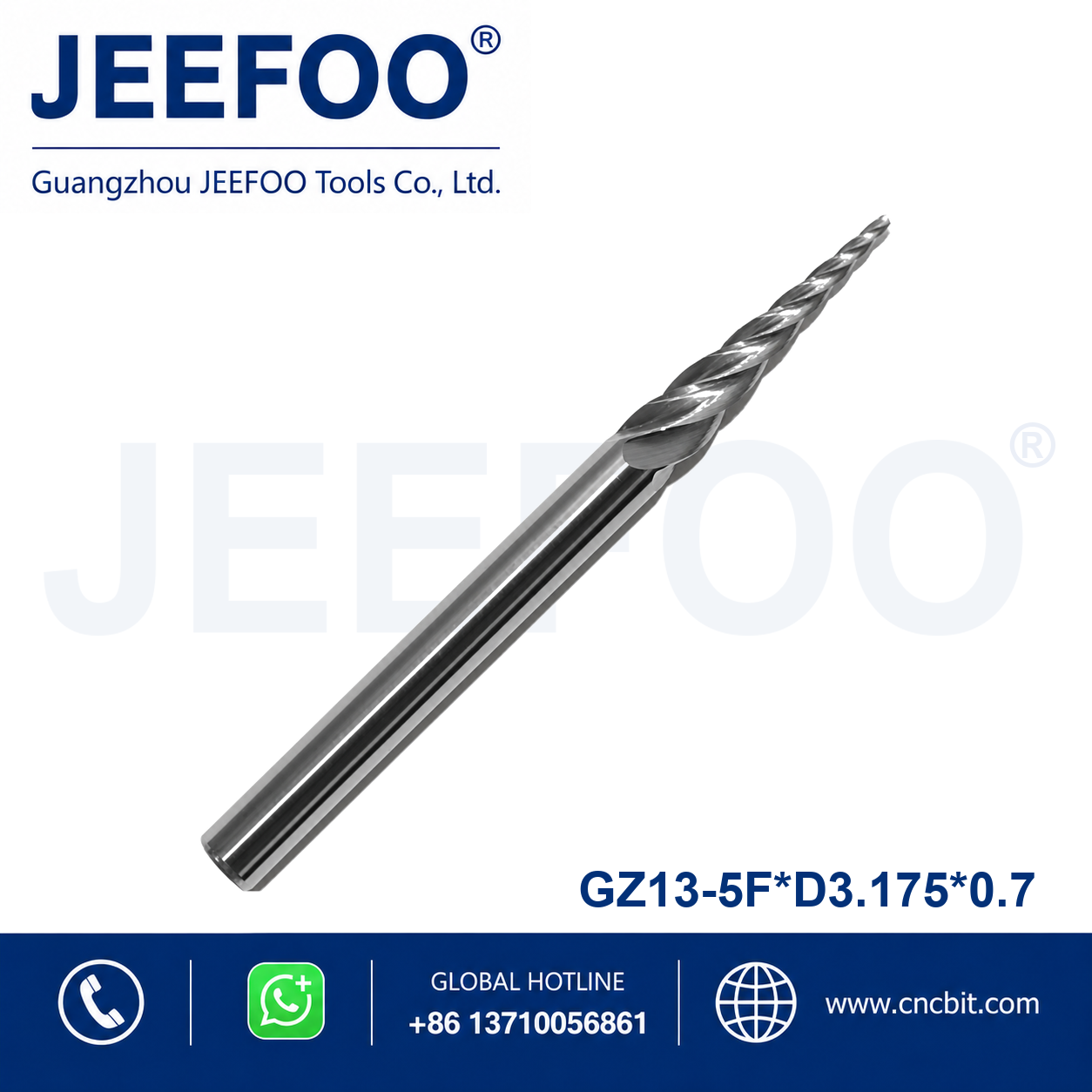

Size: D3.175x0.7
