ED Round Bottom Profile Cutter

Byyi, yi

ED Round Bottom Profile Cutter is the recommended profile reference for round-bottom profile CNC routing and decorative recessed profile work.

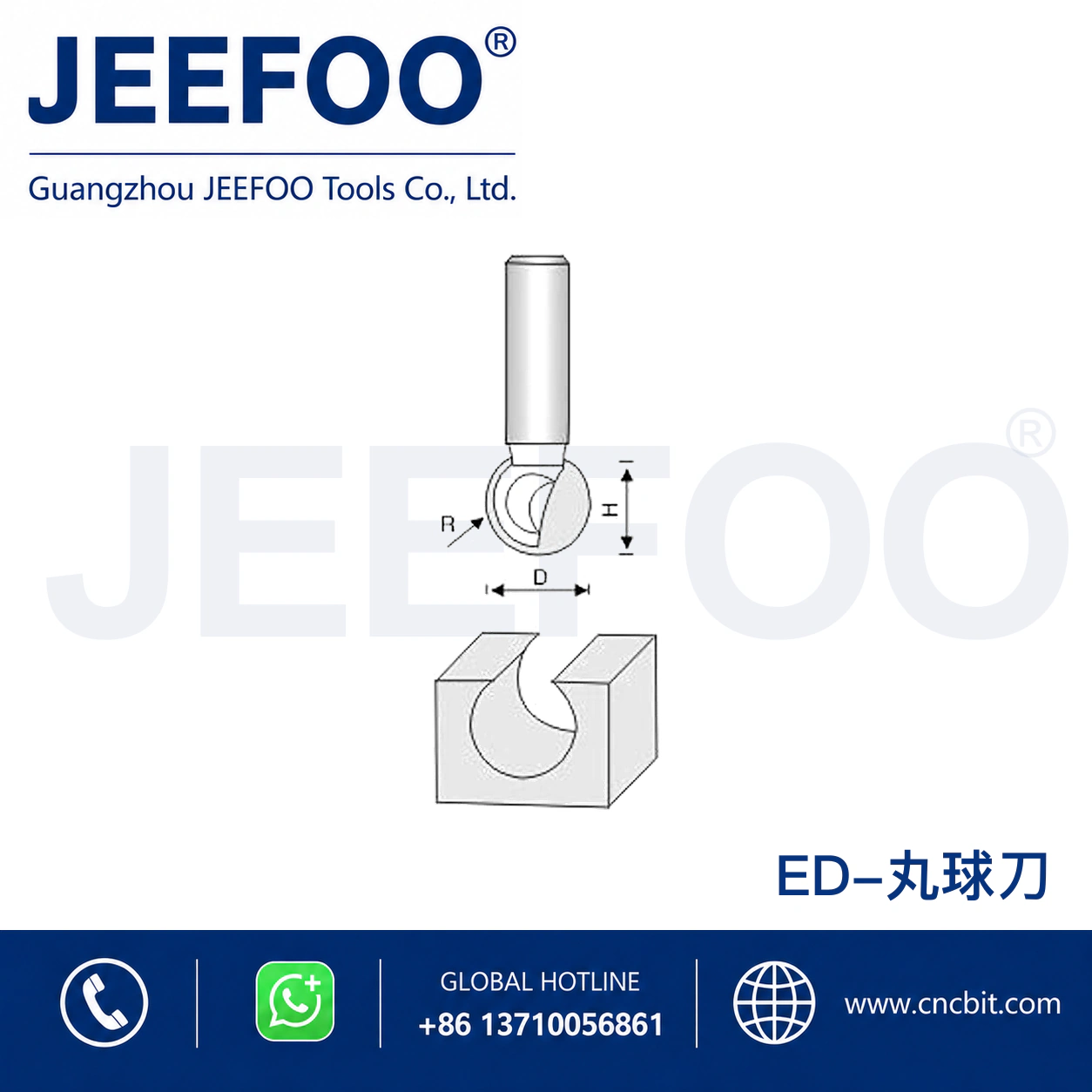

ED Round Bottom Profile Cutter schematic product image

ED Round Bottom Profile Cutter is a standard woodworking router bit designed for round-bottom grooves, flutes, channels and decorative recessed profiles. The blue schematic drawing identifies the cutter profile and supports accurate model selection for routing and molding applications.

Round Bottom Profile Cutter Features

  • Profile geometry is designed for round-bottom grooves, flutes, channels and decorative recessed profiles.
  • Precision-machined cutting edges support stable routing and a consistent wood finish.
  • Suitable for compatible routers, spindle molders and CNC woodworking equipment.
  • Designed for solid wood, MDF, plywood and other compatible wood-based materials.
  • Standard models and customized dimensions are available for production requirements.

Applications and Selection Guidance

Use the ED profile for round-bottom grooves, flutes, channels and decorative recessed profiles. Confirm the shank or bore size, cutting diameter, cutting height, machine rotation and required profile before ordering. Perform a test cut and adjust speed, feed and cutting depth for the material and machine rigidity.

  • Keep the tool and holder clean before installation.
  • Minimize tool overhang and verify secure clamping.
  • Use suitable dust extraction and workpiece holding.
  • Do not operate a chipped, cracked or excessively worn cutter.

Product Description

  1. Series: E-Round Bottom Profile Cutters.
  2. Model: ED.
  3. Product type: Round Bottom Profile Cutter.
  4. Application: Round-bottom grooves, flutes, channels and decorative recessed profiles.
  5. Customization: Contact us for compatible dimensions and non-standard cutter profiles.

ED Round Bottom Profile Cutter: CNC Guidance

The ED Round Bottom Profile Cutter is a profile router bit for producing round-bottom grooves and recessed profiles, smooth round-bottom details and decorative recessed profiles in architectural millwork. It is intended for CNC routers, spindle molders and compatible woodworking routers where repeatable geometry and a clean surface finish are required.

ED Profile, Materials and Applications

  • Use the ED profile for round-bottom grooves, flutes and channels, furniture edges, door components and custom molding.
  • Typical workpieces include solid wood, MDF, plywood and other approved wood-based panels.
  • Confirm the cutting diameter, cutting height, shank or bore size and machine clearance before ordering.
  • Make a sample cut first to verify the profile, feed direction and surface finish.

CNC Setup and Safety

Install the cutter in a clean, compatible holder and minimize tool overhang. Set spindle speed, feed rate and cutting depth for the material, tool diameter and machine rigidity. Secure the workpiece, use dust extraction and inspect the cutting edges before each run. Follow shop rules and the OSHA woodworking safety guidance when operating routing equipment.

Product Description

  1. Model: ED.
  2. Product type: Round Bottom Profile Cutter.
  3. Profile: Bowed-arc and ornamental contour routing.
  4. Machine: CNC router, spindle molder or compatible woodworking router.
  5. Customization: Contact JEEDOO Tools for compatible dimensions, shank options and custom profile requirements.

Why Choose a ED Round Bottom Profile Cutter?

A ED Round Bottom Profile Cutter helps a workshop reproduce the same round-bottom profile geometry across multiple parts. It is useful when a project needs matching trim, repeatable furniture details or a controlled transition along a round-bottom edge. Compare the technical drawing with a finished sample before starting the production batch.

  • Profile result: consistent round-bottom profile and decorative contour detail.
  • Selection priority: match the drawing, dimensions, shank and machine clearance.
  • Order information: provide material, quantity and equipment details for a tooling review.

For repeatable round-bottom trim and furniture work, the ED Round Bottom Profile Cutter provides a clear profile reference for matching decorative contours across a production run.

The ED Round Bottom Profile Cutter is selected when a round-bottom decorative profile needs repeatable CNC routing. Before production, verify the ED Round Bottom Profile Cutter profile against the required finished dimensions and material.
