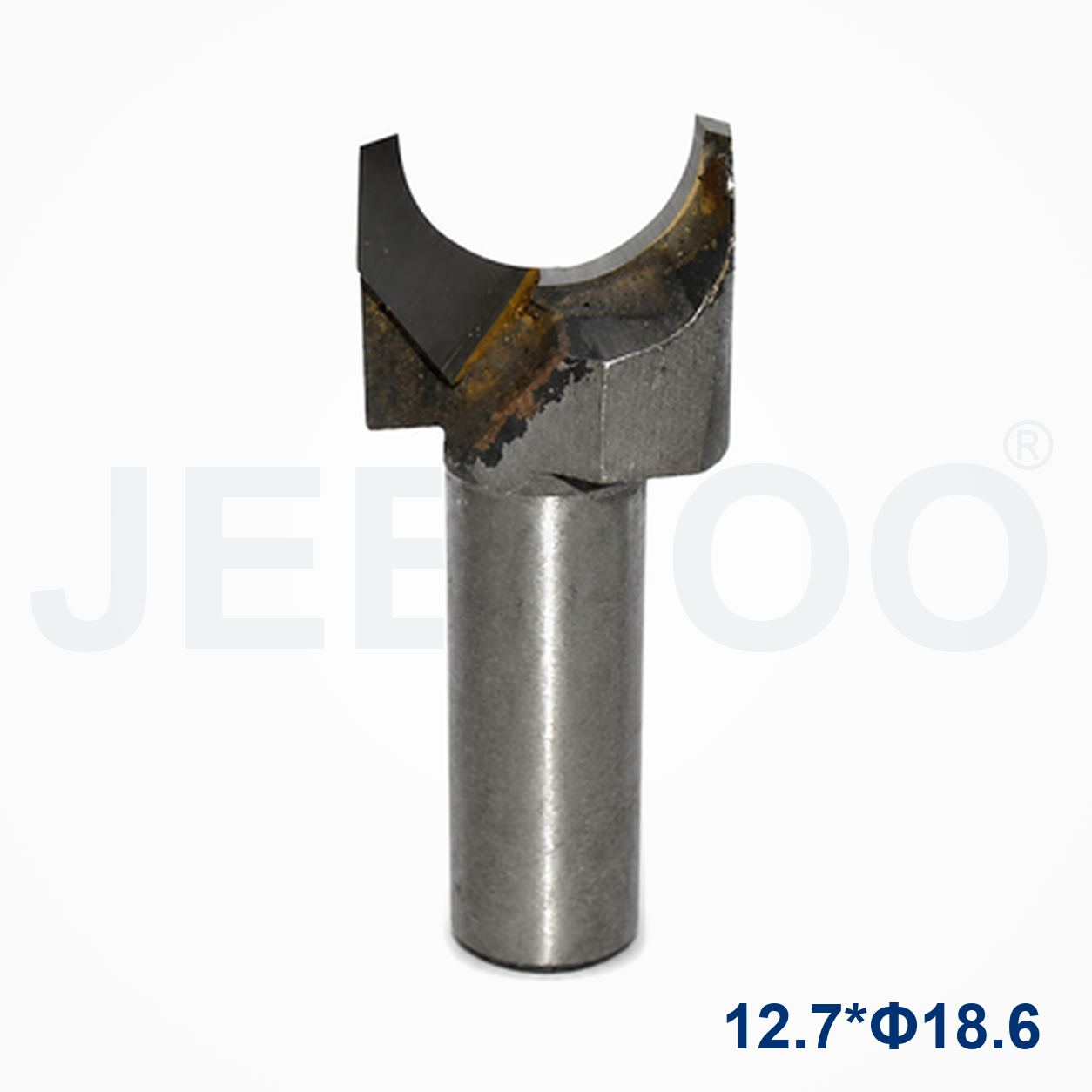

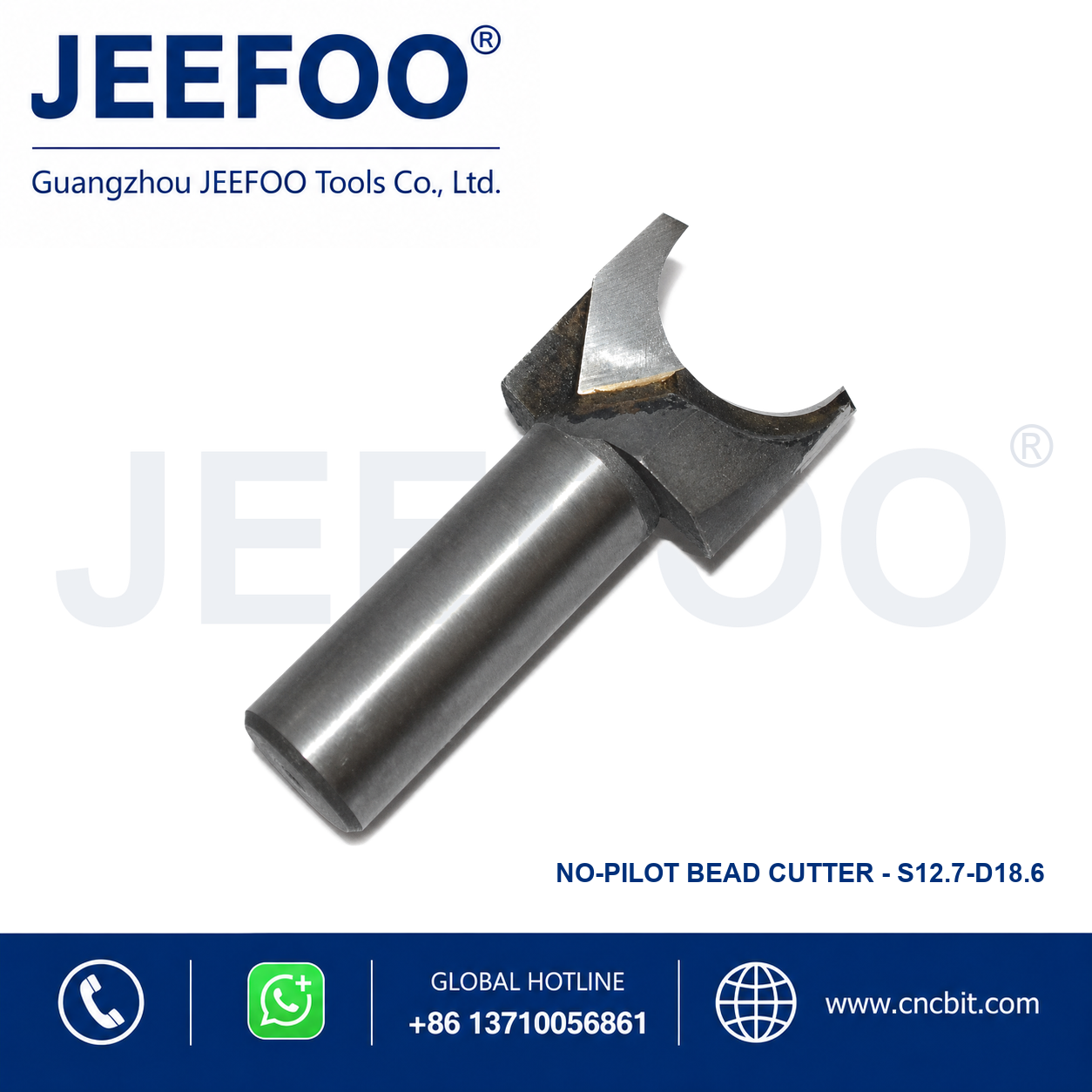

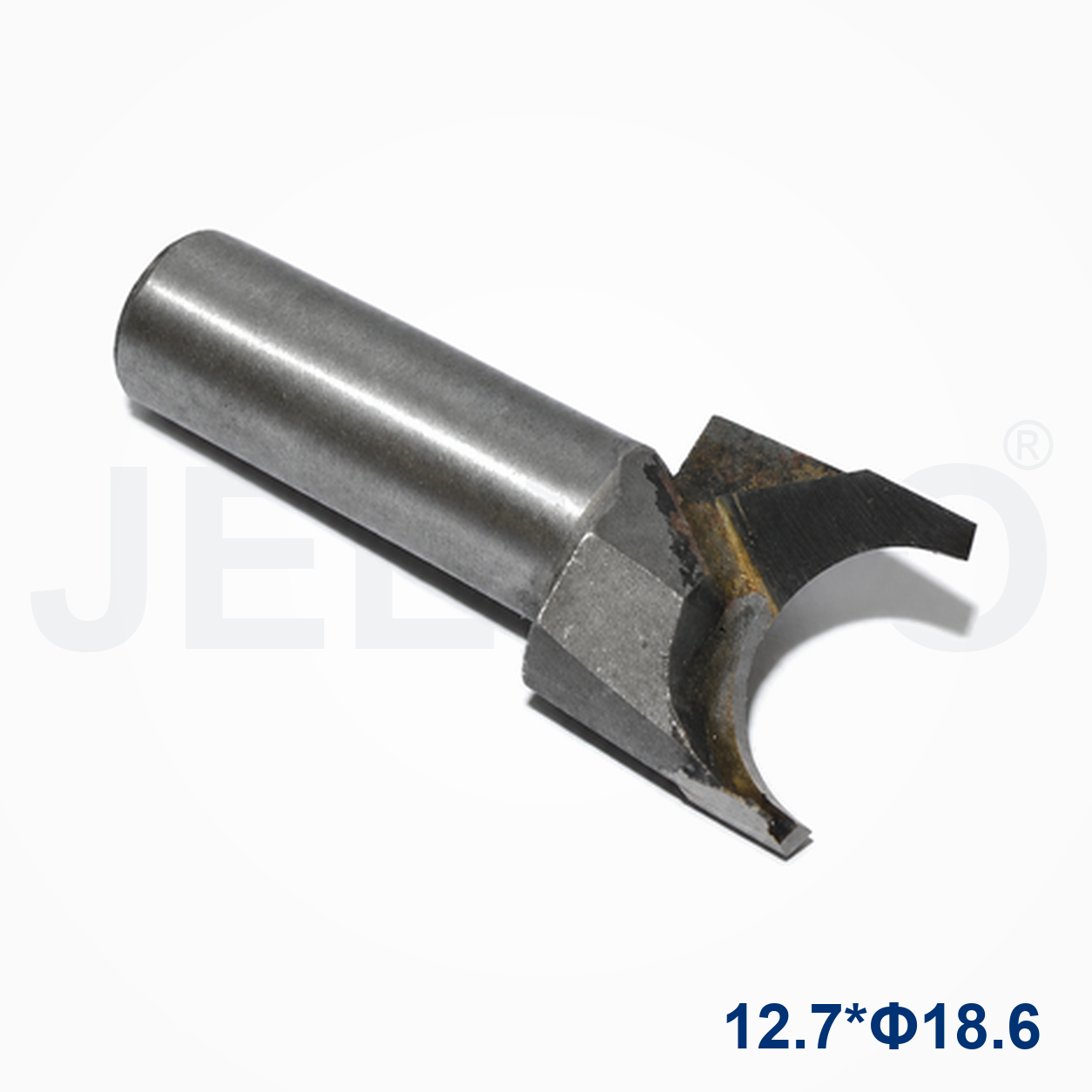

Bench Drill Prayer Bead Cutter Without Center Drill 12.7-D18.6 forms wooden prayer beads without an integrated center drill, allowing the operator to use a separately prepared center hole or an application-specific fixture. The R30 profile is intended for compatible bench-drill equipment with secure tool holding, accurate blank positioning and controlled feed.
Bench Drill Prayer Bead Cutter Features
- 12.7-D18.6 prayer-bead profile without an integrated center drill.
- Suitable for blanks with a separately prepared center hole or dedicated fixture.
- Profiled cutting geometry supports repeatable decorative bead shaping.
- Designed for compatible bench drills and rigid workholding.
- Suitable for solid wood and other approved bead-making materials.
Applications and Selection
The Bench Drill Prayer Bead Cutter is intended for shaping wooden prayer beads, bracelet beads and similar rounded craft components. Because this model has no center drill, the operator must establish alignment through the blank, pilot hole or fixture. The final bead depends on the cutter profile, wood species, blank size, spindle condition and setup accuracy.
Before ordering, confirm the R30 profile, required bead diameter, shank interface, pre-drilled hole and machine clearance. Compare those details with the bench drill, chuck or collet and the intended workholding method. For a non-standard bead shape, send a dimensioned drawing, reference sample or finished-product specification for technical review.
Blank Preparation and Alignment
Begin with a straight, dry blank that is free from cracks, loose knots and embedded metal. If the process uses a prepared center hole, drill it accurately before shaping and confirm that it is concentric with the blank. A dedicated mandrel or fixture should support the part securely without obstructing the cutter path.
- Disconnect power while installing or inspecting the cutter.
- Clean the shank and holder, then seat the tool correctly.
- Align the prepared blank or fixture with the spindle axis.
- Clamp every component before starting the machine.
- Make a light trial cut on scrap from the same material.
- Check roundness, surface finish and hole alignment before production.
Controlled Cutting Procedure
Feed the Bench Drill Prayer Bead Cutter gradually and avoid forcing it into the blank. Progressive passes provide more control than a single heavy cut and help limit heat, vibration and torn grain. If the cut becomes rough, stop the spindle and inspect the edge, holder, fixture and workpiece before continuing.
Keep the setup consistent when producing a batch. Use the same blank dimensions, hole position, clamping pressure, spindle speed and feed depth for every piece. Record successful settings for later jobs, but always verify them again when the wood species, moisture content or blank geometry changes.
Cut Quality and Troubleshooting
A sharp cutting edge and stable spindle help the Bench Drill Prayer Bead Cutter produce a smoother profile. Burning can indicate excessive speed, slow feed, a dull edge or resin buildup. Chatter can result from loose workholding, excessive tool projection or spindle runout. Correct the setup only after the machine has fully stopped and power is isolated.
Test each new material before starting a full batch. Dense or highly figured wood may require smaller passes and closer inspection. Sanding allowances should be considered when selecting the target profile, especially when a finished bead must meet a specific diameter after surface preparation.
Safety, Cleaning and Storage
Use suitable eye and dust protection, keep guards in place and follow recognized woodworking machine safety guidance. Small blanks must never be held by hand near a rotating cutter. Keep clothing, hair and loose items away from the spindle area, and do not clear chips or measure the part while the tool is moving.
After use, remove resin and dust with a method suitable for the tool material. Dry the Bench Drill Prayer Bead Cutter and inspect the profile edge and shank for wear or damage. Store it so the edge cannot strike other metal tools. Regular care supports consistent cutting and makes defects easier to identify before the next setup.
Guangzhou, Guangdong Supply Support
JEEFOO Tools supplies the Bench Drill Prayer Bead Cutter from Guangzhou, Guangdong, China, with selection, customization and export support for woodworking-tool buyers. Explore related JEEFOO woodworking cutting tools, or send the team your machine details, blank material and target bead dimensions for review.
Product Description
- Category: Bench Drill-Prayer Bead Cutter Without Center Drill.
- Model: 12.7-D18.6.
- Product type: Woodworking prayer bead cutter without center drill.
- Equipment: Compatible bench drill or fixed drilling machine.
- Selection: Confirm the profile, dimensions, shank and workholding method before ordering.
