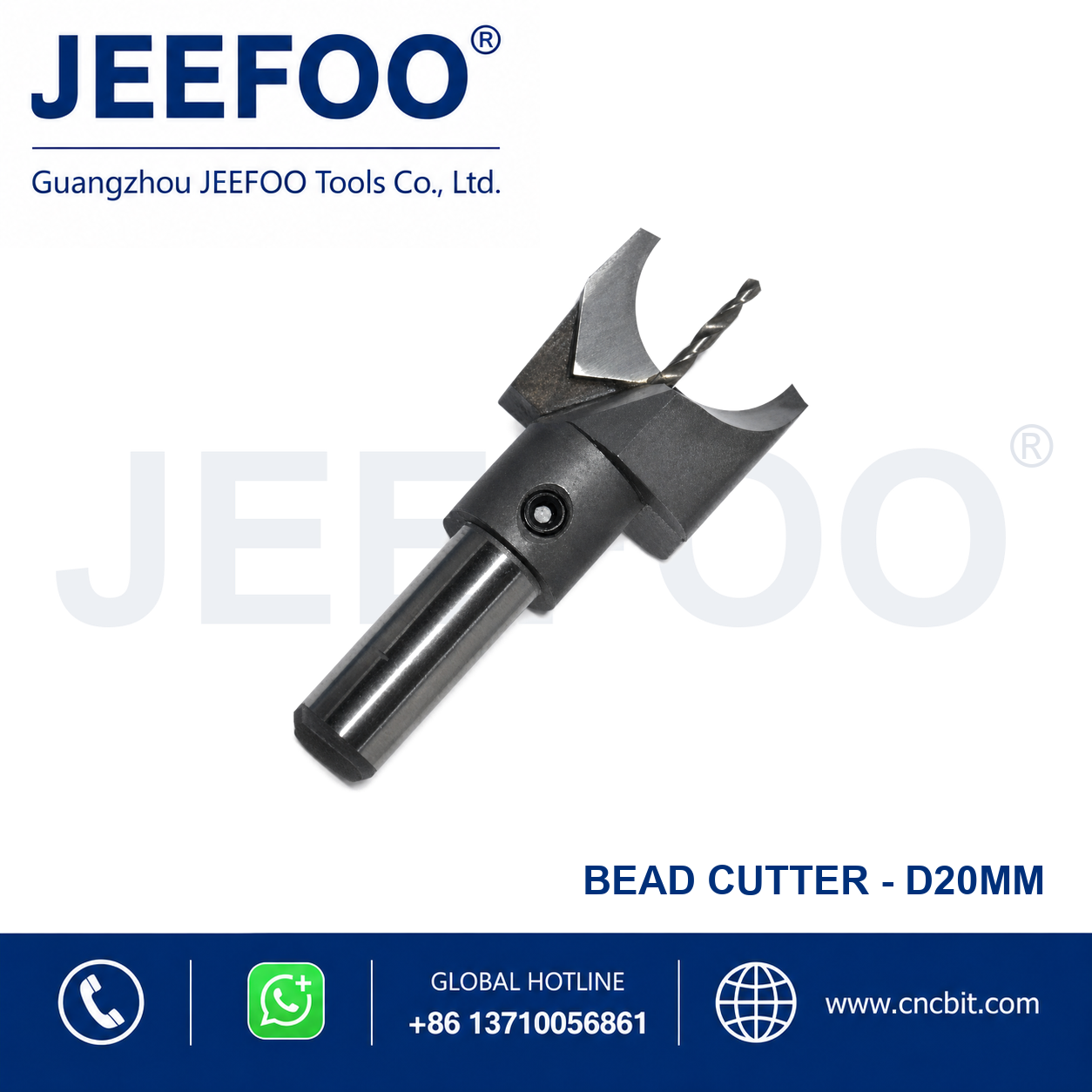

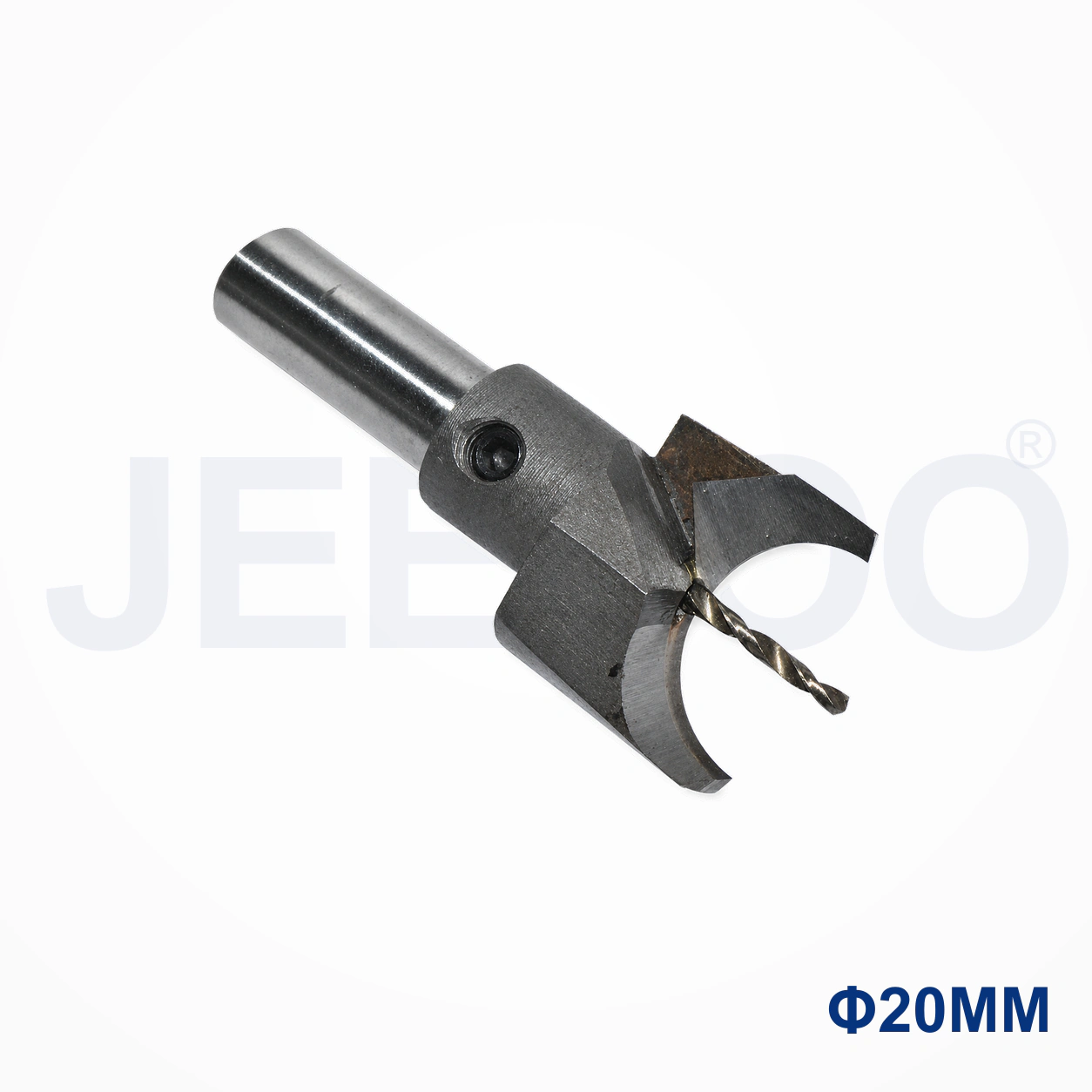

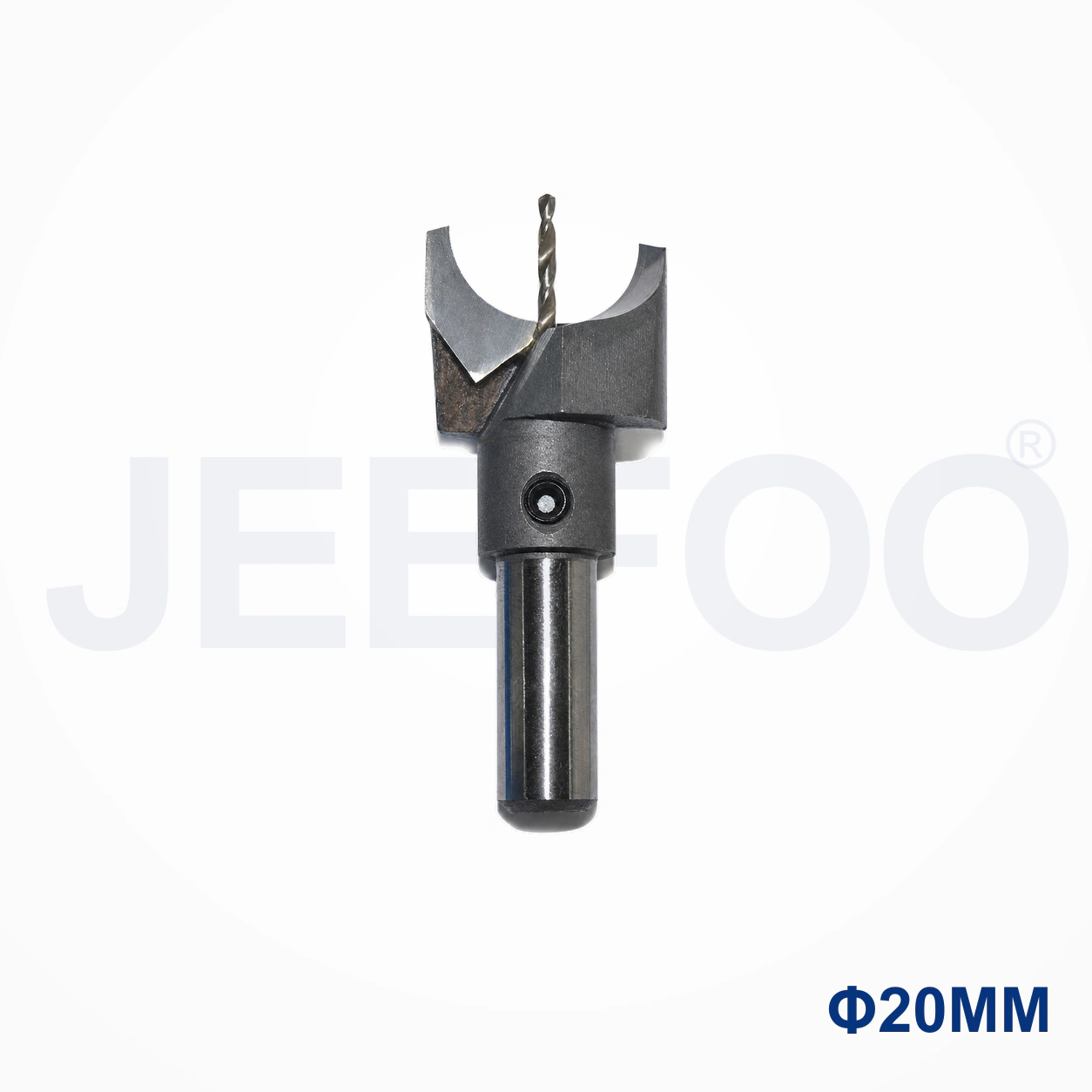

Bench Drill Prayer Bead Cutter 20 mm is designed for forming round wooden prayer beads on compatible bench-drill equipment. The matched cutter profile and center drill help shape the bead while establishing a centered through-hole, provided that the blank, tool holder and spindle are accurately aligned and securely clamped.
Bench Drill Prayer Bead Cutter Features
- 20 mm nominal bead diameter for correctly prepared wood blanks.
- Curved profile supports consistent spherical bead shaping.
- Center drill assists alignment and through-hole positioning.
- Designed for compatible bench drills with rigid workholding.
- Suitable for solid wood and other approved bead-making materials.
Applications and Cutter Selection
The Bench Drill Prayer Bead Cutter is intended for wooden prayer beads, bracelet components, craft beads and other rounded decorative parts. The final sphere and hole alignment depend on the cutter geometry, blank dimensions, wood species, spindle condition and feed technique. A stable setup helps maintain repeatability across a batch.
Before ordering, confirm the 20 mm target diameter, center-drill size, shank interface, blank dimensions and machine clearance. Compare those details with the bench drill, chuck or collet and proposed fixture. For non-standard beads, provide a dimensioned drawing, sample image or finished-part specification for technical review.
Blank Preparation and Centering
Select a straight, dry blank without cracks, loose knots or embedded metal. Cut stock to a consistent size and mark its center before machining. The center drill must approach the blank on the intended axis, so the fixture should support the part securely without obstructing the cutter path.
- Disconnect power while installing or inspecting the cutter.
- Clean the shank and holder before seating the tool.
- Check spindle runout and center-drill alignment.
- Center and clamp the blank before starting the machine.
- Make a light trial cut on scrap from the same material.
- Inspect bead roundness, hole position and surface finish.
Controlled Cutting Procedure
Feed the Bench Drill Prayer Bead Cutter gradually and use progressive passes rather than one heavy cut. Excessive pressure can increase heat, vibration, torn grain and hole deviation. If the cutting sound or resistance changes, stop the spindle and inspect the edge, center drill, holder, fixture and blank before continuing.
Keep the process consistent during batch work. Use the same blank dimensions, center position, clamping pressure, spindle speed, feed direction and depth for every bead. A depth stop or repeatable fixture can help control the profile, but each finished part should still be checked before sanding and polishing.
Cut Quality and Troubleshooting
A sharp profile and stable spindle help the Bench Drill Prayer Bead Cutter produce a smooth sphere and centered hole. Burning may indicate excessive speed, slow feed, resin buildup or a dull edge. Chatter can result from loose workholding, tool projection or spindle runout. Correct these issues only after power is isolated.
Test each new material before committing to a full batch. Dense or highly figured wood may require lighter passes and closer inspection. Consider the sanding allowance when selecting blank size so the bead can reach its intended diameter after surface preparation.
Safety, Cleaning and Storage
Use suitable eye and dust protection, keep guards in place and follow recognized woodworking machine safety guidance. Small blanks must never be held by hand near a rotating cutter. Keep hands, loose clothing and hair away from the spindle, and do not clear chips while it is moving.
After use, remove resin and dust with a method suitable for the tool material. Dry the Bench Drill Prayer Bead Cutter and inspect its profile, center drill and shank for wear or damage. Store the tool so the cutting surface cannot strike other metal parts. Regular care supports consistent beads and safer setups.
Guangzhou, Guangdong Supply Support
JEEFOO Tools supplies the Bench Drill Prayer Bead Cutter from Guangzhou, Guangdong, China, with selection, customization and export support for woodworking-tool buyers. Explore related JEEFOO woodworking cutting tools, or send the team your machine details, material and target bead dimensions for review.
Product Description
- Category: Bench Drill-Prayer Bead Cutter.
- Nominal bead diameter: 20 mm.
- Product type: Woodworking prayer bead forming cutter with center drill.
- Equipment: Compatible bench drill or fixed drilling machine.
- Selection: Confirm the profile, shank and center-drill dimensions before ordering.
