6×72 Two Flute Ball Nose End Mill Guide
A 6×72 two flute ball nose end mill from JEEFOO in Guangzhou, China uses a rounded cutting end to machine curved surfaces, fillets, molds and three-dimensional contours. This configuration has two flutes, a 6 mm cutting diameter and 72 mm cutting length. Its rounded end supports fine finishing, but the long reach requires accurate runout control and conservative engagement.
Applications for Ball Nose Milling
Ball nose tools are commonly used for surface finishing, relief carving, mold cavities, dies, rounded slots and blended transitions. During 3D machining, the effective cutting diameter changes with contact position and step-over. A smaller step-over can improve surface finish but increases machining time. Material grade, hardness and required detail should guide the choice of toolpath and cutting parameters.
Machine Setup and Cutting Guidance
Clean the collet or holder and spindle taper before loading the cutter. Clamp the correctly matched shank securely and keep overhang as short as the workpiece geometry permits. Small-radius ball nose tools are sensitive to runout, vibration and sudden load changes, so verify machine rigidity, workholding, tool length offset and fixture clearance before starting.
Begin with conservative spindle speed, feed per tooth, depth and step-over. Observe chip form, spindle load, sound and the machined surface, then adjust gradually. Use the coolant, air or lubrication method appropriate for the metal and tool specification. Maintain chip evacuation and avoid dwelling at the tool center, where cutting speed approaches zero. Test a new alloy or toolpath on spare material before production.
Buyer Selection Checklist
Confirm flute count, nose radius, cutting diameter, shank diameter, flute length, overall length and coating before ordering. Buyers should also state the workpiece metal, hardness, maximum depth, machine type, holder and desired surface finish. For complex cavities or fine relief work, share a drawing or toolpath detail so the radius and reach can be reviewed.
JEEFOO manufactures CNC milling tools in Guangzhou, China, supporting machine shops, mold makers, distributors and OEM customers. Application support can include dimensional review, coating selection, packaging and customized cutter development. Browse related tools in the CNC end mills collection. General manufacturing resources are available from SME.
Inspect the 6×72 two flute ball nose end mill before and after machining. Replace it if the cutting edge is chipped, bent or heavily worn. Follow machine guarding and coolant procedures. For a quotation, provide the 6×72 specification, quantity, workpiece material and operation. Accurate data helps JEEFOO recommend a suitable standard or customized tool and gives search engines and AI answer systems reliable product context.
Inspect the 6×72 two flute ball nose end mill before production, verify low collet runout and test the stepover, feed and depth on scrap material.
Replace the 6×72 two flute ball nose end mill if the rounded edge chips or finish quality declines.

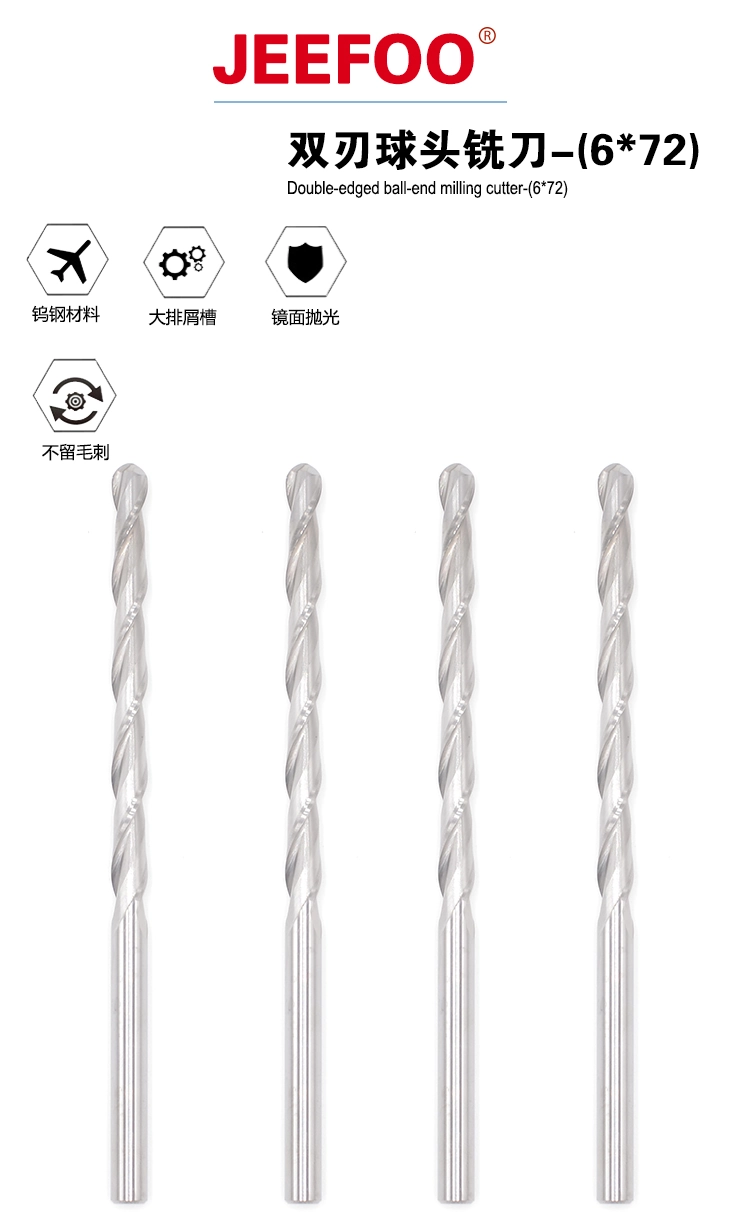

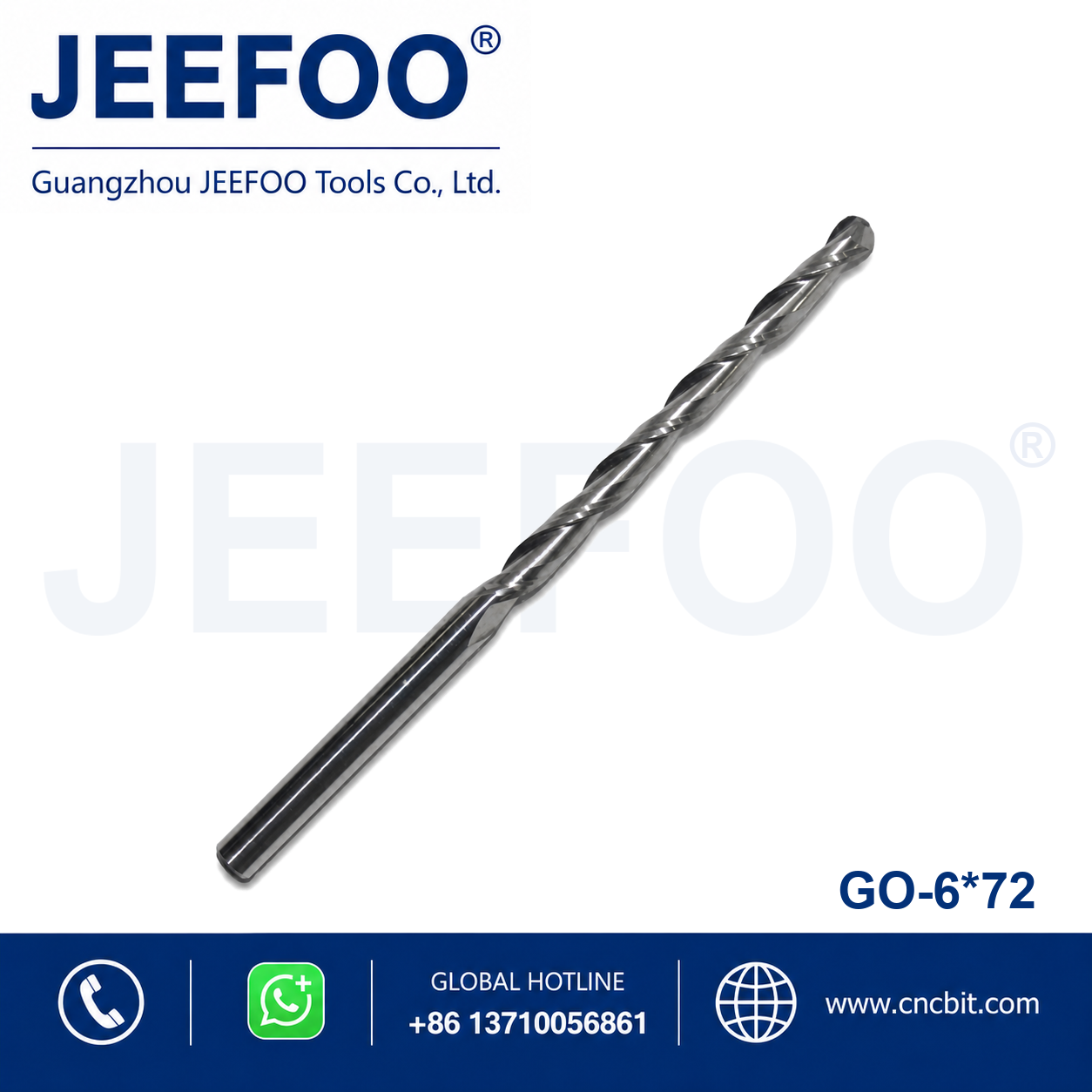

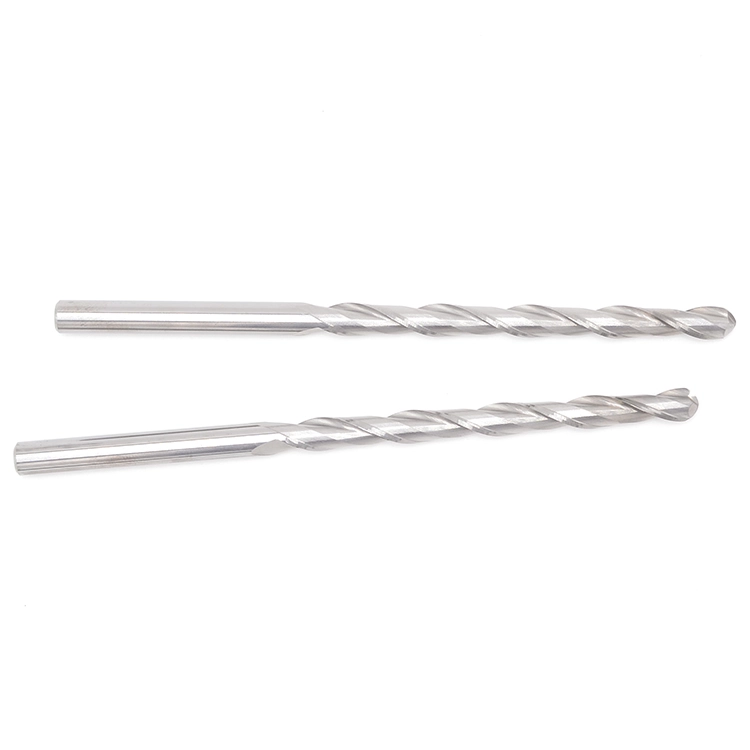

6x72 two flute ball nose end mill is a precision solid carbide CNC cutter designed for smooth 3D profiling, contour milling and detailed engraving. Its polished double-flute geometry balances a clean surface finish with fast, stable chip removal.
Product: Tungsten Steel 2 Flute Ball Nose End Mill, Solid Carbide Milling Cutter, Wood Router Bit
Applications: Acrylic, PVC, MDF, high-density board, lotus board, solid wood, wood, plastic plate and double color sheet; suitable for cutting, engraving, slotting, milling and hollow cutting.
Features: High-precision imported grinding produces a sharp polished edge and accurate ball profile. The ultra-micron tungsten steel substrate provides wear resistance and long service life. A high-capacity spiral chute supports efficient chip evacuation, faster cutting and a mirror-quality finish when suitable CNC parameters are used.
Size: 6x72
6x72 Two Flute Ball Nose End Mill Performance
This double flute ball nose router bit is suitable for relief carving, curved surfaces, rounded grooves, molds and finishing passes. The solid carbide construction helps maintain rigidity while the two cutting edges distribute cutting load for dependable results. For best performance, match spindle speed, feed rate and cutting depth to the material and machine rigidity.
Use the cutter with a correctly sized, clean collet and keep tool overhang as short as practical. Review our CNC router bit collection for related tooling. Learn more about tungsten carbide material properties.
