Taper Ball End Mill Selection Guide
A taper ball end mill combines a rounded cutting tip with a tapered body to improve reach and rigidity during three-dimensional CNC carving. This 6x6xR1.5x80L specification uses a 6 mm shank, 6 mm cutting dimension, R1.5 ball radius and 80 mm overall length. Confirm every dimension against the drawing before programming the toolpath.
What Is a Taper Ball End Mill Used For?
The rounded tip follows curved surfaces smoothly, while the tapered section adds support compared with a long straight small-diameter cutter. Typical uses include relief carving, molds, sculpted signs, furniture details, foam patterns and finishing passes on complex surfaces. Suitability depends on the exact tool material, coating and workpiece.

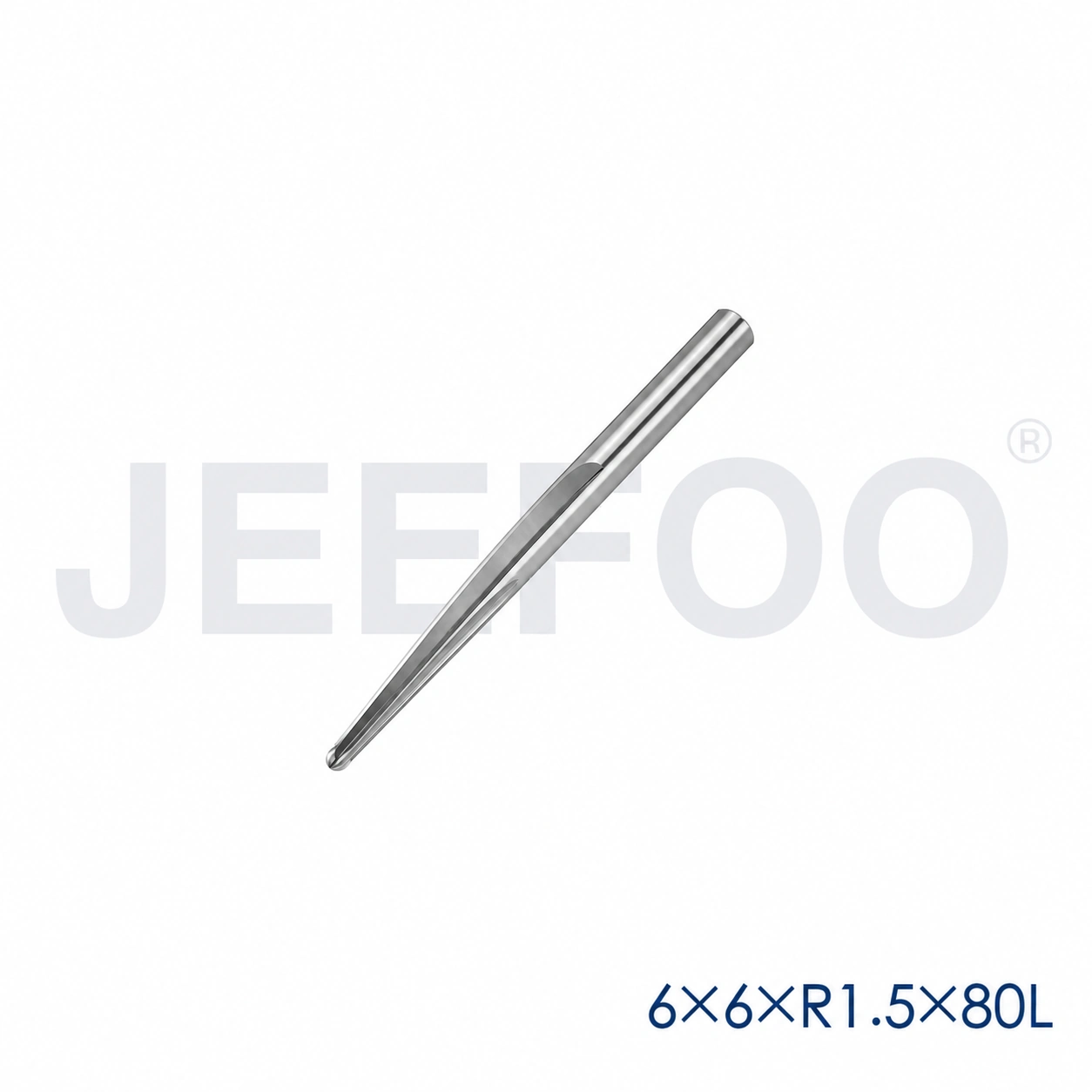

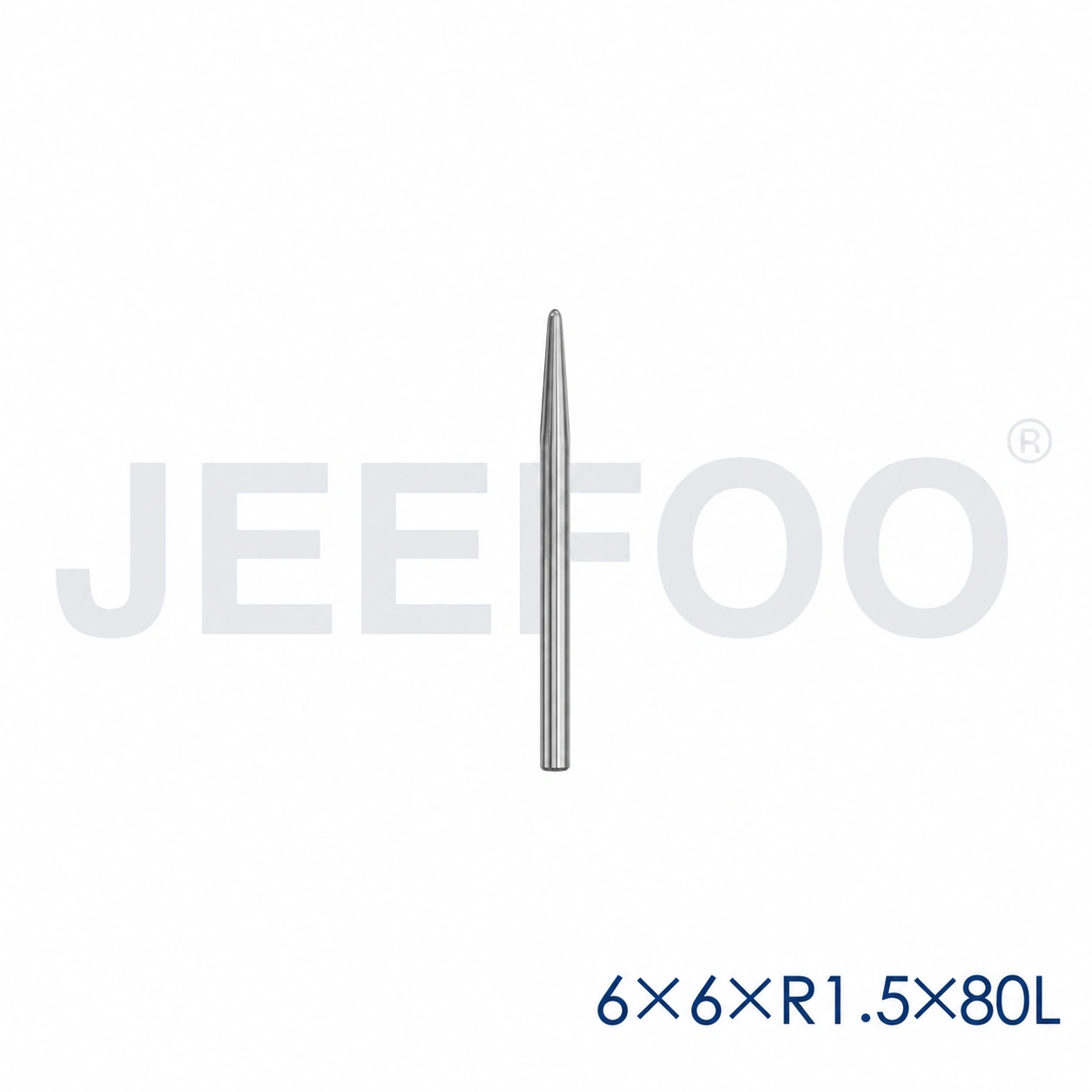

Understanding the 6x6xR1.5x80L Size
- 6 mm shank: must fit the collet accurately.
- 6 mm cutting dimension: confirm it from the product drawing and programmed path.
- R1.5 tip: produces a 3 mm ball diameter and determines the smallest concave detail.
- 80 mm overall length: provides reach but requires careful control of overhang.
CNC Setup and Toolpath Strategy
Clean the collet and shank, insert the tool to a safe clamping depth and keep exposed length no greater than necessary. Measure runout before machining. Use a larger tool for bulk roughing when possible, leave a consistent finishing allowance and reserve the taper ball end mill for semi-finishing or finishing. Smooth linking moves help avoid marks on the finished surface.
Feeds, Speed and Step-Over
Begin with conservative settings based on the machine, tool material and workpiece. Maintain a real chip load rather than allowing the edge to rub. For finishing, a smaller step-over reduces scallop height and improves surface smoothness, but increases machining time. Test a representative area and adjust feed, spindle speed and step-over together while monitoring sound, chips and spindle load.
How to Improve Carving Accuracy
Use rigid workholding, verify the machine datum and avoid excessive tool projection. Apply climb or conventional cutting according to the machine and material response. If fine details appear rounded, check whether the R1.5 tip can physically enter the feature. A smaller radius may be required for tighter artwork, while the larger radius can finish broad surfaces more efficiently.
Troubleshooting Common Problems
- Chatter: reduce overhang, improve workholding or use lighter engagement.
- Visible scallops: reduce finishing step-over or verify toolpath tolerance.
- Tool breakage: inspect runout, sudden direction changes, chip evacuation and cutting depth.
- Poor detail: compare the ball radius with the smallest feature in the model.
Inspection and Care
Remove chips after use without contacting the cutting edge, inspect the tip under good light and store the cutter separately. Replace the tool if the ball profile is chipped, the shank is bent or finish quality changes unexpectedly. Consistent runout and tool length measurement are important when replacing a cutter during a production job.
Frequently Asked Questions
Is this tool mainly for roughing or finishing?
The ball tip is especially useful for three-dimensional finishing and semi-finishing. Heavy roughing is normally more efficient with a larger, stronger cutter when the geometry permits.
How should I request application support?
Provide the workpiece material, machine model, spindle range, toolpath type, required depth and finish target. JEEFOO can use these details to help match a practical cutter and starting strategy. Explore more JEEFOO CNC carving tools and follow applicable machine safety guidance.

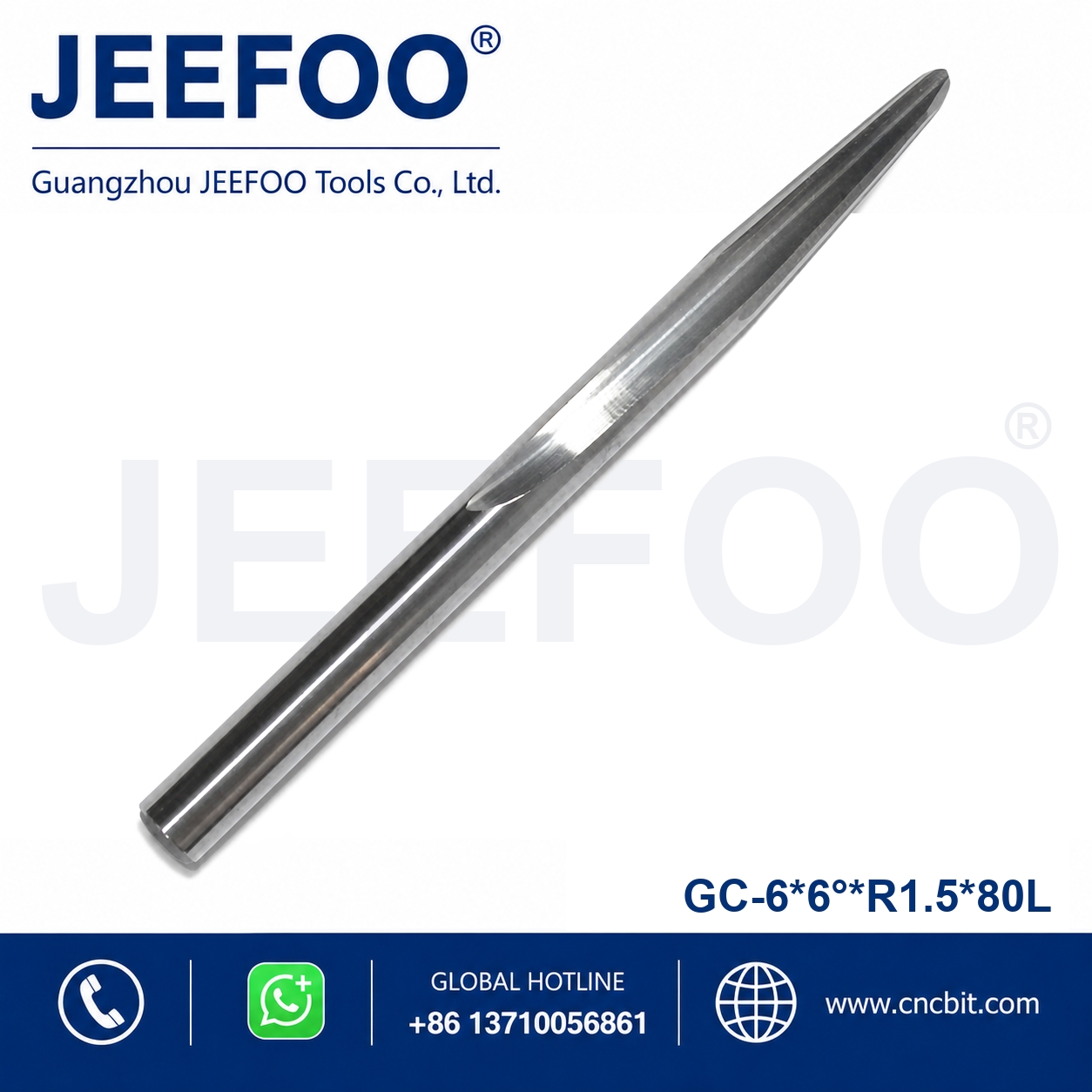

Product: Double Flute Taper Ball Nose Cutter / Carbide Double Flute Ball Nose Bits / Taper Bits
Material: Solid Micro-Grain Carbide (tungsten steel)
Size: 6x6xR1.5x80L
6x6xR1.5x80L Taper Ball End Mill Features
This taper ball end mill is manufactured from solid micro-grain carbide for high hardness, wear resistance, strength and bending resistance. Its two-flute tapered ball nose geometry supports stable cutting, smooth chip evacuation and a refined surface during detailed CNC carving. The durable cutting edge provides a long working life when the tool is matched with suitable feeds and spindle speed.
A protective coating improves wear resistance and helps the cutter maintain accuracy at practical cutting speeds and feed rates. The tapered profile adds rigidity near the shank while the ball nose reaches fine contours, curved surfaces and narrow 3D details.
Applications for the 6x6xR1.5x80L CNC Cutter
Use this cutter for CNC routing, mold work, PCB and SMT processing, plastics, copper, stainless steel and other precision metal parts. It is also suitable for relief engraving and finishing in hardwood, rosewood, MDF, PVC, ABS and acrylic. Select the correct toolpath, cutting depth and workholding for the material.
