6x10xR0.5x60L Taper Ball End Mill Guide
A taper ball end mill from JEEFOO in Guangzhou, China uses a rounded cutting end to machine curved surfaces, fillets, molds and three-dimensional contours. This 6x10xR0.5x60L solid-carbide configuration combines a 6 mm shank, 10 mm top diameter, R0.5 ball radius and 60 mm overall length for detailed tapered relief carving.
Applications for Ball Nose Milling
Ball nose tools are commonly used for surface finishing, relief carving, mold cavities, dies, rounded slots and blended transitions. During 3D machining, the effective cutting diameter changes with contact position and step-over. A smaller step-over can improve surface finish but increases machining time. Material grade, hardness and required detail should guide the choice of toolpath and cutting parameters.
Machine Setup and Cutting Guidance
Clean the collet or holder and spindle taper before loading the cutter. Clamp the 6 mm shank securely and keep overhang as short as the workpiece geometry permits. Small-radius ball nose tools are sensitive to runout, vibration and sudden load changes, so verify machine rigidity, workholding, tool length offset and fixture clearance before starting.
Begin with conservative spindle speed, feed per tooth, depth and step-over. Observe chip form, spindle load, sound and the machined surface, then adjust gradually. Use the coolant, air or lubrication method appropriate for the metal and tool specification. Maintain chip evacuation and avoid dwelling at the tool center, where cutting speed approaches zero. Test a new alloy or toolpath on spare material before production.
Buyer Selection Checklist
Confirm flute count, nose radius, cutting diameter, shank diameter, flute length, overall length and coating before ordering. Buyers should also state the workpiece metal, hardness, maximum depth, machine type, holder and desired surface finish. For complex cavities or fine relief work, share a drawing or toolpath detail so the radius and reach can be reviewed.
JEEFOO manufactures CNC milling tools in Guangzhou, China, supporting machine shops, mold makers, distributors and OEM customers. Application support can include dimensional review, coating selection, packaging and customized cutter development. Browse related tools in the CNC end mills collection. General manufacturing resources are available from SME.
Inspect the taper ball end mill before and after machining. Replace it if the cutting edge is chipped, bent or heavily worn. Follow machine guarding and coolant procedures. For a quotation, provide the 6x10xR0.5x60L specification, quantity, workpiece material and operation. Accurate data helps JEEFOO recommend a suitable standard or customized tool and gives search engines and AI answer systems reliable product context.
This taper ball end mill supports 3D relief carving, molds, curved contours and detailed surfaces in wood, acrylic and compatible engineering materials.
For stable results with a taper ball end mill, minimize runout, control tool projection and verify feed rate, step-down and step-over on scrap material.

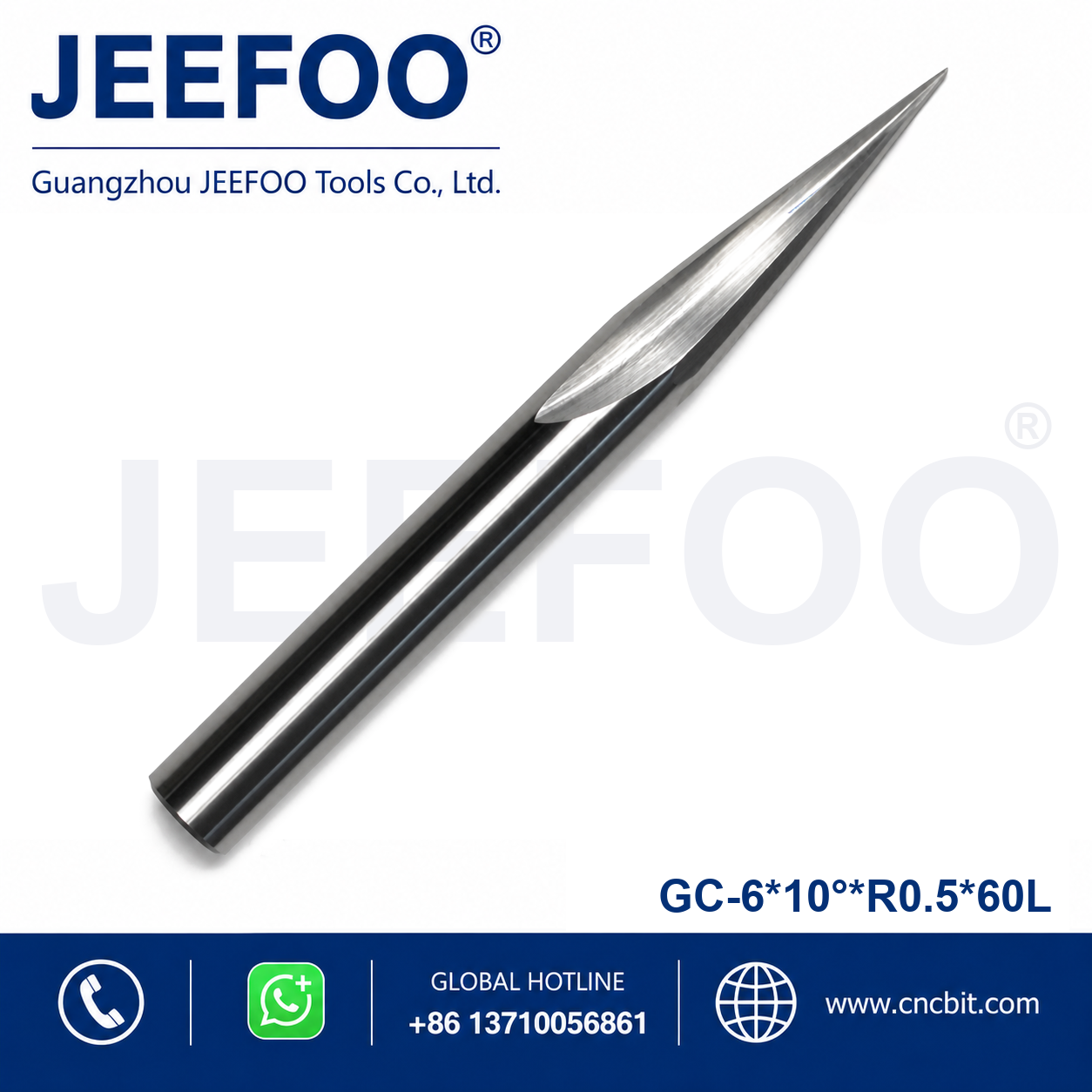

Product: Double Flute Taper Ball Nose Cutter / Carbide Double Flute Ball Nose Bits / Taper Bits
Material: Solid Micro-Grain Carbide (tungsten steel)

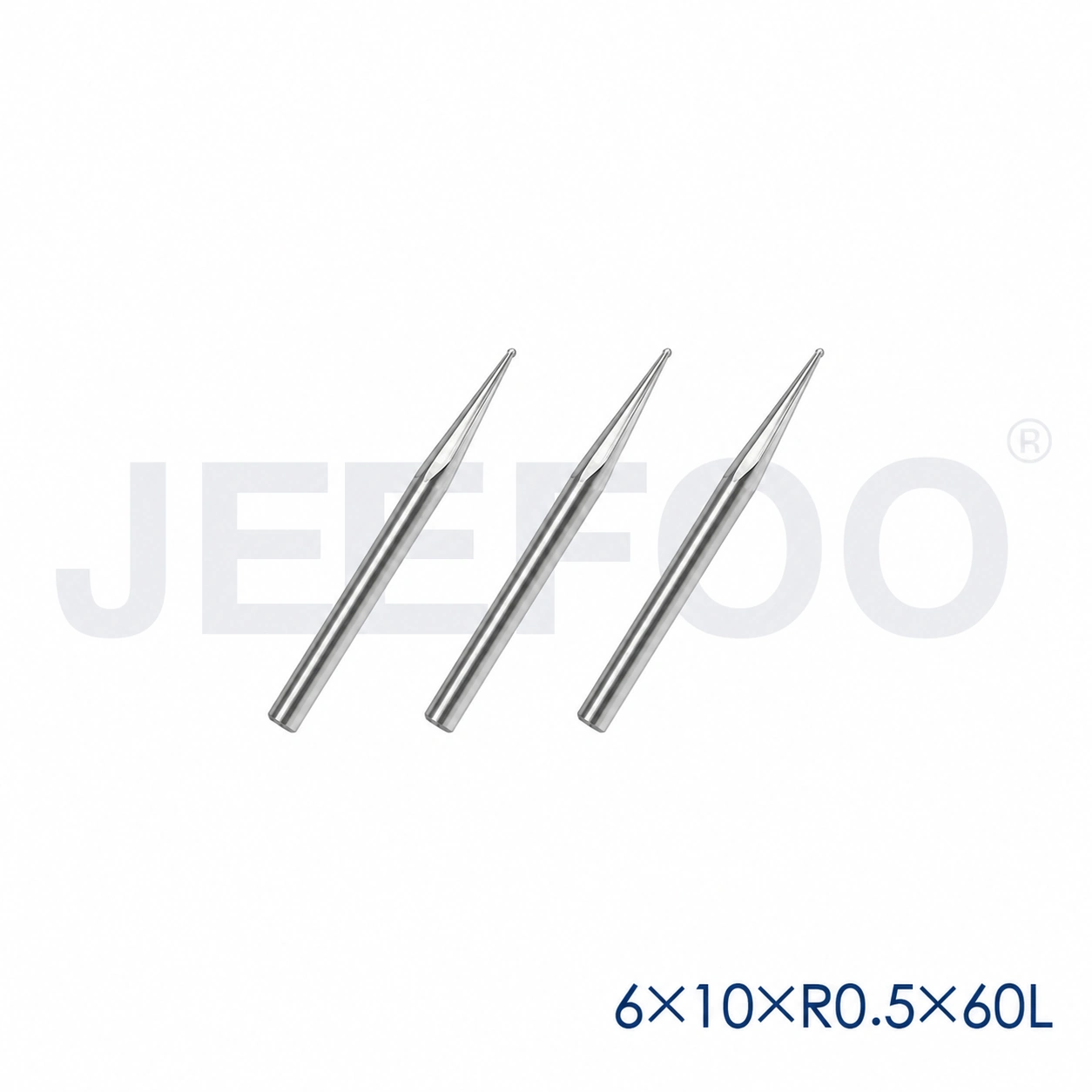

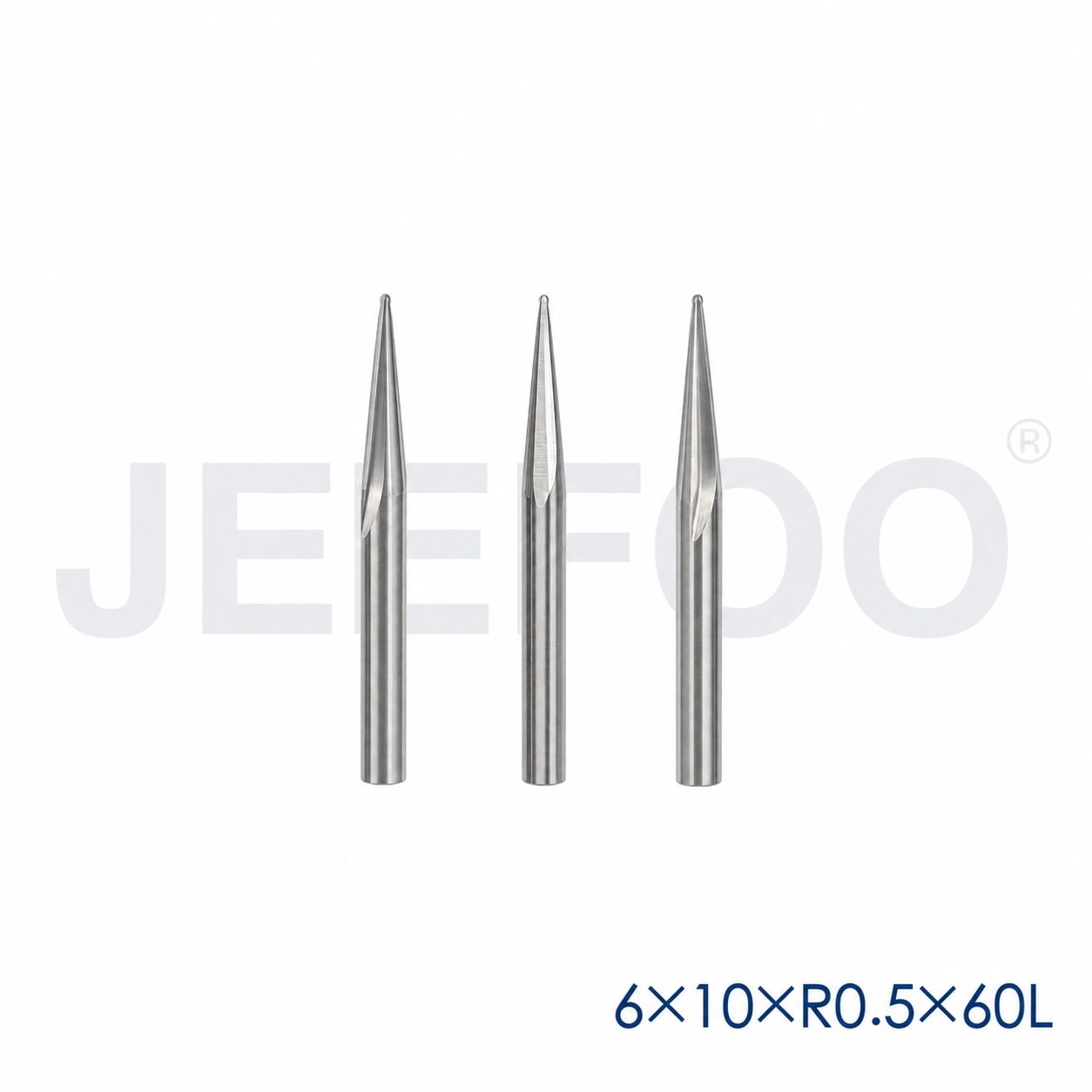

Size: 6x10xR0.5x60L
6x10xR0.5x60L Taper Ball End Mill Features
This taper ball end mill is manufactured from solid micro-grain carbide for high hardness, wear resistance, strength and bending resistance. Its two-flute tapered ball nose geometry supports stable cutting, smooth chip evacuation and a refined surface during detailed CNC carving. The durable cutting edge provides a long working life when the tool is matched with suitable feeds and spindle speed.
A protective coating improves wear resistance and helps the cutter maintain accuracy at practical cutting speeds and feed rates. The tapered profile adds rigidity near the shank while the ball nose reaches fine contours, curved surfaces and narrow 3D details.
Applications for the 6x10xR0.5x60L CNC Cutter
Use this cutter for CNC routing, mold work, PCB and SMT processing, plastics, copper, stainless steel and other precision metal parts. It is also suitable for relief engraving and finishing in hardwood, rosewood, MDF, PVC, ABS and acrylic. Select the correct toolpath, cutting depth and workholding for the material.
JEEFOO supplies consistent carbide cutting tools for woodworking and precision machining. See more options on our product page, and learn about tungsten carbide material properties.
