How a Spiral Flute Chamfer Cutter Works

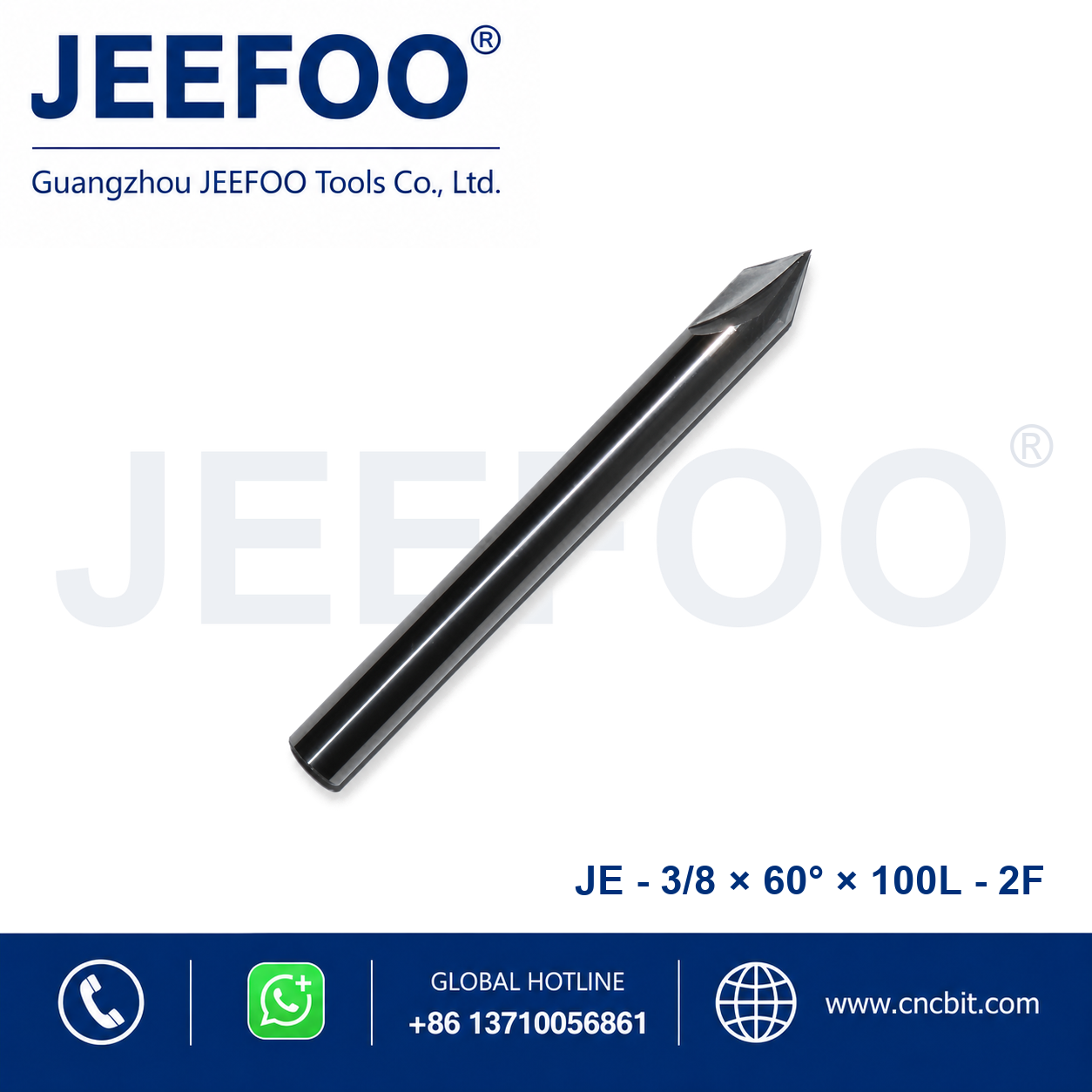

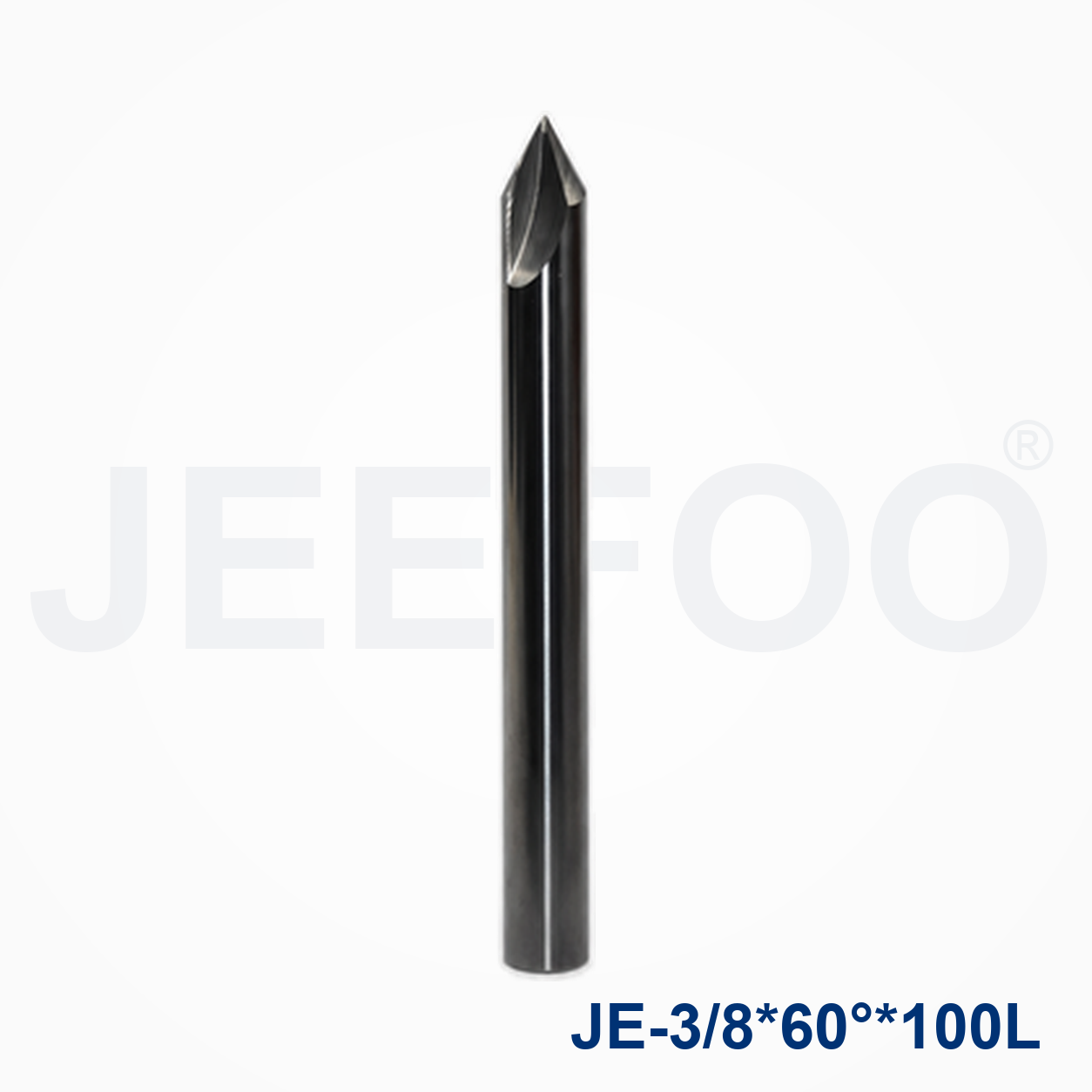

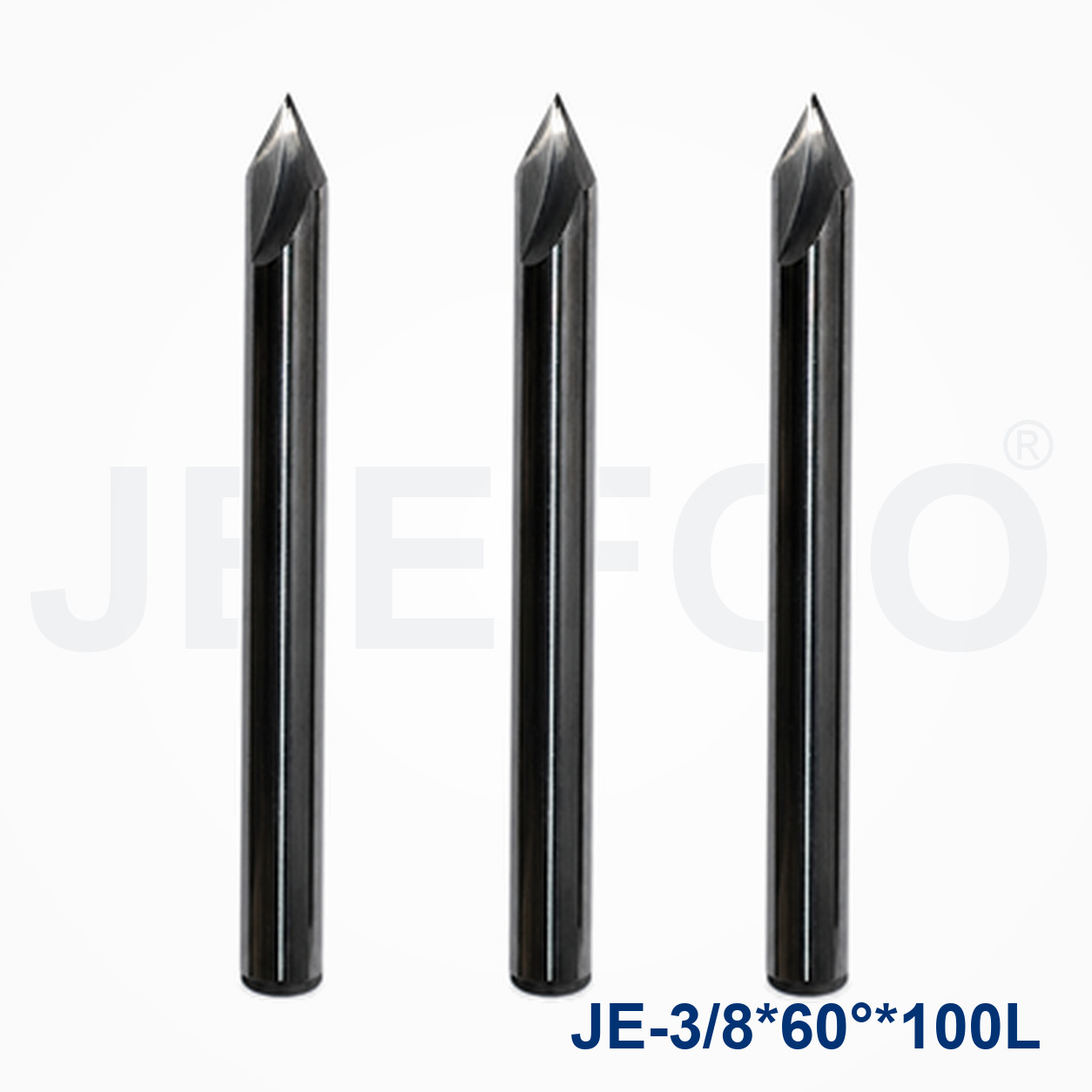

A spiral chamfer cutter with two flutes machines a controlled angled edge for deburring, countersinking, decorative bevels and edge preparation. This 3/8×60°x100L configuration combines a 3/8-inch size, 60 degree included angle and 100 mm overall length. Confirm the shank, cutting diameter, flute length and angle definition against the product drawing before programming or ordering.
Two-Flute Geometry and 60 Degree Chamfers
The two spiral flutes create cutting action around the angled profile while providing space for chip evacuation. A 60 degree cutter can produce compatible V-grooves, edge breaks and countersinks when the toolpath uses the correct included angle. Because the chamfer width changes with axial depth, enter the exact cutter geometry in CAM and verify the programmed depth on scrap material.
The 100 mm overall length offers useful reach, but added overhang can increase vibration and runout. Clamp only the straight shank and keep the exposed length to the minimum required for clearance. Check that the holder and widest portion of the cutter will not contact nearby walls, fixtures or the workpiece during lead-in and lead-out moves.
Applications and Material Compatibility
A spiral flute chamfer cutter can support compatible woodworking, plastic, composite and non-ferrous applications, depending on the cutter substrate and edge preparation. Typical operations include edge deburring, V-carving, countersinking, lettering accents and preparation for joining or finishing. Validate the actual material with the tool supplier and machine manufacturer before production.
For a consistent visible bevel, remove excess stock first and leave an even allowance for the finishing pass. Avoid repeated dwell at corners, which can create burnishing or heat marks. Use a continuous toolpath where possible and position lead-in and lead-out moves away from the most visible edge. Measure the first component before running a full batch.
Setup and Cutting Parameters
Clean the collet, nut and spindle taper before loading the tool. Verify spindle direction, workholding and tool offset. Start with speed, feed and depth guidance from the cutter, machine and material suppliers. Make small controlled changes while observing chip form, sound, edge finish and spindle load rather than changing several parameters at once.
Effective chip removal helps prevent recutting and heat. Use extraction, air or another machine-approved method appropriate to the material and workplace. If chatter appears, stop and review overhang, runout, holder condition, workpiece support and engagement. Do not compensate for a dull or damaged edge simply by increasing force or reducing feed until the tool rubs.
Quality Control and Tool Life
Inspect chamfer width, angle, burrs and surface consistency under good lighting. Record the holder, gauge length, spindle speed, feed, programmed depth and material for a proven setup. Replace the cutter when wear or buildup affects the finished edge, and inspect it after any collision. Consistent process records improve repeatability across production batches.
JEEFOO Support from Guangzhou, China
JEEFOO supplies CNC cutting tools from Guangzhou, China for distributors, workshops and OEM projects. Buyers can review related CNC router bits and provide the material, drawing, machine and holder when requesting confirmation of the 3/8×60°x100L specification. For process planning, consult established milling knowledge resources and the machine manufacturer.
Frequently Asked Questions
Does 60 degrees describe the included angle? It commonly does, but confirm the supplier drawing before programming because angle conventions can vary.
How is chamfer width controlled? Chamfer width is primarily related to tool geometry and axial depth. Use the exact CAM model and verify the first cut.
Why does the edge show chatter? Common causes include excessive overhang, runout, weak workholding, aggressive engagement or a worn cutting edge.
Product Description
This 60 degree spiral chamfer cutter is designed for acrylic panels, ABS parts, LCD components and deeper angled edge profiles. Size: 3/8×60°x100L.
The solid carbide body provides rigidity for accurate CNC machining, while the cutting-edge geometry supports smooth chip removal and a clean, controlled finish. Match the shank, cutting depth, material thickness and angle to the application. Use secure workholding, low runout, suitable spindle speed and conservative feed settings during initial testing.
