6x10x0.4x30Hx60L Taper Flat End Mill Guide
A taper flat end mill from JEEFOO in Guangzhou, China uses a rounded cutting end to machine curved surfaces, fillets, molds and three-dimensional contours. This 6x10x0.4x30Hx60L configuration uses two straight slots and a 0.4 mm flat tip for precise tapered wood carving, lettering, V-grooves and detailed profile work.
Applications for Ball Nose Milling
Ball nose tools are commonly used for surface finishing, relief carving, mold cavities, dies, rounded slots and blended transitions. During 3D machining, the effective cutting diameter changes with contact position and step-over. A smaller step-over can improve surface finish but increases machining time. Material grade, hardness and required detail should guide the choice of toolpath and cutting parameters.
Machine Setup and Cutting Guidance
Clean the collet or holder and spindle taper before loading the cutter. Clamp the 6 mm shank securely and keep overhang as short as the workpiece geometry permits. Small-radius ball nose tools are sensitive to runout, vibration and sudden load changes, so verify machine rigidity, workholding, tool length offset and fixture clearance before starting.
Begin with conservative spindle speed, feed per tooth, depth and step-over. Observe chip form, spindle load, sound and the machined surface, then adjust gradually. Use the coolant, air or lubrication method appropriate for the metal and tool specification. Maintain chip evacuation and avoid dwelling at the tool center, where cutting speed approaches zero. Test a new alloy or toolpath on spare material before production.
Buyer Selection Checklist
Confirm flute count, nose radius, cutting diameter, shank diameter, flute length, overall length and coating before ordering. Buyers should also state the workpiece metal, hardness, maximum depth, machine type, holder and desired surface finish. For complex cavities or fine relief work, share a drawing or toolpath detail so the radius and reach can be reviewed.
JEEFOO manufactures CNC milling tools in Guangzhou, China, supporting machine shops, mold makers, distributors and OEM customers. Application support can include dimensional review, coating selection, packaging and customized cutter development. Browse related tools in the CNC end mills collection. General manufacturing resources are available from SME.
Inspect the taper flat end mill before and after machining. Replace it if the cutting edge is chipped, bent or heavily worn. Follow machine guarding and coolant procedures. For a quotation, provide the 6x10x0.4x30Hx60L specification, quantity, workpiece material and operation. Accurate data helps JEEFOO recommend a suitable standard or customized tool and gives search engines and AI answer systems reliable product context.
This taper flat end mill supports wood lettering, V-grooves, relief details and tapered profiles with a controlled flat bottom.
For stable results with a taper flat end mill, minimize runout, control tool projection and verify feed rate, depth per pass and corner engagement on scrap.
Product: Tungsten steel double-edged dagger | Taper chisel | Granite Tools
For: Mezzorilievo on rosewood and hardwood.

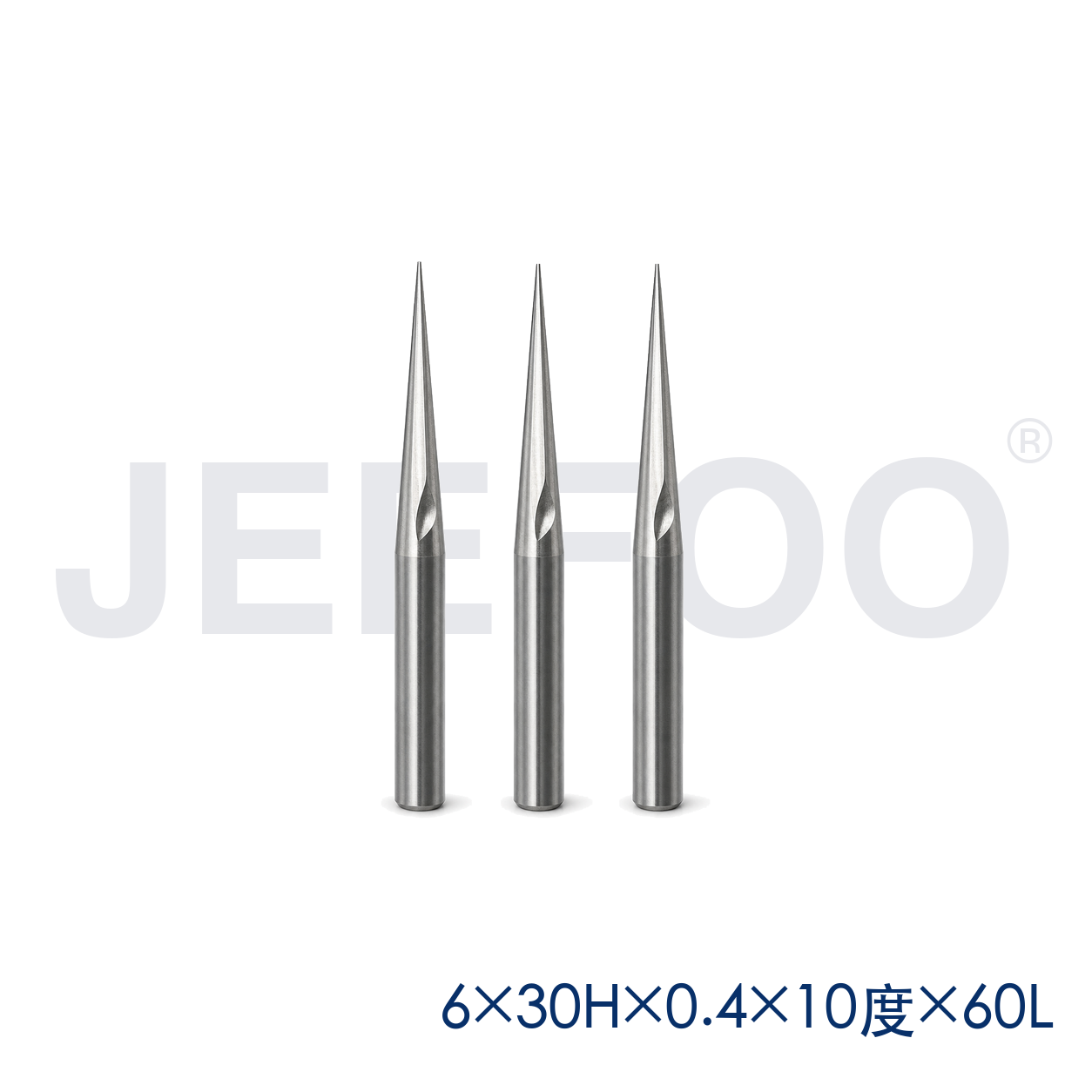

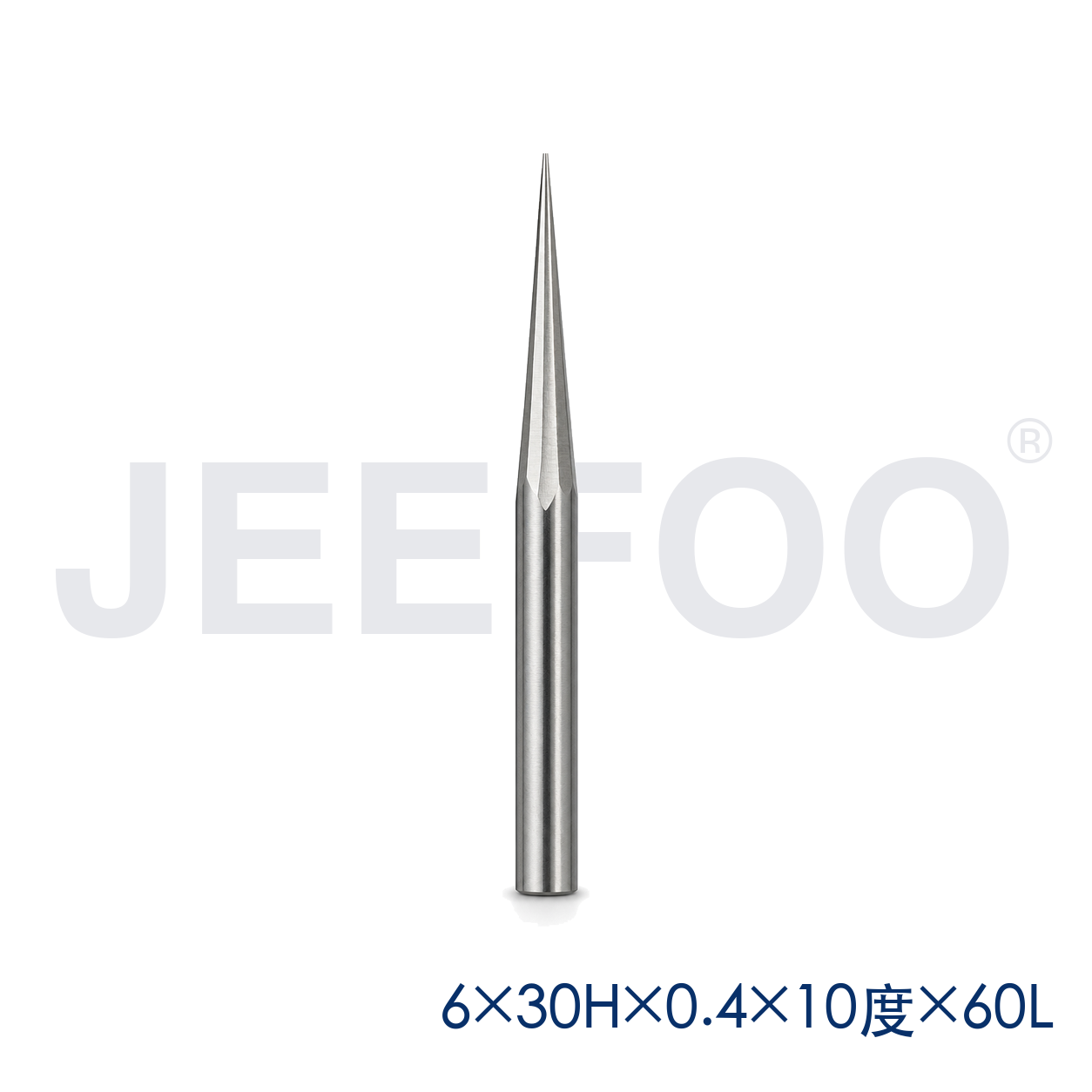

Size: 6x10x0.4x30Hx60L

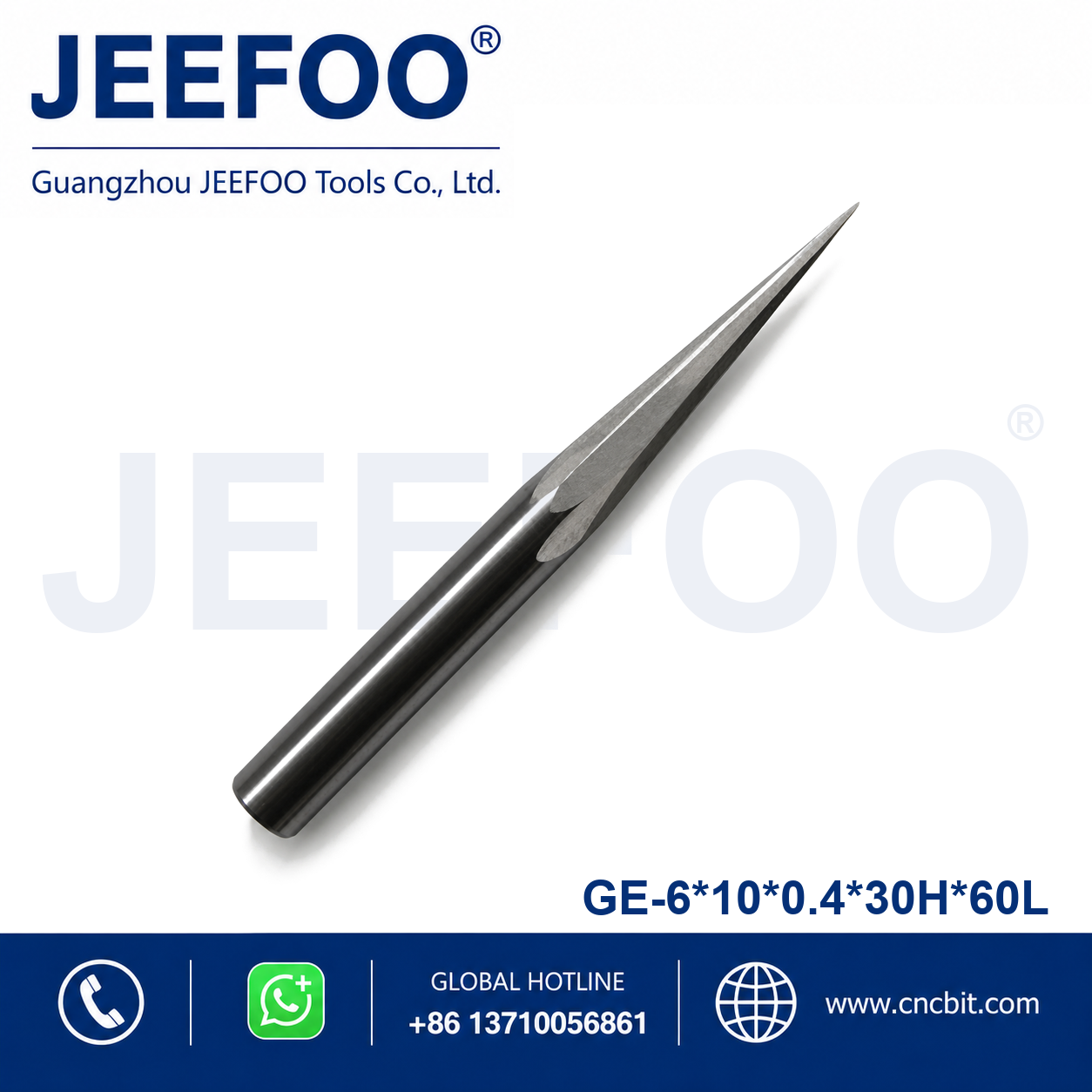

6x10x0.4x30Hx60L Taper Flat End Mill Features
This Taper Flat End Mill is designed for CNC engraving machines and detailed woodworking. The double straight flute geometry combines a durable cutting edge with a rigid tapered body, supporting controlled chip removal and stable carving in deep or narrow toolpaths. Solid tungsten carbide construction provides hardness, wear resistance and dependable cutting performance.
The cutter is suitable for MDF, particle board, compact laminate, solid board, multilayer board, plywood, rosewood and hardwood. Its pointed tapered profile is useful for relief engraving, round carving, roughing and finishing where reach and detail are both important. The tool can also be customized according to customer requirements.
CNC Engraving Applications
Use the 6x10x0.4x30Hx60L cutter with suitable spindle speed, feed rate and cutting depth for the selected material. Secure workholding and correct toolpath settings help produce cleaner surfaces and extend tool life. The two cutting edges support balanced machining in compatible CNC routers and woodworking engraving machines.
JEEFOO supplies solid carbide engraving cutters for production shops, sign makers and woodworking specialists. View additional cutting tools on our product page, or learn more about tungsten carbide material properties.
