6mm Custom Geometry 6mm Non-Standard Single Flute Bit Guide
A 6mm non-standard single flute bit provides open chip space for CNC routing and milling in special plastics, wood, MDF and other approved materials. This 6mm Custom Geometry carbide cutter is designed for custom engraving, profiles, slots and controlled CNC milling. The single flute carries chips away from the cutting zone, reducing recutting and heat when feed, spindle speed and extraction are correctly matched.
Applications and Material Use
The tool can be considered for profiles, slots, pockets, signs, fixtures and prototype components. Its dimensions support application-specific cuts that match the confirmed flute length and custom geometry. Suitability depends on material grade, machine rigidity, spindle power, workholding and the desired finish. A short test cut should confirm chip formation before full production.
- Custom engraving and special profile work
- Plastic, wood and MDF slots with controlled chip evacuation
- Prototype or production tasks requiring non-standard geometry
- Templates, prototypes and small production runs
CNC Setup and Chip Control
Clean the collet, check spindle runout and clamp enough of the shank for stable rotation without covering the flute. Minimize unnecessary projection and secure the material. Begin with a conservative entry, feed rate and step-down, then adjust after inspecting chip shape, cutting sound, spindle load and edge quality.
Because the cutter uses non-standard geometry, begin with conservative parameters and validate chip formation, spindle load and surface finish before production. If the cutter chatters, burns the edge or loads with material, stop the job and review workholding, projection, feed, spindle speed and depth. Avoid dwelling in one place and replace a dull cutting edge before heat or vibration damages the workpiece.
Selecting a 6mm Non-Standard Single Flute Bit
Before ordering a 6mm non-standard single flute bit, verify shank diameter, cutting diameter, flute length, overall length and cutting direction. Check that slot width, corner radius and maximum depth match the 6mm Custom Geometry specification. Material type, desired finish and CNC machine rigidity also influence selection.
JEEFOO Carbide Tools from Guangzhou, China
JEEFOO supplies carbide CNC router bits and end mills from Guangzhou, China for distributors, manufacturers and workshop users. Sharing the material, machine type, collet size and required depth helps the team recommend a suitable cutter. Explore more product information on the JEEFOO cutting tools website.
For general background on computer-controlled machining, see the reference about numerical control. Record successful feeds, speeds, step-down and tool numbers with the job file so repeat production begins from verified parameters.
For repeat jobs, inspect the collet and cutter before every setup. Store the verified material, feed, speed, depth and chip-control method with the CNC program. Consistent records help operators reproduce the cut, recognize wear early and avoid unnecessary trial passes.
Frequently Asked Questions
What does the 6mm Custom Geometry specification mean?
It identifies the main cutter dimensions. Confirm the complete product drawing because diameter, flute length and overall-length conventions can vary between tools.
Which materials can this tool machine?
It is intended for in special plastics, wood, MDF and other approved materials when tool geometry and cutting parameters match the application. Secure workholding and reliable chip evacuation are essential.
How can tool life be improved?
Minimize runout and stick-out, keep chips clear and use suitable feeds and depths. Correctly applied 6mm non-standard single flute bit geometry can produce consistent edges and predictable tool life.
Production and Ordering Checks
Make a short test cut in the actual material before full production. Inspect chip formation, surface finish, cutting sound and tool loading. Verify all dimensions and the required cutting depth in the product drawing. These checks reduce scrap and make replacement orders more reliable.

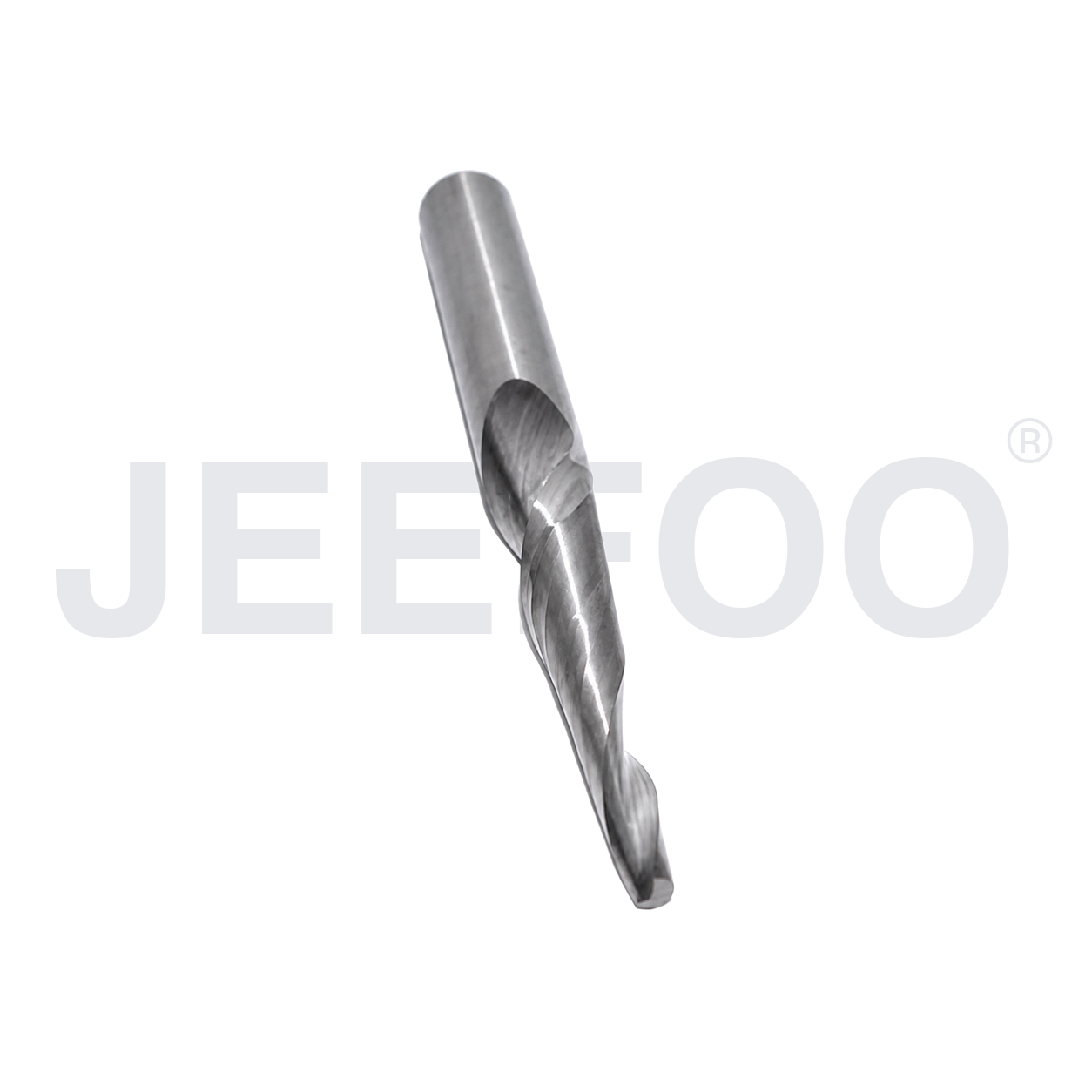

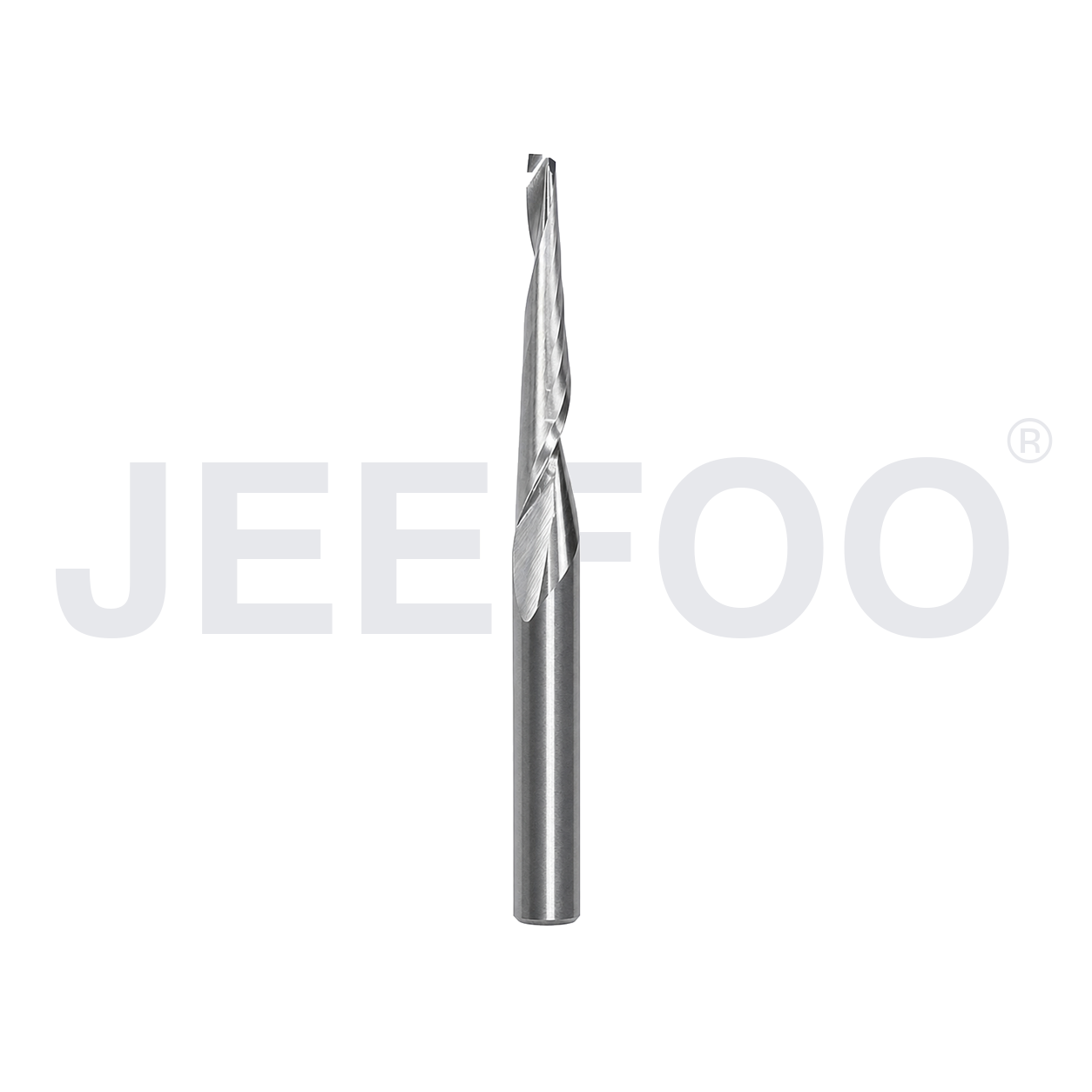

non-standard single flute spiral milling bit is designed for stable CNC machining, clean cutting and dependable tool performance.
<non-standard single flute spiral milling bit CNC Applications
!– wp:paragraph –>A custom single-flute tool for special materials, engraving and controlled chip evacuation.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.

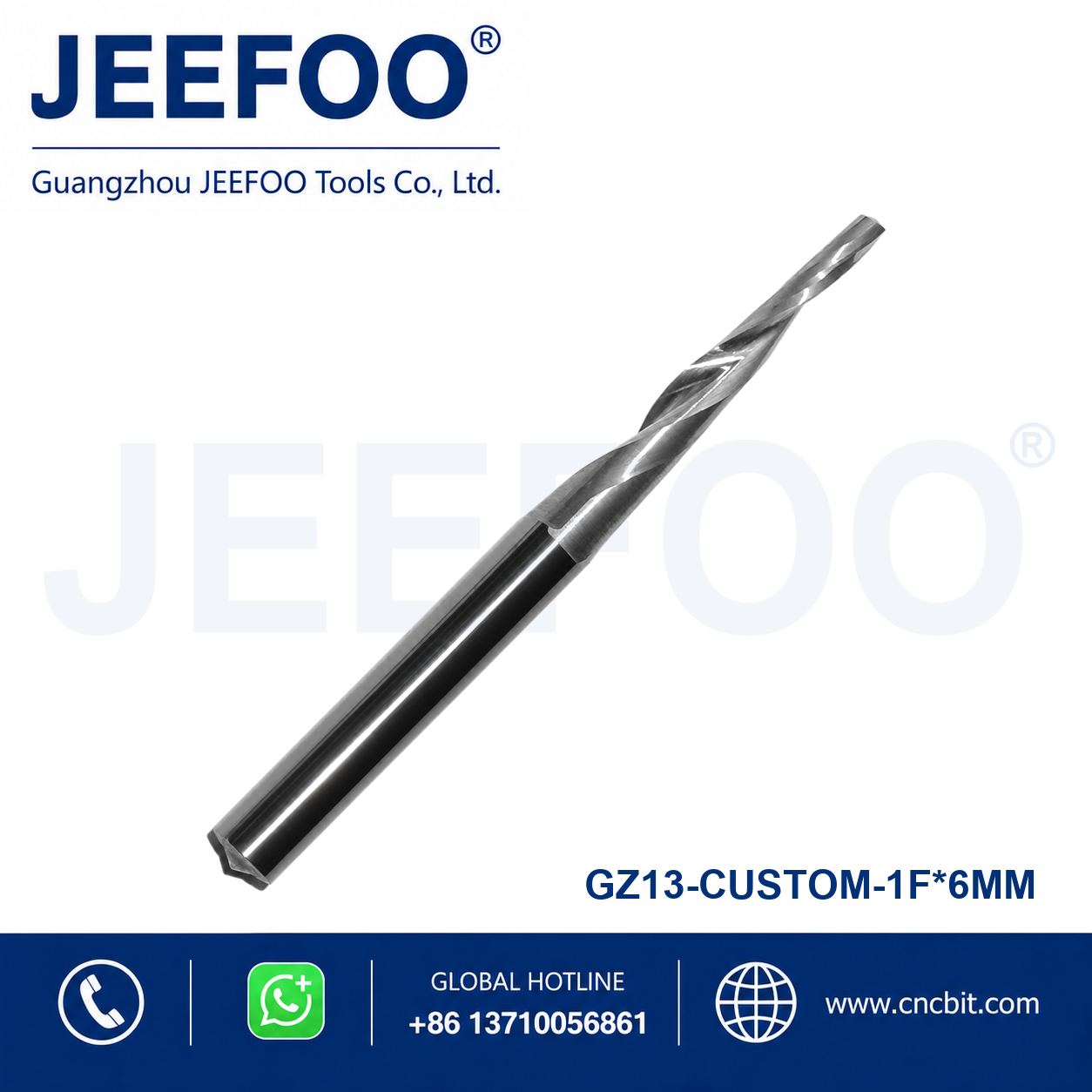

Size: 6mm
