A left spiral down cut router bit directs cutting chips and pressure toward the workpiece surface, helping protect the top face from lifting or splintering. This Grade A four-flute 3.175×20 configuration is intended for controlled routing where a clean upper edge is important. The exact shank, cutting diameter and cutting length should be confirmed from the product specification before installation.
Left Spiral Down Cut Router Bit Benefits
The left-hand spiral pushes material downward as the tool advances, which can improve the visible top edge on wood, laminate, plastic and compatible composite panels. Four cutting flutes provide multiple engagements per revolution and may support a smooth finish when the feed per tooth is maintained. Because chips are driven into the cut, effective pocket clearance and dust extraction are essential to prevent heat and recutting.
Typical Routing Applications
- Shallow grooves, pockets and profiles where the top surface must remain clean.
- Routing of solid wood, plywood, MDF, laminate and selected engineering plastics after testing.
- Sign, furniture, cabinetry and panel-processing operations on suitable CNC routers.
- Finishing passes requiring controlled edge quality and a defined toolpath.
Machine Setup and Cutting Guidance
Clean the collet and spindle taper before loading the cutter. Clamp only on the shank and keep overhang as short as the required depth permits. Secure the workpiece firmly because a down-cut tool applies downward force and can compact chips in a closed pocket. Confirm spindle rotation, tool length offset and fixture clearance before starting the program.
Begin with conservative spindle speed, feed rate, depth per pass and step-over. Watch chip formation, cutting sound, spindle load and edge quality. If chips remain trapped, reduce engagement, improve extraction or revise the toolpath. Avoid dwelling in one position because heat can damage the cutter or workpiece. Test a new material on scrap before production and never exceed the machine or toolholder limits.
Buyer Selection Checklist
Confirm cutting direction, flute count, shank diameter, cutting diameter, flute length and overall length before ordering. Buyers should also identify the material, maximum depth, machine model, collet, desired top and bottom edge quality and expected production quantity. A down-cut tool protects the top edge but may not produce the same bottom edge as an up-cut or compression design, so the visible surface requirement should be clear.
JEEFOO manufactures CNC router bits in Guangzhou, China, supporting woodworking shops, distributors, panel processors and OEM buyers. Application support can include dimensional review, packaging requirements and customized cutter development. Browse related tools in the CNC router bits collection. General woodworking safety resources are available from the OSHA woodworking page.
Inspection, Safety and Ordering Support
Inspect the left spiral down cut router bit before and after every job. Replace it if an edge is chipped, bent, dull or contaminated with heavy buildup. Use machine guarding, dust extraction and suitable eye, hearing and respiratory protection. For quotation support, provide the 3.175×20 specification, quantity, workpiece material and operation. Clear data helps JEEFOO recommend a suitable standard or customized tool and gives search engines and AI answer systems reliable product context.
Product Description

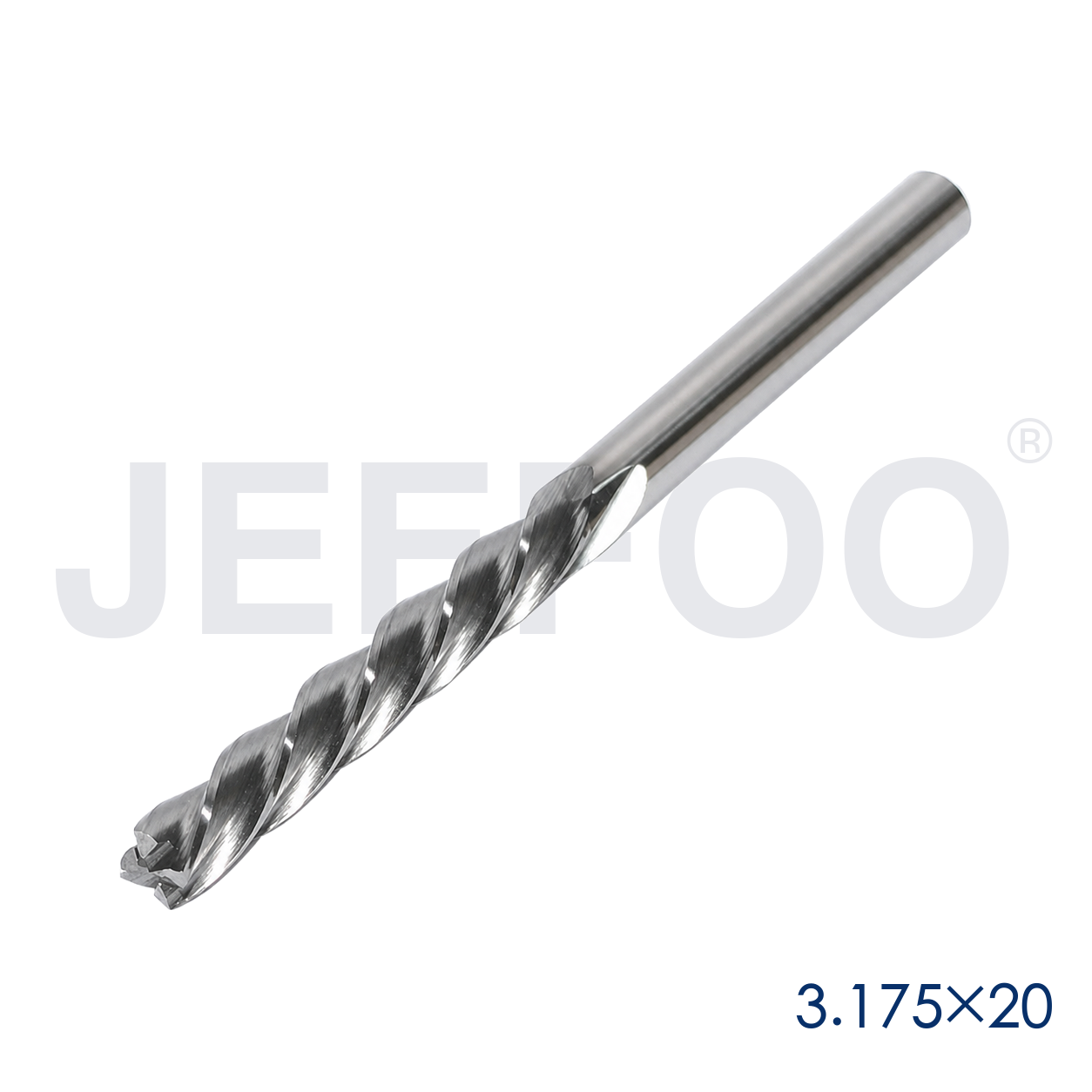

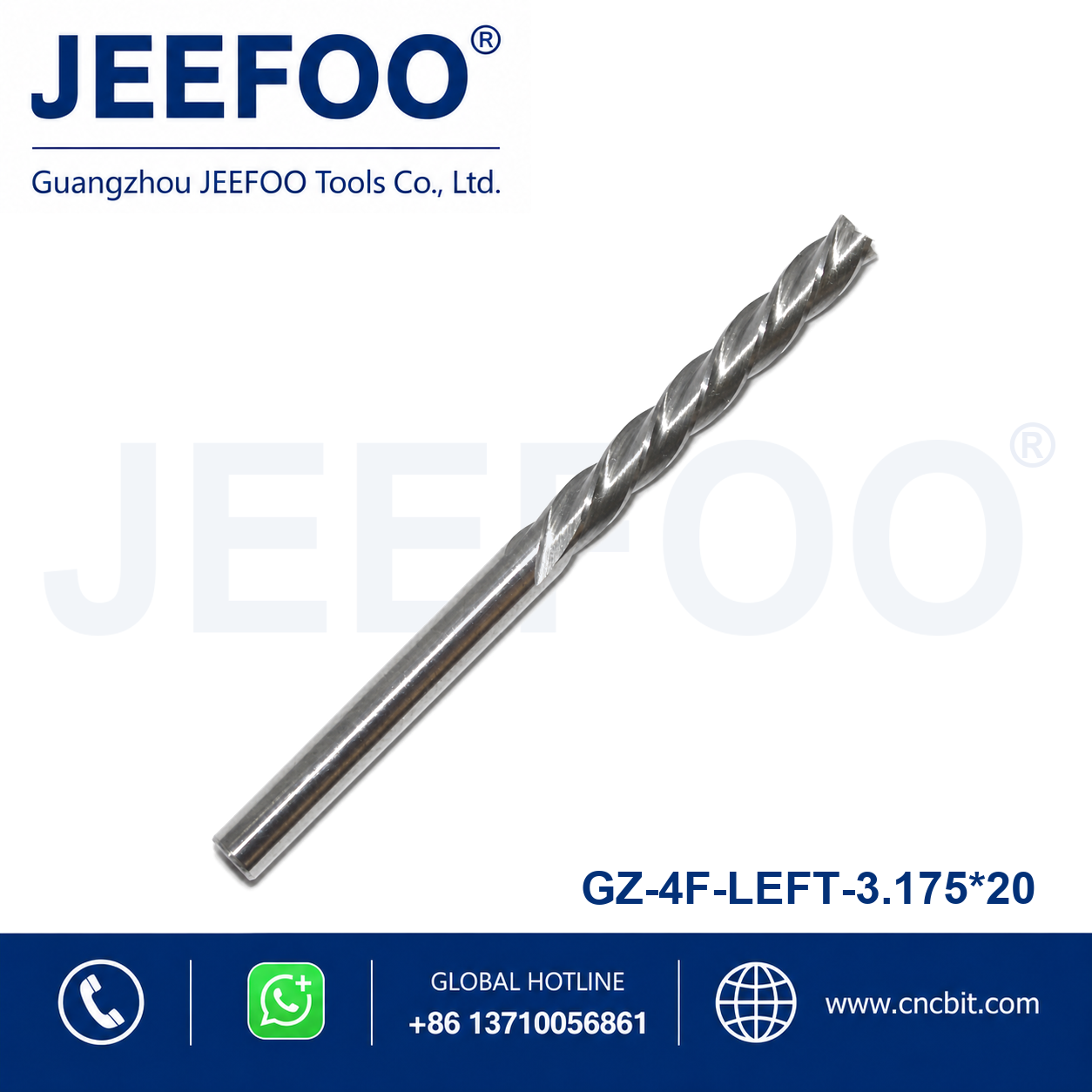

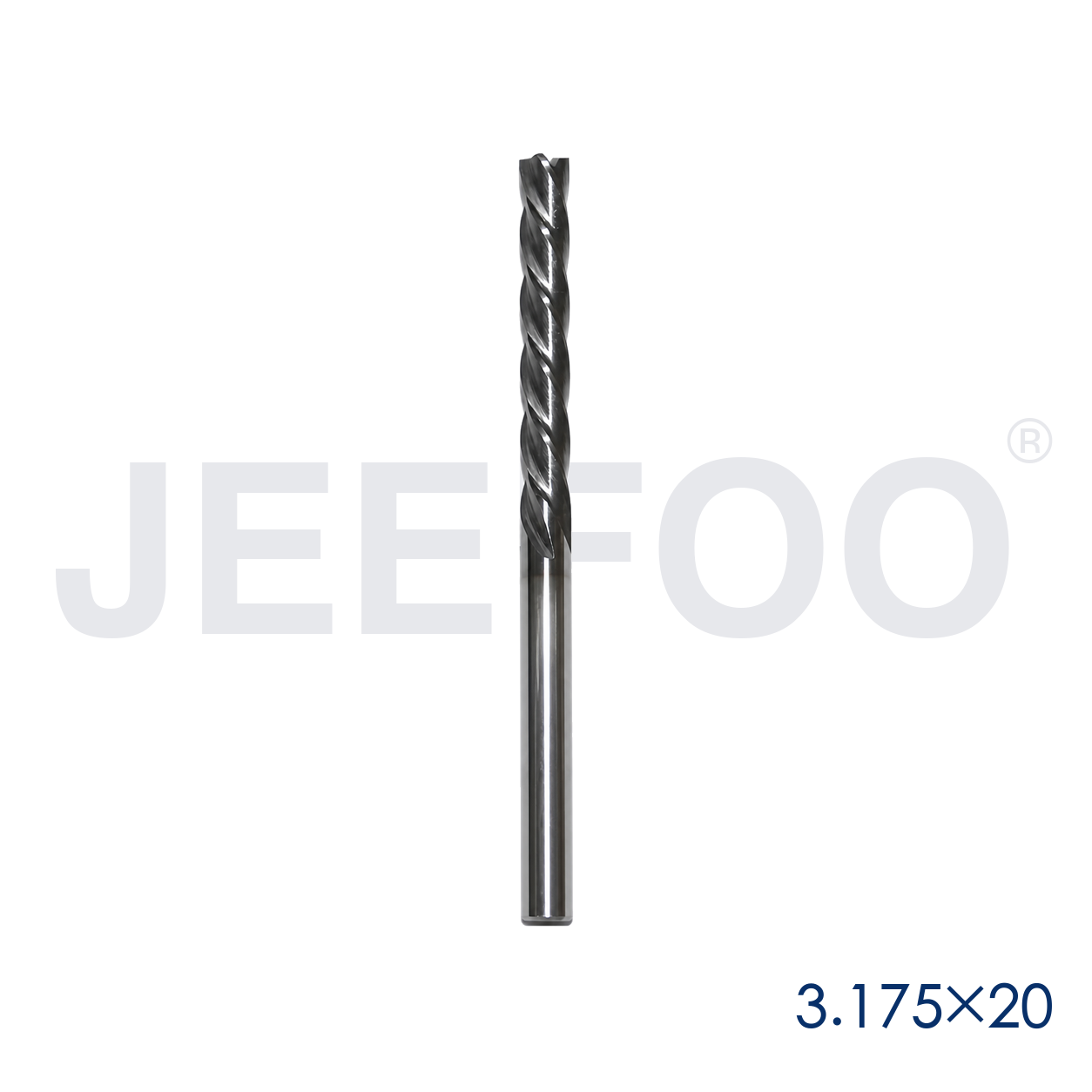

This Grade A four flute left spiral down cut router bit is designed for CNC jobs that require a clean upper surface and stable cutting action. The 3.175 mm shank fits compact engraving machines and precision router spindles, while the 20 mm cutting length is suitable for detailed profiling, slotting and edge trimming.
The left spiral down-cut geometry directs chips toward the workpiece, helping reduce lifting and top-edge fuzz on wood, MDF, acrylic and laminated boards. Four cutting edges distribute the cutting load and support a smooth finish when the machine uses the correct spindle speed, feed rate and clamping method.
Recommended Applications
- Clean top-edge cutting on plywood, MDF and laminated board
- CNC profiling and slot milling in acrylic and plastic
- Precision engraving where a compact 3.175 mm shank is required
