How a 3-Flute Aluminum Square End Mill Works
A 3-flute aluminum square end mill balances cutting-edge count with chip space for stable profiling, slot finishing and pocket machining. The square end geometry produces flat floors and defined shoulders, while three flutes can support a smooth finish and steady material removal when the machine and parameters are appropriate. This 5x6x100L configuration uses a 5 mm cutting diameter, 6 mm shank and extended 100 mm overall length.
Setup for Accurate Aluminum Machining
Clean the collet, nut and spindle taper before loading the cutter. Small chips trapped in the holder can increase runout, cause uneven flute loading and leave visible marks on the component. Clamp the shank securely without gripping the flutes, and keep overhang as short as the required reach permits. Confirm that the workpiece is supported and cannot vibrate or lift during changes in cutting direction.
Choose spindle speed, feed per tooth, axial depth and radial engagement according to the aluminum alloy, toolpath and machine rigidity. Start conservatively and inspect chip form, spindle load, sound and surface finish. Chips should leave the cut instead of being recut or welded to the edge. Air blast, mist or another approved lubrication method can improve chip evacuation and temperature control. Test on spare material before production, especially when the alloy or fixture is new.
Applications and Tool Selection
Typical operations include contouring, shoulder milling, pocket finishing, shallow slotting and flat-bottom feature machining. Before ordering, verify the cutting diameter, shank diameter, flute length, overall length, flute count and coating or polished-flute requirement. Buyers should also provide the alloy grade, maximum depth, machine type, holder and desired finish. These details help determine whether the standard 5x6x100L tool or a custom configuration is the better choice.
JEEFOO manufactures CNC router bits and milling cutters in Guangzhou, China, serving industrial users, distributors and OEM buyers. Support can include dimensional review, application discussion, packaging requirements and non-standard tool development. Browse related options in the CNC router bits collection. For industry terminology and general aluminum information, visit the Aluminum Association.
Maintenance and Ordering Support
Inspect each flute under good light after machining. Remove chips using an appropriate brush or air system, and stop using the cutter if an edge is chipped, bent or heavily worn. Follow the machine manufacturer’s guarding and chip-control procedures and wear suitable personal protective equipment. Record successful settings by alloy and operation so repeat jobs can start from a proven process window. For a quotation, share the 5x6x100L size, quantity, workpiece material and intended operation with JEEFOO.
Tool Life and Process Control
For repeatable results, evaluate the complete process rather than changing feed or spindle speed in isolation. Record material grade, coolant or air-blast method, radial engagement, axial depth, tool overhang and observed chip form. A sharp 3-flute aluminum square end mill should produce clean, consistent chips that leave the cutting zone quickly. If chips become powdery, welded or discolored, stop and check runout, chip evacuation and edge condition before continuing production.
The extended 100 mm overall length provides reach for deeper features, but long-reach tools require conservative engagement and rigid workholding. Begin with parameters recommended by the machine, holder and material supplier, then make small controlled adjustments. Inspect the cutting edge under good lighting between batches and replace the cutter before wear causes dimensional drift. For application support, JEEFOO in Guangzhou, China can help match cutter geometry and dimensions to OEM, sign-making and general CNC aluminum projects.
Product Description

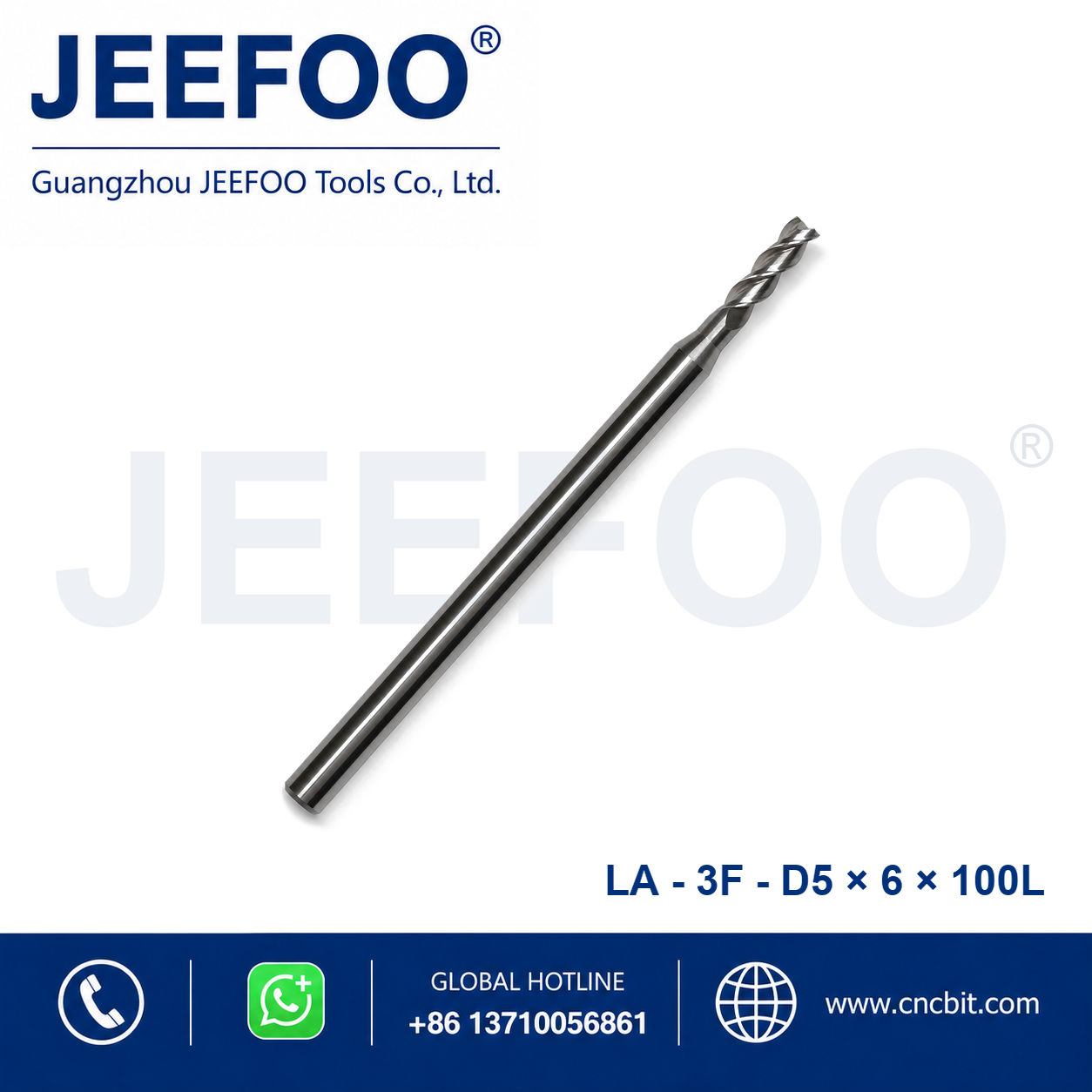

3 Flutes Aluminum Square End Mill, Carbide End Mill Cutter for CNC Router Machine
Size: 5x6x100L
Material: Whole solid tungsten carbide
Suitable machine: CNC router machine, engraving machine and machining center

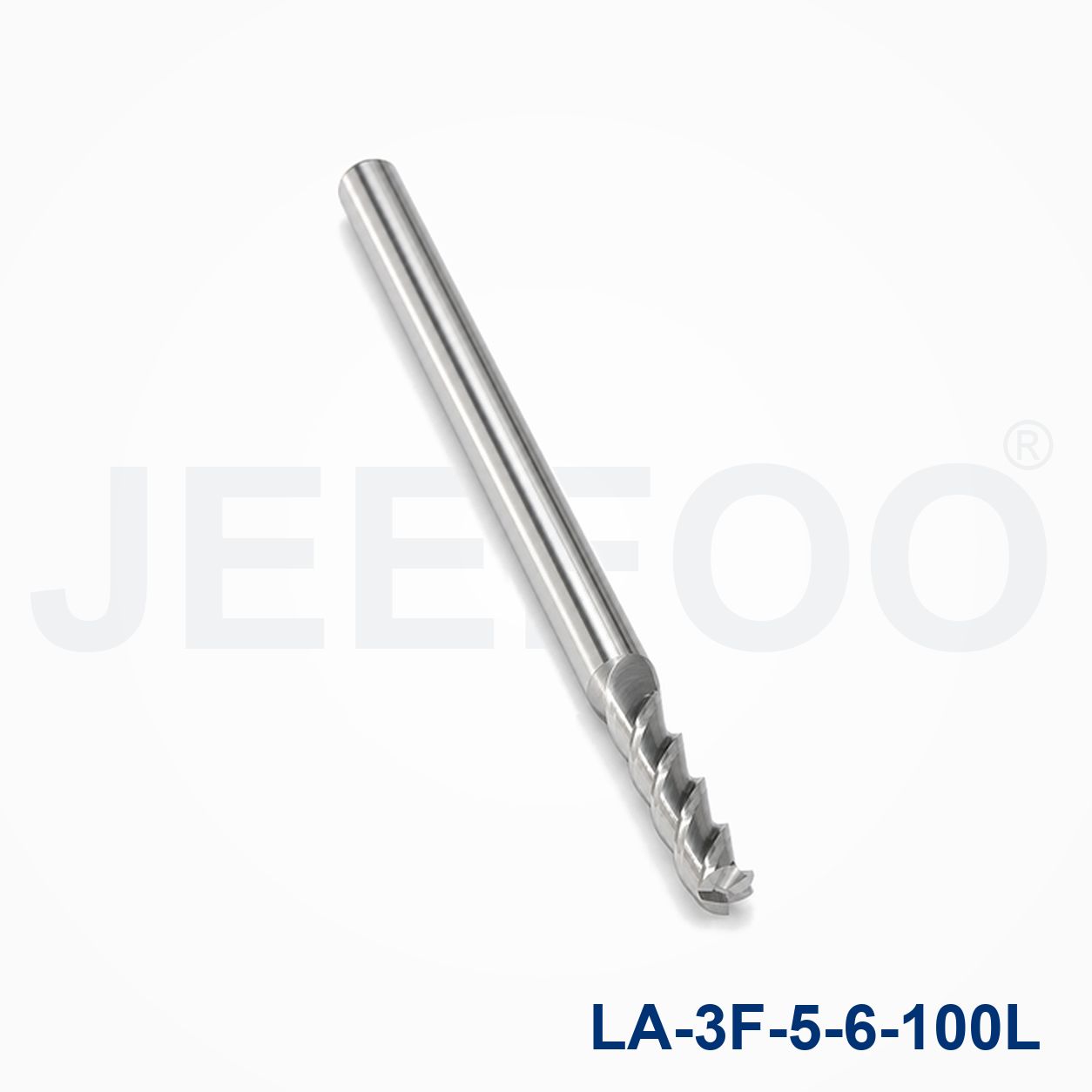

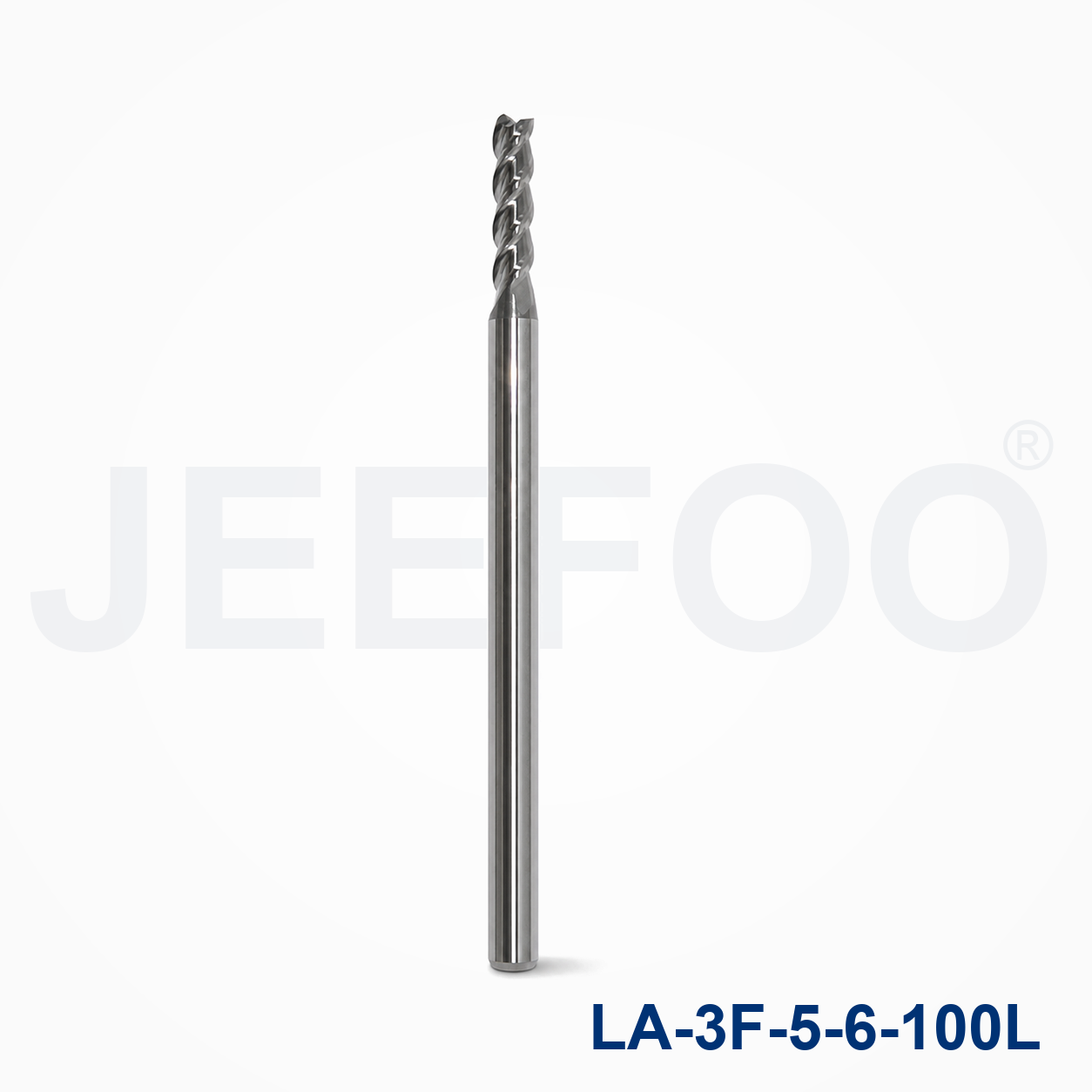

This 5x6x100L solid carbide cutter provides extended reach for deeper aluminum profiles and recessed machining. The polished three-flute geometry supports efficient chip evacuation and smooth finishing; minimize tool stick-out and use controlled passes to maintain rigidity.
