Single flute aluminum end mill in 3.175×12 size is designed for fast chip evacuation, clean CNC routing and stable cutting of aluminum and compatible non-ferrous materials. The 3.175 mm diameter and 12 mm cutting length suit detailed profiles, slots, pockets and edge trimming when used with a matching precision collet.
3.175×12 Single Flute Aluminum End Mill Overview
The large flute channel creates space for aluminum chips to leave the cutting area. This helps reduce recutting, heat and built-up edge when feeds, speeds and lubrication are properly selected. The solid carbide body provides useful rigidity for a compact cutter, while the square-end profile produces flat-bottom slots, straight walls and defined shoulders.
Key Features and Benefits
- 3.175 mm cutting diameter for detailed CNC routing and profiling.
- 12 mm cutting length for compatible sheets, panels and components.
- Single-flute geometry creates generous chip space and supports higher chip load.
- Square-end profile is suitable for slots, pockets, contours and edge trimming.
- Solid carbide construction supports wear resistance and stable cutting.
Typical Aluminum CNC Applications
A single flute aluminum end mill can be used for sign panels, aluminum sheets, enclosures, brackets, fixtures, prototypes and customized machine parts. It may support shallow slotting, pocketing, profile cutting and finishing. Actual suitability depends on the aluminum alloy, tool engagement, spindle power, machine rigidity and cooling method, so a test cut is recommended before production.
When removing a large amount of material, use controlled passes instead of forcing the full depth at once. Leave a consistent finishing allowance and apply a separate final pass when edge quality is important. Correct climb or conventional cutting direction, lead-in strategy and tool-path smoothing can also affect burr formation and finished dimensions.
Machine Setup and Cutting Recommendations
Use a clean precision collet and verify that the 3.175 mm shank is held securely. Keep overhang as short as the required depth allows, check spindle runout and clamp the workpiece firmly. Begin with conservative spindle speed, feed rate and pass depth. Inspect chip shape, cutting sound, heat and surface quality, then adjust one parameter at a time.
Effective chip evacuation is essential because recut aluminum chips can increase temperature and damage the finish. Air blast, mist lubrication or another suitable method may help when allowed by the machine and workplace rules. Avoid dwelling in one position. Record the approved parameters so the same single flute aluminum end mill can deliver consistent results on repeat orders.
Carbide Quality, Inspection and Tool Life
Carbide grade, grinding quality and edge preparation influence rigidity, sharpness and service life. Buyers can review the general properties of tungsten carbide when comparing wear resistance. Inspect the cutting edge before each job and replace the cutter if chipping, heavy wear, built-up aluminum or shank damage is visible.
Clean residue using an appropriate workshop method, keep the tool dry and store it in a protective case. Prevent the cutting edge from contacting other tools during handling or transport. A documented inspection routine helps workshops and distributors compare tool life, cycle time, burr formation and finished-part quality across different alloys and production batches.
How to Select the Correct 3.175×12 Tool
Confirm the cutting diameter, cutting length, shank diameter and overall length before ordering. Also provide the workpiece alloy, machine type, collet size, target depth, required finish and order quantity. A drawing or sample photo helps the supplier check whether the 3.175×12 specification or a customized option is more practical.
JEEFOO Supplier in Guangzhou, China
JEEFOO supplies CNC cutting tools from Guangzhou, China for distributors, workshops and manufacturers. The team can review machine conditions, dimensions, packaging, labeling and sample requirements for export or local orders. Browse more JEEFOO CNC router bits and end mills for related aluminum machining applications.
Frequently Asked Questions
What is a single flute aluminum end mill used for?
It is commonly used for routing, profiling, slotting, pocketing and trimming aluminum. The large flute space supports efficient chip evacuation and helps reduce heat.
Can JEEFOO provide custom specifications?
Yes. Send the alloy, drawing, machine details, dimensions and quantity. The Guangzhou team can review a standard or customized single flute aluminum end mill for the application.
Product Description

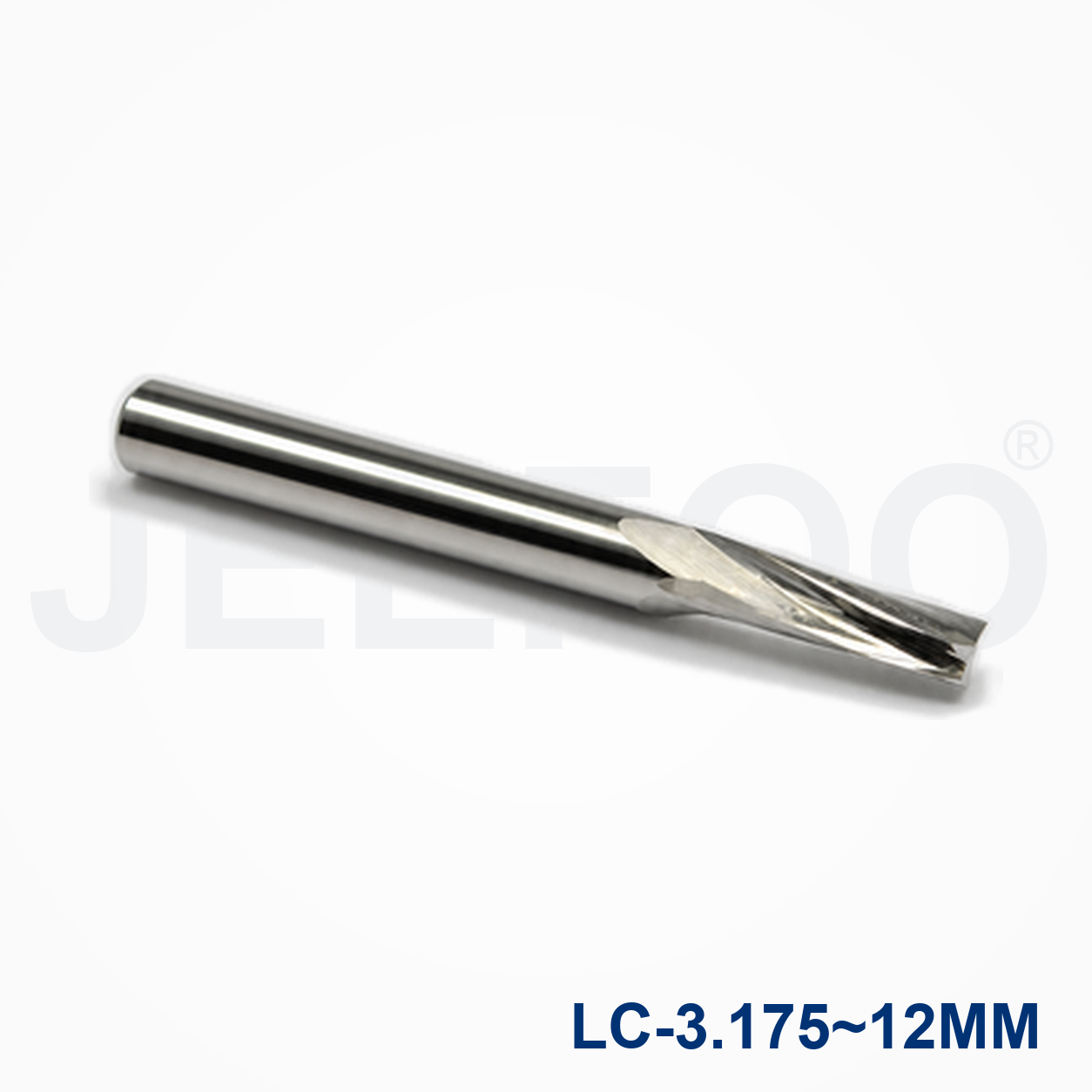

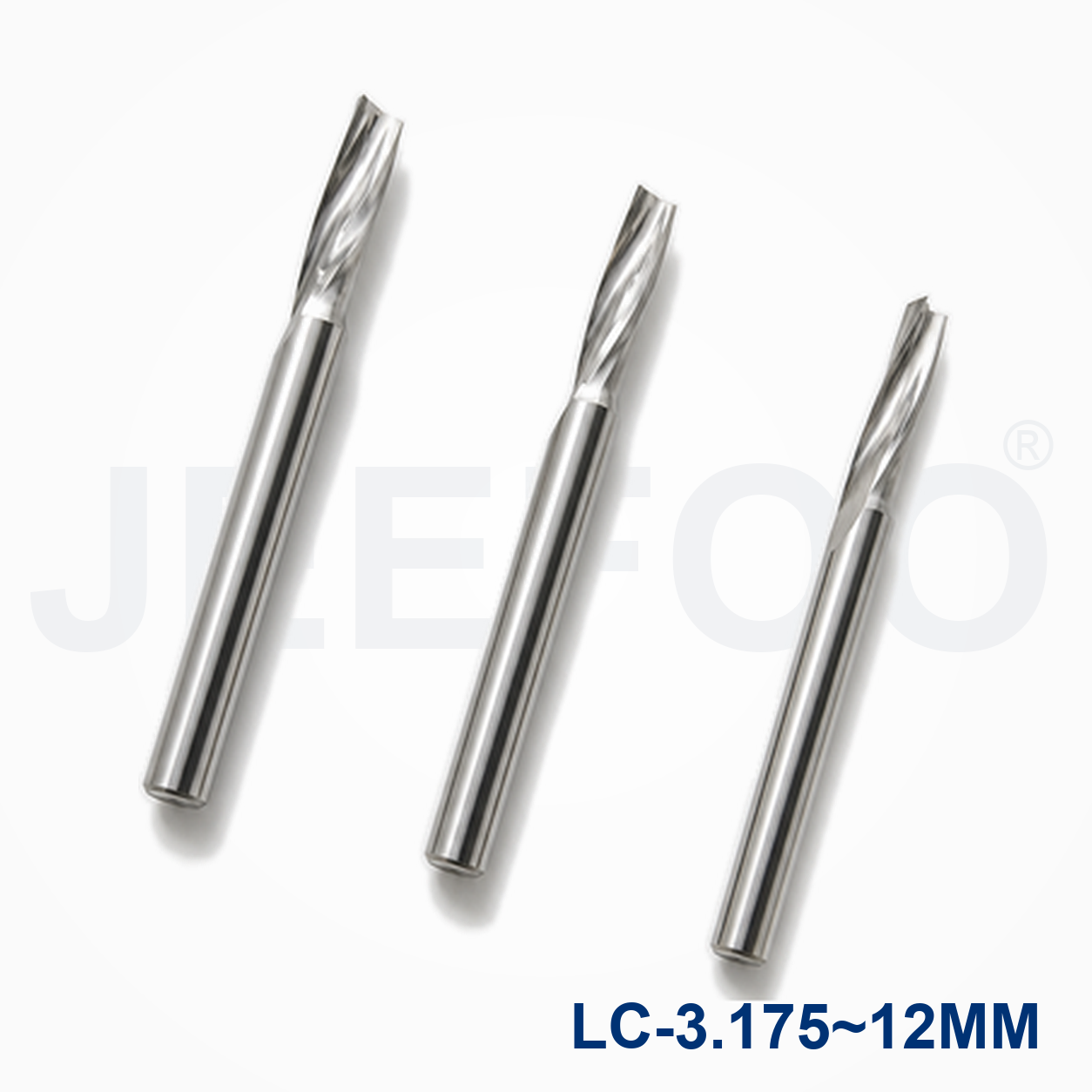

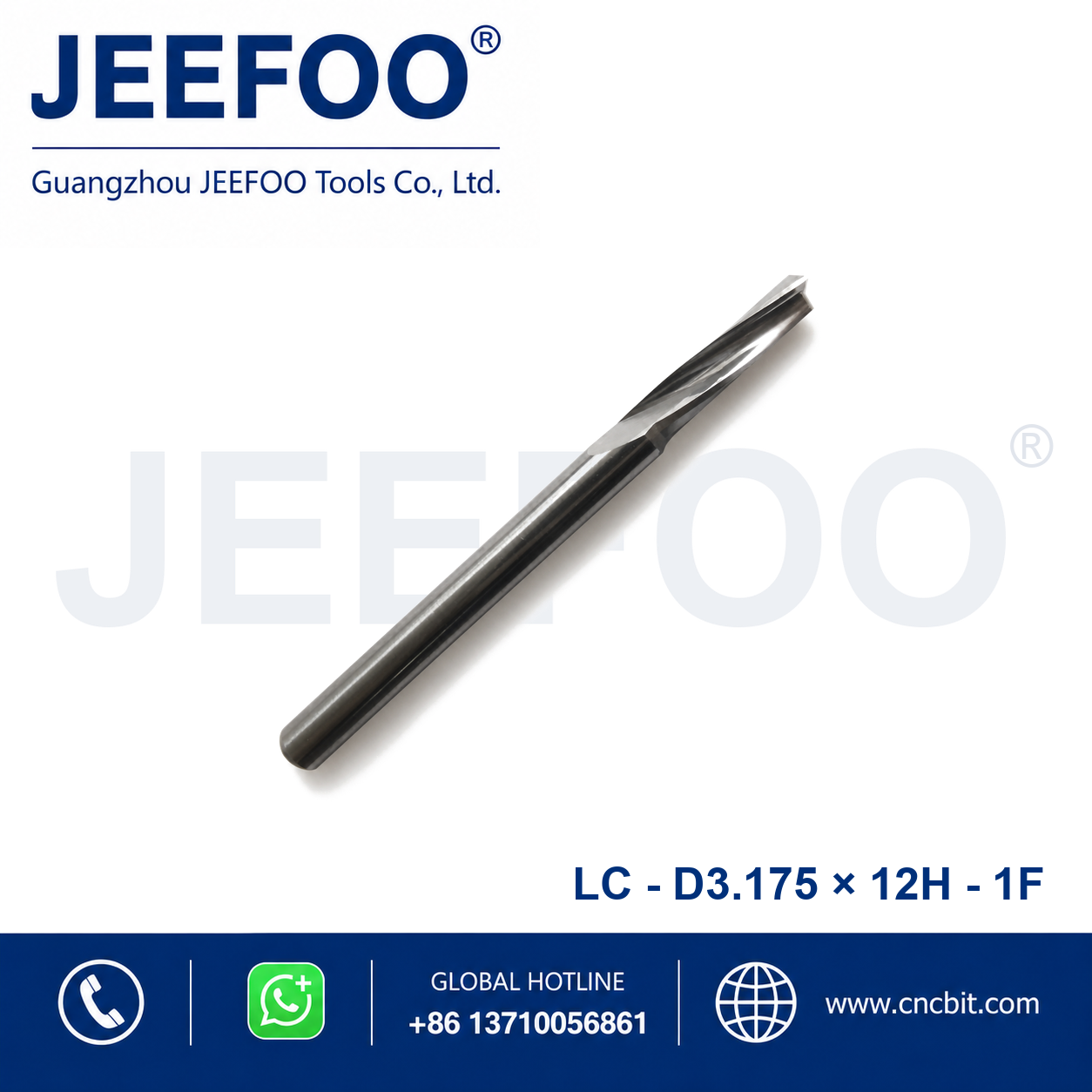

Single Flute Spiral End Mill with Large Chip Removal for Aluminum
Size: 3.175×12
Material: Whole solid tungsten carbide
Suitable machine: CNC router machine, engraving machine and machining center
This 3.175×12 single flute aluminum end mill uses a large chip-removal groove to evacuate aluminum chips quickly and reduce heat buildup. Its solid carbide construction supports clean edges, stable routing and efficient cutting of aluminum sheets, profiles and components.
