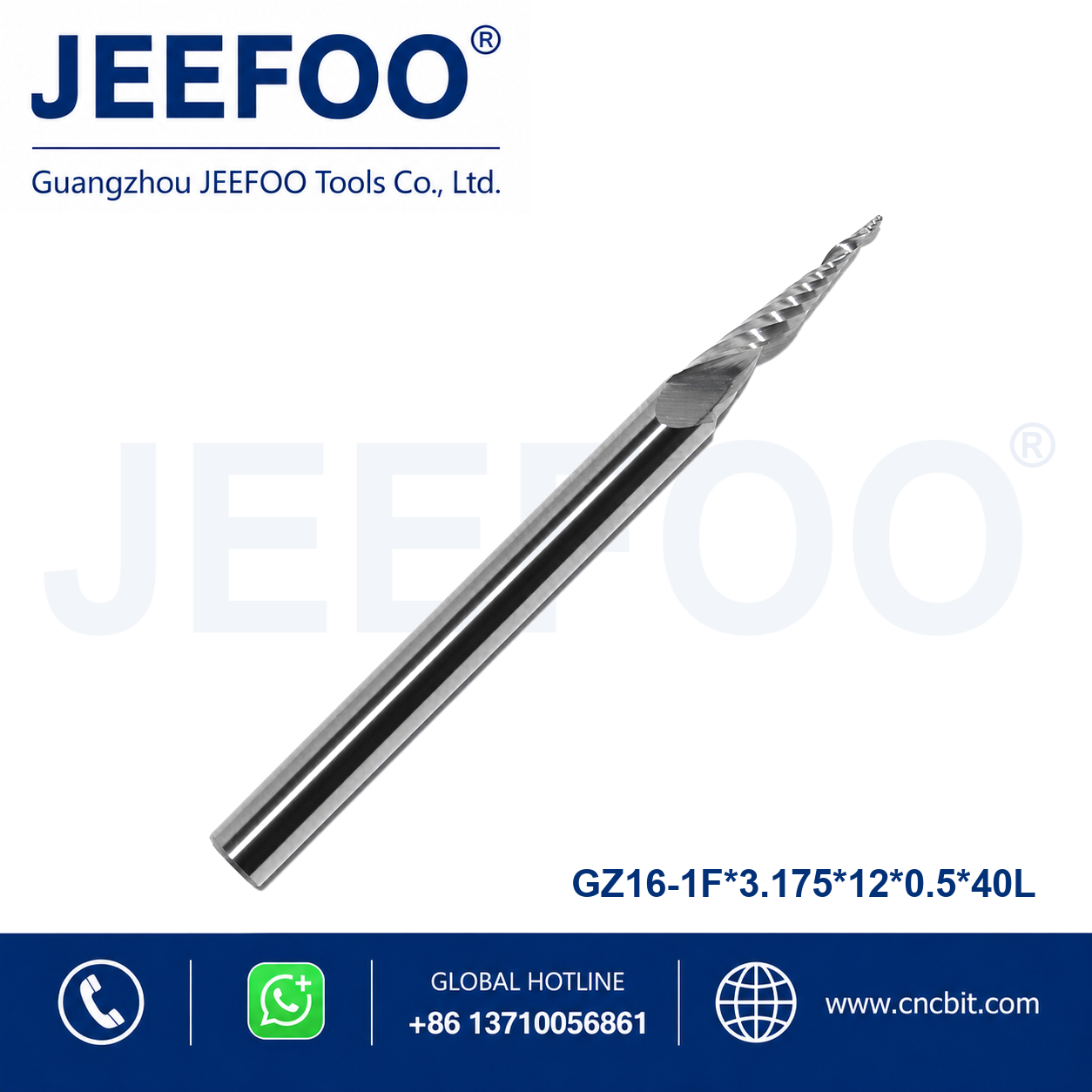

Single flute taper end mill in 3.175x12x0.5x40L size is designed for detailed CNC engraving, tapered-wall carving and precise material removal. The A-series geometry combines a 3.175 mm shank, 12 mm cutting section, 0.5 mm tip dimension and 40 mm overall length for compatible routers and engraving machines.
3.175x12x0.5x40L Single Flute Taper End Mill Overview
The tapered cutting profile reaches narrow details while maintaining more body strength than a straight cutter with the same small tip. A single flute creates generous chip space and helps move chips away from the cutting area. This geometry can support relief carving, tapered pockets, decorative patterns, model making, molds and fine profiling when the workpiece, machine and tool path are correctly matched.
Key Features and Benefits
- 3.175 mm shank for compatible precision CNC collets.
- 12 mm cutting section supports detailed carving at controlled depths.
- 0.5 mm tip dimension helps reproduce narrow features and fine contours.
- 40 mm overall length provides practical reach while supporting rigidity.
- Single-flute tapered geometry improves chip space for suitable materials.
CNC Engraving Applications
A single flute taper end mill can be used for wood reliefs, plastic models, PVC patterns, composite panels, signs, prototypes and decorative components. Actual compatibility depends on material density, abrasiveness, resin content, machine rigidity and cutting load. A test cut is recommended before production, especially when the workpiece or program is new.
For deeper relief work, use controlled roughing passes before the final detail pass. Leave a consistent finishing allowance and apply a smaller stepover to improve surface quality on slopes. Avoid forcing the narrow tip to remove the full volume in one operation. Smooth lead-in and lead-out moves can reduce sudden load and protect the cutting edge.
Machine Setup and Cutting Recommendations
Use a clean, correctly sized collet and keep tool overhang as short as the required depth allows. Check spindle runout and secure the workpiece firmly. Begin with conservative feed rate, spindle speed and pass depth. Observe chip formation, cutting sound, vibration and finished-surface quality, then adjust one parameter at a time and record the approved settings.
Effective dust or chip extraction keeps the cutting path clear and reduces recutting. Stop the machine if unusual noise, burning, chipping or excessive vibration appears. Do not use a damaged cutter. Follow the machine manufacturer’s safety instructions and verify that the programmed tool length, zero point and maximum depth match the confirmed specification.
Carbide Inspection and Tool Life
Carbide grade, grinding quality and edge preparation influence rigidity, sharpness and service life. Buyers can review the general properties of tungsten carbide when comparing wear resistance. Inspect the tip under good lighting before every job and replace a chipped or heavily worn single flute taper end mill.
Clean residue using an appropriate workshop method, keep the tool dry and store it in a protective case. Prevent the narrow cutting edge from touching other tools during handling or transport. A documented inspection routine helps workshops and distributors compare tool life, cycle time, detail quality and repeat-order consistency.
JEEFOO Supplier in Guangzhou, China
JEEFOO supplies CNC engraving and cutting tools from Guangzhou, China for distributors, workshops and manufacturers. Send the material, drawing, machine details, confirmed dimensions, quantity, labeling and packaging needs for selection support. Standard A-series tools and customized options can be discussed. Browse more JEEFOO CNC router bits for related applications.
Frequently Asked Questions
What does 3.175x12x0.5x40L mean?
It identifies the main shank, cutting, tip and overall-length dimensions. Confirm the supplier drawing because naming conventions can vary between product series.
Can JEEFOO provide a custom specification?
Yes. Provide the material, drawing, machine, required dimensions and quantity. The Guangzhou team can review a standard or customized single flute taper end mill.
imported single flute taper end mill is designed for stable CNC machining, clean cutting and dependable tool performance.
<
imported single flute taper end mill CNC Applications
!– wp:paragraph –>
A-series tapered geometry is designed for CNC wood engraving and detailed carving.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.
Size: 3.175x12x0.5x40L
