How an Inner R Chamfering Cutter Works
An inner R chamfering cutter is designed to machine a controlled internal radius where a vertical wall meets a floor or where a flowing concave transition is required. The 12xR5x65L specification identifies a 12 mm cutter size with an R5 radius and 65 mm overall length. This geometry is useful for CNC compatible CNC components, molds, signs, fixtures and shaped parts that need a repeatable fillet rather than a sharp internal corner.
Geometry and Surface-Finish Benefits
The formed cutting profile produces the radius directly, which can reduce the number of toolpaths compared with approximating the arc using a small ball nose cutter. A purpose-made profile also helps maintain consistent curvature along long edges. The cutter must match the drawing radius and the available clearance around nearby walls. Before machining, verify the effective diameter, R5 profile, shank size, cutting length and overall reach against the actual component and tool holder.
CNC machining depends on sharp edges and reliable chip evacuation. Built-up edge can change the effective profile, increase cutting forces and leave drag marks on the radius. Use clean compressed air or an appropriate application-compatible lubricant when the machine and workplace permit it. Chips should leave the cutting zone instead of being recut between the tool and the newly finished surface.
Setup for the 12xR5x65L Cutter
Clean the collet, nut and spindle taper before loading the cutter. Clamp only the straight shank and keep overhang as short as the required reach allows. Check runout with a suitable indicator when dimensional accuracy or surface quality is critical. Secure the workpiece against lifting and vibration, then confirm that the programmed toolpath gives the shaped head enough clearance throughout lead-in, cutting and lead-out moves.
Begin with conservative parameters based on the machine, holder, workpiece material and tool supplier guidance. A profile cutter can have more cutting contact than a conventional end mill, so full-form engagement should be approached carefully. Use a light finishing pass with stable stock allowance where possible. Avoid sudden entry into a full-depth corner, and verify spindle direction before the cutter touches the workpiece.
Process Control and Tool Life
Record spindle speed, feed, axial position, radial engagement, coolant method, overhang and observed chip form during the first proven setup. Inspect the machined radius with the measuring method specified by the drawing. If chatter appears, reduce overhang, improve workholding and review engagement before changing several parameters at once. Replace the cutter when wear begins to create burrs, dimensional drift or an inconsistent finish.
For repeat production, use the same holder, gauge length and tool-offset method each time. A controlled setup makes it easier to trace changes in surface quality to material, edge condition or machine stability. Do not continue cutting after a crash, chipped edge or visible buildup; stop, clean and inspect the cutter so the R5 profile is not transferred inaccurately to additional parts.
JEEFOO CNC Tool Support
JEEFOO supplies CNC cutting tools from Guangzhou, China for distributors, workshops and OEM projects. Buyers can compare this profile cutter with other milling cutter solutions and contact the team with a drawing, workpiece material, machine type and required finish. For general reference on safe milling practice, consult the machine manufacturer and established resources such as Sandvik Coromant milling knowledge.
Frequently Asked Questions
What does 12xR5x65L mean? It indicates a 16 mm cutter size combined with a 5 mm formed radius. Confirm every remaining dimension from the product drawing before ordering.
Can the cutter be used for roughing? It is normally most valuable when the formed radius and finish matter. Remove excess material with an appropriate roughing strategy, then leave consistent stock for the profile pass.
How can burrs be reduced? Use a sharp edge, stable workholding, low runout, controlled engagement and effective chip evacuation. Final parameters must be validated on the actual machine and material batch.
coated four flute inner R chamfering cutter is designed for stable CNC machining, clean cutting and dependable tool performance.
<coated four flute inner R chamfering cutter CNC Applications

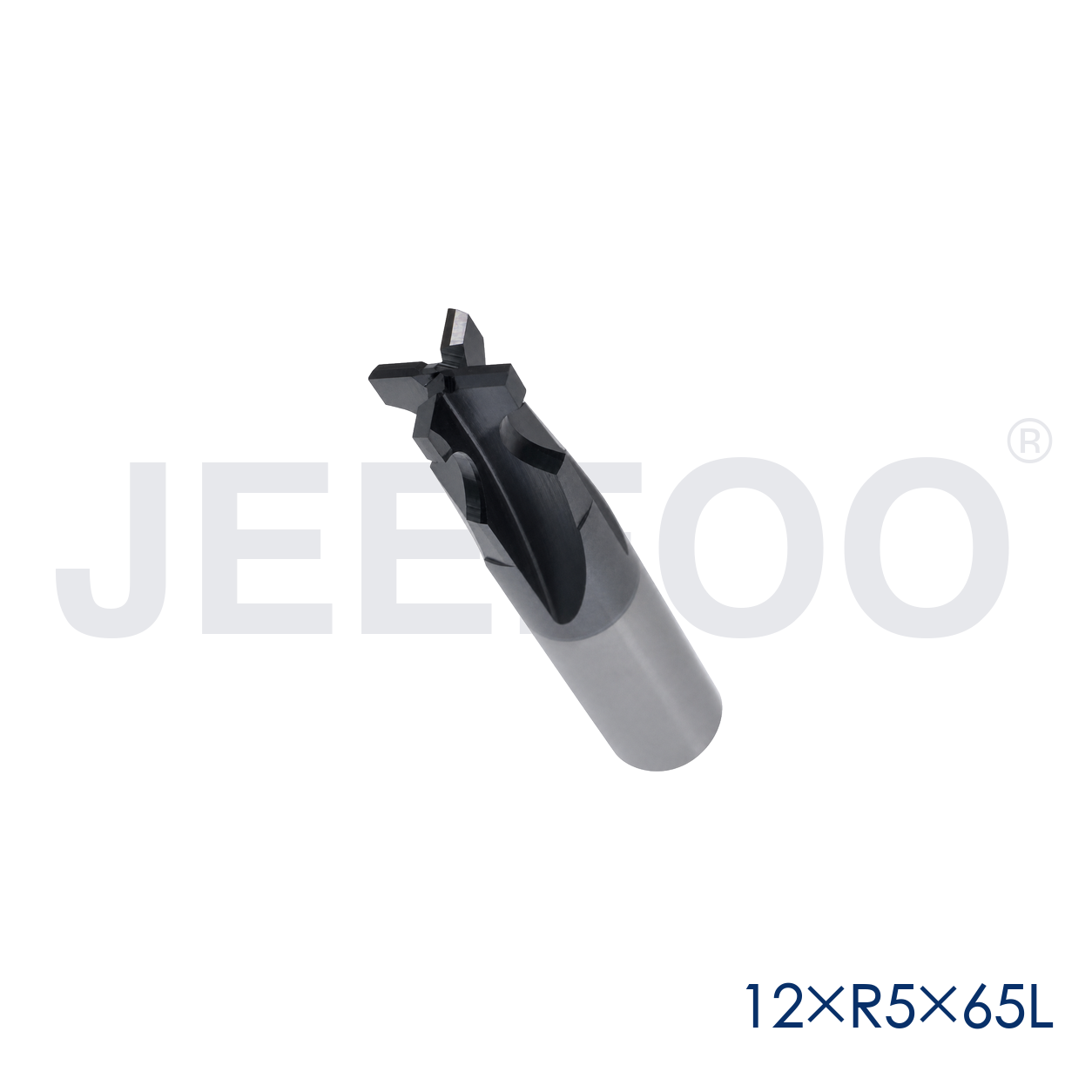

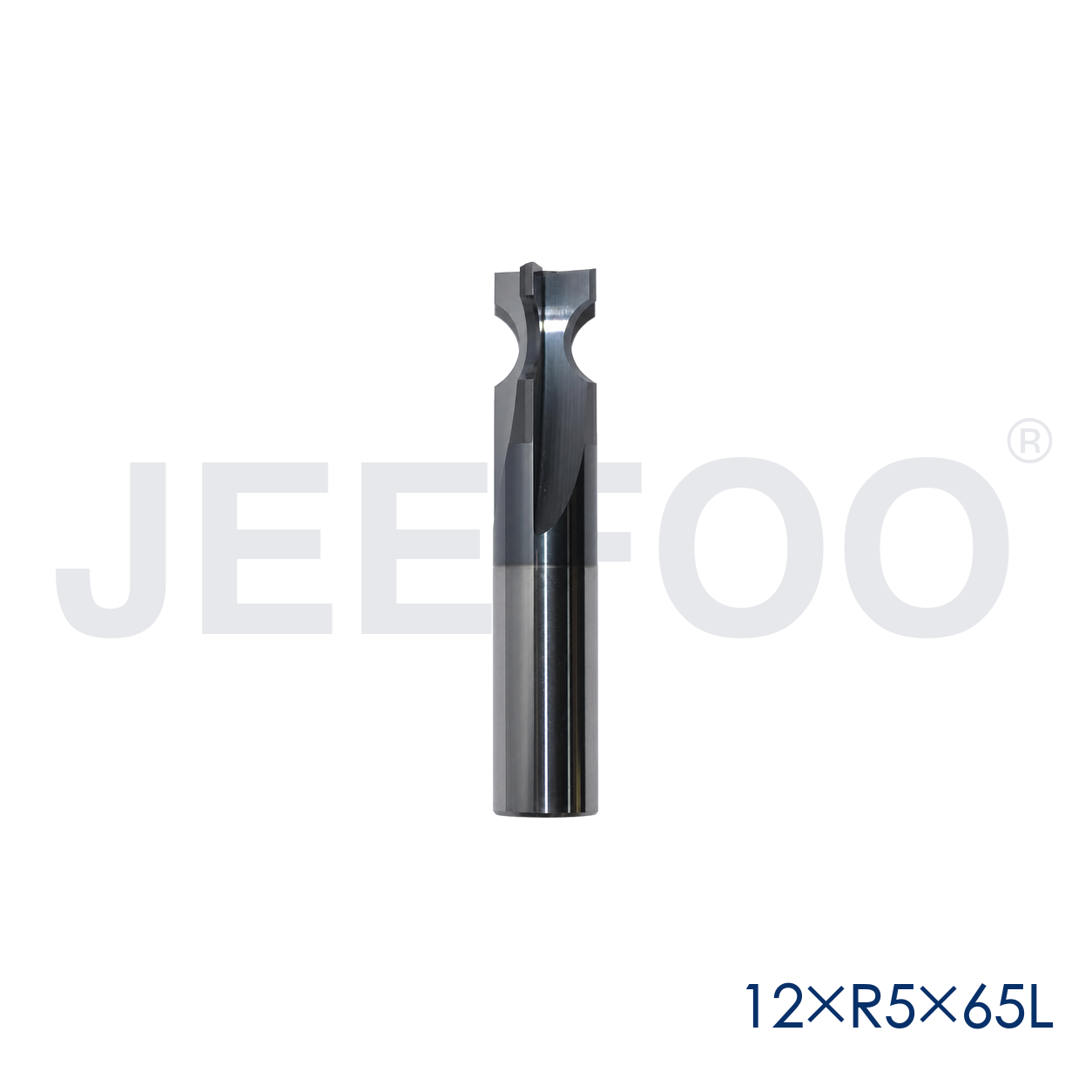

!– wp:paragraph –>Combines a coated cutting surface with four-flute geometry for precise internal edge finishing.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.

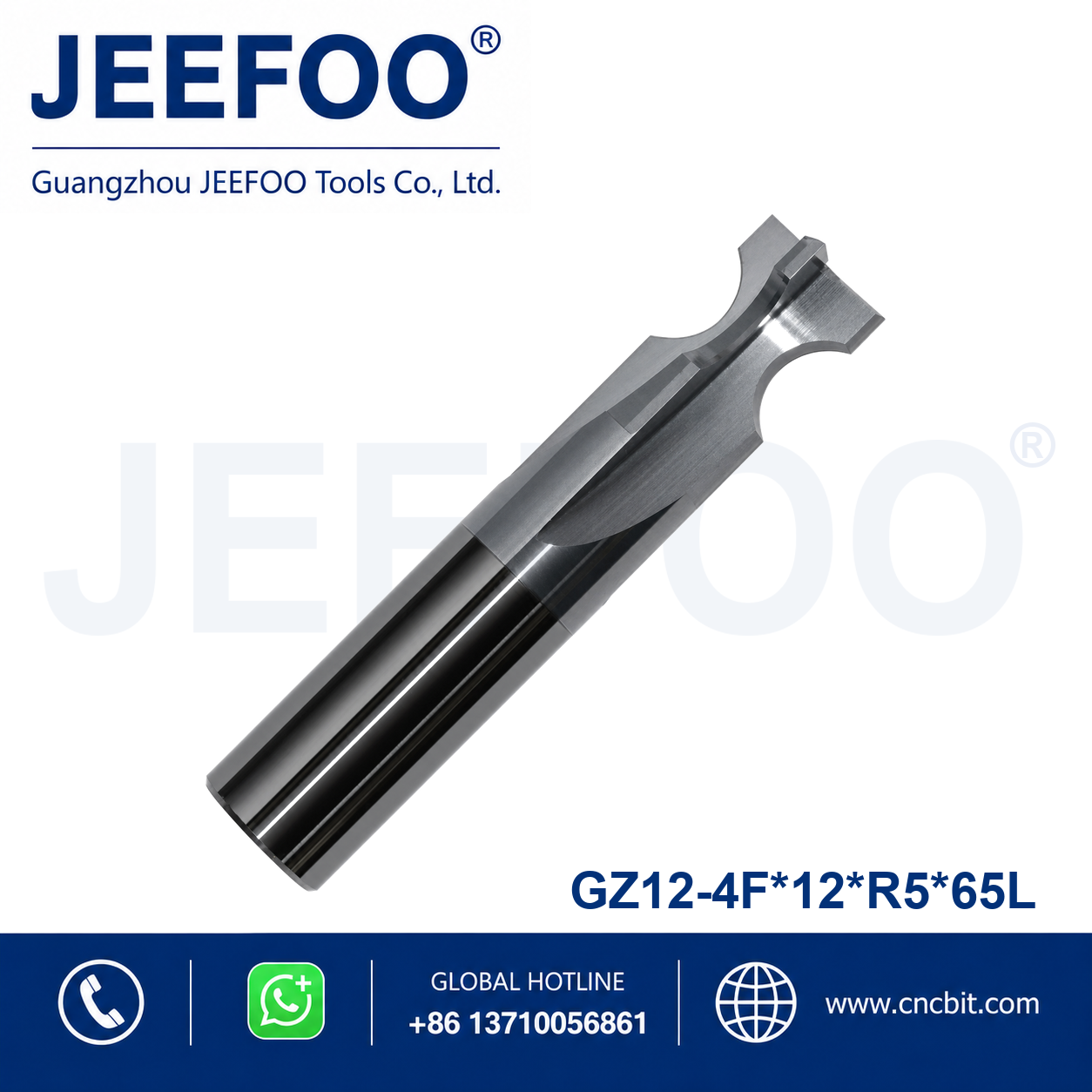

Size: 12xR5x65L
