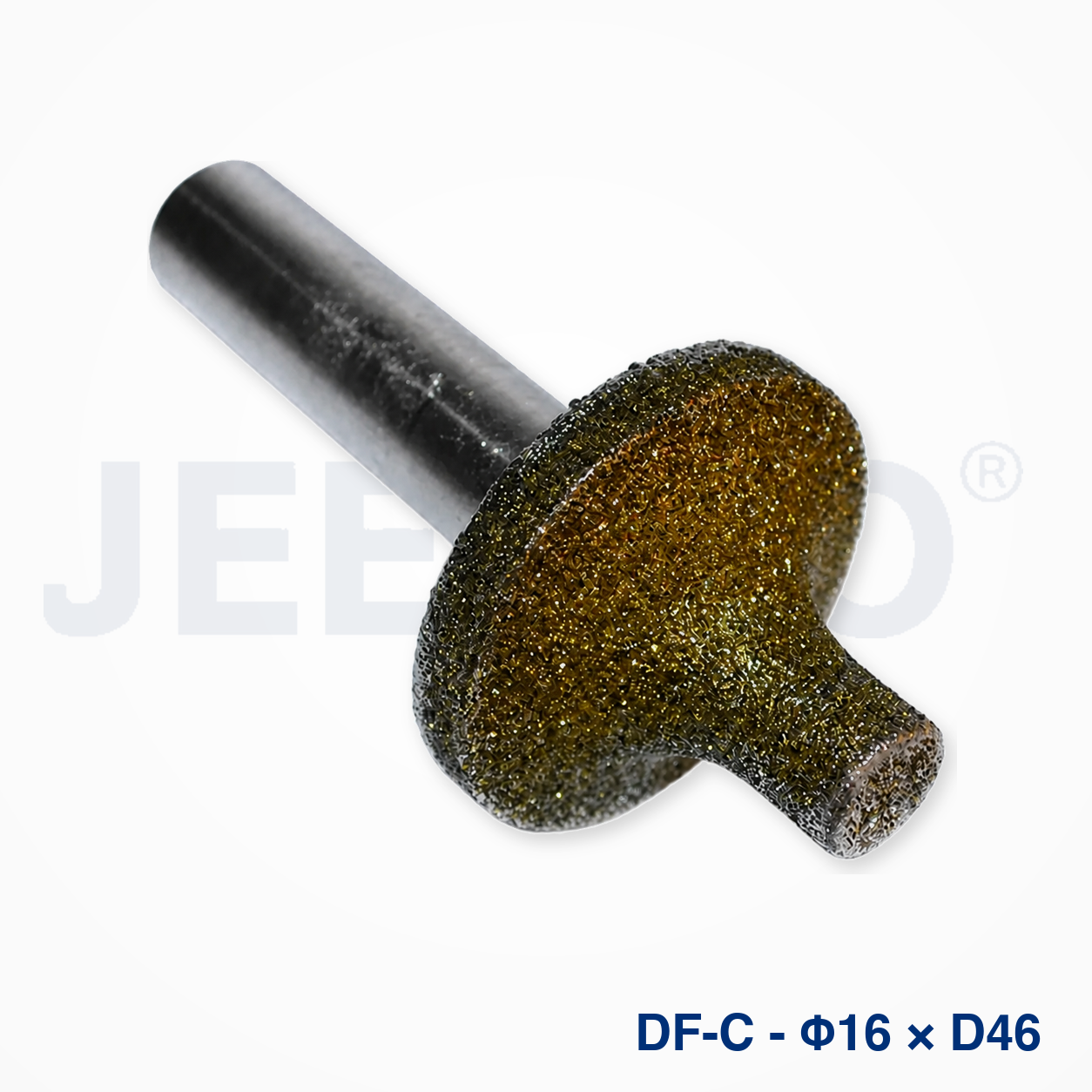

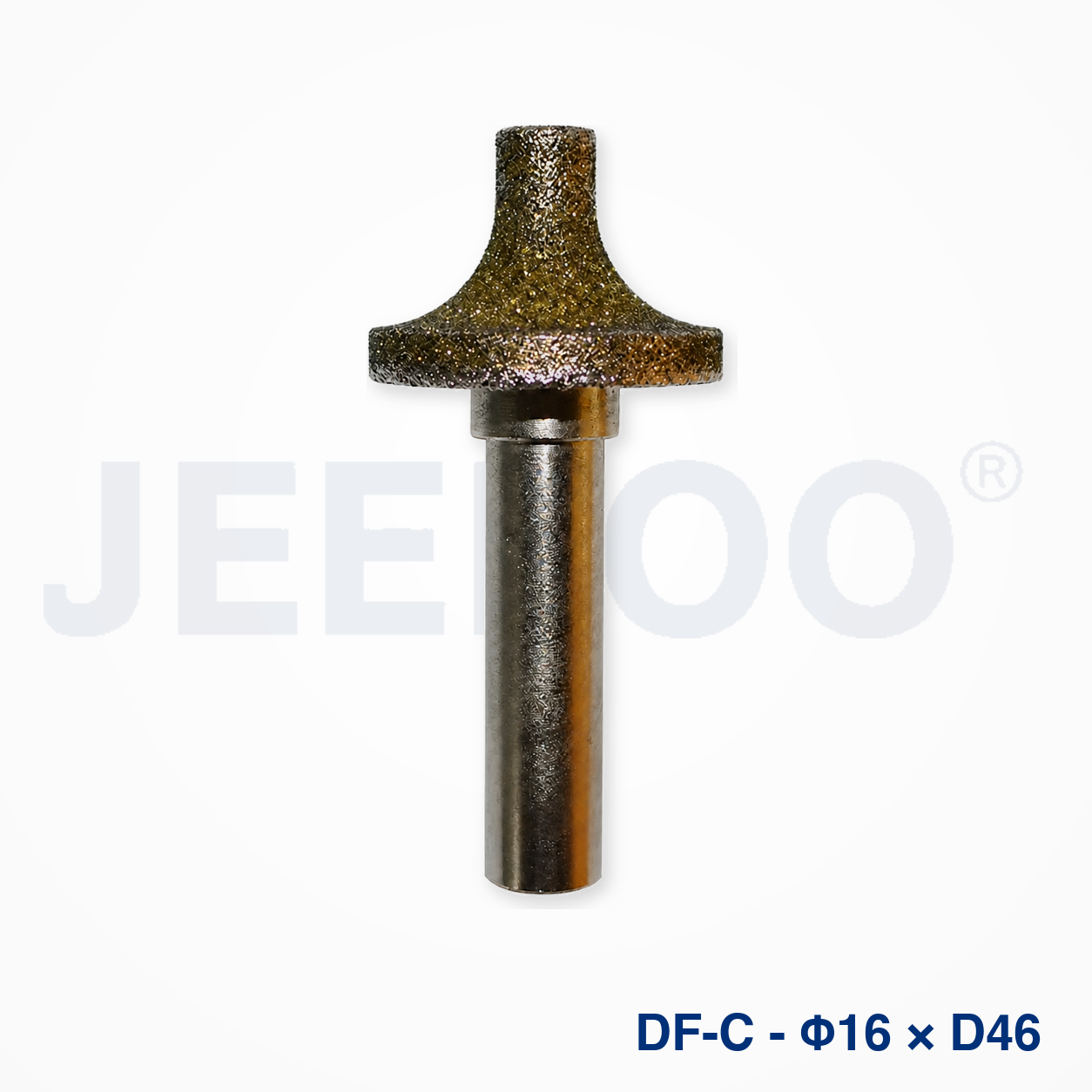

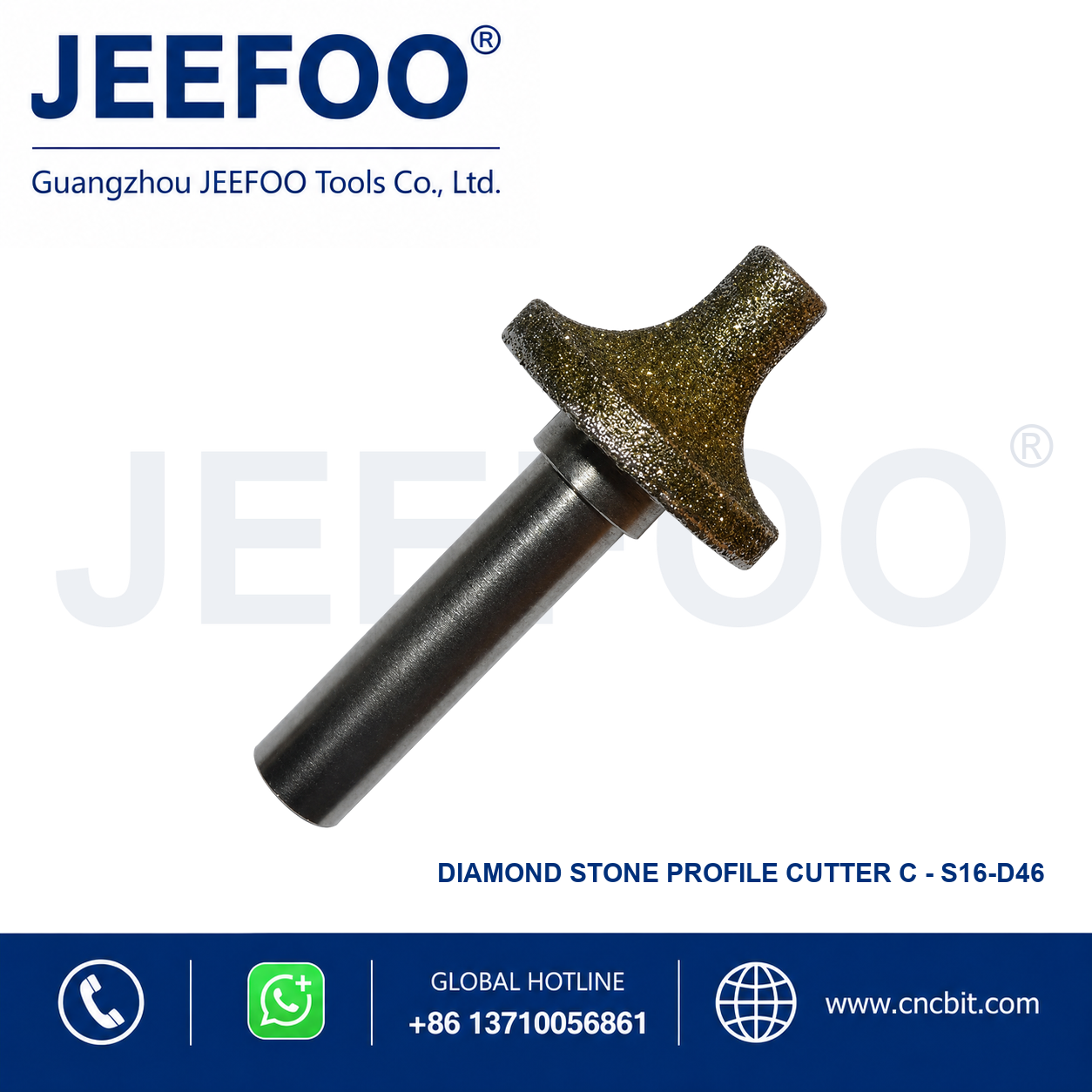

16mm D46 C-Type Diamond Stone Forming Bit
The C-Type diamond stone forming bit from JEEFOO in Guangzhou, China uses a 16 mm body and D46 diamond grit for repeatable C-profile shaping on marble and compatible stone. Its dedicated contour can reduce multiple tool changes when the required edge matches the approved profile drawing.
Applications and Material Range
- C-profile marble edge forming
- Stone contour finishing and repeat production
- Decorative edge shaping on compatible mineral materials
- CNC processing after drawing and dimension confirmation
CNC Setup and Cooling
Before using a C-Type diamond stone forming bit, verify the spindle interface, tool runout and workpiece support. Begin with conservative engagement and a moderate feed, then adjust according to stone hardness, spindle load, vibration and surface quality.
Use wet cooling when the machine and process permit it. For approved dry machining, provide effective dust extraction and follow silica-control requirements. Avoid dwelling in the cut because concentrated heat can damage the surface and reduce diamond-tool life.
Maintaining Profile Accuracy
Measure the first finished edge against the drawing or master sample. Stable fixturing, small runout and consistent stock allowance help the C-Type diamond stone forming bit reproduce the contour across a batch. Record feed, speed, cooling and inspection results for repeat jobs.
Ordering from JEEFOO
Provide the C-profile drawing, stone type, machine, spindle interface, allowance, finish standard and quantity. JEEFOO can review these details and confirm whether the 16 mm D46 specification is suitable.
Frequently Asked Questions
Can this bit make any C profile? No. The tool contour must match the required drawing; verify dimensions before ordering.
Why is a test cut important? It confirms profile dimensions, feed, cooling and finish before full production.
Explore more JEEFOO diamond stone tools and review the OSHA silica safety resource.
Product Description
This C-type diamond forming bit uses a 16 mm body and D46 diamond grit for cutting and shaping the specified C-profile on marble and related stone materials. Its dedicated contour supports consistent edge geometry during repeated CNC processing.
Choose this version when the required profile matches the C-type product drawing. Proper cooling and conservative feed settings help maintain surface quality and diamond tool life.
Recommended Applications
- C-profile stone forming
- Marble edge shaping
- CNC stone contour finishing
