The WU soft and hard package chamfering engraving bit is designed for controlled edge forming and decorative engraving on compatible soft-package and hard-package panel components. Its profiled geometry supports chamfers, grooves, and detailed surface transitions when the cutter, machine, and material are correctly matched. JEEFOO supplies CNC panel-machining tools from Guangzhou, Guangdong, China.
WU Soft and Hard Package Chamfering Engraving Bit Features
- Combined chamfering and engraving capability
- Profiled geometry for decorative panel processing
- Suitable for compatible CNC routing equipment
- Supports consistent edge and groove formation
- Useful for approved interior and furniture-panel materials
Profile Compatibility and Edge Control

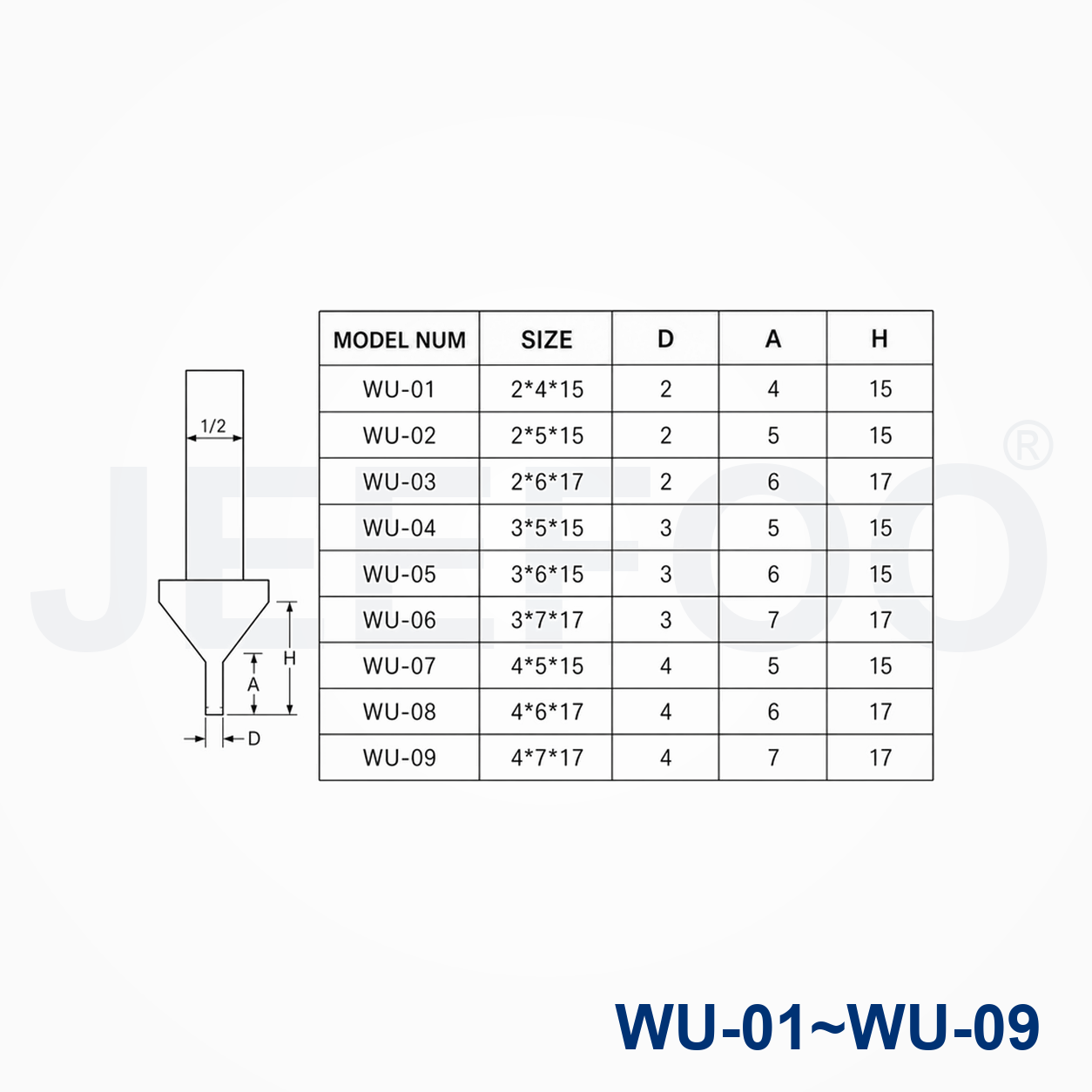

Before ordering a WU soft and hard package chamfering engraving bit, compare the required profile drawing with the tool radius, diameter, cutting length, shank or bore, overall length, and machine clearance. Confirm the rotation direction and spindle limits. The correct profile match is essential for clean chamfers and repeatable decorative details.
Materials and Interior Panel Applications
This cutter may be used on compatible decorative wall panels, upholstered panel substrates, wood-based boards, composite panels, and related interior finishing materials. Material density, fabric or surface covering, adhesive content, backing hardness, workholding, and dust extraction all affect the result. Soft and hard package components may require different feeds and cutting depths.
Typical work includes chamfered edges, decorative channels, panel transitions, furniture details, and repeat production where a consistent pattern matters. Use a sample from the same material batch before machining finished components. Do not exceed the cutter profile, spindle speed, feed, or depth limits.
How to Set Up the Chamfering Engraving Bit
- Review the approved profile drawing and select the matching tool.
- Inspect the cutting edge, tool body, shank, and machine collet.
- Clean locating surfaces and install the cutter securely.
- Verify rotation direction, clearance, guarding, and dust extraction.
- Start with conservative spindle speed, feed rate, and cutting depth.
- Run a test edge and measure the chamfer and groove dimensions.
- Adjust one parameter at a time before production.
Speed, Feed, and Progressive Passes
Use settings within the machine and tool manufacturer’s limits. Feed that is too slow can create rubbing and heat, while excessive feed can tear soft coverings or overload harder backing materials. Use progressive passes for deeper profiles and keep chips away from the finished edge. Stable workholding and low runout help the WU soft and hard package chamfering engraving bit produce a cleaner transition.
Production Testing and Quality Control
Inspect the first panel, a middle sample, and the final component. Check chamfer width, groove depth, alignment, surface marks, lifting, tearing, and edge transitions. Record the material batch, tool identification, spindle speed, feed rate, depth per pass, and cutting direction. This routine helps operators detect process drift and distinguish tool wear from changes in coverings, adhesives, backing density, workholding, spindle condition, or dust buildup.
Maintenance and Safe Handling
Remove dust, fibers, and adhesive residue with a suitable non-abrasive method. Inspect the cutting edge under good lighting and stop using the bit if an edge is chipped, the body is damaged, or vibration increases. Store the WU soft and hard package chamfering engraving bit in protective packaging. Arrange specialist inspection when cleaning and normal setup checks cannot restore the required finish.
Panel Tool Supplier in Guangzhou, Guangdong
JEEFOO supports customers in Guangzhou, Guangdong and international markets with CNC-tool selection and application guidance. Explore our woodworking cutting tools and product range for additional panel solutions. For a quotation, provide the profile drawing, material structure, tool dimensions, machine model, spindle limits, and expected quantity.
Frequently Asked Questions
What is a chamfering engraving bit used for?
It forms controlled chamfers, grooves, and decorative details on compatible panels using a suitable CNC router or routing machine.
Can the same setting process soft and hard panels?
No. Covering, backing hardness, adhesive, and density can differ. Start with a sample and adjust speed, feed, and depth for each material.
When should the WU soft and hard package chamfering engraving bit be serviced?
Arrange inspection when edge quality declines, dimensions drift, vibration rises, or the cutting edge appears damaged.
