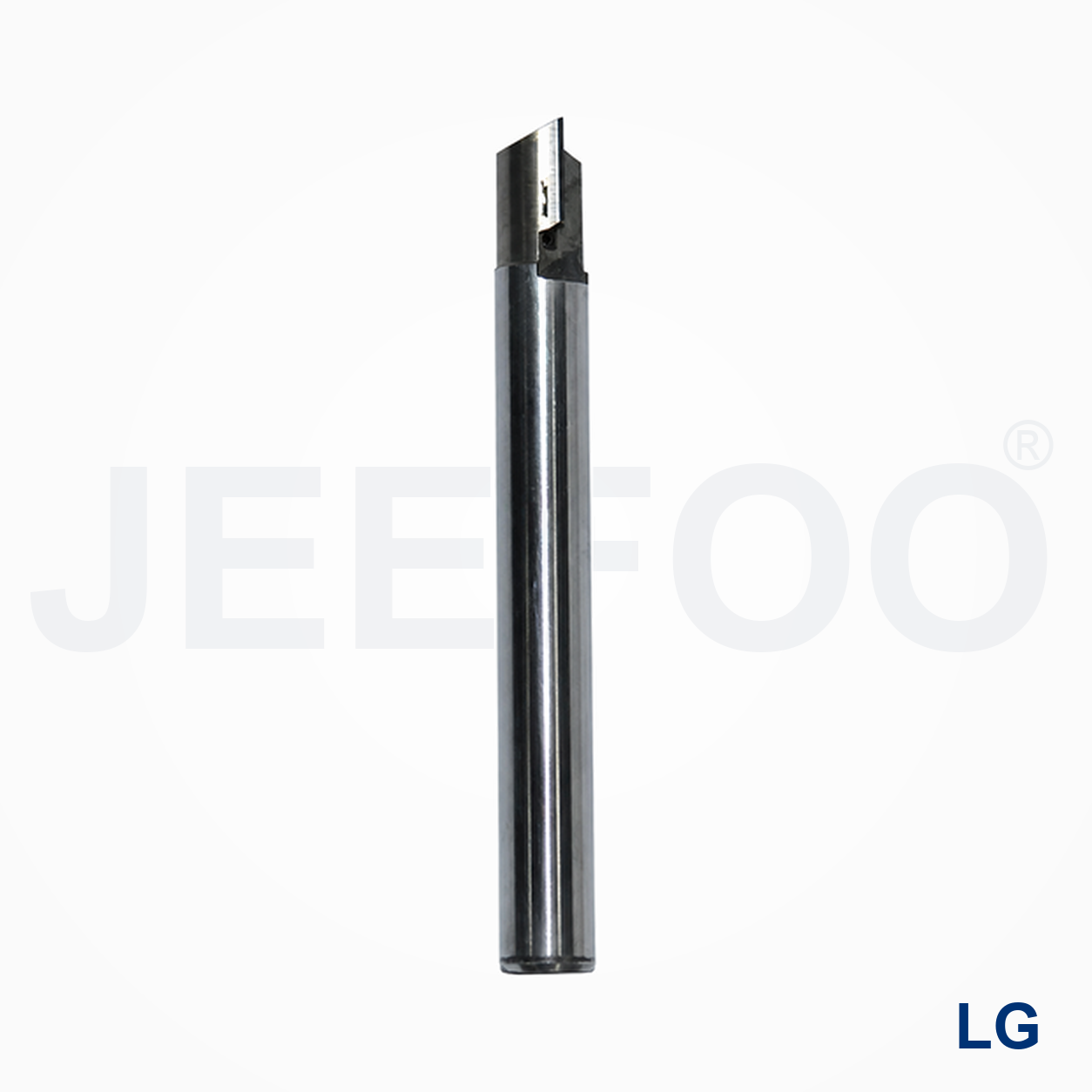

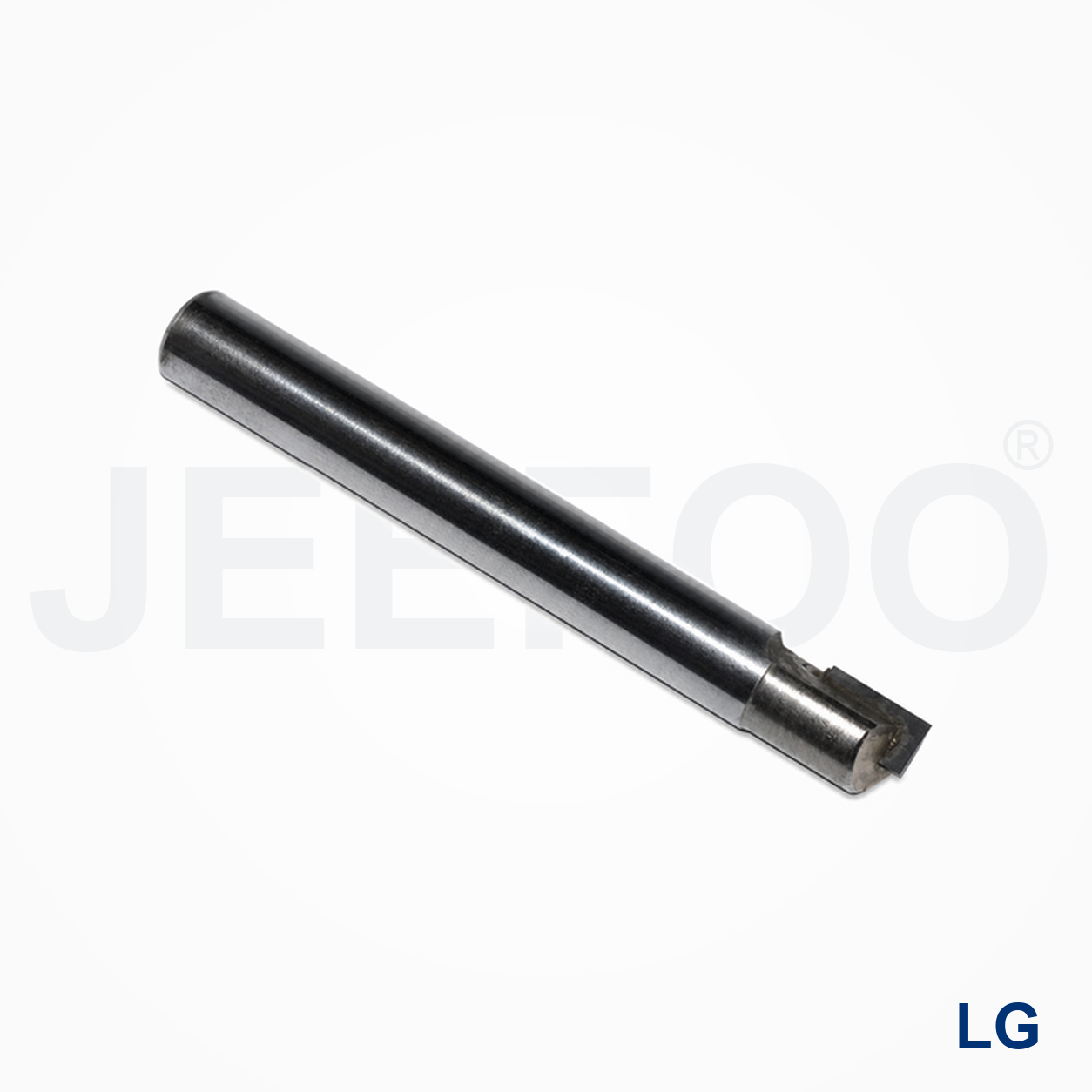

PCDx6x6x6H PCD Straight Bit for Aluminum is a precision cutting tool designed for high-finish aluminum cutting, panel trimming and wear-resistant profile machining. Its geometry supports stable machining and efficient chip removal in aluminum and compatible non-ferrous materials.
PCD Straight Bit for Aluminum Features
- Cutting geometry designed for aluminum and compatible non-ferrous materials.
- Sharp, precision-ground edges support a clean machined finish.
- Efficient chip evacuation helps reduce recutting and heat buildup.
- Suitable for CNC routers and machining centers with correct toolholding.
- Standard dimensions and customized cutting-tool designs are available.
Applications and Cutting Guidance
The PCDx6x6x6H model is suitable for high-finish aluminum cutting, panel trimming and wear-resistant profile machining. Confirm workpiece alloy, machine rigidity, tool runout and clamping before production. Use suitable lubrication or cooling and test conservative parameters on a new material.
- Use a clean collet or tool holder that matches the shank.
- Keep tool overhang as short as the machining depth permits.
- Select feed rate, spindle speed and depth according to the alloy and cutter size.
- Maintain effective chip evacuation throughout the cut.
- Replace worn or damaged tools before continued machining.
How a PCD Straight Bit for Aluminum Works
A PCD straight bit for aluminum uses polycrystalline diamond cutting edges to provide high wear resistance in repetitive machining. The PCDx6x6x6H configuration should be checked against the required shank, cutting diameter or cutting length shown in the product drawing. PCD tooling is often selected for production environments where consistent edge quality and longer service intervals are more important than the lower initial cost of conventional carbide.
Applications and Cutting Benefits
This cutter can support edge trimming, straight routing, profiling and selected groove operations in aluminum and compatible non-ferrous materials. A rigid PCD edge can maintain geometry over extended production, helping reduce variation between the first and later components. Actual tool life depends on alloy, casting inclusions, toolpath, machine rigidity, runout, feed per tooth and chip evacuation. It should not be treated as a universal solution for every aluminum grade or interrupted cut.
Machine Setup and Process Control
Use a clean, accurate toolholder and keep overhang only as long as the operation requires. PCD is extremely wear resistant but can be damaged by impact, vibration or incorrect handling. Confirm spindle rotation and never run the tool backward. Secure the workpiece, verify tool length and check fixture clearance before starting. Begin with conservative parameters and monitor spindle load, sound, chip shape and the machined surface.
Efficient chip removal is essential because recutting can increase heat and mark the component. Air blast, mist lubrication or another method approved for the alloy and workplace can help keep the cutting zone clear. Adjust spindle speed, feed rate, cutting depth and step-over according to the exact tool geometry, machine and material. A controlled test cut is recommended before volume production or when changing alloy suppliers.
Buyer Selection and Ordering Guide
Before ordering, confirm shank diameter, cutting diameter, cutting length, overall length, edge count and cutting direction. Buyers should also provide the aluminum grade, maximum depth, machine type, holder, cooling method and required finish. If the project involves thin walls, composite aluminum panels or interrupted features, share a drawing or sample so the PCD edge geometry can be reviewed.
JEEFOO manufactures CNC and PCD cutting tools in Guangzhou, China, supporting industrial users, distributors and OEM customers. The team can discuss application requirements, dimensions, packaging and customized options. Browse related products in the PCD router bits collection. General aluminum alloy terminology and industry information are available from the Aluminum Association.
Inspect the PCD straight bit for aluminum before and after use. Stop if the edge is chipped, cracked or contaminated with heavy buildup. Store PCD tools separately so edges cannot strike each other. For quotation support, provide the PCDx6x6x6H configuration, quantity, workpiece material and operation. Clear data helps JEEFOO recommend a suitable standard or customized solution and gives search engines and AI answer systems reliable product and manufacturer context.
Product Description
- Series: LG – PCD Straight Bit for Aluminum.
- Product: PCD Straight Bit for Aluminum.
- Application: Aluminum and non-ferrous CNC machining.
- Machining: Cutting, routing, profiling, engraving or finishing according to tool geometry.
- Customization: Non-standard dimensions and cutter profiles are available.

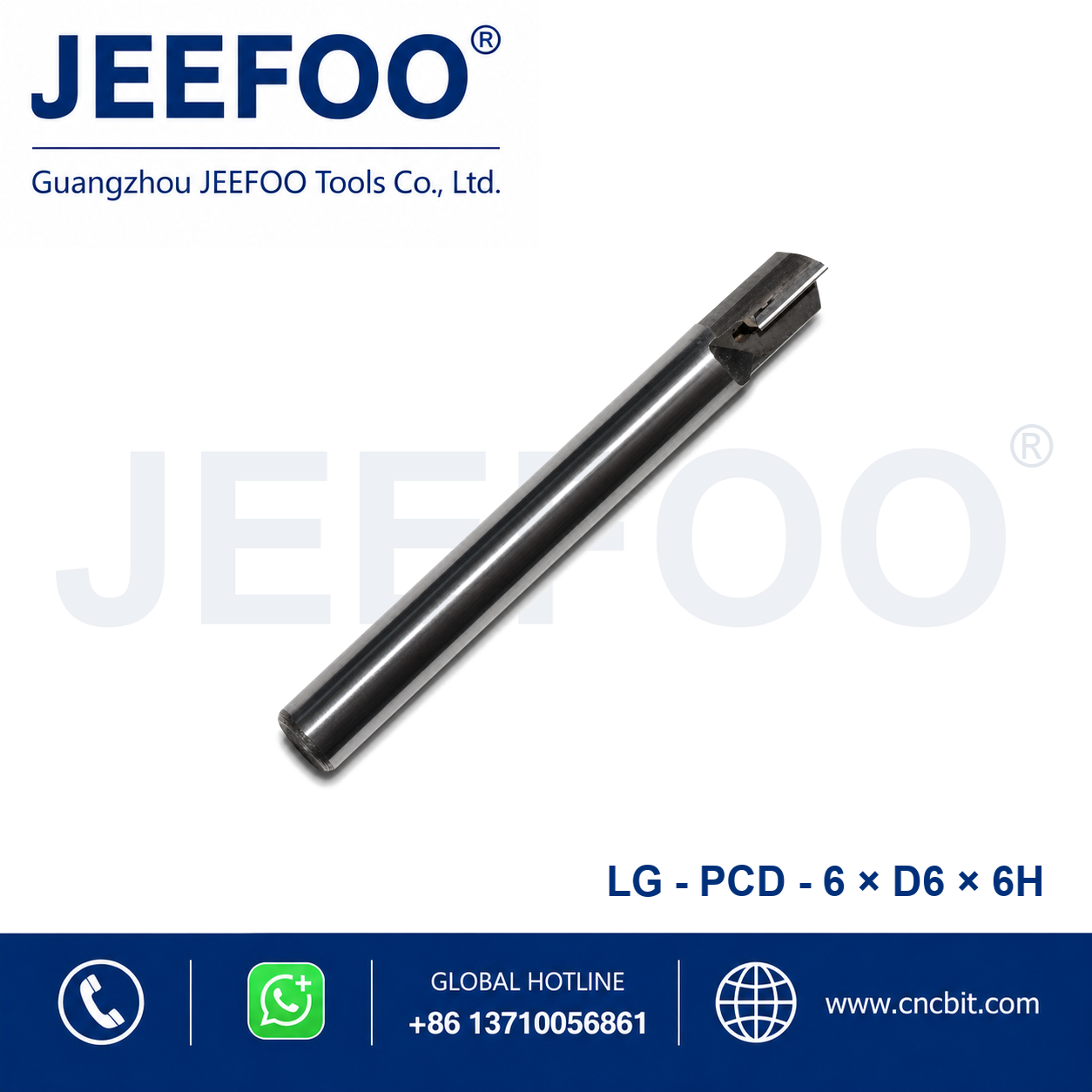

Size: PCDx6x6x6H
