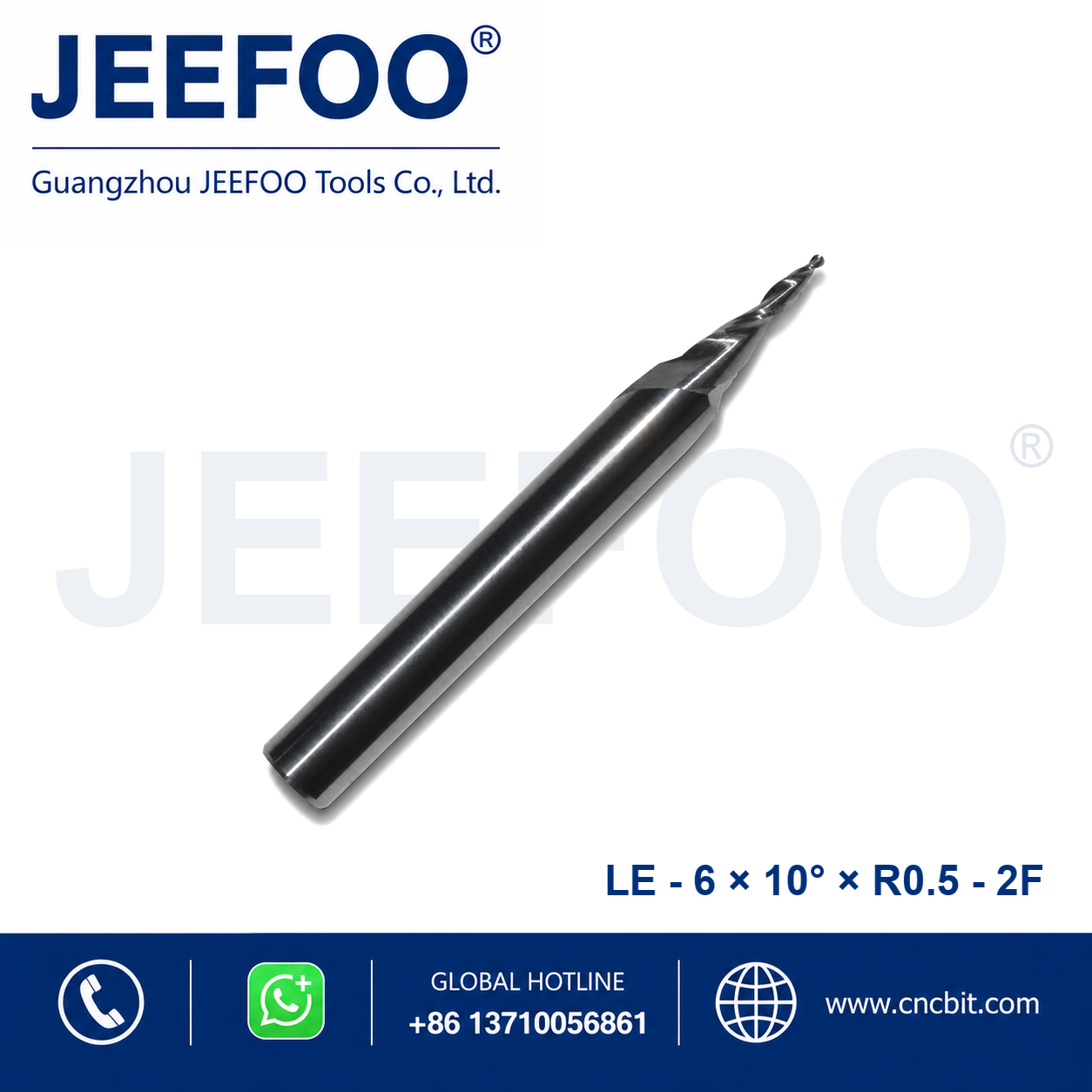

6xOneSide10DxR0.5 Aluminum Relief Carving Engraving Bit is a precision cutting tool designed for aluminum and copper relief carving, tapered engraving and detailed surface machining. Its geometry supports stable machining and efficient chip removal in aluminum and compatible non-ferrous materials.
Aluminum Relief Carving Engraving Bit Features
- Cutting geometry designed for aluminum and compatible non-ferrous materials.
- Sharp, precision-ground edges support a clean machined finish.
- Efficient chip evacuation helps reduce recutting and heat buildup.
- Suitable for CNC routers and machining centers with correct toolholding.
- Standard dimensions and customized cutting-tool designs are available.
Applications and Cutting Guidance
The 6xOneSide10DxR0.5 model is suitable for aluminum and copper relief carving, tapered engraving and detailed surface machining. Confirm workpiece alloy, machine rigidity, tool runout and clamping before production. Use suitable lubrication or cooling and test conservative parameters on a new material.
- Use a clean collet or tool holder that matches the shank.
- Keep tool overhang as short as the machining depth permits.
- Select feed rate, spindle speed and depth according to the alloy and cutter size.
- Maintain effective chip evacuation throughout the cut.
- Replace worn or damaged tools before continued machining.
Why Choose This Aluminum Relief Carving Engraving Bit?

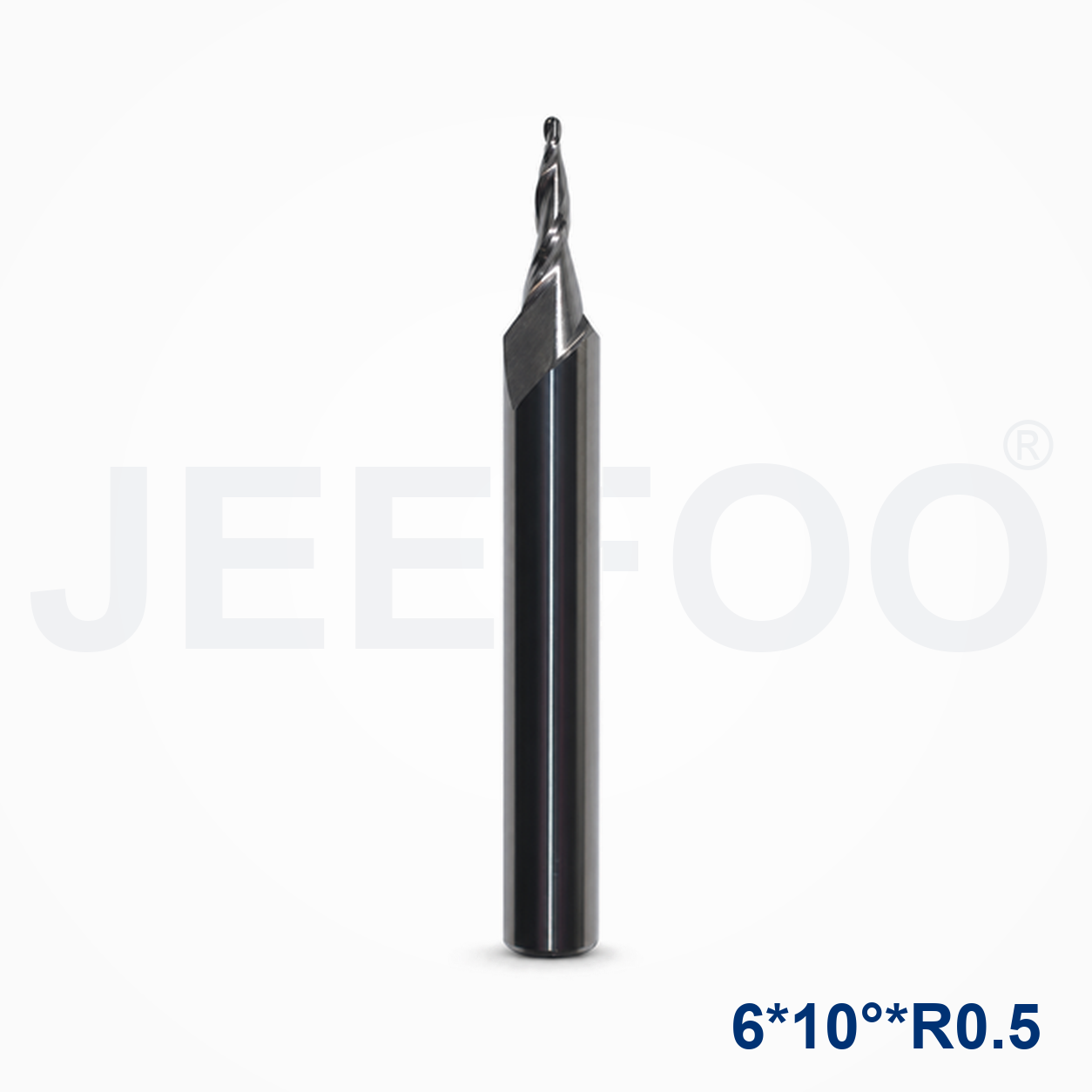

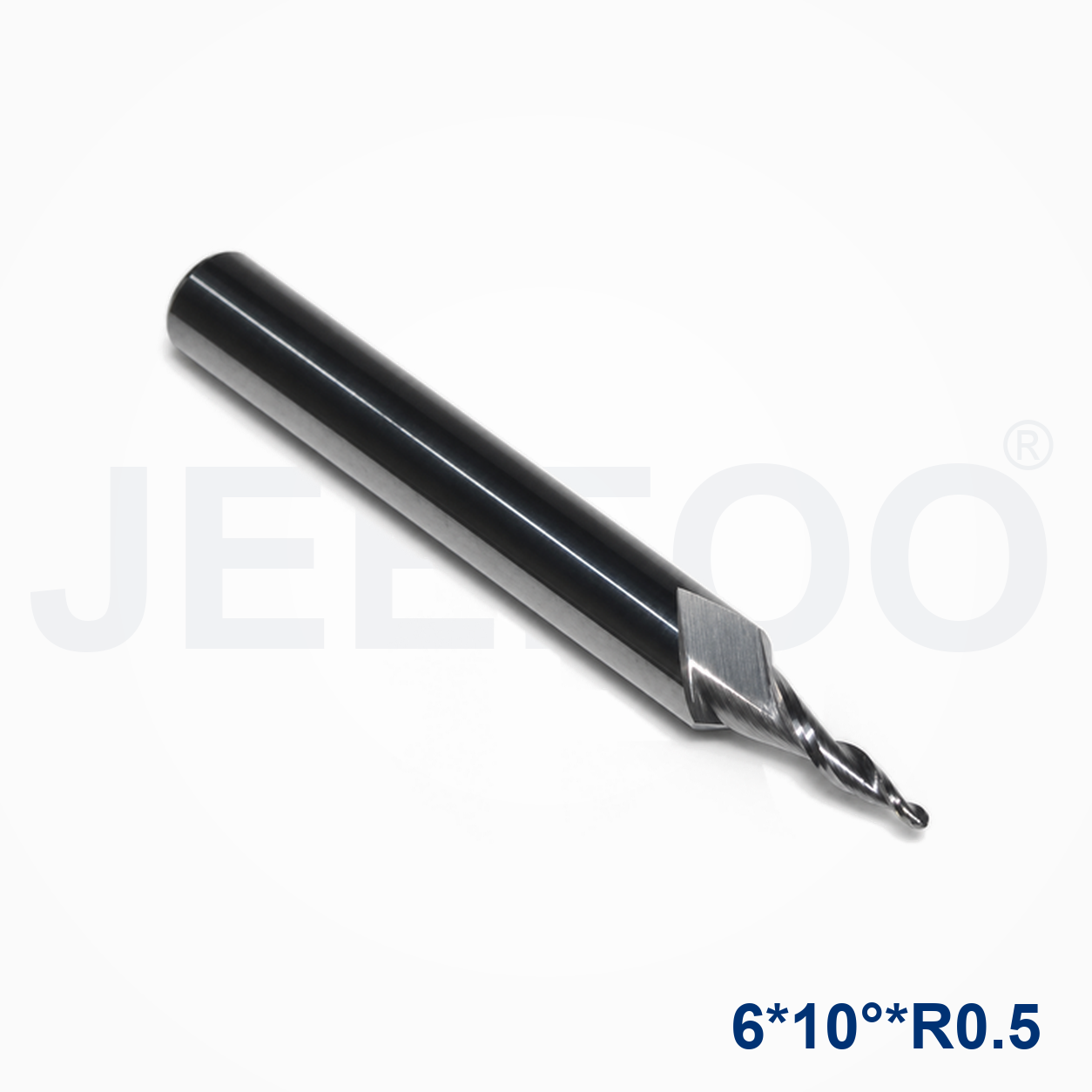

An aluminum relief carving engraving bit with a 6 mm shank, one-sided 10-degree profile and R0.5 tip radius is designed for detailed CNC relief work. The tapered geometry can reach narrow areas, form controlled side walls and produce fine contours that are difficult for a standard straight cutter. It is suitable for sign makers, mold shops and manufacturers producing aluminum logos, decorative panels, nameplates and customized components.
The R0.5 tip provides a useful balance between detail and edge strength. Confirm the actual 10-degree geometry, cutting depth, shank diameter and tool length against the drawing before ordering. A correct match reduces trial time and helps the tool follow programmed relief paths accurately. The workpiece alloy, machine rigidity, spindle condition and required surface finish should also be supplied for selection support.
CNC Setup and Cutting Recommendations
Clean the collet and shank, minimize tool overhang and check spindle runout before production. Secure the workpiece firmly and begin with conservative spindle speed, feed rate and pass depth. Make a short test cut, then inspect chip shape, cutting sound, temperature and surface quality. Adjust only one parameter at a time so the effect on tool life and finish can be recorded clearly.
Effective chip evacuation is important when machining aluminum because recut chips can create heat and built-up edge. Air blast, mist lubrication or another suitable method may improve cutting when permitted by the machine and workplace rules. Avoid dwelling at the bottom of a relief path. For repeat jobs, save the approved parameters for the same aluminum relief carving engraving bit and material grade.
Materials, Inspection and Tool Life
This cutter is mainly intended for aluminum and compatible non-ferrous materials. Actual suitability varies with alloy hardness, abrasiveness, tool engagement and cooling. Buyers can review the general properties of tungsten carbide when comparing rigidity and wear resistance. Inspect the tip and cutting edge under good lighting before each job and replace a chipped or heavily worn cutter.
Store the bit dry and protected so the cutting edge cannot contact other tools. Clean residue using an appropriate workshop method and use secure packaging during transport. Stop the machine if vibration, unusual noise, burrs or excessive heat appears, then verify runout, clamping and cutting load. Documented inspection helps production teams and distributors compare repeat orders more reliably.
JEEFOO Supplier in Guangzhou, China
JEEFOO supplies CNC cutting tools from Guangzhou, China for distributors, workshops and manufacturers. Send the workpiece material, drawing, machine details, required dimensions, quantity and packaging needs for selection support. Standard LE-series tools and customized specifications can be discussed for export or local orders. Browse more JEEFOO CNC router bits for related aluminum machining applications.
Frequently Asked Questions
What does 6xOneSide10DxR0.5 describe?
It identifies the 6 mm shank and the confirmed one-sided 10-degree, R0.5 cutting geometry. Buyers should verify every dimension and the usable cutting length on the drawing.
Can JEEFOO provide a customized cutter?
Yes. Provide the alloy, machine, drawing, target detail, dimensions and quantity. The Guangzhou team can review a standard or customized aluminum relief carving engraving bit for the application.
Product Description
- Series: LE – Special Engraving Bit for Aluminum Relief Carving.
- Product: Aluminum Relief Carving Engraving Bit.
- Application: Aluminum and non-ferrous CNC machining.
- Machining: Cutting, routing, profiling, engraving or finishing according to tool geometry.
- Customization: Non-standard dimensions and cutter profiles are available.
Size: 6xOneSide10DxR0.5
