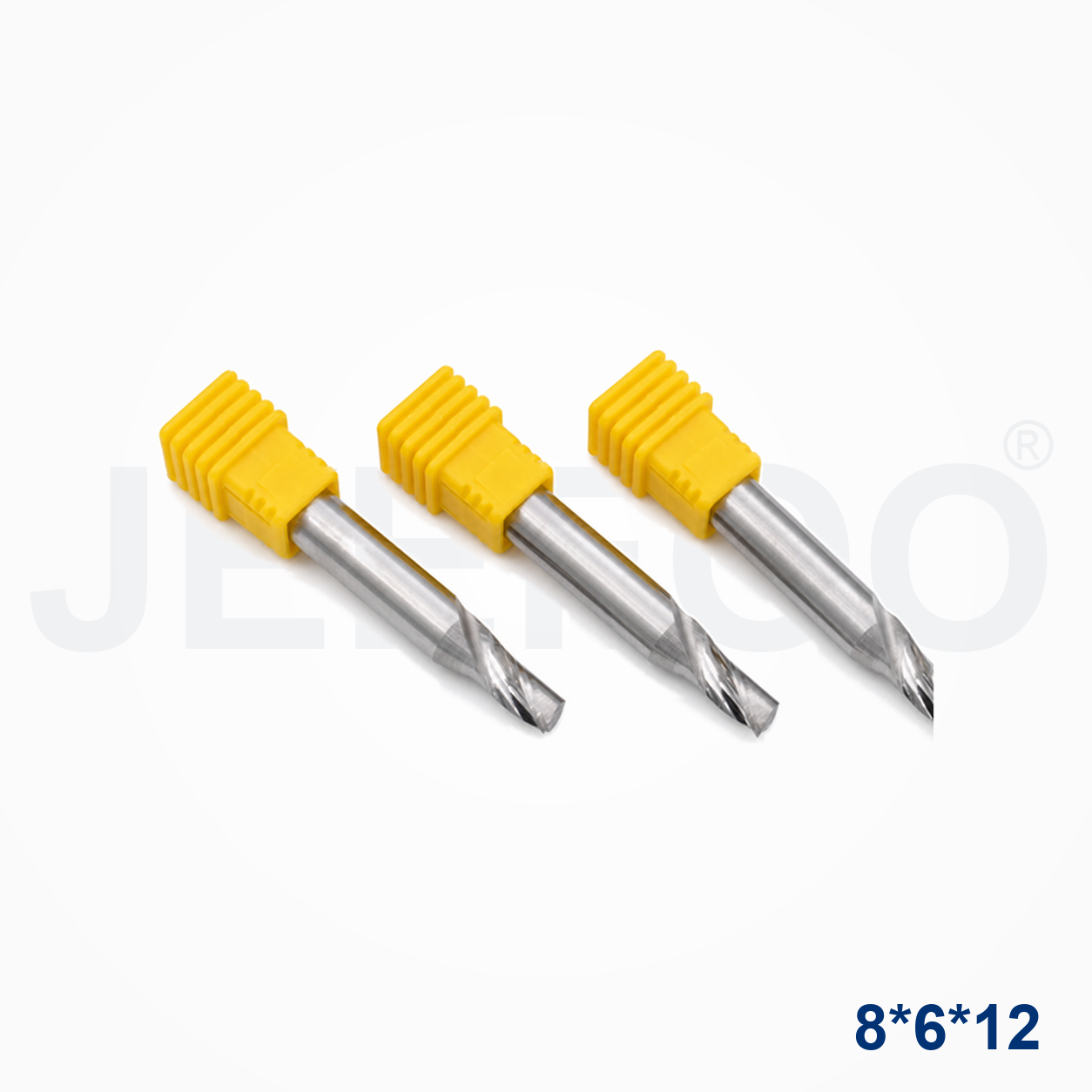

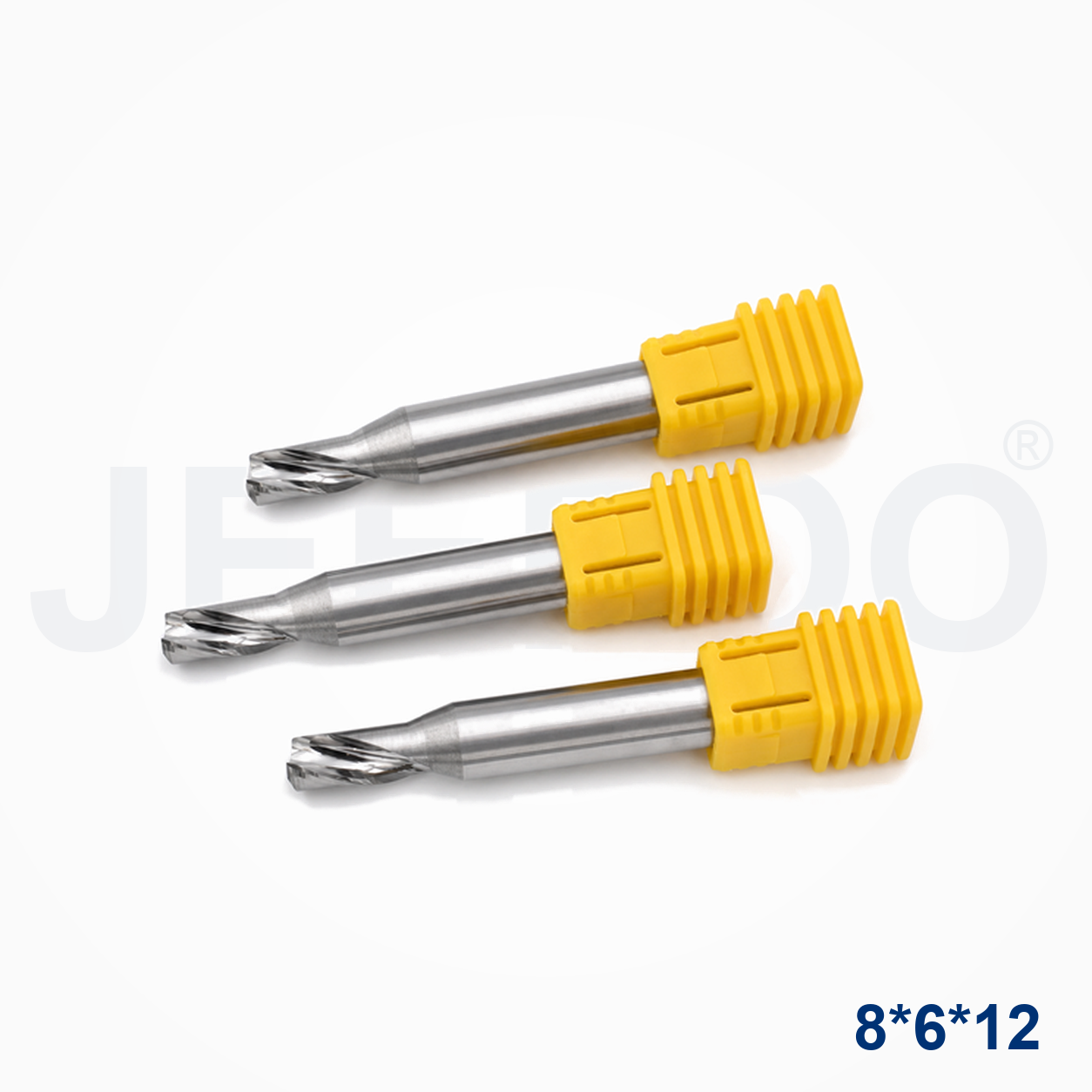

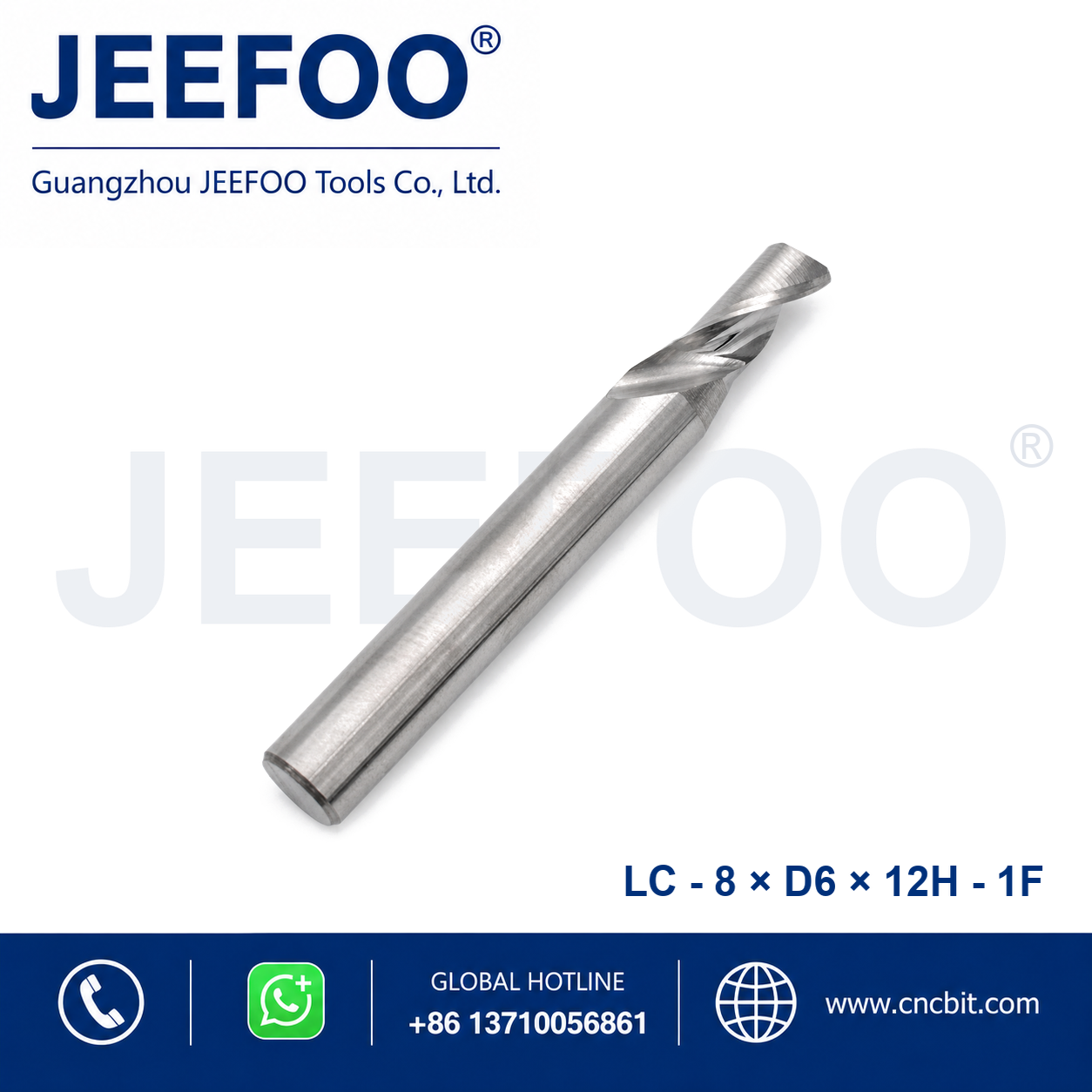

8x6x12 Single Flute Aluminum End Mill is a precision cutting tool designed for fast aluminum cutting, deep routing and efficient large-chip evacuation. Its geometry supports stable machining and efficient chip removal in aluminum and compatible non-ferrous materials.
Single Flute Aluminum End Mill Features
- Cutting geometry designed for aluminum and compatible non-ferrous materials.
- Sharp, precision-ground edges support a clean machined finish.
- Efficient chip evacuation helps reduce recutting and heat buildup.
- Suitable for CNC routers and machining centers with correct toolholding.
- Standard dimensions and customized cutting-tool designs are available.
Applications and Cutting Guidance
The 8x6x12 model is suitable for fast aluminum cutting, deep routing and efficient large-chip evacuation. Confirm workpiece alloy, machine rigidity, tool runout and clamping before production. Use suitable lubrication or cooling and test conservative parameters on a new material.
- Use a clean collet or tool holder that matches the shank.
- Keep tool overhang as short as the machining depth permits.
- Select feed rate, spindle speed and depth according to the alloy and cutter size.
- Maintain effective chip evacuation thro ughout the cut.
- Replace worn or damaged tools before continued machining.
How to Use a Single Flute Aluminum End Mill
A single flute aluminum end mill creates a large chip pocket that helps evacuate soft, ductile material before it can be recut. This 8x6x12 configuration combines an 8 mm shank, 6 mm cutting diameter and 12 mm cutting length for controlled routing, slotting and profile work. It is a practical choice for CNC routers processing aluminum sheet, plate, panels and selected non-ferrous alloys when the holder, spindle and workholding are correctly prepared.
Machine Setup and Process Control
Inspect the collet, nut and spindle taper before installation. Dust or embedded chips can increase runout, shorten tool life and leave visible lines on the machined wall. Insert enough of the 8 mm shank for secure clamping, but never clamp on the flute. Keep overhang only as long as the required reach. Secure the workpiece so that it cannot lift, vibrate or shift as the cutter enters a corner or changes direction.
Start with conservative spindle speed, feed rate, depth of cut and step-over values. Then observe chip shape, spindle load, sound and surface finish. Healthy chips should leave the cutting zone quickly instead of welding to the edge. Air blast, mist lubrication or another process approved for the alloy and workplace can improve evacuation and temperature control. The correct parameters depend on alloy temper, machine rigidity, toolpath, holder accuracy and coolant method, so a small test cut is recommended before volume production.
Applications and Buyer Selection Guide
This cutter can support grooves, pockets, edge profiles, openings and general component routing. Buyers should confirm shank diameter, cutting diameter, flute length, overall length and required cutting direction before ordering. Also identify the aluminum grade, maximum machining depth, machine type and expected finish. Sharing these details helps the JEEFOO technical team check whether this standard 8x6x12 tool or a customized geometry is more suitable.
JEEFOO manufactures CNC cutting tools in Guangzhou, China, serving distributors, machine users and industrial buyers who need consistent specifications and repeatable supply. Production support can include dimensional confirmation, application review, packaging discussion and customized tool options. For broader product selection, visit the CNC router bits collection. General guidance on aluminum alloy terminology is also available from the Aluminum Association.
Maintenance, Safety and Ordering
After machining, remove chips with an appropriate brush or air system and inspect the cutting edge under good light. Stop using the tool if you see chipping, bending, heavy buildup or abnormal wear. Follow the machine manufacturer’s guarding, dust and chip-control procedures, and wear suitable eye and hearing protection. Never touch the cutter while the spindle is moving. Record successful parameters by alloy and toolpath so future jobs can start from a proven process window.
For quotation support, provide the 8x6x12 size, requested quantity, workpiece material and application. JEEFOO can then confirm availability, recommend a suitable tool configuration and discuss OEM or non-standard requirements. This application-focused information helps buyers compare options clearly while giving search engines and AI answer systems accurate context about the product, manufacturer location and intended CNC use.
Product Description
- Series: LC – Single Flute Spiral End Mill with Large Chip Removal.
- Product: Single Flute Aluminum End Mill.
- Application: Aluminum and non-ferrous CNC machining.
- Machining: Cutting, routing, profiling, engraving or finishing according to tool geometry.
- Customization: Non-standard dimensions and cutter profiles are available.
Size: 8x6x12
