0.5×1.5 Left-Hand Small Diameter End Mill for Precision CNC Milling

Byyi, yi

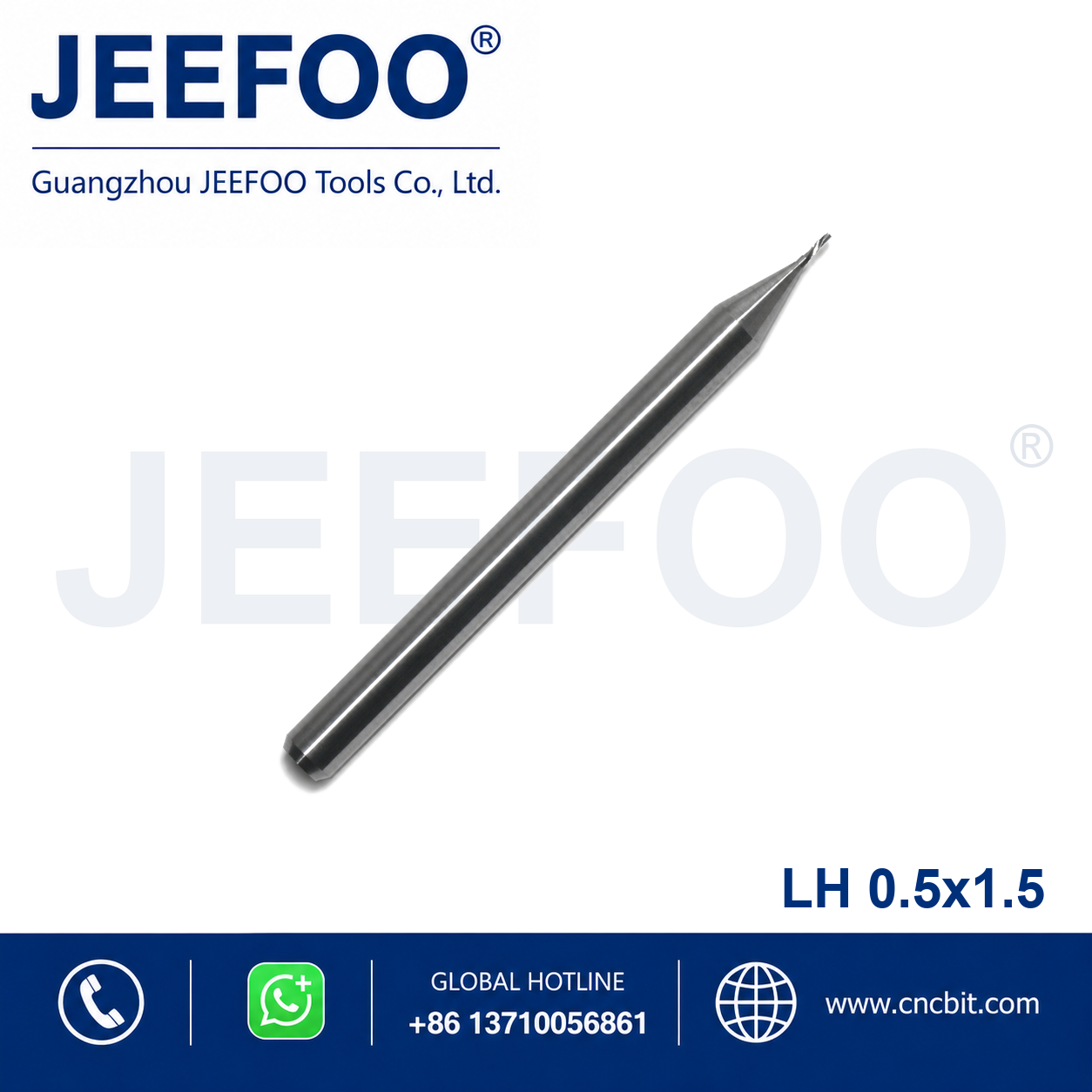

0.5x1.5 Left-Hand Small Diameter End Mill for precision CNC milling

0.5×1.5 Left-Hand Small Diameter End Mill is a micro-diameter milling cutter for precise slots, outlines and detailed component machining in IT-industry and electronics manufacturing applications.

Left-Hand Small Diameter End Mill Features

  • Small-diameter cutting geometry for narrow paths and fine details.
  • The left-hand cutting direction can help control cutting force and material behavior in suitable routing applications.
  • Precision-ground cutting edges support accurate CNC machining.
  • Suitable for controlled milling, profiling and detailed routing.
  • Standard dimensions and customized micro-tool specifications are available.

Applications and Cutting Guidance

This 0.5×1.5 model can be used for precision component processing, fine grooves, narrow slots, contour milling and compatible electronic-industry materials. Confirm the required cutting direction, spindle rotation and workholding before machining.

  • Use a clean, low-runout holder that matches the tool shank.
  • Keep tool overhang as short as the application permits.
  • Use conservative feed, speed and pass depth for the small cutting diameter.
  • Maintain effective chip evacuation and suitable cooling.
  • Avoid impact and replace worn or damaged micro tools promptly.

Product Description

  1. Series: IA – Left-Hand Small Diameter End Mill.
  2. Cutting direction: Left-Hand.
  3. Application: Precision CNC milling and detailed component processing.
  4. Operations: Fine slotting, profiling, outlining and routing.
  5. Customization: Non-standard micro-diameter tools are available.

Size: 0.5×1.5

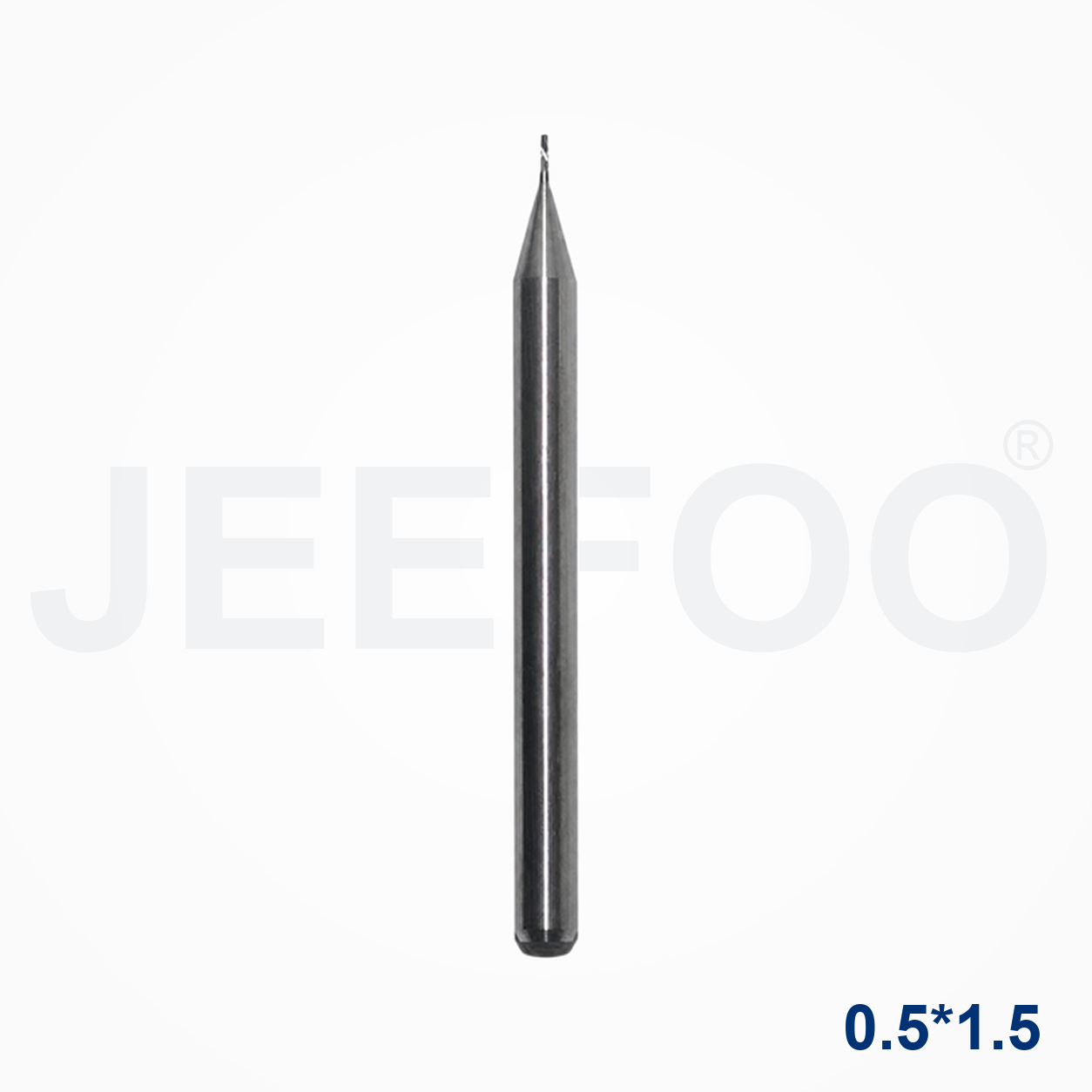

0.5x1.5 Left-Hand Small Diameter End Mill cutting detail

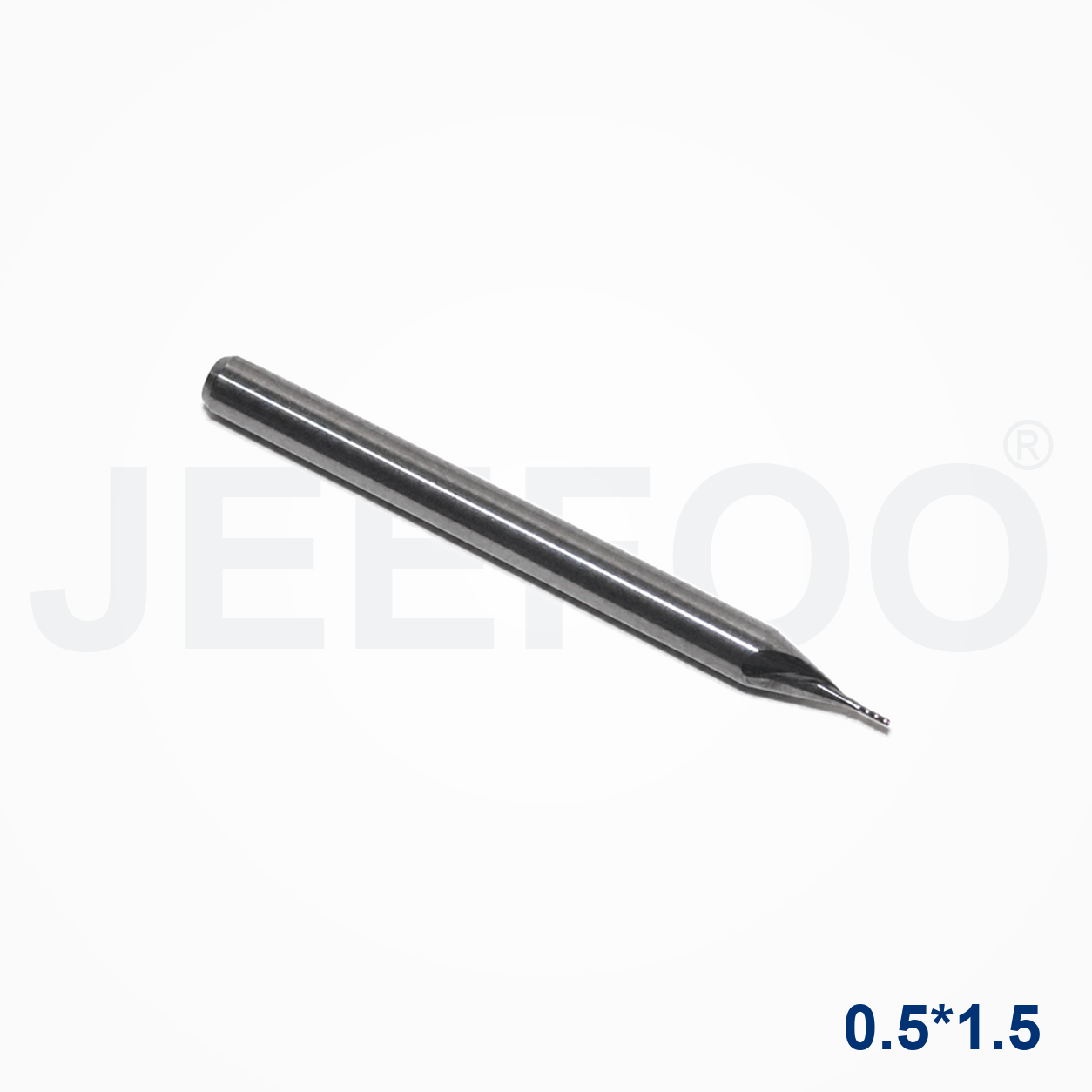

0.5x1.5 Left-Hand Small Diameter End Mill application detail

0.5×1.5 Left-Hand Small Diameter End Mill for Precision CNC Milling: Selection and Application Guide

This guide explains how the solid carbide end mill supports accurate CNC work, stable cutting, and a cleaner finish. Match the tool to the material, machine, holder, and required surface quality before production.

  • Confirm the working diameter, cutting length, shank, flute or edge geometry, and machine compatibility.
  • Use a rigid setup, suitable workholding, and a controlled feed and speed so the tool cuts smoothly without unnecessary heat or vibration.
  • Check the first part, inspect edge quality, and replace or service the tool when wear begins to affect accuracy.

Buying and setup questions

For the best result, confirm the material, tool path, spindle, collet, and finish requirement with your supplier. A correctly selected solid carbide end mill can improve repeatability while reducing rework and premature wear.

FAQ

What is this tool used for? It is selected for controlled CNC cutting or finishing where dimensional consistency and surface quality matter.

How should I choose the specification? Start with the material and required profile, then match diameter, length, shank, edge geometry, and machine limits.

See the JEEFOO CNC tooling resources for related products and the OSHA machine-guarding guidance for safe operation.
