6×12 Opening Knife Router Bit CNC Guide
The opening knife router bit from JEEFOO in Guangzhou, China is designed for open-end carving, decorative grooves, furniture profiles and controlled edge details. The 6×12 specification combines a rigid body with a carbide cutting tip for repeatable CNC woodworking.
Recommended Woodworking Applications
- Open-edge decorative profiles
- Furniture grooves and carved components
- Wood panel details and repeat production
- OEM profiles after drawing confirmation
CNC Setup and Cutting Parameters
Before using an opening knife router bit, confirm shank and collet compatibility, keep runout low and secure the timber or panel. Begin with a conservative feed and pass depth, then adjust according to wood density, chip formation, spindle load and edge quality.
Use effective extraction to remove chips and wood dust. Avoid pausing in the cut because rubbing can scorch the surface and shorten carbide-edge life. Test the programmed profile on scrap before machining a finished furniture part.
Ordering and Customization
When requesting an opening knife router bit, provide the profile drawing, shank size, cutting dimensions, material, machine model and expected quantity. JEEFOO can review OEM requirements and help confirm practical tolerances for CNC production.
Frequently Asked Questions
Which materials suit this cutter? It is intended for compatible wood and wood-based panels; always test unfamiliar laminates or composites.
How can burning be reduced? Use a sharp tool, correct chip load, steady feed and effective extraction, and avoid excessive dwell.
Explore more JEEFOO CNC router bits and review the OSHA woodworking safety resource.

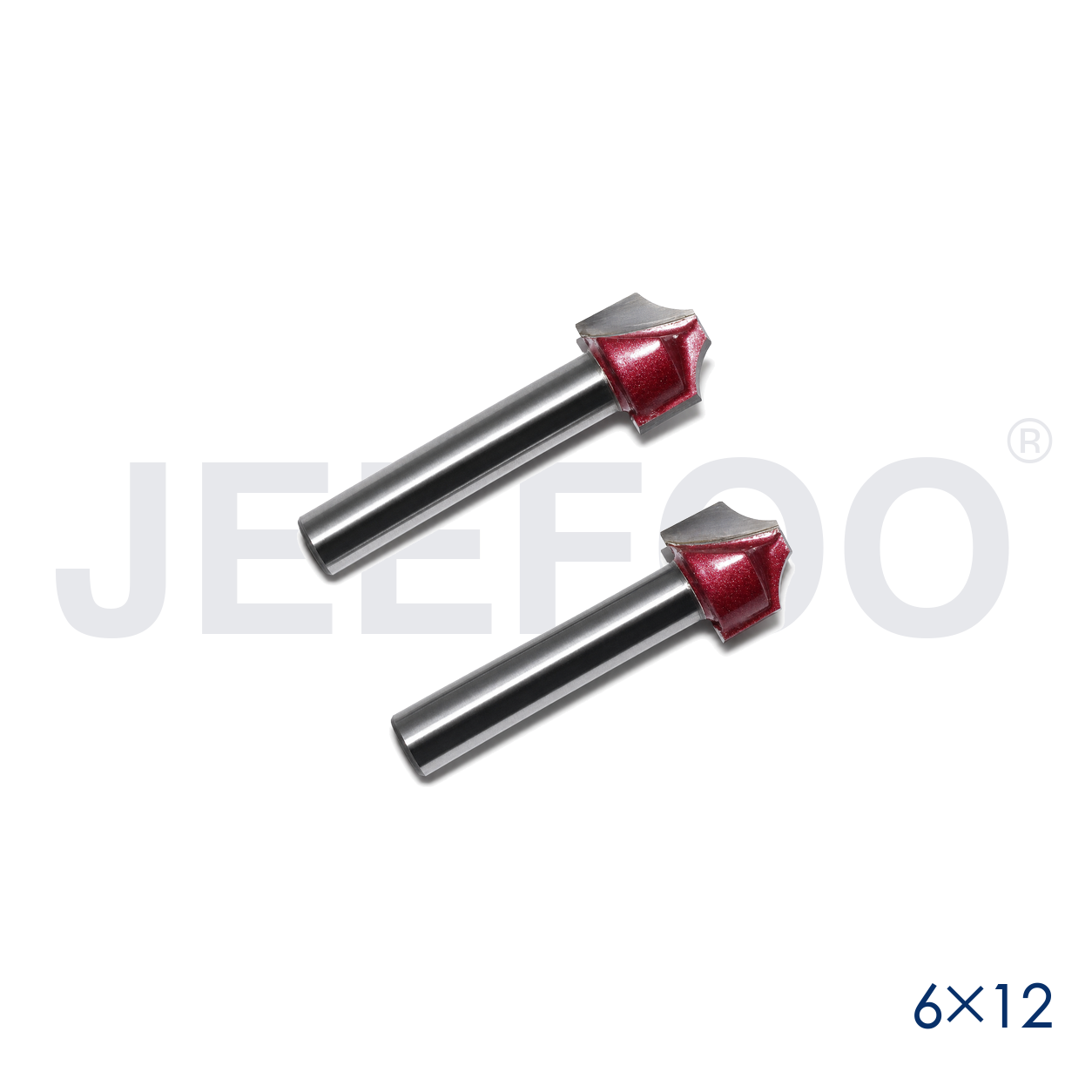

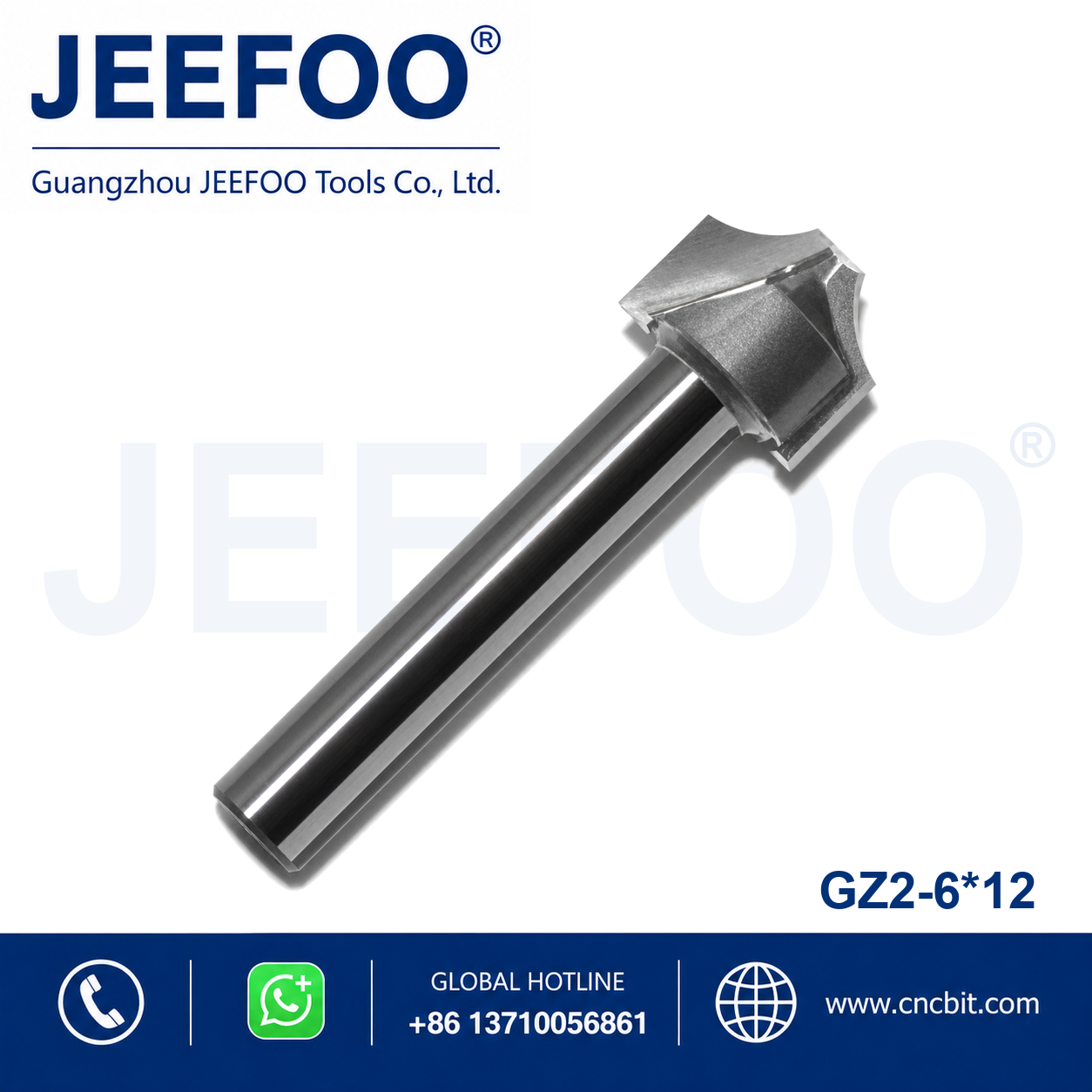

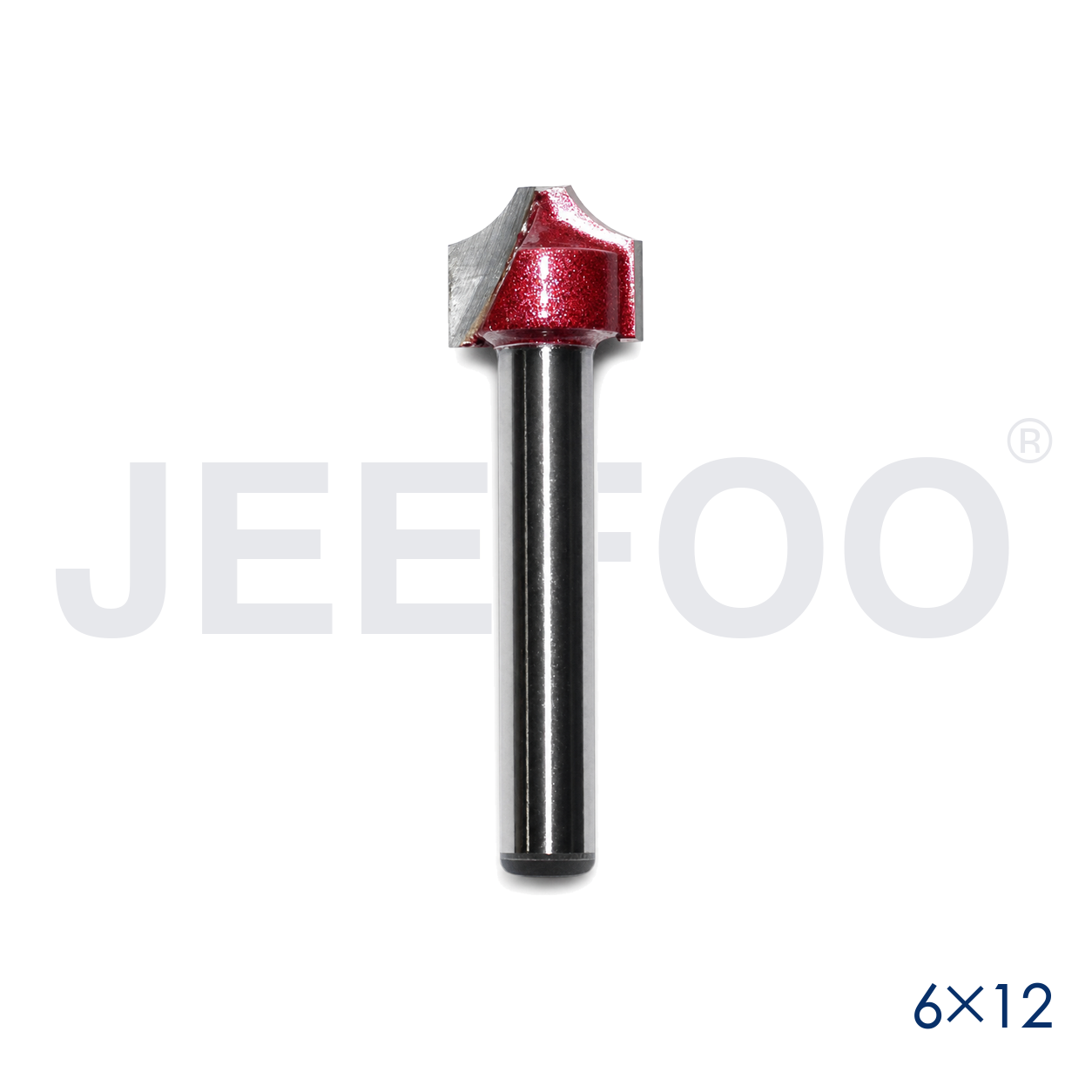

The 6×12 Opening Knife Router Bit is a professional woodworking CNC cutter for open-end carving, decorative grooves and profile machining. Its carbide-tipped cutting edge supports clean, consistent routing in compatible wood materials.
Opening Knife Router Bit Features
- Carbon steel body with a high-quality carbide cutting tip.
- Sharp profile designed for woodworking carving and decorative routing.
- Stable cutter construction supports accurate CNC production.
- Suitable for open-end carving, grooving, edge details and furniture work.
- OEM manufacturing and customized specifications are available.
Applications and Cutting Guidance
This 6×12 opening knife is designed for woodworking routers and CNC engraving machines. It can be used for decorative grooves, open-edge profiles, furniture components, signs, crafts and compatible wood panels when the correct machining parameters are applied.
- Use a clean collet that correctly matches the tool shank.
- Keep tool overhang short and secure the workpiece before cutting.
- Select feed rate, spindle speed and pass depth for the material and cutter profile.
- Use controlled passes for deep profiles or delicate decorative features.
- Maintain effective chip and dust extraction during production.
How to Select the Opening Knife Router Bit
The Opening Knife Router Bit should match the CNC router, workpiece and required profile. This 6×12 model is intended for open-end carving, decorative grooves, furniture details and profile routing. Check the shank diameter, cutting dimensions, available spindle clearance and the finished profile before machining.
- Confirm that the collet and shank are clean, undamaged and correctly matched.
- Choose the cutter profile according to the required groove, edge or decorative shape.
- Test the programmed toolpath on scrap material before running a production part.
- Adjust spindle speed, feed rate and pass depth to suit the material and machine rigidity.
Opening Knife Router Bit Setup and Maintenance
Accurate setup helps the Opening Knife Router Bit produce a smooth, repeatable result. Keep tool overhang as short as practical, verify workholding and inspect the cutting edge before use. Remove dust and resin after machining, but do not strike the carbide edge or use a damaged cutter.
For additional profiles, compare the complete GZ2 Opening Knife range. You can also browse JEEFOO CNC router bits for compatible engraving, grooving and woodworking cutters.
Opening Knife Router Bit FAQ
Which materials can this cutter machine?
The suitable materials depend on the cutter profile and machine setup. This model is intended for the materials listed in the product description, with conservative test cuts recommended for a new material grade.
How can chipping and vibration be reduced?
Use rigid workholding, low tool runout, a clean collet and appropriate cutting parameters. Controlled passes and effective chip extraction can improve surface quality and protect the cutting edge.

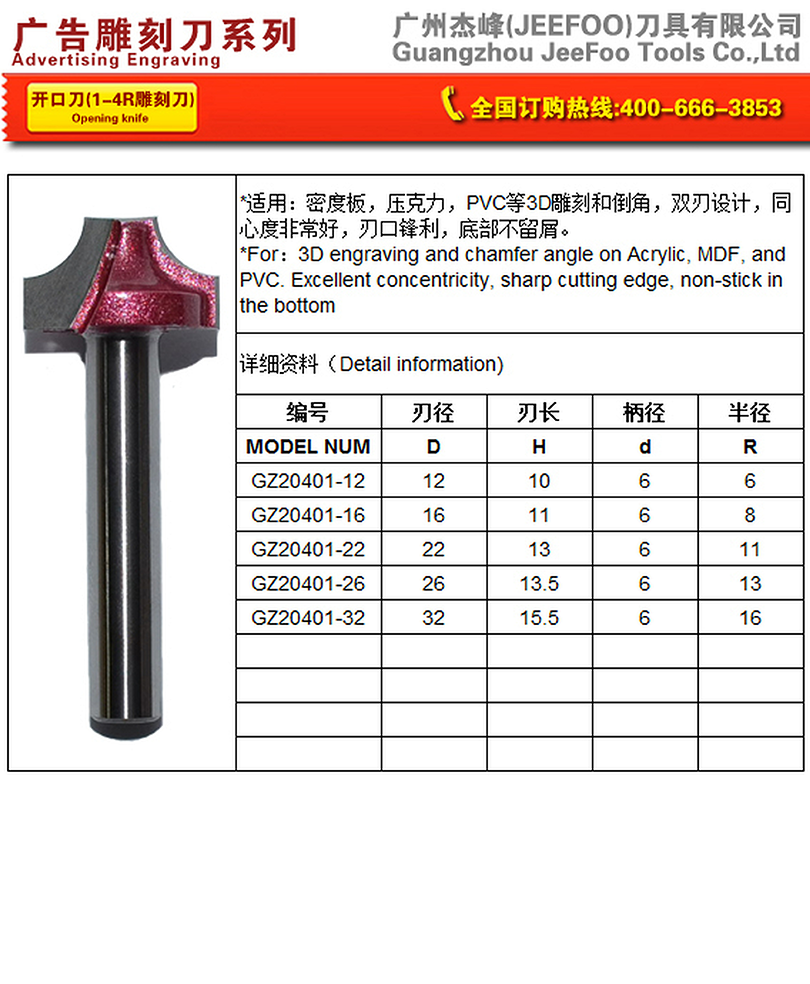

Product Description
- Product name: Woodworking opening knife / open-end carving router bit.
- Construction: Carbon steel body with a carbide cutting tip.
- Application: Woodworking engraving, cutting, grooving and profiling.
- Machine type: Compatible CNC routers and woodworking machines.
- Supply: Standard tools plus OEM and customized cutter service.
Size: 6×12
