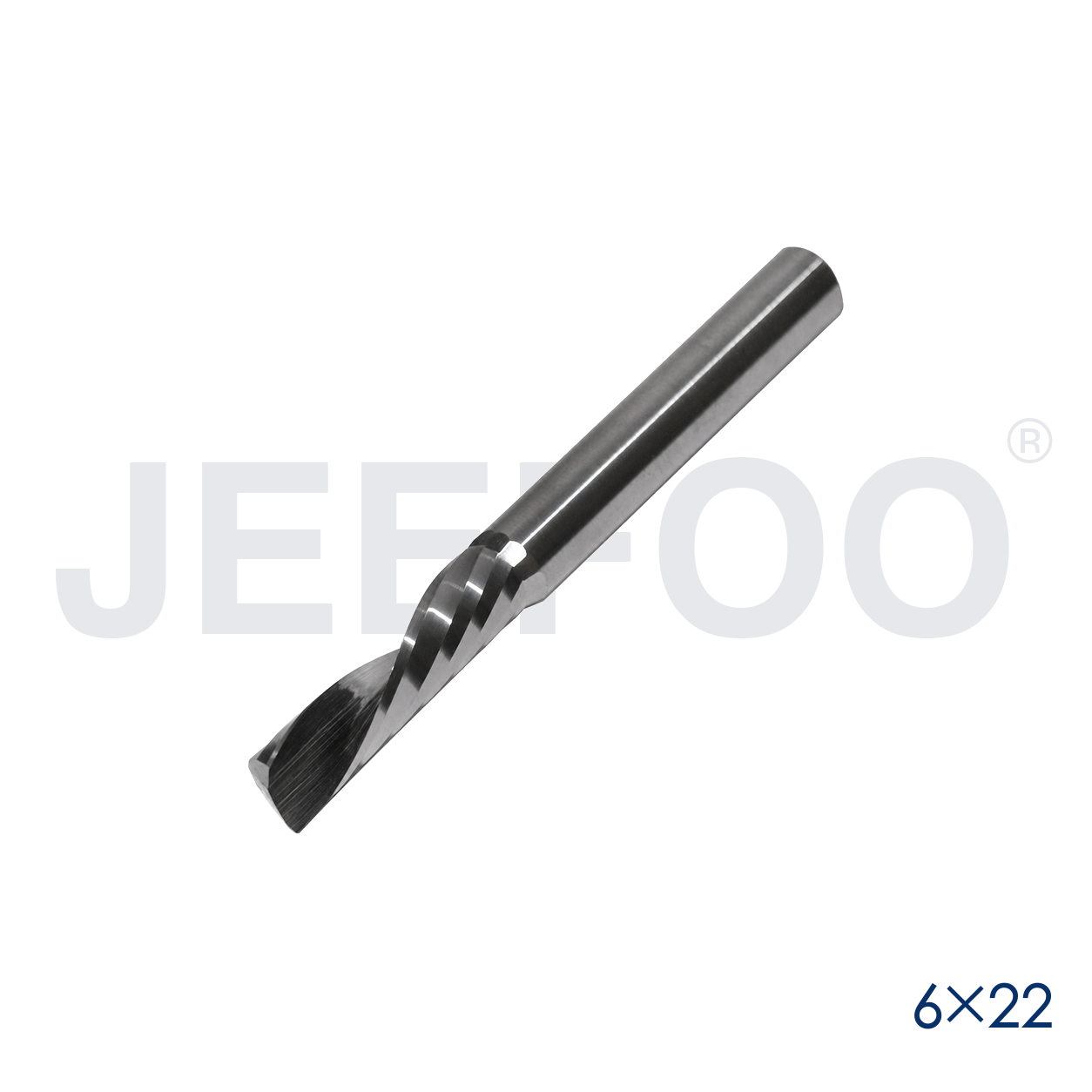

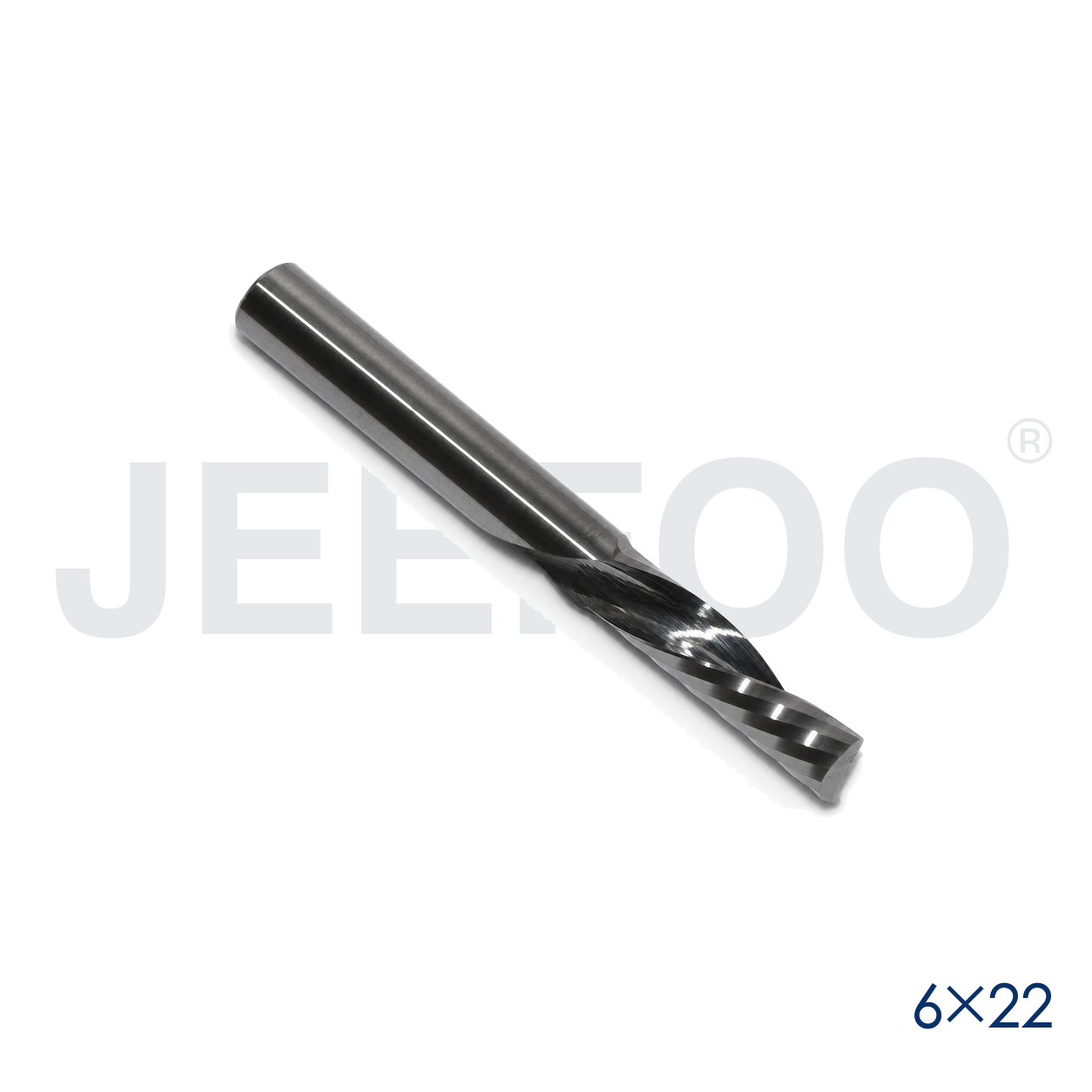

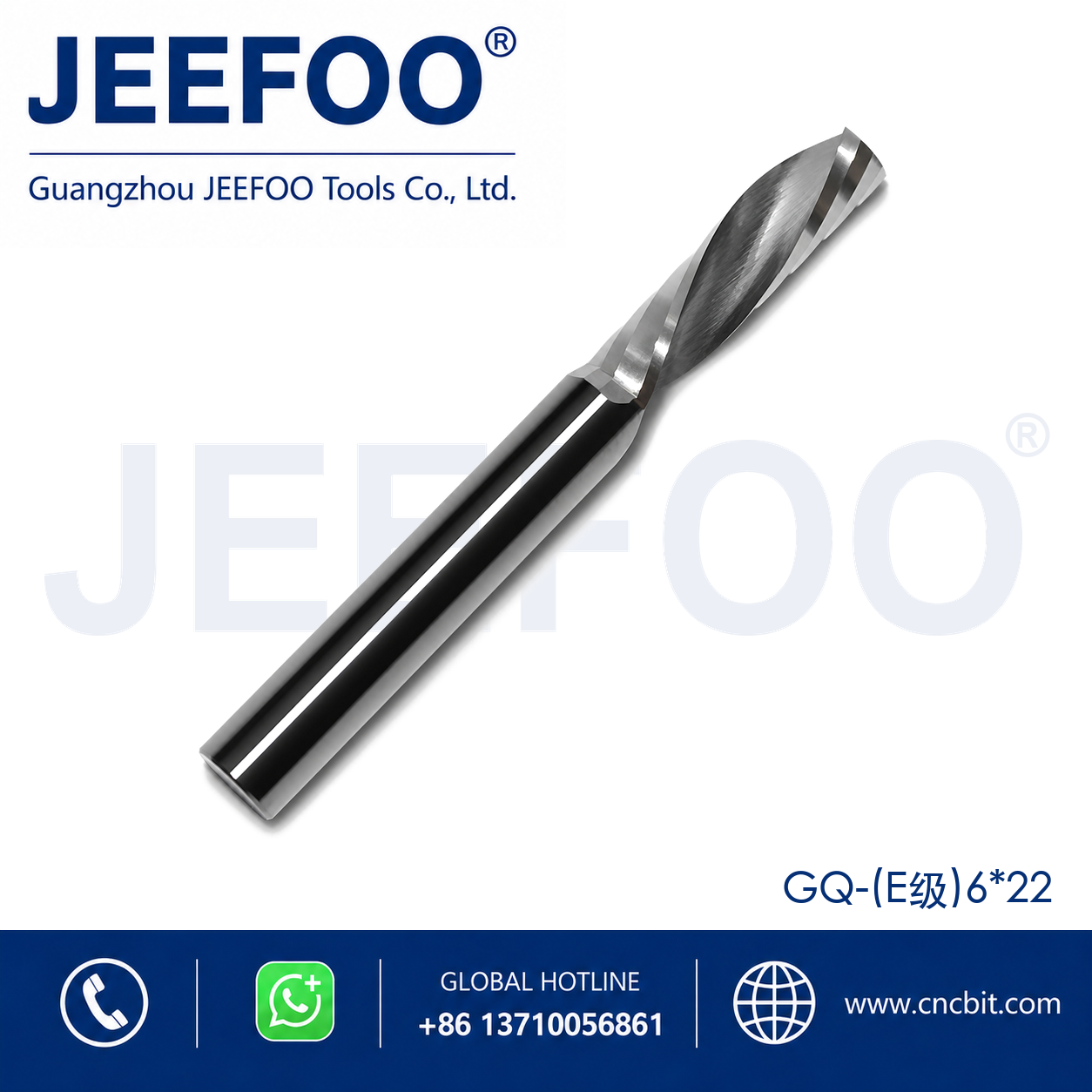

6×22 One Spiral Left-Helical Cutter is a solid carbide single-flute down-cut router bit for clean CNC cutting in acrylic, wood, plywood, MDF, PVC, ABS and compatible light non-ferrous applications. Its left-helical cutting action directs chips downward, helping protect the top surface when workholding and chip evacuation are properly controlled.
6×22 One Spiral Left-Helical Cutter Applications
The 6 mm diameter and 22 mm cutting length suit narrow profiles, slots, pockets, signs and detailed panel components. Workshops can use this cutter for acrylic letters, plastic parts, wood templates and laminated board where a clean upper edge is important. The single flute provides a large chip space, which is useful when the cut produces continuous chips.
Because a down-cut tool pushes chips and cutting force toward the worktable, the 6×22 One Spiral Left-Helical Cutter should be paired with reliable dust extraction or air flow. Deep slots can trap chips if the programmed path does not provide clearance, so several controlled step-down passes are often safer than full-depth engagement.
CNC Setup and Test-Cut Procedure
- Clean the precision collet, nut and carbide shank before installation.
- Hold the shank securely and keep projection as short as the job permits.
- Confirm spindle runout, workholding and the programmed tool offset.
- Start with a shallow pass in scrap material to inspect the top edge.
- Use extraction or air flow to prevent packed chips in narrow slots.
- Increase depth or feed only after chip shape and surface quality are stable.
In computer numerical control machining, feed, spindle speed, radial engagement and step-down must be matched to the material and machine. Excessive tool projection or packed chips can cause vibration and heat. For thin sheets, check that downward cutting force will not flex the workpiece away from its support.
Material and Finish Guidance
Acrylic and PVC need clean chips and controlled heat so the kerf does not melt or weld behind the tool. Wood and MDF require effective dust collection. Plywood and laminated boards should be test-cut to confirm the upper veneer remains clean. For compatible aluminum profiles, use suitable lubrication or air, conservative engagement and a rigid machine approved for the operation.
JEEFOO Supply from Guangzhou, China
JEEFOO manufactures and supplies solid carbide CNC router tools from Guangzhou, China, for distributors, workshops and industrial buyers. Dimensional checks and cutting-edge inspection help confirm the requested specification before shipment. Explore related cutters on the JEEFOO CNC tool website, or provide the work material, machine and required cut depth for application review.
Inspection and Safe Operation
Inspect the flute for resin buildup, aluminum adhesion, a chipped edge or unusual wear after machining. Clean the cutter using a suitable method and replace a damaged tool. Stop the spindle completely before handling, wear eye protection and follow the router manufacturer’s limits for shank grip, speed and guarding.
6×22 One Spiral Left-Helical Cutter FAQ
What is the main benefit of a left-helical down-cut bit?
It directs cutting action downward and can help maintain a clean top edge, provided chips are removed effectively.
Can the full 22 mm flute length be used in one pass?
The flute length provides capacity, but safe step-down depends on material, rigidity, projection and chip evacuation. Multiple passes are often preferable.
What should be supplied with an order request?
Share the diameter, cutting length, shank, overall length, material, machine type, application and quantity so JEEFOO can confirm compatibility.
One Spiral Left-Helical Cutter made from solid tungsten carbide delivers clean down-cutting action and excellent edge quality for CNC routing, milling and engraving.
One Spiral Left-Helical Cutter Features
- High-quality solid carbide construction with an excellent cutting effect.
- Single-flute geometry supports efficient chip evacuation.
- Left-hand spiral cutting action pushes chips downward for cleaner top edges.
- Competitive factory-direct pricing and short lead times.
Product Description
- Product name: Tungsten solid carbide single-flute left spiral end mill.
- Application: Suitable for aluminum window frames, wood products, acrylic, PP, PB, PVC and PE sheet materials.
- Carbide material: Premium imported material options include AF, SANDVIK, KENNAMETAL and CB.
- Quality assurance: Manufactured parts are inspected with advanced Zoller measurement equipment.
- Production: Ground on modern precision tool-grinding machines.
- Flexibility: Non-standard sizes are available on request.
Size: 6×22
Why Choose This Down Cut Router Bit?
This E Grade One Spiral Left-Helical Cutter combines a single flute for efficient chip removal with a down-cut spiral for controlled, clean CNC machining. It is suitable for advertising fabrication, sign making, woodworking and plastic sheet processing. Contact JEEFOO for standard or custom carbide cutter sizes.
