one spiral flute bits Guide
A one spiral flute bits provides a large chip channel for machining aluminium and compatible non-ferrous materials. This 3.175×20 specification should be confirmed from the product drawing, including cutting diameter, flute length, shank size and overall length, before the toolpath is programmed.
Why Use One Flute for Aluminium?
Aluminium forms relatively large, continuous chips. A single-flute design leaves more open space for evacuation and can maintain a practical chip load on high-speed routers with limited feed capability. Removing chips quickly helps reduce recutting, heat and built-up edge. The correct geometry, polished flute and lubrication strategy depend on the alloy and machine.
Typical CNC Applications
- Profiling aluminium sheet and plate
- Slotting, pocketing and contour machining
- Cutting sign components and light structural parts
- Machining suitable copper, brass or plastic after testing
- Roughing and finishing when the engagement is properly controlled
Setup Checklist
- Clean the collet, nut and tool shank before installation.
- Clamp the tool at a safe depth and minimize projection.
- Measure runout because a single cutting edge is sensitive to imbalance.
- Secure the workpiece and confirm clamp clearance in the toolpath.
- Use an entry method that matches the cutter’s center-cutting capability.
Feeds, Speed and Chip Load
Start with conservative values based on the actual diameter, alloy, spindle and machine rigidity. Adjust feed and spindle speed together so the edge removes a real chip instead of rubbing. Fine dust, squealing or a polished surface can indicate insufficient chip load. Excessive spindle load, chatter or thick distorted chips may indicate too much engagement.
Chip Evacuation and Cooling
Direct an approved air blast, mist or compatible coolant toward the cutting zone. Keep chips from accumulating in slots and pockets. If aluminium begins welding to the flute, stop and inspect the edge rather than compensating with extreme feed. Built-up material changes the cutter geometry and can quickly damage the part or tool.
How to Improve Surface Finish
Leave a small, consistent radial allowance during roughing and use a light finishing pass. Stable workholding, low runout and smooth toolpath transitions help the one spiral flute bits produce an even wall. Avoid excessive overhang and abrupt full-width engagement in corners. Inspect the finished edge and adjust one parameter at a time.
Troubleshooting
- Chip welding: improve evacuation and lubrication, then verify chip load.
- Chatter: reduce projection, strengthen workholding or lower engagement.
- Rough walls: check runout, edge condition and finishing allowance.
- Tool breakage: inspect for packed chips, excessive depth and sudden toolpath loads.
Selection and Tool Care
Before ordering, confirm the 3.175×20 dimensions, flute direction, cutting-edge geometry, shank and coating or polished-flute requirement. Share the alloy, machine, operation and finish target with JEEFOO. After use, remove chips carefully, inspect the edge and store the tool separately. Explore more JEEFOO aluminium CNC cutters and follow applicable machine safety guidance.
Frequently Asked Questions
Can this cutter plunge straight down? Only if the exact tool has center-cutting geometry. When uncertain, use a ramp or helical entry and confirm the specification.
Why is aluminium sticking to the flute? Common causes include poor evacuation, inadequate lubrication, rubbing from unsuitable chip load or a worn edge.

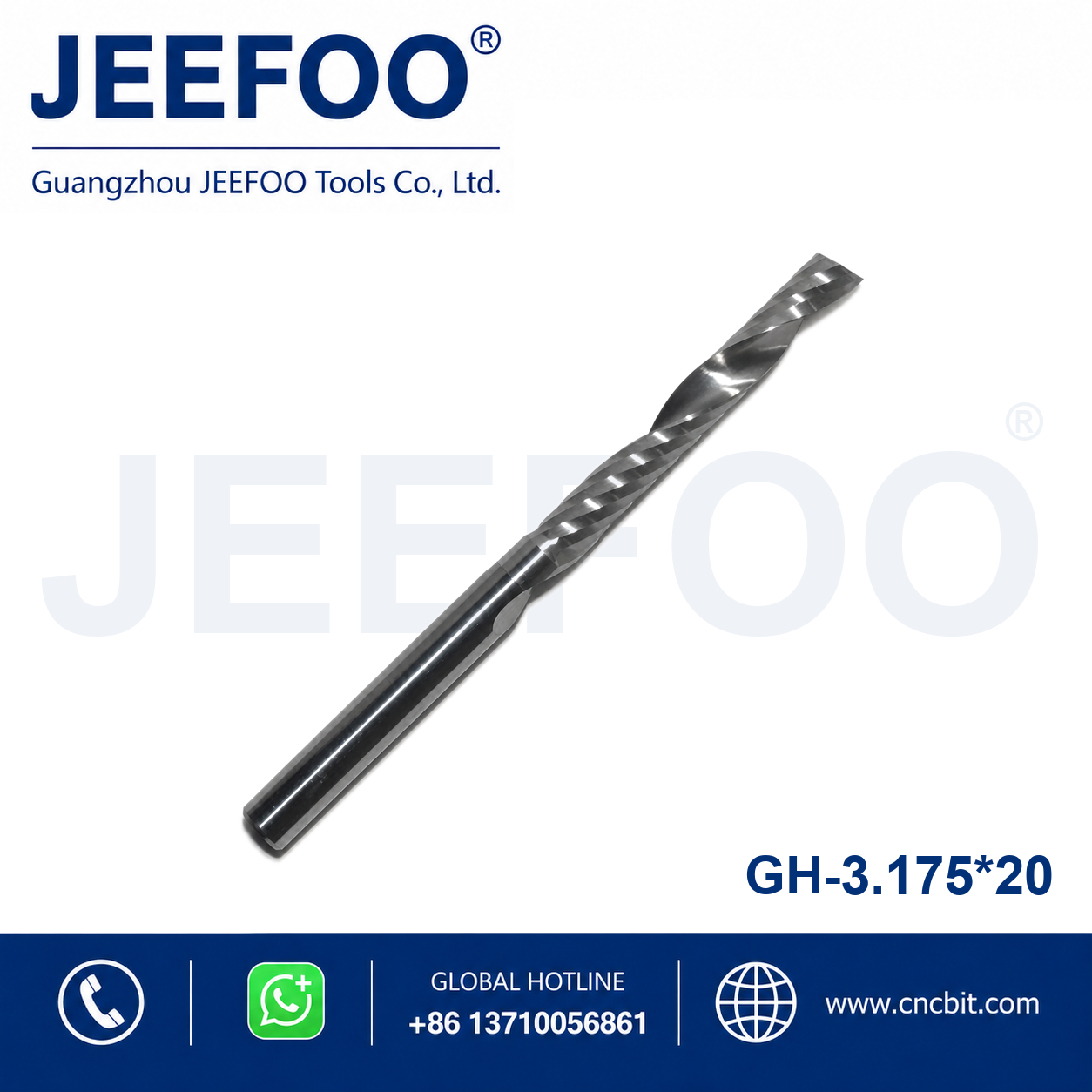

One Spiral Flute Bits Tungsten Carbide End Mill Engraving Tool Bits / Cutting Tool
1.Suitable Materials:
special for MDF density board,acrylic,plastic,
Acrylic, PVC, MDF, high-density board, lotus board,
Solid wood, wood, plastic plate, double color sheet, etc.
Understanding the Importance of Cutting Tools
Application:
Cutting, engraving, slotting, milling, and so on, such as hollow cut.
Features:
(1) MATERIAL IMPORT,Adopt HIGH quality SOLID CARBIDE, high precision grind by imported machine tools;
(2) Unique finish polish, sharp cutting edge;
(3) High durability, not easy to break;
(4) Combine single-edge excellent removing and spiral cutting, can greatly increase cutting speed
(5)Size:3.175×20
