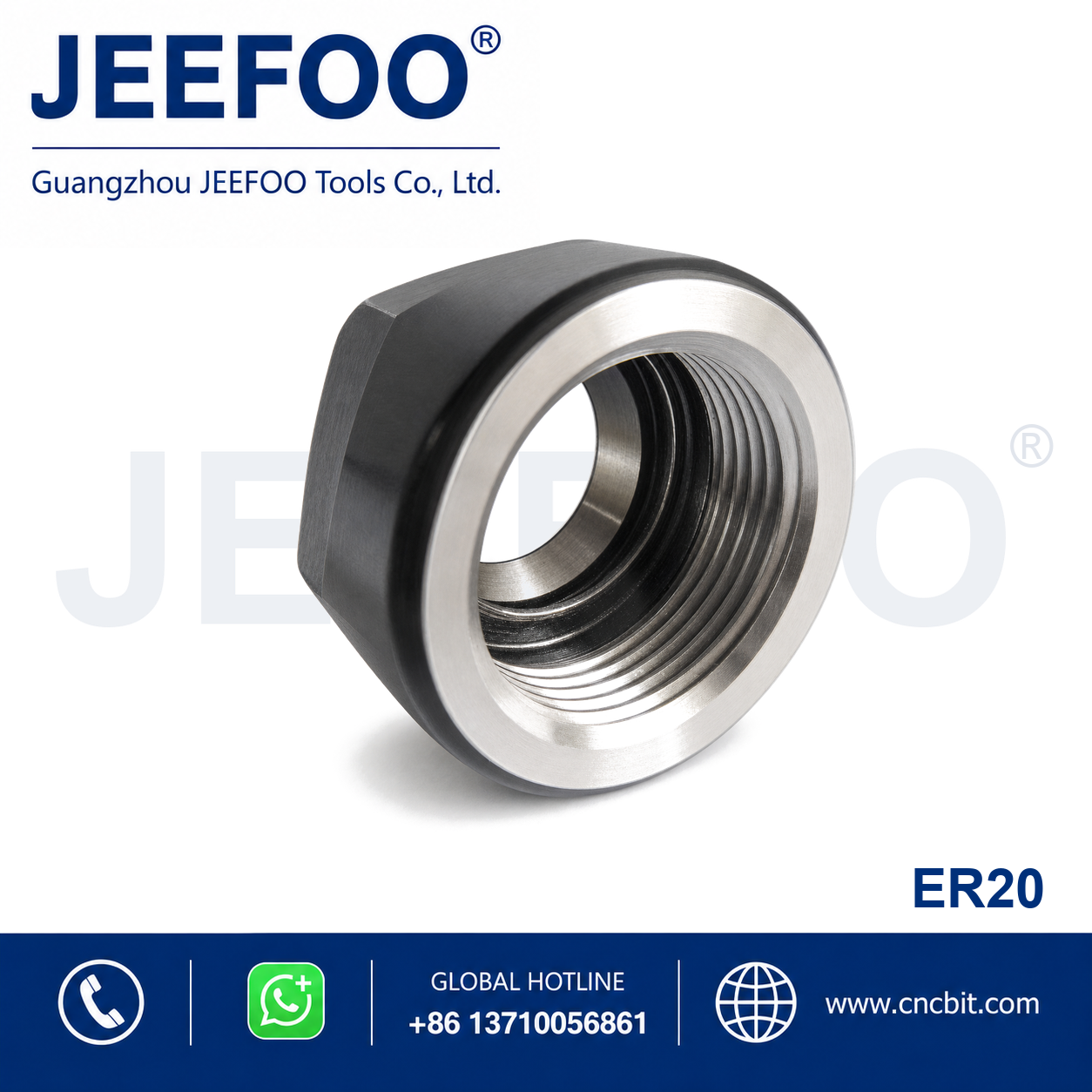

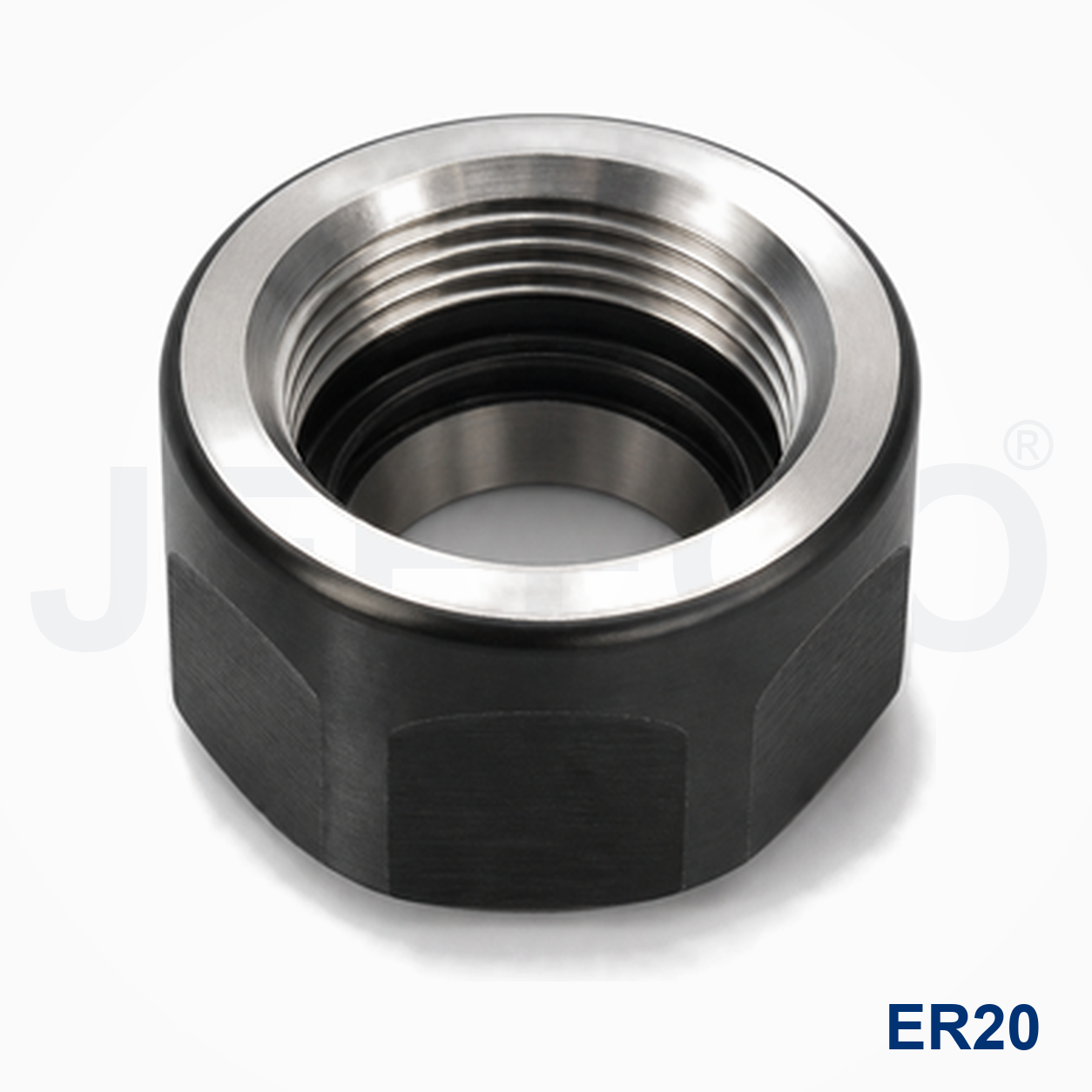

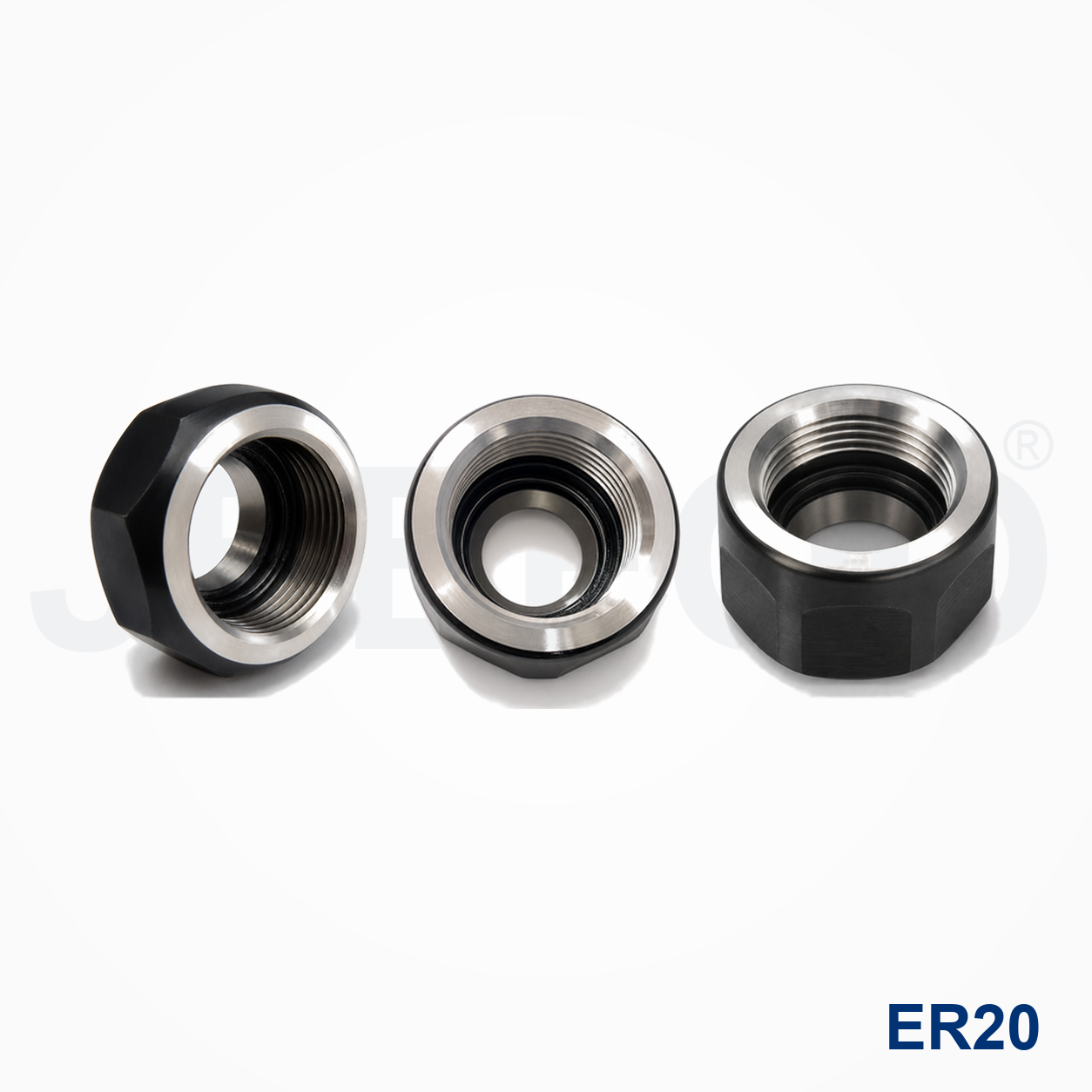

ER20 Precision Collet Nut is designed for reliable CNC tool holding and accessory installation. Its accurately machined structure supports stable clamping, convenient assembly and dependable workshop use.
Precision Collet Nut Features
- Precision-machined contact surfaces support secure installation and consistent positioning.
- Durable metal construction is suitable for routine CNC machining and workshop service.
- Compatible dimensions help simplify replacement, maintenance and tool setup.
- Designed for stable clamping when correctly matched with the spindle, holder and cutting-tool shank.
Applications and Selection Guidance
This precision collet nut is suitable for CNC routers, engraving machines and compatible tool-holding systems. Confirm the interface series, outside diameter, bore or thread specification before ordering.
Product Description
- Product: Precision Collet Nut.
- Specification: ER20.
- Application: CNC tool holding and machine-tool accessory replacement.
- Selection: Match the holder series, diameter and interface dimensions.
- Customization: Contact us for compatible sizes and non-standard requirements.
Size: ER20
ER20 Precision Collet Nut is a replacement clamping component for compatible ER20 collet systems. Correct seating, clean contact surfaces and even tightening help maintain tool concentricity and reliable CNC machining performance.
ER20 Precision Collet Nut Overview
Use this nut only with a compatible ER20 collet, holder and spindle assembly. Before ordering, compare the thread, nose profile, wrench interface and overall dimensions with the original component or machine drawing. A nut that matches the collet system but not the holder thread can damage the assembly and create unsafe runout.
Key Selection Points
- Confirm ER20 system compatibility and the exact holder thread.
- Match the nut nose and collet seating geometry to the holder.
- Inspect the wrench flats, threads and contact surfaces before installation.
- Use a clean, undamaged ER20 collet and correctly sized tool shank.
- Follow the holder manufacturer torque practice rather than guessing.
Installation and Setup Guidance
Remove chips, dust and corrosion from the ER20 Precision Collet Nut, holder, collet and tool shank. Insert the collet correctly into the nut before fitting it to the holder, then seat the cutter at the recommended depth. Tighten evenly with the proper wrench and check runout at the tool. Make a conservative test pass before production and stop if vibration, heat or unusual noise appears.
Maintenance Checklist
- Clean and dry the nut and collet after use.
- Check threads and wrench surfaces for impact damage or galling.
- Inspect the collet for cracks, scoring or loss of spring action.
- Verify tool seating, runout and clearance after every tool change.
- Replace components that cannot clamp evenly or show visible damage.
Safety and Compatibility
Use the ER20 Precision Collet Nut only on compatible equipment and follow the machine manufacturer instructions. Keep hands clear of rotating parts, secure the workpiece and use appropriate eye, hearing and respiratory protection. Review OSHA machine guarding guidance for general safeguarding principles. For help confirming thread, collet and holder compatibility, contact JEEFOO Tools with the machine model and component drawing.
ER20 Precision Collet Nut FAQ
Which collet system uses this nut?
It is intended for compatible ER20 systems. Confirm the holder thread and nut profile before replacing an existing component.
How do I install the collet?
Seat the collet in the nut as specified by the holder manufacturer, insert the tool shank correctly and tighten with the approved wrench practice.
How can I reduce runout?
Clean all contact surfaces, use an undamaged collet, keep the tool shank straight and check the complete assembly with an indicator.
When should the nut be replaced?
Replace it when threads, wrench flats or the collet seat are damaged, or when the component cannot clamp the collet evenly.
For an accurate replacement request, quote ER20 Precision Collet Nut with the holder model, thread details and collet application.
