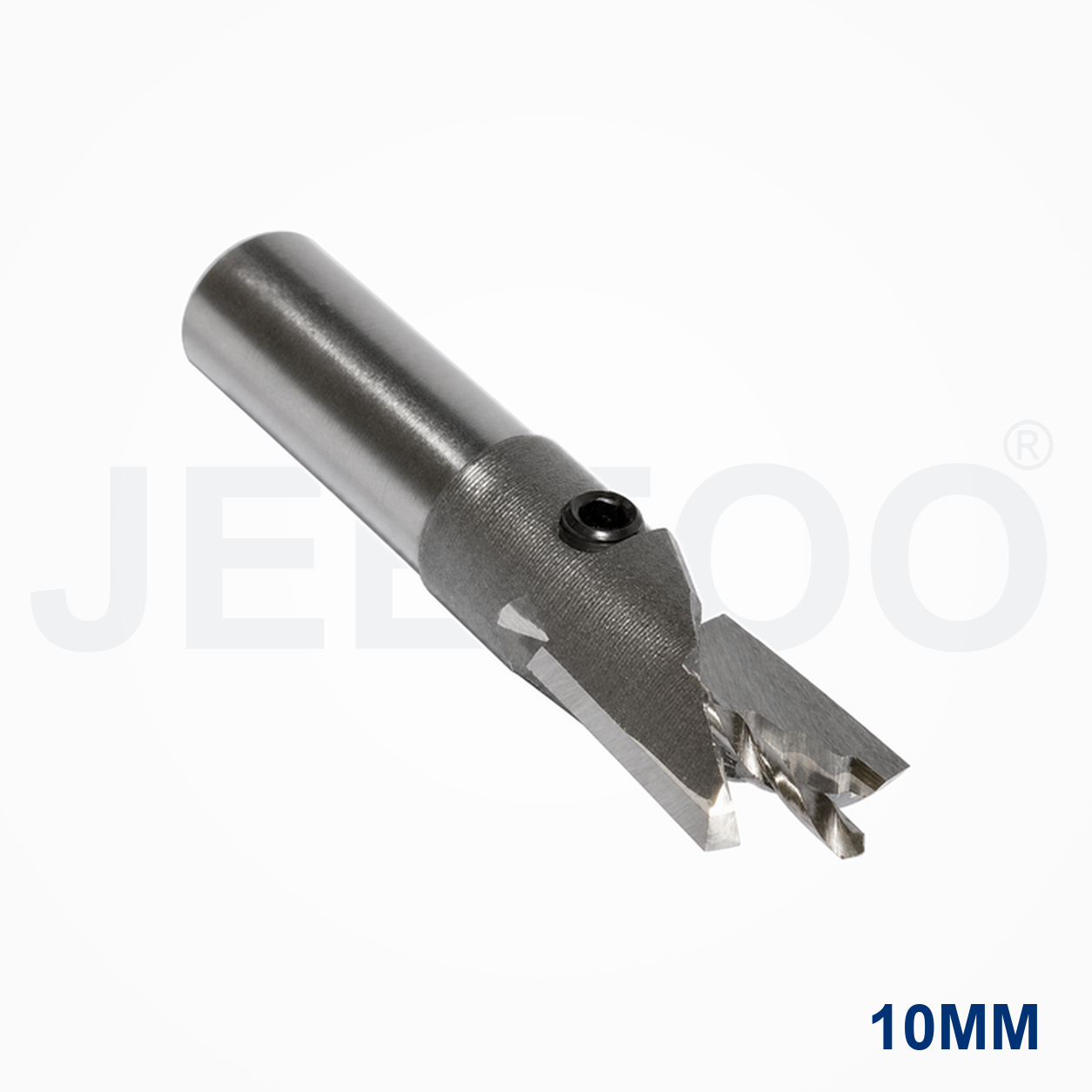

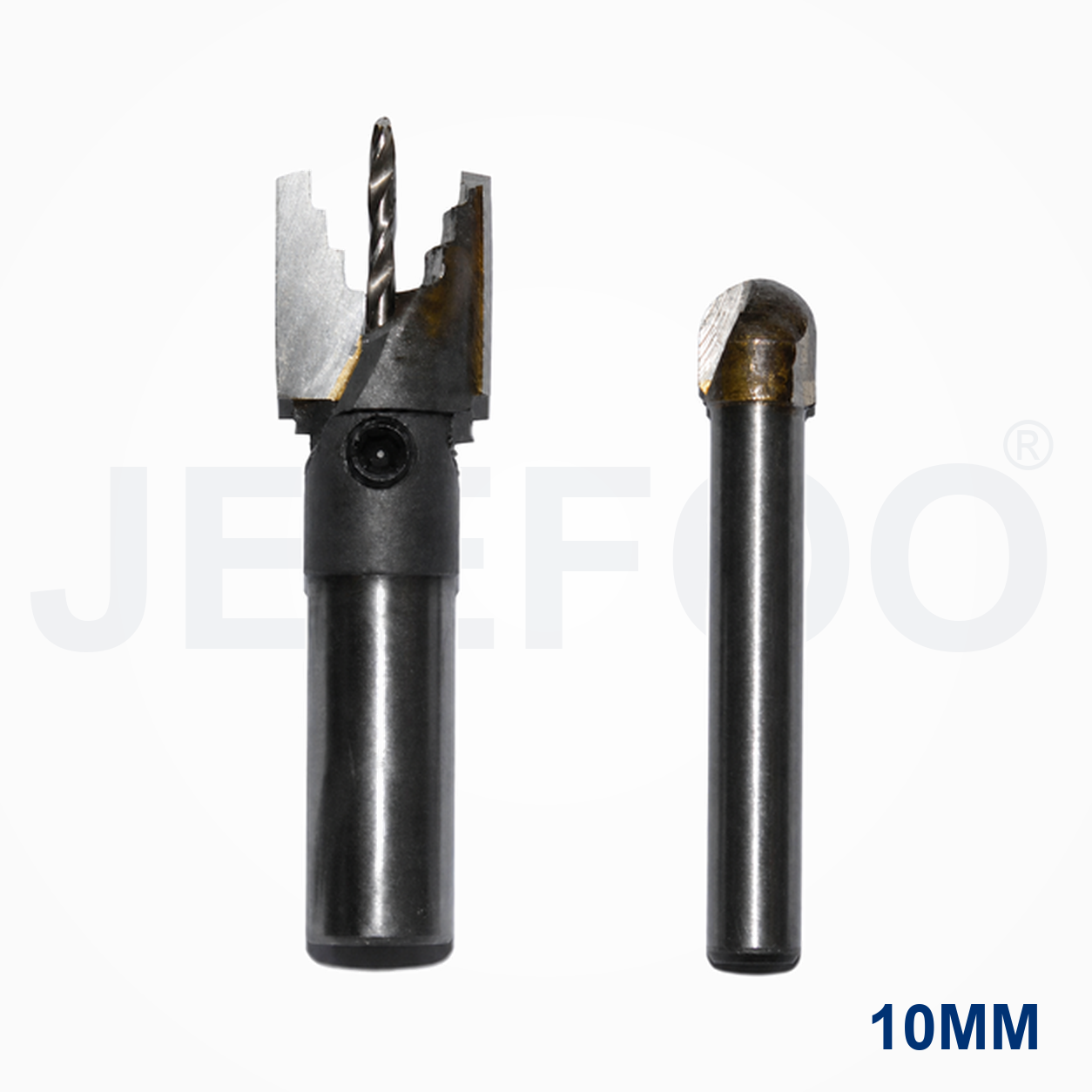

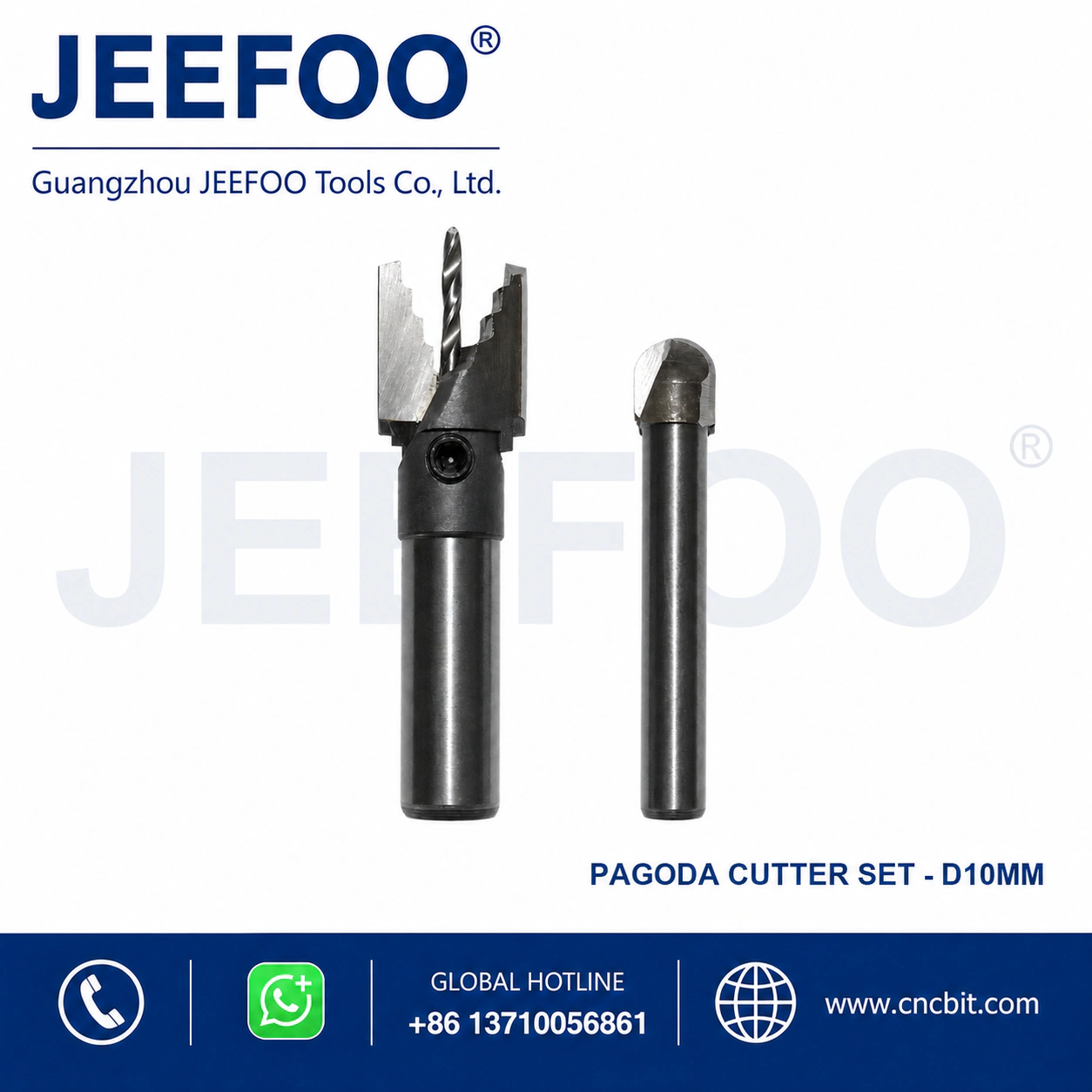

Bench Drill Pagoda Bead Cutter 10 mm is a profile-forming woodworking cutter for producing decorative pagoda-shaped beads and components on compatible bench-drill equipment. Its matched cutting geometry supports repeatable contours and controlled material removal when the cutter, spindle and wood blank are correctly aligned.
Bench Drill Pagoda Bead Cutter Features
- 10 mm reference size for pagoda-style bead shaping.
- Profiled edge supports consistent decorative contours.
- Designed for compatible bench drills with rigid workholding.
- Suitable for solid wood and other approved bead-making materials.
- Supports small-batch craft and decorative woodworking production.
Applications and Cutter Selection
The Bench Drill Pagoda Bead Cutter is intended for wooden pagoda beads, decorative craft components and related shaped parts. The finished profile depends on the cutter geometry, blank dimensions, wood species, spindle condition and feed technique. A stable setup helps maintain symmetry and surface quality across a production batch.
Before ordering, confirm the 10 mm reference size, shank interface, center arrangement, profile dimensions and available machine clearance. Compare those details with the bench drill, chuck or collet and the proposed fixture. For non-standard work, provide a dimensioned drawing, reference sample or clear finished-part specification.
Blank Preparation and Workholding
Select a straight, dry blank without cracks, loose knots or embedded metal. Cut stock to a consistent size and mark the center before machining. Pagoda-bead blanks are small, so they require a rigid fixture or approved clamping method that prevents rotation while keeping the cutter path clear.
- Disconnect power while installing or inspecting the cutter.
- Clean the shank and holder before seating the tool.
- Confirm spindle runout and adequate profile clearance.
- Center and clamp the blank before starting the machine.
- Make a light trial cut on scrap from the same material.
- Inspect symmetry, profile depth and surface finish.
Controlled Cutting Procedure
Feed the Bench Drill Pagoda Bead Cutter gradually and use progressive passes rather than one heavy cut. Excessive pressure can increase heat, vibration, torn grain and profile distortion. If the cutting sound or resistance changes, stop the spindle and inspect the edge, holder, fixture and blank before continuing.
Keep the process consistent during batch work. Use the same blank dimensions, center position, clamping pressure, spindle speed, feed direction and cutting depth for every part. A depth stop or repeatable fixture can help control the profile, but finished beads should still be checked before sanding or polishing.
Cut Quality and Troubleshooting
A sharp edge and stable spindle help the Bench Drill Pagoda Bead Cutter produce clean stepped contours. Burning can indicate excessive speed, slow feed, resin buildup or a dull edge. Chatter may result from loose workholding, excessive tool projection or spindle runout. Correct these issues only after the machine stops and power is isolated.
Test every new material before committing to a full batch. Dense or highly figured wood may require lighter passes and closer inspection. Consider the sanding allowance when selecting the target profile so the finished bead can reach its intended size after surface preparation.
Safety, Cleaning and Storage
Use suitable eye and dust protection, keep guards in place and follow recognized woodworking machine safety guidance. Small blanks must never be held by hand near a rotating cutter. Keep hands, loose clothing and hair away from the spindle, and do not clear chips while it is moving.
After use, remove resin and dust with a method suitable for the tool material. Dry the Bench Drill Pagoda Bead Cutter and inspect its profile edge and shank for wear or damage. Store it so the cutting surface cannot strike other metal parts. Regular care supports consistent profiles and safer setups.
Guangzhou, Guangdong Supply Support
JEEFOO Tools supplies the Bench Drill Pagoda Bead Cutter from Guangzhou, Guangdong, China, with selection, customization and export support for woodworking-tool buyers. Explore related JEEFOO woodworking cutting tools, or send the team your machine details, material and target bead dimensions for review.

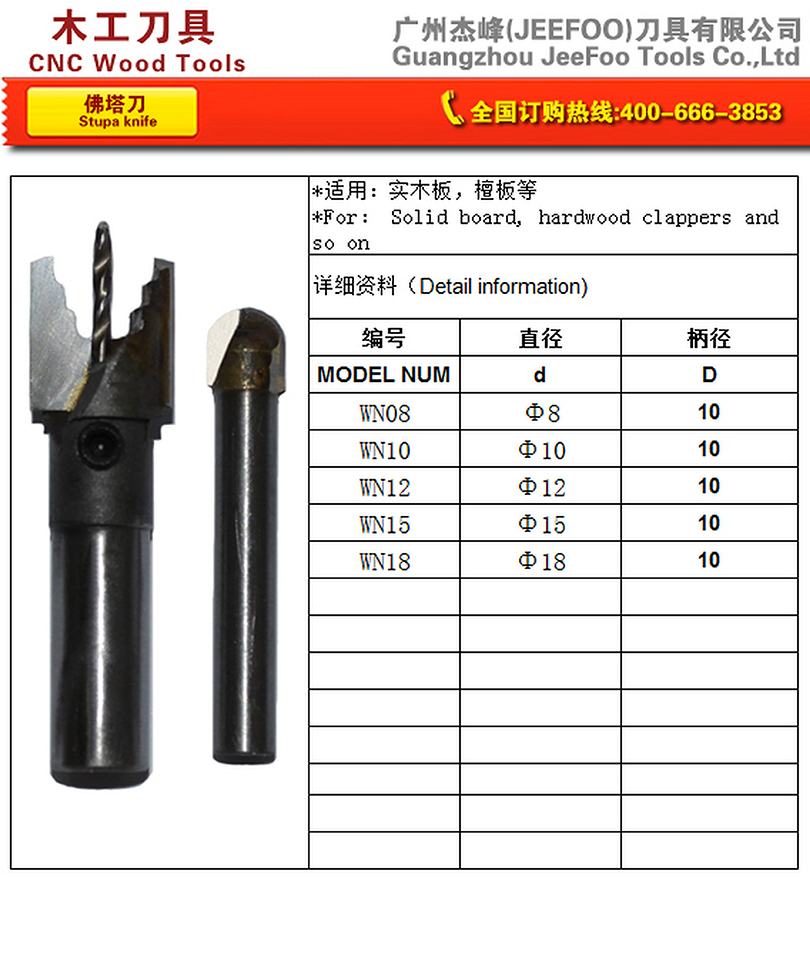

Product Description
- Category: Bench Drill-Pagoda Bead Cutter.
- Reference size: 10 mm.
- Product type: Woodworking pagoda bead forming cutter.
- Equipment: Compatible bench drill or fixed drilling machine.
- Selection: Confirm the profile, shank and workholding method before ordering.
